Simple Plex Mouse IL-4 Cartridge

Name: Simple Plex Mouse IL-4 Cartridge
Brand: R&D Systems
SKU: SPCKB-MP-009768
Price: 450 USD
Availability: InStock

R&D Systems | Catalog # SPCKB-MP-009768

Submit a review

Citations

Product Documents

Simple Plex Mouse IL-4 assay kit for use on Ella instrument. Contains cartridge, sample diluent SD09, and wash buffer.

Customize This Cartridge

Simple Plex cartridges are custom built to fit your needs. Choose from over 350 assays spanning human, mouse, rat, and non-human primate. Just select your sample type, cartridge size (16, 32, or 72 samples), and up to 8 analytes per cartridge. Customize this cartridge.

Customize This Cartridge

Compatible Instruments
Product Specifications
Precision
Recovery
Linearity
Scientific Data
Preparation & Storage
Background
Product Documents
Specific Notices
Research Areas

Key Product Details

Assay Length

90 minutes

Sample Type & Volume Required Per Well*

Cell Culture Supernates (10 µL), Serum (10 µL), EDTA Plasma (10 µL), Heparin Plasma (10 µL), Bronchoalveolar Lavage Fluid (25 µL)

Sensitivity

0.696 pg/mL

Assay Range

2.13-3262 pg/mL (Bronchoalveolar Lavage Fluid, Cell Culture Supernates, Serum, EDTA Plasma, Heparin Plasma)

Simple Plex Mouse IL-4 Cartridge Summary

Simple Plex assay for the detection of mouse Interleukin 4 (IL-4) in cell culture supernatant (CCS), serum, plasma (EDTA/Heparin), and bronchoalveolar fluid (BALF).

*The Sample Volume represented is based on the amount of sample incorporated into the reaction after taking into account the assay's minimum required dilution for a given matrix. Serial dilution may be necessary to achieve some of the final sample volumes represented.

View all IL-4 Simple Plex »

Compatible Instruments

Ella Automated Immunoassay System

Efficiently analyze biomarkers with Ella's advanced technology, providing accurate, precise results in under 90 minutes. Quantify up to 8 targets per assay through a streamlined automated workflow. Choose from >350 highly validated Simple Plex assays or Simple Plex discovery assays.

Learn More

Product Specifications

Assay Type

Automated sandwich ELISA

Format

Microfluidic cartridge containing three Glass Nano Reactors (GNR)

Species

Mouse

Specificity

Natural and recombinant mouse IL-4.

Cross-reactivity

< 0.5% cross-reactivity observed with available related molecules. < 50% cross-species reactivity observed with species tested.

Interference

No significant interference observed with available related molecules.

Precision

Intra-Assay Precision (Precision within an assay) Each control was tested 16 times in one assay.

Inter-Assay Precision (Precision between assays) Replicates of each control were tested in multiple assays performed by at least three technicians using two lots of reagents.

Bronchoalveolar Lavage Fluid, Cell Culture Supernates, EDTA Plasma, Heparin Plasma, Serum

	Intra-Assay Precision		Inter-Assay Precision
Sample	1	2	1	2
n	16	16	39	39
Mean (pg/mL)	23.7	1336	22.9	1259
Standard Deviation	0.548	55.9	1.61	81.8
CV%	2.3	4.2	7.0	6.5

Recovery for Simple Plex Mouse IL-4 Cartridge

Recovery at three different spiked concentrations within the range of the assay was evaluated.

Sample Type	Average % Recovery	Range %
Bronchoalveolar Lavage Fluid (n=3)	97	93-101
Cell Culture Media (n=2)	106	105-107
EDTA Plasma (n=4)	92	89-98
Heparin Plasma (n=4)	78	76-81
Serum (n=4)	80	75-84

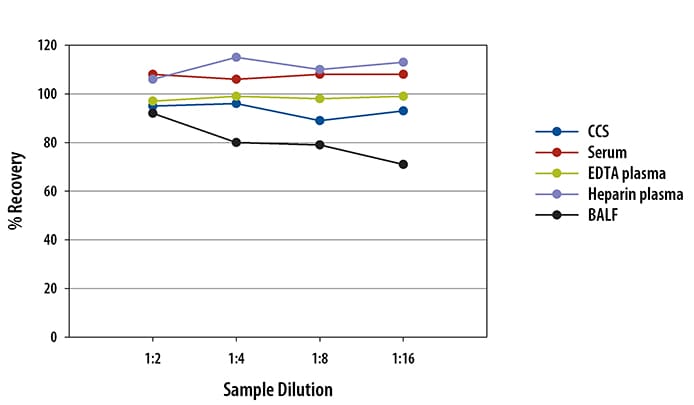

Linearity

Samples containing and/or spiked with high concentrations of mouse IL-4 were serially diluted with Sample Diluent to produce samples within the dynamic range of the assay.

Scientific Data Images for Simple Plex Mouse IL-4 Cartridge

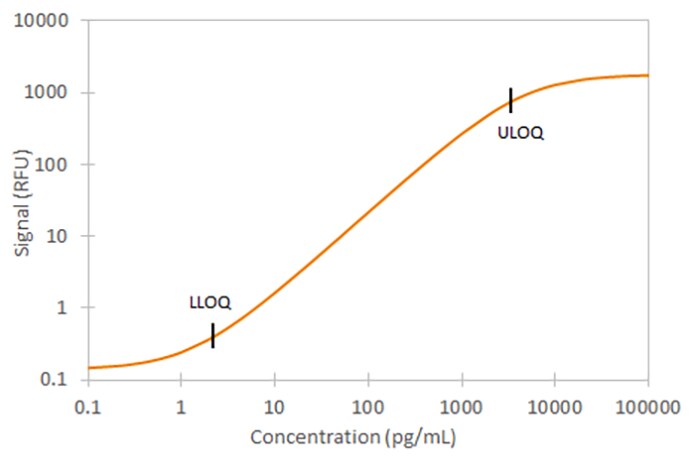

Mouse IL-4 Ella Assay Standard Curve

Preparation and Storage

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: IL-4

IL-4 (Interleukin-4) is a cytokine that is primarily expressed by Th2-biased CD4⁺ T cells, mast cells, basophils, and eosinophils. It promotes cell proliferation, survival, and immunoglobulin class switch to IgG4 and IgE in human B cells, acquisition of the Th2 phenotype by naÃ¯ve CD4⁺ T cells, priming and chemotaxis of mast cells, eosinophils, and basophils, and the proliferation and activation of epithelial cells. IL-4 plays a dominant role in the development of allergic inflammation and asthma. The type I receptor for IL-4, which is expressed on hematopoietic cells, is a heterodimer of the ligand binding IL-4 R alpha and the common gamma chain (a shared subunit of the receptors for IL-2, -7, -9, -15, and -21). The type II receptor on nonhematopoietic cells consists of IL-4 R alpha and IL-13 R alpha 1. The type II receptor also transduces IL-13 mediated signals.
