Simple Plex NHP NF-L Cartridge

Catalog #: SPCKB-PS-003198 Datasheet / COA / SDS
Simple Plex Cartridge Kit for quantitation of NF-L. Includes wash buffer and sample diluent. For use with the Ella automated immunoassay system

Discontinued Product

SPCKB-PS-003198 has been discontinued.
View all NF-L products.
NHP NF-L Simple Plex Assay
3 Images
Product Details
FAQs
Reviews

Simple Plex NHP NF-L Cartridge Summary

Assay Type
Automated sandwich ELISA
Format
Microfluidic cartridge containing three Glass Nano Reactors (GNR)
Assay Length
90 minutes
Sample Type & Volume Required Per Well*
Non-human Primate Serum (25 uL), Non-human Primate EDTA Plasma (25 uL), Non-human Primate Heparin Plasma (25 uL)
Sensitivity
2.7 Not Assigned
Assay Range
2.7 - 10,290 Not Assigned (Non-human Primate Serum, Non-human Primate EDTA Plasma, Non-human Primate Heparin Plas)
Specificity
Natural and recombinant non-human primate NF-L
Cross-reactivity
< 0.5% cross-reactivity observed with available related molecules.< 50% cross-species reactivity observed with species tested.
Interference
No significant interference observed with available related molecules.

*The Sample Volume represented is based on the amount of sample incorporated into the reaction after taking into account the assay’s minimum required dilution for a given matrix. Serial dilution may be necessary to achieve some of the final sample volumes represented.

Product Summary

Simple Plex assay for the detection of non-human primate NF-L in serum and plasma (EDTA/Heparin)

Precision

Intra-Assay Precision (Precision within an assay) Each control was tested 16 times in one assay
Inter-Assay Precision (Precision between assays) Replicates of each control were tested in multiple assays performed by at least three technicians using two lots of reagents

Non-human Primate EDTA Plasma, Non-human Primate Serum, Non-human Primate Heparin Plasma

Intra-Assay Precision Inter-Assay Precision
Sample 1 2 3 4
n 16 16 16 16
Mean (pg/mL) 76.6 3309 80.5 3476
Standard Deviation 3.64 154 8.35 267
CV% 4.8 4.7 10.4 7.7

Recovery

Sample Type Average % Recovery Range %
Non-human Primate EDTA Plasma (n=4) 93 86-99
Non-human Primate Heparin Plasma (n=4) 101 93-106
Non-human Primate Serum (n=4) 108 95-115

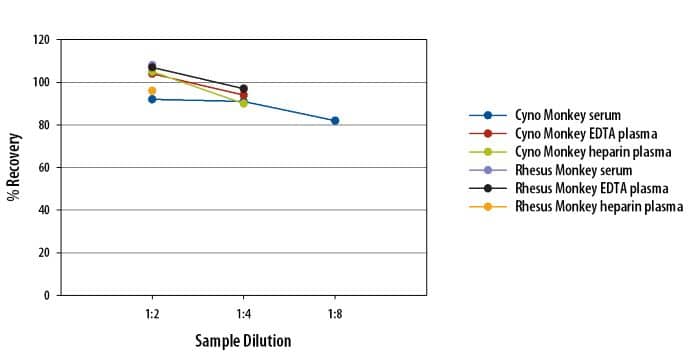

Linearity

Samples containing and/or spiked with high concentrations of non-human primate NF-L were serially diluted with Sample Diluent to produce samples within the dynamic range of the assay
NHP NF-L Simple Plex Assay Linearity

Scientific Data

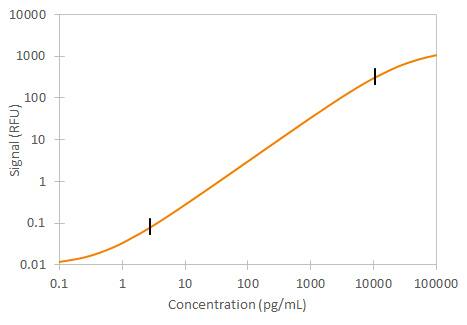

NHP NF-L Simple Plex Assay Standard Curve

Product Datasheets

You must select a language.

x

Preparation and Storage

Shipping
The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Storage
Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: NF-L

Neurofilaments are intermediate filaments that are major components of the neuronal cytoskeleton. Neurofilaments are composed of three subunits: the heavy subunit (NF-H), medium subunit (NF-M), and light subunit (NF-L). Neurofilaments are trimers that always contain the 68 kDa NF-L and variably contain 125 kDa NF-M and 200 kDa NF-H. The human neurofilament heavy chain is a phosphorylated cytoskeletal intermediate filament protein that is expressed in neurons. The neurofilament medium subunit Human NF-M is a phosphorylated glycoprotein that belongs to the type IV intermediate filament family. NF-L is a 68 kDa light chain cytoskeletal intermediate filament protein that associates with the 125 kDa NF-M and the 200 kDa NF-H to form neurofilaments.

All three neurofilament subunits share a common structure, with globular head, alpha-helical rod, and carboxy terminal side-arm domains. The subunits assemble to form 10 nm neurofilaments. Accumulation of neurofilaments is seen in several human diseases including amyotrophic lateral sclerosis (ALS), Parkinsons disease, Alzheimers disease, and diabetic neuropathy.

Long Name:
Neurofilament Protein, Light Chain
Entrez Gene IDs:
4747 (Human)
Alternate Names:
68 kDa neurofilament protein; CMT2E; NEFL; neurofilament protein, light chain; neurofilament subunit NF-L; Neurofilament triplet L protein; neurofilament, light polypeptide; neurofilament-light; NF68; NF68FLJ53642; NFL; NF-L; NFLlight polypeptide 68kDa
