TOMM20 Antibody - Azide and BSA Free
Novus Biologicals | Catalog # NBP2-94821
![Western Blot: TOMM20 AntibodyAzide and BSA Free [NBP2-94821]](https://resources.rndsystems.com/images/products/TOMM20-Antibody-Western-Blot-NBP2-94821-img0008.jpg "Western Blot: TOMM20 AntibodyAzide and BSA Free [NBP2-94821]")
Loading...
Key Product Details
Species Reactivity
Human, Mouse, Rat
Applications
Knockout Validated, Immunohistochemistry, Immunohistochemistry-Paraffin, Western Blot, ELISA, Immunocytochemistry/ Immunofluorescence
Label
Unconjugated
Antibody Source
Polyclonal Rabbit IgG
Format
Azide and BSA Free
Loading...
Product Specifications
Immunogen
Recombinant fusion protein containing a sequence corresponding to amino acids 20-145 of human TOMM20 (NP_055580.1). YCIYFDRKRRSDPNFKNRLRERRKKQKLAKERAGLSKLPDLKDAEAVQKFFLEEIQLGEELLAQGEYEKGVDHLTNAIAVCGQPQQLLQVLQQTLPPPVFQMLLTKLPTISQRIVSAQSLAEDDVE
Clonality
Polyclonal
Host
Rabbit
Isotype
IgG
Theoretical MW
16 kDa.
Disclaimer note: The observed molecular weight of the protein may vary from the listed predicted molecular weight due to post translational modifications, post translation cleavages, relative charges, and other experimental factors.
Disclaimer note: The observed molecular weight of the protein may vary from the listed predicted molecular weight due to post translational modifications, post translation cleavages, relative charges, and other experimental factors.
Scientific Data Images for TOMM20 Antibody - Azide and BSA Free
Western Blot: TOMM20 AntibodyAzide and BSA Free [NBP2-94821]
Western Blot: TOMM20 Antibody [NBP2-94821] - Western blot analysis of extracts of various cell lines, using TOMM20 antibody (NBP2-94821) at 1:1000 dilution. Secondary antibody: HRP Goat Anti-Rabbit IgG (H+L) at 1:10000 dilution. Lysates/proteins: 25ug per lane. Blocking buffer: 3% nonfat dry milk in TBST. Detection: ECL Basic Kit. Exposure time: 5min.![Immunohistochemistry-Paraffin: TOMM20 Antibody - Azide and BSA Free [NBP2-94821]](https://resources.rndsystems.com/images/products/TOMM20-Antibody-Immunohistochemistry-Paraffin-NBP2-94821-img0011.jpg "Immunohistochemistry-Paraffin: TOMM20 Antibody - Azide and BSA Free [NBP2-94821]")
Immunohistochemistry-Paraffin: TOMM20 Antibody - Azide and BSA Free [NBP2-94821]

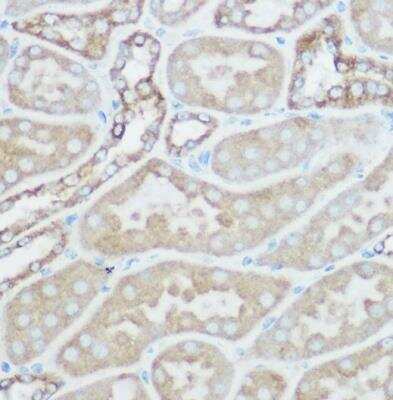

Immunohistochemistry-Paraffin: TOMM20 Antibody [NBP2-94821] - Rat kidney using [KO Validated] TOM20 Rabbit pAb at dilution of 1:100 (40x lens).Perform high pressure antigen retrieval with 10 mM citrate buffer pH 6.0 before commencing with IHC staining protocol.![Immunohistochemistry-Paraffin: TOMM20 Antibody - Azide and BSA Free [NBP2-94821]](https://resources.rndsystems.com/images/products/TOMM20-Antibody-Immunohistochemistry-Paraffin-NBP2-94821-img0009.jpg "Immunohistochemistry-Paraffin: TOMM20 Antibody - Azide and BSA Free [NBP2-94821]")
Immunohistochemistry-Paraffin: TOMM20 Antibody - Azide and BSA Free [NBP2-94821]
Immunohistochemistry-Paraffin: TOMM20 Antibody [NBP2-94821] - Human colon carcinoma using [KO Validated] TOM20 Rabbit pAb at dilution of 1:100 (40x lens).Perform high pressure antigen retrieval with 10 mM citrate buffer pH 6.0 before commencing with IHC staining protocol.![Immunohistochemistry-Paraffin: TOMM20 Antibody - Azide and BSA Free [NBP2-94821]](https://resources.rndsystems.com/images/products/TOMM20-Antibody-Immunohistochemistry-Paraffin-NBP2-94821-img0010.jpg "Immunohistochemistry-Paraffin: TOMM20 Antibody - Azide and BSA Free [NBP2-94821]")
Immunohistochemistry-Paraffin: TOMM20 Antibody - Azide and BSA Free [NBP2-94821]

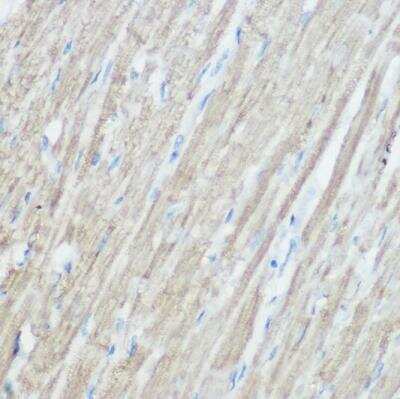

Immunohistochemistry-Paraffin: TOMM20 Antibody [NBP2-94821] - Mouse heart using [KO Validated] TOM20 Rabbit pAb at dilution of 1:100 (40x lens).Perform high pressure antigen retrieval with 10 mM citrate buffer pH 6.0 before commencing with IHC staining protocol.
Immunocytochemistry/ Immunofluorescence: TOMM20 Antibody - Azide and BSA Free [TOMM20] -

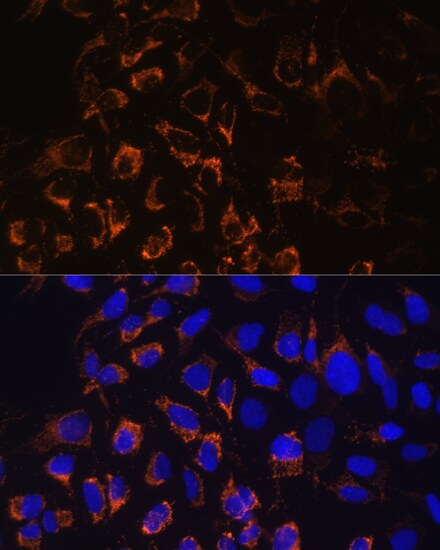

Immunocytochemistry/ Immunofluorescence: TOMM20 Antibody - Azide and BSA Free [TOMM20] - Immunofluorescence analysis of U2OS cells using TOMM20 Rabbit pAb at dilution of 1:100. Blue: DAPI for nuclear staining.
Immunohistochemistry: TOMM20 Antibody - Azide and BSA Free [TOMM20] -
Immunohistochemistry: TOMM20 Antibody - Azide and BSA Free [TOMM20] - Immunohistochemistry analysis of paraffin-embedded Mouse kidney using TOMM20 Rabbit pAb at dilution of 1:50 (40x lens). High pressure antigen retrieval performed with 0.01M Citrate Bufferr (pH 6.0) prior to IHC staining.
Immunohistochemistry: TOMM20 Antibody - Azide and BSA Free [TOMM20] -
Immunohistochemistry: TOMM20 Antibody - Azide and BSA Free [TOMM20] - Immunohistochemistry analysis of paraffin-embedded Rat brain using TOMM20 Rabbit pAb at dilution of 1:50 (40x lens). High pressure antigen retrieval performed with 0.01M Citrate Bufferr (pH 6.0) prior to IHC staining.
Immunohistochemistry: TOMM20 Antibody - Azide and BSA Free [TOMM20] -

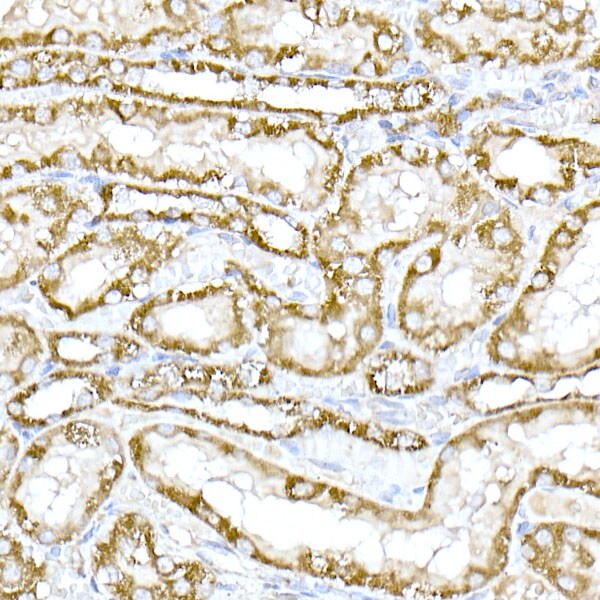

Immunohistochemistry: TOMM20 Antibody - Azide and BSA Free [TOMM20] - Immunohistochemistry analysis of paraffin-embedded Rat kidney using TOMM20 Rabbit pAb at dilution of 1:50 (40x lens). High pressure antigen retrieval performed with 0.01M Citrate Bufferr (pH 6.0) prior to IHC staining.
Immunocytochemistry/ Immunofluorescence: TOMM20 Antibody - Azide and BSA Free [TOMM20] -
Immunocytochemistry/ Immunofluorescence: TOMM20 Antibody - Azide and BSA Free [TOMM20] - Immunofluorescence analysis of HeLa cells using TOMM20 Rabbit pAb at dilution of 1:100 (40x lens). Secondary antibody: Cy3-conjugated Goat anti-Rabbit IgG (H+L) at 1:500 dilution. Blue: DAPI for nuclear staining.
Immunohistochemistry: TOMM20 Antibody - Azide and BSA Free [TOMM20] -

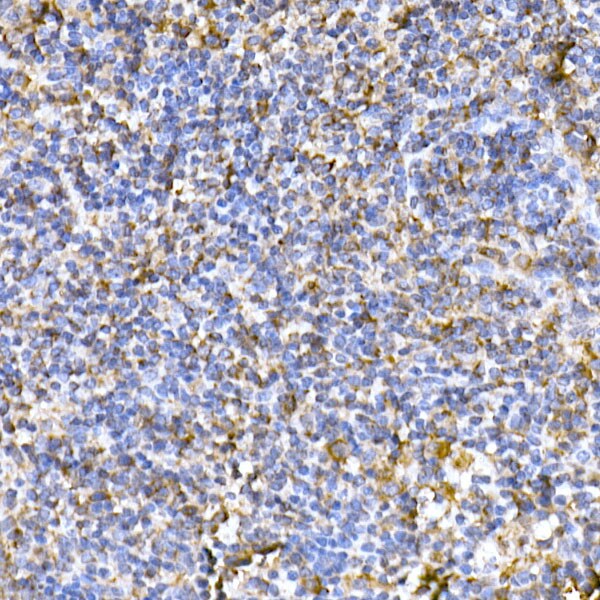

Immunohistochemistry: TOMM20 Antibody - Azide and BSA Free [TOMM20] - Immunohistochemistry analysis of paraffin-embedded Mouse spleen using TOMM20 Rabbit pAb at dilution of 1:50 (40x lens). High pressure antigen retrieval performed with 0.01M Citrate Bufferr (pH 6.0) prior to IHC staining.
Western Blot: TOMM20 Antibody - Azide and BSA Free [TOMM20] -

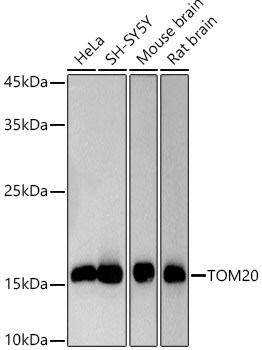

Western Blot: TOMM20 Antibody - Azide and BSA Free [TOMM20] - Western blot analysis of various lysates using TOMM20 Rabbit pAb at 1:1000 dilution.Secondary antibody: HRP-conjugated Goat anti-Rabbit IgG (H+L) at 1:10000 dilution.
Lysates/proteins: 25ug per lane.
Blocking buffer: 3% nonfat dry milk in TBST.
Detection: ECL Basic Kit.
Exposure time: 3s.
Immunocytochemistry/ Immunofluorescence: TOMM20 Antibody - Azide and BSA Free [TOMM20] -

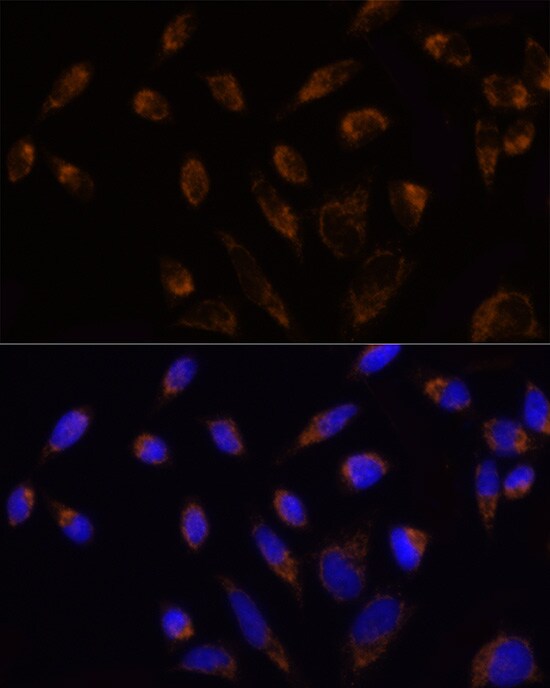

Immunocytochemistry/ Immunofluorescence: TOMM20 Antibody - Azide and BSA Free [TOMM20] - Immunofluorescence analysis of NIH/3T3 cells using TOMM20 Rabbit pAb at dilution of 1:100 (40x lens). Secondary antibody: Cy3-conjugated Goat anti-Rabbit IgG (H+L) at 1:500 dilution. Blue: DAPI for nuclear staining.
Immunocytochemistry/ Immunofluorescence: TOMM20 Antibody - Azide and BSA Free [TOMM20] -

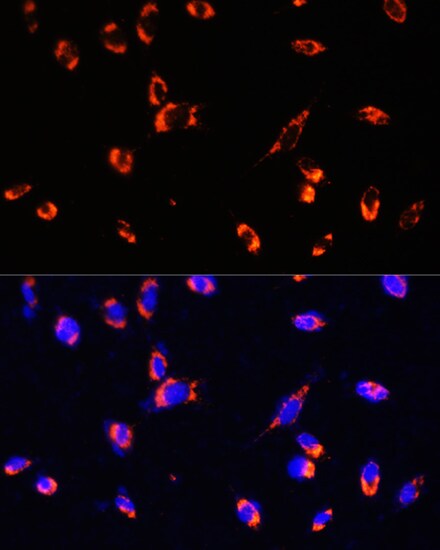

Immunocytochemistry/ Immunofluorescence: TOMM20 Antibody - Azide and BSA Free [TOMM20] - Immunofluorescence analysis of C6 cells using TOMM20 Rabbit pAb at dilution of 1:100. Blue: DAPI for nuclear staining.
Immunocytochemistry/ Immunofluorescence: TOMM20 Antibody - Azide and BSA Free [TOMM20] -
Immunocytochemistry/ Immunofluorescence: TOMM20 Antibody - Azide and BSA Free [TOMM20] - Immunofluorescence analysis of NIH/3T3 using TOMM20 Rabbit pAb at dilution of 1:100. Blue: DAPI for nuclear staining.Applications for TOMM20 Antibody - Azide and BSA Free
Application
Recommended Usage
ELISA
Recommended starting concentration is 1 μg/mL.
Immunocytochemistry/ Immunofluorescence
1:50 - 1:200
Immunohistochemistry
1:50 - 1:200
Western Blot
1:500 - 1:1000
Formulation, Preparation, and Storage
Purification
Affinity purified
Formulation
PBS (pH 7.3), 50% glycerol
Format
Azide and BSA Free
Preservative
0.02% Sodium Azide
Concentration
Please see the vial label for concentration. If unlisted please contact technical services.
Shipping
The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage
Store at -20C. Avoid freeze-thaw cycles.
Background: TOMM20
Long Name
TOMM20
Alternate Names
MAS20, mitochondrial 20 kDa outer membrane protein, mitochondrial import receptor subunit TOM20 homolo, MOM19, outer mitochondrial membrane receptor Tom20, TOM20, translocase of outer mitochondrial membrane 20 hom
Gene Symbol
TOMM20
Additional TOMM20 Products
Product Documents for TOMM20 Antibody - Azide and BSA Free
Certificate of Analysis
To download a Certificate of Analysis, please enter a lot or batch number in the search box below.
Product Specific Notices for TOMM20 Antibody - Azide and BSA Free
This product is for research use only and is not approved for use in humans or in clinical diagnosis. Primary Antibodies are guaranteed for 1 year from date of receipt.
⚠ WARNING: This product can expose you to chemicals including Methotrexate, which is known to the State of California to cause reproductive toxicity with developmental effects. For more information, go to www.P65Warnings.ca.govCustomer Reviews for TOMM20 Antibody - Azide and BSA Free
There are currently no reviews for this product. Be the first to review TOMM20 Antibody - Azide and BSA Free and earn rewards!
Have you used TOMM20 Antibody - Azide and BSA Free?
Submit a review and receive an Amazon gift card!
$25/€18/£15/$25CAN/¥2500 Yen for a review with an image
$10/€7/£6/$10CAN/¥1110 Yen for a review without an image
Submit a review
