VISTA (V-domain immunoglobulin suppressor of T cell activation) is a cell surface coinhibitory protein belonging to the CD28/B7 family. VISTA can act as both a ligand and a receptor in regulating T cell activity. VISTA is expressed on dendritic cells, monocytes, and both CD4+ and CD8+ T cells. VISTA functions as an inhibitory receptor downregulating CD4+ and CD8+ T cell proliferation and exhibiting a protective effect in mice from graft versus host disease, asthma, and acute hepatitis. VISTA also acts as a ligand on antigen presenting cells. Two cell surface expressed proteins VSIG-3 and PSGL-1 have been identified as binding partners of VISTA. Immune checkpoint proteins like the VISTA protein are often overexpressed by cancer cells or surrounding cells in the tumor microenvironment. VISTA upregulation occurs on tumor-infiltrating leukocytes and is expressed on several cancer types including melanoma, lung, ovarian, colon, prostate, and pancreatic cancer. Further, knockout and blocking antibody studies of VISTA have shown an increase in T cell responses in several mouse tumor models making VISTA a potential therapeutic target alone or in combination with other known immune checkpoint inhibitors. Alternative names of VISTA include PD-1H, Gi24, Dies1, and SISP1.
VISTA/B7-H5/PD-1H Antibody (PSH0-65)
Novus Biologicals | Catalog # NBP3-33095
Key Product Details
Species Reactivity
Applications
Label
Antibody Source
Product Specifications
Immunogen
Localization
Clonality
Host
Isotype
Theoretical MW
Disclaimer note: The observed molecular weight of the protein may vary from the listed predicted molecular weight due to post translational modifications, post translation cleavages, relative charges, and other experimental factors.
Scientific Data Images for VISTA/B7-H5/PD-1H Antibody (PSH0-65)
Western Blot: VISTA/B7-H5/PD-1H Antibody (PSH0-65) [NBP3-33095]
Western Blot: VISTA/B7-H5/PD-1H Antibody (PSH0-65) [NBP3-33095] - Western blot analysis of VISTA/B7-H5/PD-1H on human lung tissue lysates with Rabbit anti-VISTA/B7-H5/PD-1H antibody (NBP3-33095) at 1/1,000 dilution.Lysates/proteins at 40 ug/Lane.
Predicted band size: 34 kDa
Observed band size: 55 kDa
Exposure time: 30 seconds;
10% SDS-PAGE gel.
Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (NBP3-33095) at 1/1,000 dilution was used in 5% NFDM/TBST at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody at 1:100,000 dilution was used for 1 hour at room temperature.
Immunohistochemistry: VISTA/B7-H5/PD-1H Antibody (PSH0-65) [NBP3-33095]

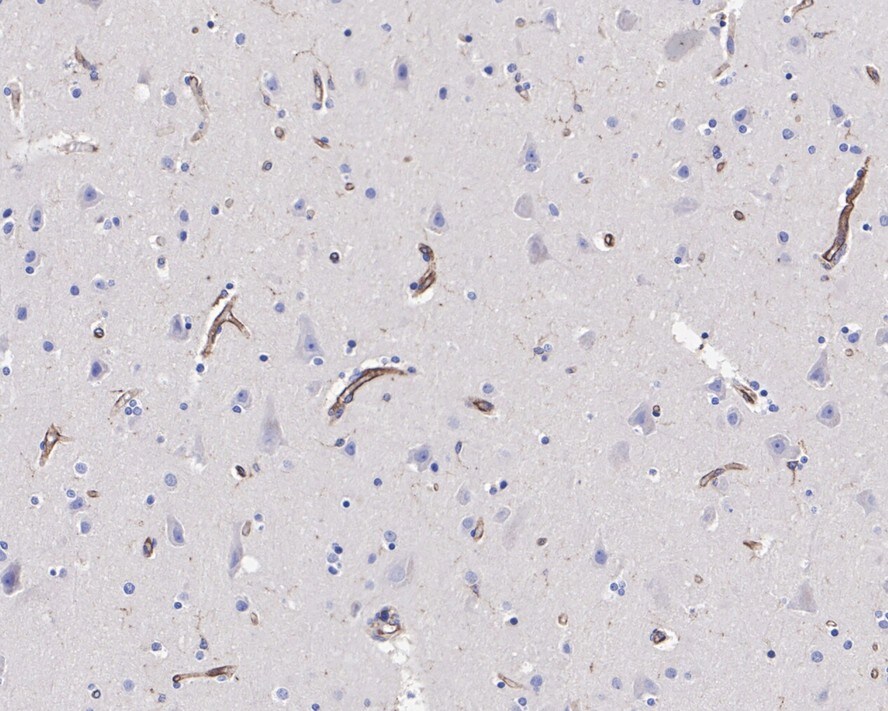

Immunohistochemistry: VISTA/B7-H5/PD-1H Antibody (PSH0-65) [NBP3-33095] - Immunohistochemical analysis of paraffin-embedded human brain tissue with Rabbit anti-VISTA/B7-H5/PD-1H antibody (NBP3-33095) at 1/200 dilution.The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (NBP3-33095) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.
Immunocytochemistry/ Immunofluorescence: VISTA/B7-H5/PD-1H Antibody (PSH0-65) [NBP3-33095]

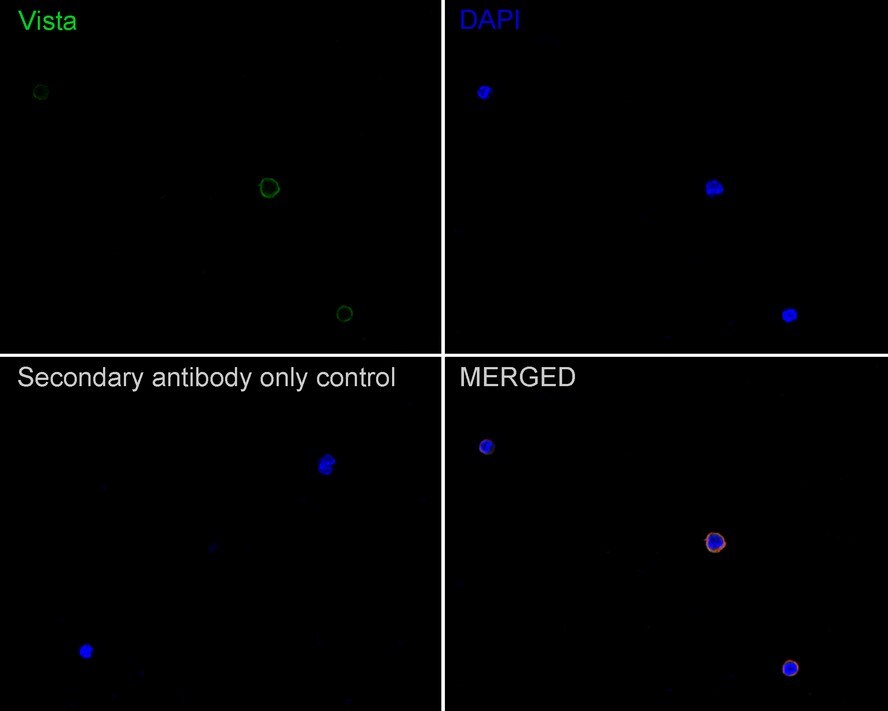

Immunocytochemistry/ Immunofluorescence: VISTA/B7-H5/PD-1H Antibody (PSH0-65) [NBP3-33095] - Immunocytochemistry analysis of PBMC labeling VISTA/B7-H5/PD-1H with Rabbit anti-VISTA/B7-H5/PD-1H antibody (NBP3-33095) at 1/100 dilution.Cells were fixed in 4% paraformaldehyde for 10 minutes at 37 ℃, permeabilized with 0.05% Triton X-100 in PBS for 20 minutes, and then blocked with 2% negative goat serum for 30 minutes at room temperature. Cells were then incubated with Rabbit anti-VISTA/B7-H5/PD-1H antibody (NBP3-33095) at 1/100 dilution in 2% negative goat serum overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488) was used as the secondary antibody at 1/1,000 dilution. Nuclear DNA was labelled in blue with DAPI.
Beta tubulin (red) was stained at 1/200 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 594) was used as the secondary antibody at 1/1,000 dilution.
Applications for VISTA/B7-H5/PD-1H Antibody (PSH0-65)
Flow Cytometry
Immunocytochemistry/ Immunofluorescence
Immunohistochemistry-Paraffin
Western Blot
Flow Cytometry Panel Builder
Bio-Techne Knows Flow Cytometry
Save time and reduce costly mistakes by quickly finding compatible reagents using the Panel Builder Tool.
Advanced Features
- Spectra Viewer - Custom analysis of spectra from multiple fluorochromes
- Spillover Popups - Visualize the spectra of individual fluorochromes
- Antigen Density Selector - Match fluorochrome brightness with antigen density
Formulation, Preparation, and Storage
Purification
Formulation
Preservative
Concentration
Shipping
Stability & Storage
Background: VISTA/B7-H5/PD-1H
Alternate Names
Gene Symbol
Additional VISTA/B7-H5/PD-1H Products
Product Documents for VISTA/B7-H5/PD-1H Antibody (PSH0-65)
Certificate of Analysis
To download a Certificate of Analysis, please enter a lot or batch number in the search box below.
Product Specific Notices for VISTA/B7-H5/PD-1H Antibody (PSH0-65)
This product is for research use only and is not approved for use in humans or in clinical diagnosis. Primary Antibodies are guaranteed for 1 year from date of receipt.
Related Research Areas
Customer Reviews for VISTA/B7-H5/PD-1H Antibody (PSH0-65)
There are currently no reviews for this product. Be the first to review VISTA/B7-H5/PD-1H Antibody (PSH0-65) and earn rewards!
Have you used VISTA/B7-H5/PD-1H Antibody (PSH0-65)?
Submit a review and receive an Amazon gift card!
$25/€18/£15/$25CAN/¥2500 Yen for a review with an image
$10/€7/£6/$10CAN/¥1110 Yen for a review without an image
Submit a review
