Key Product Details

Validated by

Independent Antibodies

Species Reactivity

Validated:

Human, Mouse, Rat

Cited:

Human, Mouse

Applications

Validated:

Immunohistochemistry, Immunohistochemistry-Paraffin, Western Blot, ELISA, Immunocytochemistry/ Immunofluorescence, Simple Western

Cited:

Western Blot

Label

Unconjugated

Antibody Source

Polyclonal Rabbit IgG

Format

BSA Free
Loading...

Product Specifications

Immunogen

Antibody was raised against a 20 amino acid peptide corresponding to amino acids near the amino terminus of human Bim. The immunogen is located within the first 50 amino acids of Bim. Amino Acid Squence: AERPPQLRPGAPTSLQTEPQ

Reactivity Notes

The antigen sequence is identical to that of mouse and differs from that of rat by one amino acid.

Specificity

Human BIM has 3 isoforms, including isoform EL (198aa, 22kD), isoform L (138aa, 16kD) and isoform S (108aa, 13kD). Mouse BIM has 3 isoforms, including isoform EL (196aa, 22kD), isoform L (140aa, 16kD) and isoform S (110aa, 13kD). Rat BIM has 4 isoforms, including isoform BOD-L (196aa, 22kD), isoform L (140aa, 16kD) and isoform BOD-M (110aa, 13kD). NBP1-76963 can detect all three isoforms.

Clonality

Polyclonal

Host

Rabbit

Isotype

IgG

Theoretical MW

22 kDa.
Disclaimer note: The observed molecular weight of the protein may vary from the listed predicted molecular weight due to post translational modifications, post translation cleavages, relative charges, and other experimental factors.

Scientific Data Images for Bim Antibody - BSA Free

Western Blot: Bim AntibodyBSA Free [NBP1-76963]

Western Blot: Bim AntibodyBSA Free [NBP1-76963]

Western Blot: Bim Antibody [NBP1-76963] - Independent Antibody Validation (IAV) via Protein Expression Profile in Cell LinesLoading: 15 ug of lysates per lane.Antibodies: BIM NBP1-76963, (0.5 ug/mL), BIM NBP1-77118, (5 ug/mL), beta-actin (1 ug/mL) and GAPDH (0.02 ug/mL), 1h incubation at RT in 5% NFDM/TBST.Secondary: Goat anti-rabbit IgG HRP conjugate at 1:10000 dilution.
Western Blot: Bim AntibodyBSA Free [NBP1-76963]

Western Blot: Bim AntibodyBSA Free [NBP1-76963]

Western Blot: Bim Antibody [NBP1-76963] - Western Blot Validation in Rat Myeloma Cell line:Loading: 15 ug of rat myeloma YB2/0 cell lysate per lane.Antibodies: BIM NBP1-76963, (0.5 ug/mL), 1h incubation at RT in 5% NFDM/TBST.Secondary: Goat anti-rabbit IgG HRP conjugate.
Western Blot: Bim AntibodyBSA Free [NBP1-76963]

Western Blot: Bim AntibodyBSA Free [NBP1-76963]

Western Blot: Bim Antibody [NBP1-76963] - Western Blot Validation in HeLa Cells. Loading: 15 ug of lysate per lane. Antibodies: Bim NBP1-76963, (0.5 ug/mL), 1h incubation at RT in 5% NFDM/TBST. Secondary: Goat anti-rabbit IgG HRP conjugate. Bim antibody can detect all three human isoforms, including EL, L and S isoforms.
Western Blot: Bim AntibodyBSA Free [NBP1-76963]

Western Blot: Bim AntibodyBSA Free [NBP1-76963]

Western Blot: Bim Antibody [NBP1-76963] - Western Blot Validation in Human Cell LinesLoading: 15 ug of lysates per lane.Antibodies: BIM NBP1-76963, (0.5 ug/mL), 1h incubation at RT in 5% NFDM/TBST.Secondary: Goat anti-rabbit IgG HRP conjugate at 1:10000 dilution.
Bim Antibody - BSA Free

Western Blot: Bim Antibody - BSA Free [NBP1-76963] -

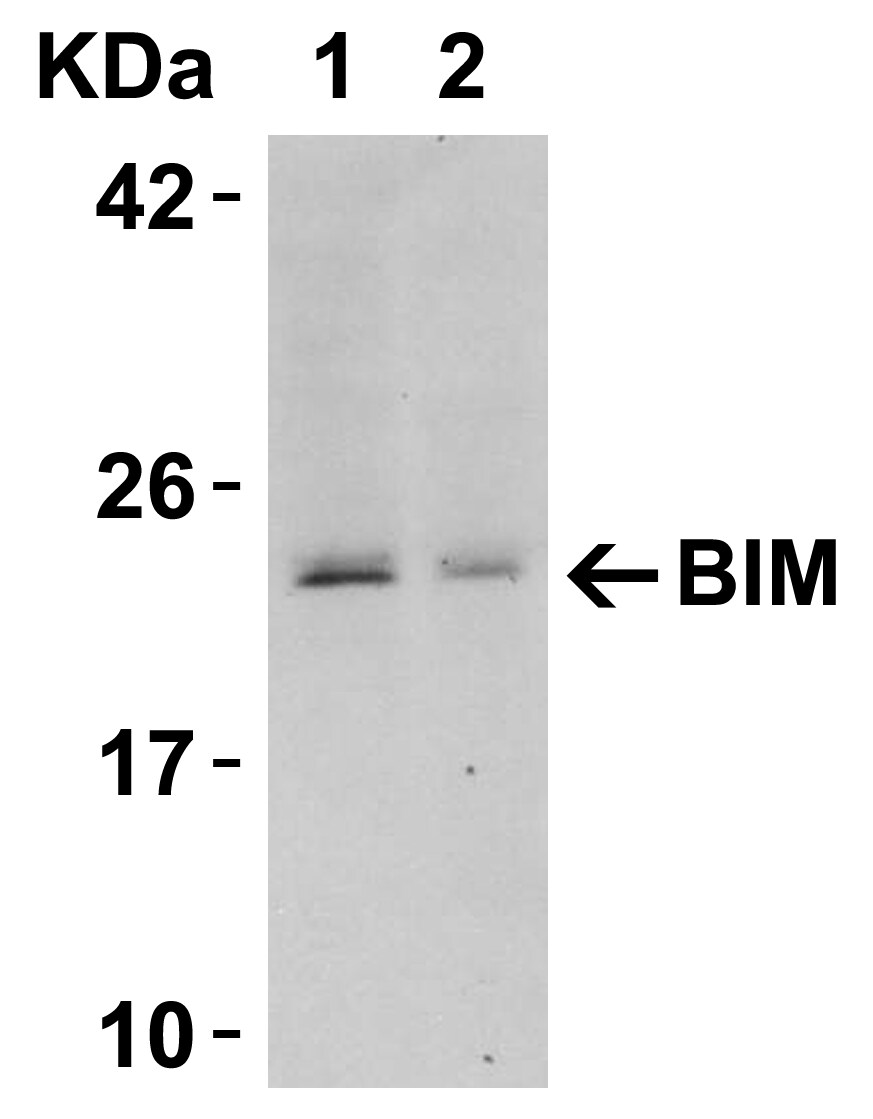

Western Blot: Bim Antibody - BSA Free [NBP1-76963] - Figure 3 Western Blot Validation in Human TissueLoading: 15 u of lysates per lane.Antibodies: BIM, (0.5 u/mL), 1h incubation at RT in 5% NFDM/TBST.Secondary: Goat anti-rabbit IgG HRP conjugate at 1:10000 dilution.Lane 1: Human thymusLane 2: Human colon
Bim Antibody - BSA Free

Western Blot: Bim Antibody - BSA Free [NBP1-76963] -

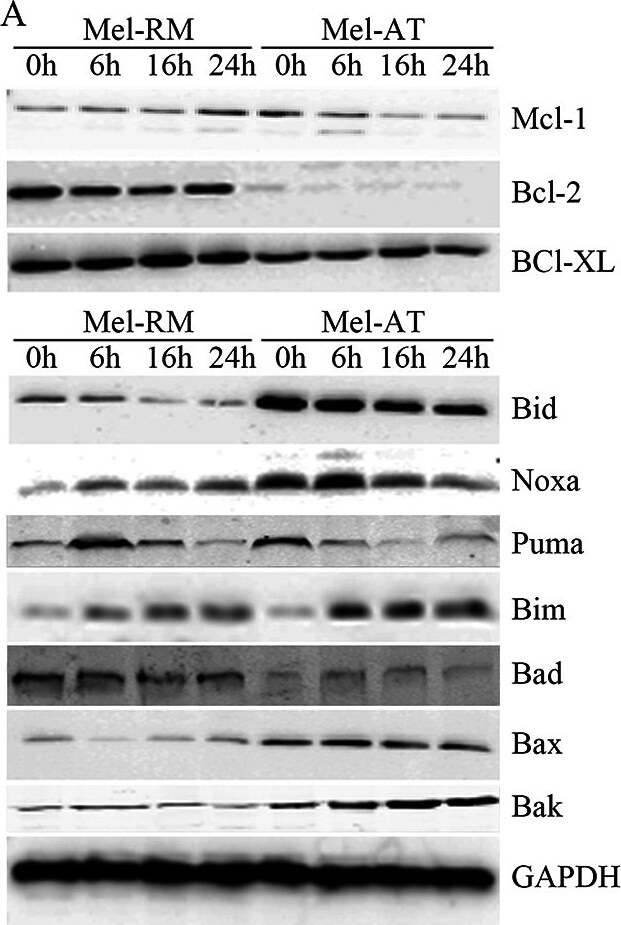

EGb761 regulates Bcl-2 family proteins expression in melanoma cells.(A) EGb761 alters the expression levels of anti- & pro-apoptotic Bcl-2 family proteins in melanoma cell lines. Whole cell lysates from Mel-RM & Mel-AT cells treated with EGb761 (400 μg/ml) for indicated time periods were subjected to Western blot analysis. The data shown are representative of three individual experiments. (B) 5% ethanol as control vehicle did not alter the expression levels of Mcl-1. Mel-AT cells with 5% ethanol for increasing periods. Whole cell lysates from Mel-AT cells treated were subjected to Western blot analysis. The data shown are representative of three individual experiments.(C) Mel-RM & Mel-AT cells were treated with EGb761 (400 μg/ml) or 5% ethanol for the indicated periods. Total RNA was isolated & subjected to real-time PCR analysis for Mcl-1. The relative abundance of mRNA expression treated with 5% ethanol was arbitrarily designated as 1. Columns, mean of three individual experiments; bars, SEM. * Present p<0.05 vs control.(D) Relative expression of anti-apoptosis Bcl-2 family proteins in melanoma cell lines Mel-RM & Mel-AT without treatment. Quantitative expression levels of Mcl-1, Bcl-2 & Bcl-XL were normalized to GAPDH.(E) Relative expression of pro-apoptosis Bcl-2 family proteins in melanoma cell lines Mel-RM & Mel-AT without treatment. Quantitative expression levels of Bax, Bid, Noxa, PUMA, Bim, Bad & Bak were normalized to GAPDH. Image collected & cropped by CiteAb from the following publication (https://pubmed.ncbi.nlm.nih.gov/25860257), licensed under a CC-BY license. Not internally tested by Novus Biologicals.
Bim Antibody - BSA Free

Immunohistochemistry: Bim Antibody - BSA Free [NBP1-76963] -

Immunohistochemistry: Bim Antibody - BSA Free [NBP1-76963] - Figure 7 Immunohistochemistry Validation of BIM in Human Skin Cancer Cells
Immunohistochemical analysis of paraffin-embedded human spleen tissue using anti-BIM antibody at 20 u/ml. Tissue was fixed with formaldehyde and blocked with 10% serum for 1 h at RT; antigen retrieval was by heat mediation with a citrate buffer (pH6). Samples were incubated with primary antibody overnight at 4;C. A goat anti-rabbit IgG H&L (HRP) at 1/250 was used as secondary. Counter stained with Hematoxylin.
Bim Antibody - BSA Free

Immunocytochemistry/ Immunofluorescence: Bim Antibody - BSA Free [NBP1-76963] -

Immunocytochemistry/ Immunofluorescence: Bim Antibody - BSA Free [NBP1-76963] - Validation of BIM in K562 Cells. Immunofluorescent analysis of 4% paraformaldehyde-fixed K562 cells labeling Bim with at 20 ug/mL, followed by goat anti-rabbit IgG secondary antibody at 1/500 dilution (red).

Applications for Bim Antibody - BSA Free

Application
Recommended Usage

ELISA

1:100-1:2000

Immunocytochemistry/ Immunofluorescence

20 ug/ml

Immunohistochemistry

20 ug/ml

Immunohistochemistry-Paraffin

20 ug/ml

Western Blot

0.5 ug/mL
Application Notes

See Simple Western Antibody Database for Simple Western validation: Tested in HeLa lysate, separated by Size, antibody dilution of 1:50

Formulation, Preparation, and Storage

Purification

Peptide affinity purified

Formulation

PBS

Format

BSA Free

Preservative

0.02% Sodium Azide

Concentration

1 mg/ml

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store at 4C short term. Aliquot and store at -20C long term. Avoid freeze-thaw cycles.

Background: Bim

Members in the Bcl-2 family are critical regulators of apoptosis by either inhibiting or promoting cell death. Bcl-2 homology 3 (BH3) domain is a potent death domain. BH3 domain containing pro-apoptotic proteins, including Bad, Bax, Bid, Bik, and Hrk, form a growing subclass of the Bcl-2 family. A novel BH3 domain containing protein was recently identified and designated Bim or BOD in human, mouse and rat. Bim/BOD interacts with diverse members in the pro-survival Bcl-2 sub-family including Bcl-2, Bcl-xL and Bcl-w. Bim/BOD induces apoptosis. The messenger RNA of Bim is ubiquitously expressed in multiple tissues and cell lines.

Alternate Names

BAM, bcl-2 interacting mediator of cell death, bcl-2 interacting protein Bim, Bcl2-interacting mediator of cell death, Bcl2-L-11, BCL2-like 11 (apoptosis facilitator), bcl-2-like protein 11, bcl-2-related ovarian death agonist, BIM-alpha6, BIM-beta6, BIM-beta7, BIMBOD, BimEL, BimL

Entrez Gene IDs

10018 (Human)

Gene Symbol

BCL2L11

UniProt

Additional Bim Products

Product Documents for Bim Antibody - BSA Free

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot or batch number in the search box below.

Product Specific Notices for Bim Antibody - BSA Free

This product is for research use only and is not approved for use in humans or in clinical diagnosis. Primary Antibodies are guaranteed for 1 year from date of receipt.

Citations for Bim Antibody - BSA Free

Customer Reviews for Bim Antibody - BSA Free

There are currently no reviews for this product. Be the first to review Bim Antibody - BSA Free and earn rewards!

Have you used Bim Antibody - BSA Free?

Submit a review and receive an Amazon gift card!

$25/€18/£15/$25CAN/¥2500 Yen for a review with an image

$10/€7/£6/$10CAN/¥1110 Yen for a review without an image

Submit a review
Amazon Gift Card

Protocols

Find general support by application which include: protocols, troubleshooting, illustrated assays, videos and webinars.

FAQs for Bim Antibody - BSA Free

Showing  1 - 2 of 2 FAQs Showing All
  • Q: Please recommend which isotype antibody I should use with the NBP1-75511AF647 (Bim-AF647.) The product datasheet only says IgG, but no subclass or product number.

    A: This item is a mouse IgG1 antibody. For isotype control, I would recommend NBP1-43319AF647 or NBP2-27287AF647.

  • Q: Would you recommend a standard Fix/Perm buffer for Bim staining?

    A: Our lab used our standard ICC protocol for cell staining with this product. We used tween-20 in the permeabilization step as BIM can be found in the endomembrane system and mitochondria.

  • Q: Please recommend which isotype antibody I should use with the NBP1-75511AF647 (Bim-AF647.) The product datasheet only says IgG, but no subclass or product number.

    A: This item is a mouse IgG1 antibody. For isotype control, I would recommend NBP1-43319AF647 or NBP2-27287AF647.

  • Q: Would you recommend a standard Fix/Perm buffer for Bim staining?

    A: Our lab used our standard ICC protocol for cell staining with this product. We used tween-20 in the permeabilization step as BIM can be found in the endomembrane system and mitochondria.
