Human CD4 PE‑conjugated Antibody

Name: Human CD4 PE‑conjugated Antibody
Brand: R&D Systems
SKU: FAB114341P
Price: 379 USD
Availability: InStock

R&D Systems | Catalog # FAB114341P

Submit a review

Product Documents

100% Guarantee

Product Specifications
Scientific Data
Applications
Spectra Viewer
Flow Cytometry
Preparation & Storage
Calculators
Background
Product Documents
Specific Notices
Research Areas
Related Blogs

Key Product Details

Species Reactivity

Human

Applications

Flow Cytometry

Label

Phycoerythrin (Excitation = 488 nm, Emission = 565-605 nm)

Antibody Source

Monoclonal Mouse IgG_2B Clone # 1068606

View all CD4 Primary Antibodies »

Product Specifications

Immunogen

Chinese Hamster Ovary cell line, CHO-derived human CD4
Gln26-Lys463
Accession # P08575

Specificity

Detects human CD4 in direct ELISA.

Clonality

Monoclonal

Host

Mouse

Isotype

IgG_2B

Scientific Data Images for Human CD4 PE‑conjugated Antibody

Detection of CD4 in PBMC lymphocytes by Flow Cytometry.

PBMC lymphocytes were stained with Mouse Anti-Human CD3 epsilon APC‑conjugated Monoclonal Antibody (Catalog # FAB100A) and either (A) Mouse Anti-Human CD4 PE‑conjugated Monoclonal Antibody (Catalog # FAB114341P) or (B) Mouse IgG_2B Phycoerythrin Isotype Control (Catalog # IC0041P) followed by. View our protocol for Staining Membrane-associated Proteins.

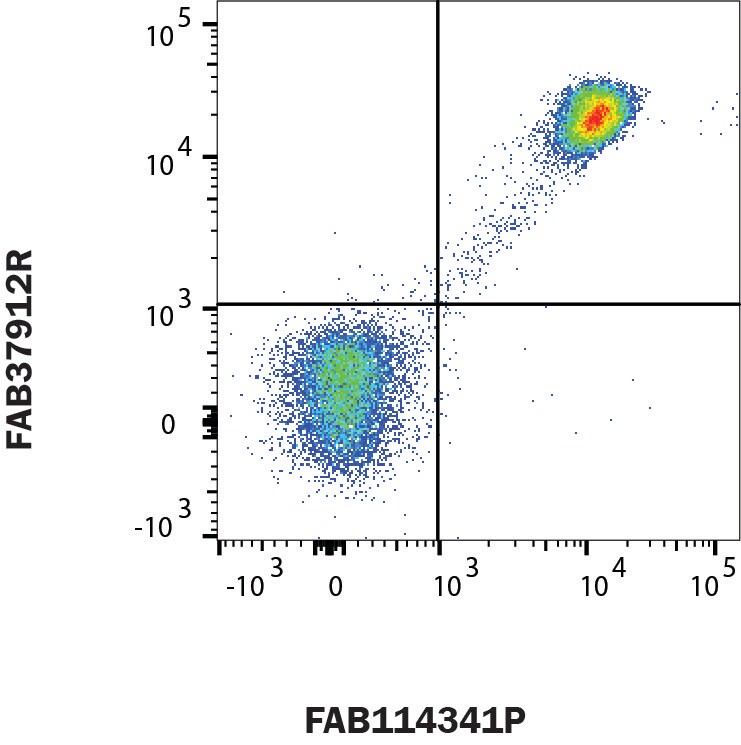

Detection of CD4 in Human peripheral blood lymphocytes by Flow Cytometry

Human peripheral blood lymphocytes were stained with Mouse Anti-Human CD4 PE‑conjugated Monoclonal Antibody (Catalog # FAB114341P) and Mouse Anti-Human CD4 Alexa Fluor® 647‑conjugated Monoclonal Antibody (Catalog # FAB37912R). This demonstrates non-competing epitopes of the two clones, which allows for purity analysis after CD4+ selection. View our protocol for Staining Membrane-associated Proteins.

Applications for Human CD4 PE‑conjugated Antibody

Application

Recommended Usage

Flow Cytometry

10 µL/10⁶ cells
Sample: PBMC lymphocytes

Spectra Viewer

Plan Your Experiments

Use our spectra viewer to interactively plan your experiments, assessing multiplexing options. View the excitation and emission spectra for our fluorescent dye range and other commonly used dyes.

Spectra Viewer

Flow Cytometry Panel Builder

Bio-Techne Knows Flow Cytometry

Save time and reduce costly mistakes by quickly finding compatible reagents using the Panel Builder Tool.

Advanced Features

Spectra Viewer - Custom analysis of spectra from multiple fluorochromes
Spillover Popups - Visualize the spectra of individual fluorochromes
Antigen Density Selector - Match fluorochrome brightness with antigen density

Build Your Panel Now

Formulation, Preparation, and Storage

Purification

Protein A or G purified from hybridoma culture supernatant

Reconstitution

Formulation

Supplied in a saline solution containing BSA and Sodium Azide.

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Protect from light. Do not freeze.

12 months from date of receipt, 2 to 8 °C as supplied.

Calculators

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

Volume (to add to vial)

Mass (in vial)

Desired Reconstitution Concentration

Background: CD4

CD4 is an approximately 55 kDa type I membrane glycoprotein that is expressed predominantly on most thymocytes and a subset of mature T lymphocytes. In humans, CD4 is also expressed to a lesser extent on monocytes and macrophage related cells. Human CD4 cDNA encodes a 458 amino acid (aa) precursor protein with a 25 aa signal peptide, a 371 aa extracellular region containing four immunoglobulin homology domains, a 24 aa transmembrane domain and a 38 aa cytoplasmic domain. CD4 is a coreceptor required for T cell recognition of antigens that are presented by class II major histocompatibility complexes. CD4 has been shown to be a coreceptor of HIV entry and specifically binds gp120, the external envelope glycoprotein of HIV.
