Human CXCR6 PE-conjugated Antibody

Clone 56811 was used by HLDA to establish CD designation.
(12 citations)
  • Species Reactivity
  • Specificity

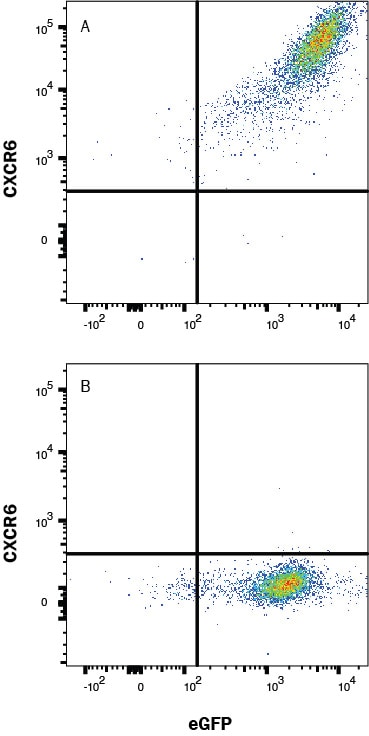

    Stains human CXCR6 transfectants but not irrelevant transfectants.
  • Source
    Monoclonal Mouse IgG2B Clone # 56811
  • Purification
    Protein A or G purified from ascites
  • Immunogen
    NS0 mouse myeloma cell line transfected with human CXCR6
    Accession # O00574
  • Formulation
    Supplied in a saline solution containing BSA and Sodium Azide.
  • Label
  • Flow Cytometry
    10 µL/106 cells
    See below
Please Note: Optimal dilutions should be determined by each laboratory for each application. General Protocols are available in the Technical Information section on our website.
Data Examples
Detection of CXCR6 in Human PBMCs by Flow Cytometry. Human peripheral blood mononuclear cells (PBMCs) treated with 150 ng/mL Recombinant Human IL‑2 (Catalog # 202-IL) for 6 days were stained with Mouse Anti-Human CXCR6 PE‑conjugated Monoclonal Antibody (Catalog # FAB699P) and Mouse Anti-Human CD3 epsilon APC‑conjugated Monoclonal Antibody (Catalog # FAB100A). Quadrant markers were set based on control antibody staining (Catalog # IC0041P). View our protocol for Staining Membrane-associated Proteins.
Preparation and Storage
  • Shipping
    The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.
  • Stability & Storage
    Protect from light. Do not freeze.
    • 12 months from date of receipt, 2 to 8 °C as supplied.
Background: CXCR6

CXCR6, also known as Bonzo and STRL33, is a G protein coupled chemokine receptor expressed on activated T cells and tumor-infiltrating lymphocytes. It binds soluble CXCL16 and membrane-anchored CXCL16 expressed on dendritic cells and macrophages.

  • Entrez Gene IDs:
    10663 (Human); 80901 (Mouse); 100124593 (Rat)
  • Alternate Names:
    Bonzo; BONZOG-protein coupled receptor bonzo; CD186 antigen; CD186; CDw186; chemokine (C-X-C motif) receptor 6; C-X-C chemokine receptor type 6; CXCR6; CXC-R6; CXCR-6; G protein-coupled receptor; STRL33; STRL33G-protein coupled receptor STRL33; TYMSTRCD186
Related Research Areas

R&D Systems personnel manually curate a database that contains references using R&D Systems products. The data collected includes not only links to publications in PubMed, but also provides information about sample types, species, and experimental conditions.

12 Citations: Showing 1 - 10
Filter your results:

Sample Type
  1. The DRF motif of CXCR6 as chemokine receptor adaptation to adhesion
    Authors: A Koenen, A Babendreye, J Schumacher, T Pasqualon, N Schwarz, A Seifert, X Deupi, A Ludwig, D Dreymuelle
    PLoS ONE, 2017;12(3):e0173486.
    Species: Human
    Sample Type: Whole Cells
    Application: Flow
  2. Mesenchymal stromal cell secretome up-regulates 47 kDa CXCR4 expression, and induce invasiveness in neuroblastoma cell lines.
    Authors: Shankar V, Hori H, Kihira K, Lei Q, Toyoda H, Iwamoto S, Komada Y
    PLoS ONE, 2015;10(3):e0120069.
    Species: Human
    Sample Type: Whole Cells
    Application: Flow
  3. CXCL16 and CXCR6 are coexpressed in human lung cancer in vivo and mediate the invasion of lung cancer cell lines in vitro.
    Authors: Hu, Weidong, Liu, Yue, Zhou, Wenhui, Si, Lianlian, Ren, Liang
    PLoS ONE, 2014;9(6):e99056.
    Species: Human
    Sample Type: Whole Cells
    Application: Flow
  4. Invariant natural killer T cells act as an extravascular cytotoxic barrier for joint-invading Lyme Borrelia.
    Authors: Lee, Woo-Yong, Sanz, Maria-Je, Wong, Connie H, Hardy, Pierre-O, Salman-Dilgimen, Aydan, Moriarty, Tara J, Chaconas, George, Marques, Adriana, Krawetz, Roman, Mody, Christop, Kubes, Paul
    Proc Natl Acad Sci U S A, 2014;111(38):13936-41.
    Species: Human
    Sample Type: Whole Tissue
    Application: IHC
  5. Increased numbers of immature plasma cells in peripheral blood specifically overexpress chemokine receptor CXCR3 and CXCR4 in patients with ulcerative colitis.
    Authors: Hosomi S, Oshitani N, Kamata N, Sogawa M, Okazaki H, Tanigawa T, Yamagami H, Watanabe K, Tominaga K, Watanabe T, Fujiwara Y, Maeda K, Hirakawa K, Arakawa T
    Clin. Exp. Immunol., 2011;163(2):215-24.
    Species: Human
    Sample Type: Whole Cells
    Application: Flow
  6. Human MAIT cells are xenobiotic-resistant, tissue-targeted, CD161hi IL-17-secreting T cells.
    Authors: Dusseaux M, Martin E, Serriari N, Peguillet I, Premel V, Louis D, Milder M, Le Bourhis L, Soudais C, Treiner E, Lantz O
    Blood, 2011;117(4):1250-9.
    Species: Human
    Sample Type: Whole Cells
    Application: Flow
  7. AIDS progression is associated with the emergence of IL-17-producing cells early after simian immunodeficiency virus infection.
    Authors: Campillo-Gimenez L, Cumont MC, Fay M, Kared H, Monceaux V, Diop O, Muller-Trutwin M, Hurtrel B, Levy Y, Zaunders J, Dy M, Leite-de-Moraes MC, Elbim C, Estaquier J
    J. Immunol., 2010;184(2):984-92.
    Species: Primate - Macaca mulatta (Rhesus Macaque)
    Sample Type: Whole Cells
    Application: Flow
  8. Distinct roles for CCR4 and CXCR3 in the recruitment and positioning of regulatory T cells in the inflamed human liver.
    Authors: Oo YH, Weston CJ, Lalor PF, Curbishley SM, Withers DR, Reynolds GM, Shetty S, Harki J, Shaw JC, Eksteen B, Hubscher SG, Walker LS, Adams DH
    J. Immunol., 2010;184(6):2886-98.
    Species: Human
    Sample Type: Whole Cells
    Application: Flow
  9. CXCR6-CXCL16 interaction in the pathogenesis of Juvenile Idiopathic Arthritis.
    Authors: Martini G, Cabrelle A, Calabrese F, Carraro S, Scquizzato E, Teramo A, Facco M, Zulian F, Agostini C
    Clin. Immunol., 2008;129(2):268-76.
    Species: Human
    Sample Type: Whole Cells
    Application: Flow
  10. Expression of the CXCR6 on polymorphonuclear neutrophils in pancreatic carcinoma and in acute, localized bacterial infections.
    Authors: Gaida MM, Gunther F, Wagner C, Friess H, Giese NA, Schmidt J, Hansch GM, Wente MN
    Clin. Exp. Immunol., 2008;154(2):216-23.
    Species: Human
    Sample Type: Whole Cells
    Application: Flow
  11. CC chemokine receptor 5 and CXC chemokine receptor 6 expression by lung CD8+ cells correlates with chronic obstructive pulmonary disease severity.
    Authors: Freeman CM, Curtis JL, Chensue SW
    Am. J. Pathol., 2007;171(3):767-76.
    Species: Human
    Sample Type: Whole Cells
    Application: Flow
  12. Down-modulation of CXCR3 surface expression and function in CD8+ T cells from cutaneous T cell lymphoma patients.
    Authors: Winter D, Moser J, Kriehuber E, Wiesner C, Knobler R, Trautinger F, Bombosi P, Stingl G, Petzelbauer P, Rot A, Maurer D
    J. Immunol., 2007;179(6):4272-82.
    Species: Human
    Sample Type: Whole Cells
    Application: Flow
Expand to show all 12 Citations
