Human IL-23 DuoSet ELISA

Catalog # Availability Size / Price Qty
Ancillary Products Available

SAVE +FREE SHIPPING with ACADEMIA23 (See Promo Details)

Human IL-23 ELISA Standard Curve
1 Image
Product Details
Citations (14)
Supplemental Products
Reviews (2)

Human IL-23 DuoSet ELISA Summary

Assay Type
Solid Phase Sandwich ELISA
96-well strip plate
Sample Volume Required
100 µL
Assay Range
125.0 - 8,000 pg/mL
Sufficient Materials
For five or fifteen 96-well plates*
Please see the product datasheet

* Provided that the recommended microplates, buffers, diluents, substrates and solutions are used, and the assay is run as summarized in the Assay Procedure provided.

This DuoSet ELISA Development kit contains the basic components required for the development of sandwich ELISAs to measure natural and recombinant human IL-23. The suggested diluent is suitable for the analysis of most cell culture supernate samples. Diluents for complex matrices, such as serum and plasma, should be evaluated prior to use in this DuoSet ELISA.

Product Features

  • Optimized capture and detection antibody pairings with recommended concentrations save lengthy development time
  • Development protocols are provided to guide further assay optimization
  • Assay can be customized to your specific needs
  • Economical alternative to complete kits

Kit Content

  • Capture Antibody
  • Detection Antibody
  • Recombinant Standard
  • Streptavidin conjugated to horseradish-peroxidase (Streptavidin-HRP)

Other Reagents Required

DuoSet Ancillary Reagent Kit 2 (5 plates): (Catalog # DY008) containing 96 well microplates, plate sealers, substrate solution, stop solution, plate coating buffer (PBS), wash buffer, and Reagent Diluent Concentrate 2.

The components listed above may be purchased separately:

PBS: (Catalog # DY006), or 137 mM NaCl, 2.7 mM KCl, 8.1 mM Na2HPO4, 1.5 mM KH2PO4, pH 7.2 - 7.4, 0.2 µm filtered

Wash Buffer: (Catalog # WA126), or 0.05% Tween® 20 in PBS, pH 7.2-7.4

Reagent Diluent: (Catalog # DY995), or 1% BSA in PBS, pH 7.2-7.4, 0.2 µm filtered

Substrate Solution: 1:1 mixture of Color Reagent A (H2O2) and Color Reagent B (Tetramethylbenzidine) (Catalog # DY999)

Stop Solution: 2 N H2SO4 (Catalog # DY994)

Microplates: R&D Systems (Catalog # DY990)

Plate Sealers: ELISA Plate Sealers (Catalog # DY992)

Scientific Data

Human IL-23 ELISA Standard Curve

Product Datasheets

You must select a language.


Preparation and Storage

The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage
Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: IL-23

IL-23 (Interleukin-23) is a disulfide-linked cytokine composed of a p19 subunit that is unique to IL-23 and a p40 subunit that is shared with IL-12. It is produced by activated macrophages, microglia, and monocyte-derived dendritic cells in response to pathogens. IL-23 induces the earliest recruitment of neutrophils to the site of infection and promotes the development and maintenance of Th17 cells. It also enhances the development of Th17 mediated autoimmunity and tumor progression. IL-23 signals through a receptor complex consisting of IL-12 R beta 1 and IL-23 R. This complex is expressed in mouse Th1 and Th2 cells, bone marrow dendritic cells, activated macrophages and CD4+ CD45Rb(low) memory T cells.

Long Name:
Interleukin 23
Entrez Gene IDs:
51561 (Human); 83430 (Mouse); 155140 (Rat); 102128555 (Cynomolgus Monkey)
Alternate Names:
IL-23 p19/IL-12 p40; IL23; IL-23; IL-23A; IL-23-A; IL-23p19; IL-23p19/IL-12p40; IL23P19P19; interleukin 23 p19 subunit; interleukin 23, alpha subunit p19; interleukin-23 subunit alpha; Interleukin-23 subunit p19; JKA3 induced upon T-cell activation; MGC79388; SGRF; SGRFIL-23 subunit alpha

Assay Procedure


Plate Preparation

  1. Dilute the Capture Antibody to the working concentration in PBS without carrier protein. Immediately coat a 96-well microplate with 100 μL per well of the diluted Capture Antibody. Seal the plate and incubate overnight at room temperature.
  2. Aspirate each well and wash with Wash Buffer, repeating the process two times for a total of three washes. Wash by filling each well with Wash Buffer (400 μL) using a squirt bottle, manifold dispenser, or autowasher. Complete removal of liquid at each step is essential for good performance. After the last wash, remove any remaining Wash Buffer by aspirating or by inverting the plate and blotting it against clean paper towels.
  3. Block plates by adding 300 μL Reagent Diluent to each well. Incubate at room temperature for a minimum of 1 hour.
  4. Repeat the aspiration/wash as in step 2. The plates are now ready for sample addition.

Assay Procedure

  1. Add 100 μL of sample or standards in Reagent Diluent, or an appropriate diluent, per well. Cover with an adhesive strip and incubate 2 hours at room temperature.
  2. Repeat the aspiration/wash as in step 2 of Plate Preparation.
  3. Add 100 μL of the Detection Antibody, diluted in Reagent Diluent, to each well. Cover with a new adhesive strip and incubate 2 hours at room temperature.
  4. Repeat the aspiration/wash as in step 2 of Plate Preparation.
  5. Add 100 μL of the working dilution of Streptavidin-HRP to each well. Cover the plate and incubate for 20 minutes at room temperature. Avoid placing the plate in direct light.
  6. Repeat the aspiration/wash as in step 2.
  7. Add 100 μL of Substrate Solution to each well. Incubate for 20 minutes at room temperature. Avoid placing the plate in direct light.
  8. Add 50 μL of Stop Solution to each well. Gently tap the plate to ensure thorough mixing.
  9. Determine the optical density of each well immediately, using a microplate reader set to 450 nm. If wavelength correction is available, set to 540 nm or 570 nm. If wavelength correction is not available, subtract readings at 540 nm or 570 nm from the readings at 450 nm. This subtraction will correct for optical imperfections in the plate. Readings made directly at 450 nm without correction may be higher and less accurate.

Citations for Human IL-23 DuoSet ELISA

R&D Systems personnel manually curate a database that contains references using R&D Systems products. The data collected includes not only links to publications in PubMed, but also provides information about sample types, species, and experimental conditions.

14 Citations: Showing 1 - 10
Filter your results:

Filter by:

  1. Mild Cognitive Impairment Is Associated with Enhanced Activation of Th17 Lymphocytes in Non-Alcoholic Fatty Liver Disease
    Authors: Fiorillo, A;Gallego, JJ;Casanova-Ferrer, F;Giménez-Garzó, C;Urios, A;Ballester, MP;Durbán, L;Rios, MP;Megías, J;San Miguel, T;Kosenko, E;Escudero-García, D;Benlloch, S;Felipo, V;Montoliu, C;
    International journal of molecular sciences
    Species: Human
    Sample Types: Plasma
  2. Human Mesenchymal Stromal Cell Secretome Promotes the Immunoregulatory Phenotype and Phagocytosis Activity in Human Macrophages
    Authors: M Holopainen, U Impola, P Lehenkari, S Laitinen, E Kerkelä
    Cells, 2020-09-22;9(9):.
    Species: Human
    Sample Types: Cell Culture Supernates
  3. Extracellular Acidosis and mTOR Inhibition Drive the Differentiation of Human Monocyte-Derived Dendritic Cells
    Authors: F Erra Díaz, V Ochoa, A Merlotti, E Dantas, I Mazzitelli, V Gonzalez P, J Sabatté, S Amigorena, E Segura, J Geffner
    Cell Rep, 2020-05-05;31(5):107613.
    Species: Human
    Sample Types: Cell Cultuer Supernates
  4. Diet influences the functions of the human intestinal microbiome
    Authors: M De Angelis, I Ferrocino, FM Calabrese, F De Filippi, N Cavallo, S Siragusa, S Rampelli, R Di Cagno, K Rantsiou, L Vannini, N Pellegrini, C Lazzi, S Turroni, N Lorusso, M Ventura, M Chieppa, E Neviani, P Brigidi, PW O'Toole, D Ercolini, M Gobbetti, L Cocolin
    Sci Rep, 2020-03-06;10(1):4247.
    Species: Human
    Sample Types: Cell Culture Supernates
  5. Lysosomotropic beta blockers induce oxidative stress and IL23A production in Langerhans cells
    Authors: G Müller, C Lübow, G Weindl
    Autophagy, 2019-11-07;0(0):1-16.
    Species: Human
    Sample Types: Cell Culture Supernates
  6. Cervical cancer-instructed stromal fibroblasts enhance IL-23 expression in dendritic cells to support expansion of Th17 cells
    Authors: B Walch-Rück, R Ströder, L Theobald, J Pahne-Zepp, S Hegde, YJ Kim, RM Bohle, I Juhasz-Bös, EF Solomayer, S Smola
    Cancer Res., 2019-01-29;0(0):.
    Species: Human
    Sample Types: Cell Culture Supernates
  7. Human M2 Macrophages Limit NK Cell Effector Functions through Secretion of TGF-? and Engagement of CD85j
    Authors: SY Nuñez, A Ziblat, F Secchiari, NI Torres, JM Sierra, XL Raffo Irao, RE Araya, CI Domaica, MB Fuertes, NW Zwirner
    J. Immunol., 2017-12-27;0(0):.
    Species: Human
    Sample Types: Cell Culture Supernates
  8. A novel susceptibility locus in the IL12B region is associated with the pathophysiology of Takayasu arteritis through IL-12p40 and IL-12p70 production
    Authors: T Nakajima, H Yoshifuji, M Shimizu, K Kitagori, K Murakami, R Nakashima, Y Imura, M Tanaka, K Ohmura, F Matsuda, C Terao, T Mimori
    Arthritis Res. Ther., 2017-09-06;19(1):197.
    Species: Human
    Sample Types: Cell Culture Supernates
  9. Dexamethasone induced inhibition of Dectin-1 activation of antigen presenting cells is mediated via STAT-3 and NF-?B signaling pathways.
    Authors: Philipp Kotthoff, Annkristin Heine, Stefanie Andrea Erika Held, Peter Brossart
    Scientific Reports, 2017-07-03;0(0):2045-2322.
    Species: Human
    Sample Types: Cell Culture Supernates
  10. IFN-?1 with Th17 axis cytokines and IFN-? define different subsets in systemic lupus erythematosus (SLE)
    Authors: V Oke, S Brauner, A Larsson, J Gustafsson, A Zickert, I Gunnarsson, E Svenungsso
    Arthritis Res. Ther., 2017-06-15;19(1):139.
    Species: Human
    Sample Types: Serum
  11. Exposure to diesel exhaust particle extracts (DEPe) impairs some polarization markers and functions of human macrophages through activation of AhR and Nrf2.
    Authors: Jaguin M, Fardel O, Lecureur V
    PLoS ONE, 2015-02-24;10(2):e0116560.
    Species: Human
    Sample Types: Cell Culture Supernates
  12. IL-17 and IL-23 in lupus nephritis - association to histopathology and response to treatment.
    Authors: Zickert A, Amoudruz P, Sundstrom Y, Ronnelid J, Malmstrom V, Gunnarsson I
    BMC Immunol, 2015-02-12;16(0):7.
    Species: Human
    Sample Types: Serum
  13. CD137 ligand signalling induces differentiation of primary acute myeloid leukaemia cells.
    Authors: Cheng K, Wong S, Linn Y, Ho L, Chng W, Schwarz H
    Br J Haematol, 2014-01-15;165(1):134-44.
    Species: Human
    Sample Types: Cell Culture Supernates
  14. Serum levels of Th17-related cytokines in Behcet disease patients after cataract surgery.
    Authors: Jiang S, Liu X, Luo L, Qu B, Huang X, Lin Y, Ye S, Liu Y
    Mol. Vis., 2011-05-31;17(0):1425-30.
    Species: Human
    Sample Types: Serum


No product specific FAQs exist for this product, however you may

View all ELISA FAQs

Reviews for Human IL-23 DuoSet ELISA

Average Rating: 5 (Based on 2 Reviews)

5 Star
4 Star
3 Star
2 Star
1 Star

Have you used Human IL-23 DuoSet ELISA?

Submit a review and receive an Amazon gift card.

$25/€18/£15/$25CAN/¥75 Yuan/¥1250 Yen for a review with an image

$10/€7/£6/$10 CAD/¥70 Yuan/¥1110 Yen for a review without an image

Submit a Review

Filter by:

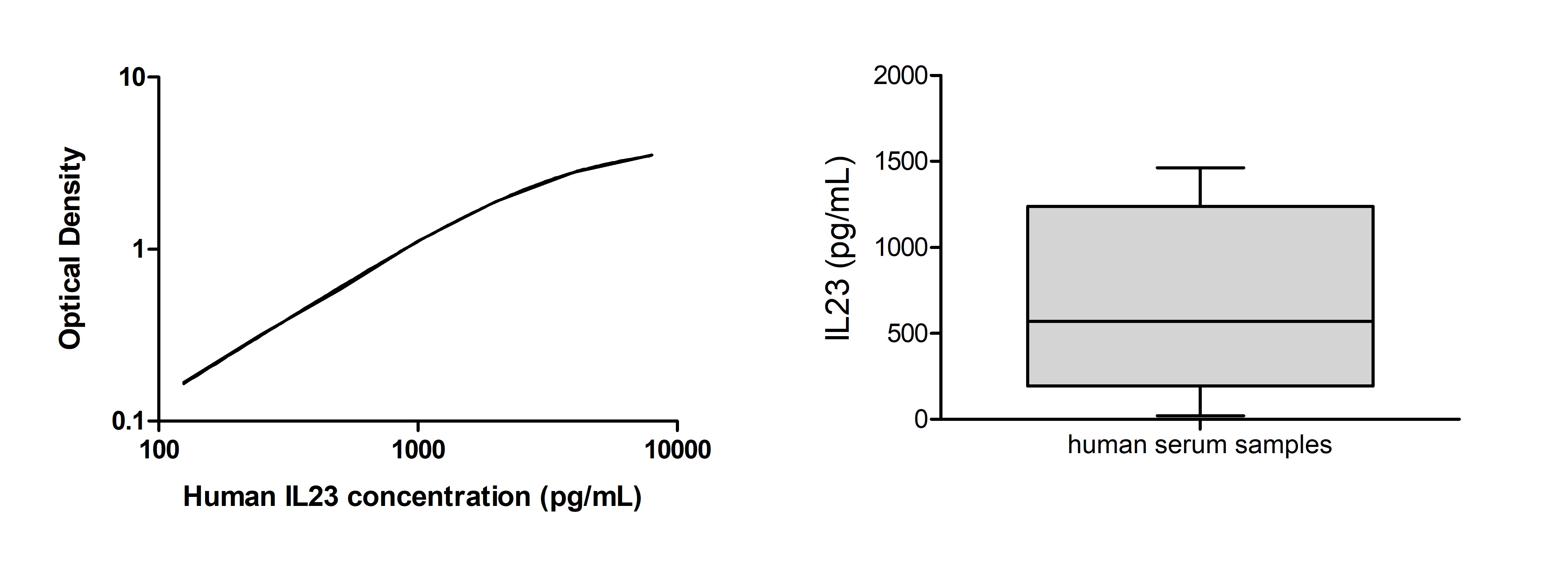

Human IL-23 DuoSet ELISA
By Anonymous on 11/15/2022
Sample Tested: Serum

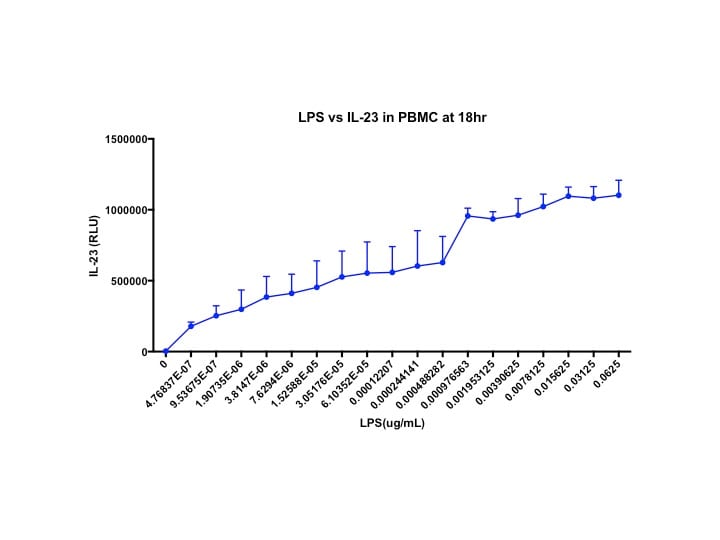

Human IL-23 DuoSet ELISA
By Anonymous on 03/28/2018
Sample Tested: Peripheral blood mononuclear cells (PBMCs)
