Lysosome-associated membrane protein-1 (LAMP1), also known as CD107a, is a 100‑130 kDa member of the LAMP family of glycoproteins. It is expressed in lysosomal and plasma membranes of macrophages, NK and T-cells, and with LAMP2, is essential for the formation of phagolysosomes. On the cell surface, it also presents carbohydrates to selectins. Mature human LAMP1 is a 389 amino acid (aa) type I transmembrane glycoprotein. It contains a 354 aa luminal/extracellular domain (ECD) (aa 28‑381) and a 12 aa cytoplasmic tail (aa 405‑416). The ECD has two large looping regions (aa 28‑193 and 227‑381) plus multiple N- and O-linked glycosylation sites. There is one potential splice variant that shows a 26 aa substitution in the signal sequence. Over aa 28‑380, human LAMP1 shares 64% aa identity with mouse LAMP1.
Human LAMP‑1/CD107a PE‑conjugated Antibody
R&D Systems | Catalog # IC4800P
Key Product Details
Validated by
Species Reactivity
Validated:
Cited:
Applications
Validated:
Cited:
Label
Antibody Source
Product Specifications
Immunogen
Ala28-Asn380
Accession # P11279
Specificity
Clonality
Host
Isotype
Scientific Data Images for Human LAMP‑1/CD107a PE‑conjugated Antibody

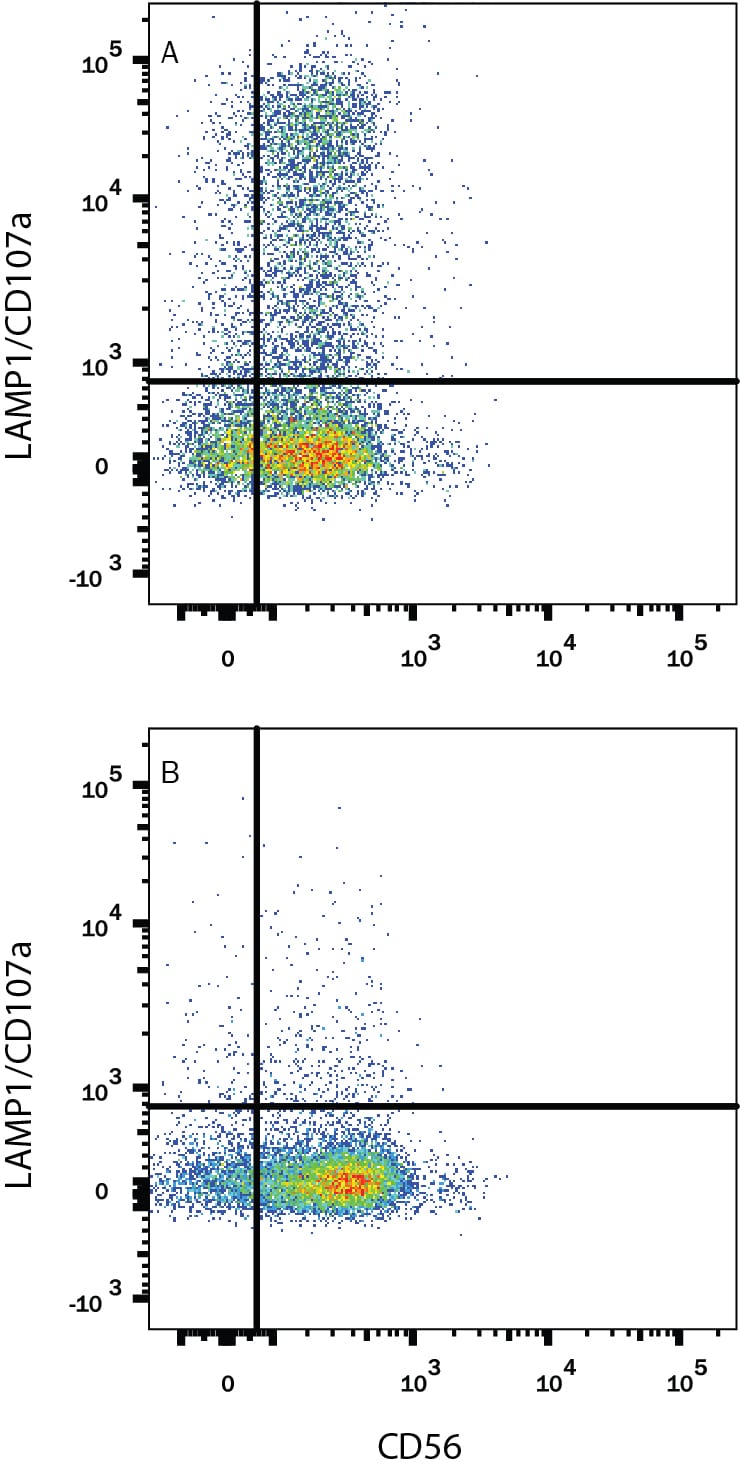

Detection of LAMP‑1/CD107a in Human NK cells by Flow Cytometry.
NK cells were expanded from PBMC using Cloudz Human NK Cell Expansion Kit (CLD004) and cultured in the presence of Mouse Anti-Human LAMP-1/CD107a PE-conjugated Monoclonal Antibody (Catalog # IC4800P) for 2 hours either (A) with or (B) without a 1:1 ratio of K562 cell line target cells. Cells were then stained with Mouse Anti-Human NCAM-1/CD56 APC-conjugated Monoclonal Antibody (FAB2408A). Quadrant markers were set based on control antibody staining (IC0041P). Staining was performed using our Staining Surface Molecules protocol.Detection of LAMP‑1/CD107a in Human NK cells by Flow Cytometry.
Enriched human NK cells either (A) treated with 1:1 ratio with K562 cell line for 5 hours or (B) untreated were stained with Mouse Anti-Human LAMP-1/CD107a PE-conjugated Monoclonal Antibody (Catalog # IC4800P) and Mouse Anti-Human NCAM-1/CD56 APC-conjugated Monoclonal Antibody (Catalog # FAB2408A). Quadrant markers were set based on control antibody staining (Catalog # IC0041P).Detection of LAMP‑1/CD107a in THP‑1 Human Cell Line by Flow Cytometry.

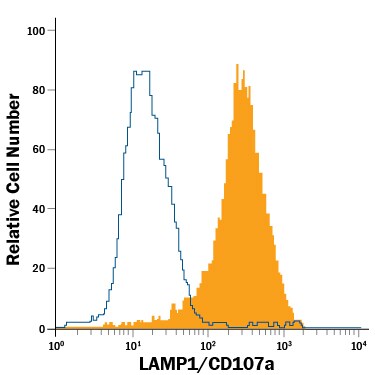

THP-1 human acute monocytic leukemia cell line was stained with Mouse Anti-Human LAMP-1/CD107a PE-conjugated Monoclonal Antibody (Catalog # IC4800P, filled histogram) or isotype control antibody (Catalog # IC0041P, open histogram). Cells were fixed with Flow Cytometry Fixation Buffer (Catalog # FC004) and permeabilized with Flow Cytometry Permeabilization/Wash Buffer I (Catalog # FC005). View our protocol for Staining Intracellular Molecules.Applications for Human LAMP‑1/CD107a PE‑conjugated Antibody
Flow Cytometry
Sample: Enriched or expanded human NK cells cultured with 1:1 ratio of K562 cell line target cells
Intracellular Staining by Flow Cytometry
Sample: THP‑1 human acute monocytic leukemia cell line fixed with Flow Cytometry Fixation Buffer (Catalog # FC004) and permeabilized with Flow Cytometry Permeabilization/Wash Buffer I (Catalog # FC005)
Spectra Viewer
Plan Your Experiments
Use our spectra viewer to interactively plan your experiments, assessing multiplexing options. View the excitation and emission spectra for our fluorescent dye range and other commonly used dyes.
Spectra ViewerFlow Cytometry Panel Builder
Bio-Techne Knows Flow Cytometry
Save time and reduce costly mistakes by quickly finding compatible reagents using the Panel Builder Tool.
Advanced Features
- Spectra Viewer - Custom analysis of spectra from multiple fluorochromes
- Spillover Popups - Visualize the spectra of individual fluorochromes
- Antigen Density Selector - Match fluorochrome brightness with antigen density
Formulation, Preparation, and Storage
Purification
Formulation
Shipping
Stability & Storage
Background: LAMP-1/CD107a
Long Name
Alternate Names
Gene Symbol
UniProt
Additional LAMP-1/CD107a Products
Product Documents for Human LAMP‑1/CD107a PE‑conjugated Antibody
Certificate of Analysis
To download a Certificate of Analysis, please enter a lot or batch number in the search box below.
Note: Certificate of Analysis not available for kit components.
Product Specific Notices for Human LAMP‑1/CD107a PE‑conjugated Antibody
For research use only
