Human LAMP-1/CD107a Alexa Fluor® 488-conjugated Antibody

  • Species Reactivity
  • Specificity
    Designed to visualize the expression of LAMP-1 by fluorescence microscopy for staining cells and tissues. Conjugated LAMP-1 antibodies are ideal for immunocytochemistry colocalization studies in lysosomes. The unconjugated antibody detects human LAMP-1/CD107a in direct ELISAs and Western blots.
  • Source
    Monoclonal Mouse IgG2B Clone # 508921
  • Purification
    Protein A or G purified from hybridoma culture supernatant
  • Immunogen
    Mouse myeloma cell line NS0-derived recombinant human LAMP-1/CD107a
    Accession # P11279
  • Formulation
    Supplied in a saline solution containing BSA and Sodium Azide.
  • Label
    Alexa Fluor 488
  • Flow Cytometry
    5 µL/106 cells
    See below
  • Immunocytochemistry
    1:10 dilution
    See below
Please Note: Optimal dilutions should be determined by each laboratory for each application. General Protocols are available in the Technical Information section on our website.
Data Examples

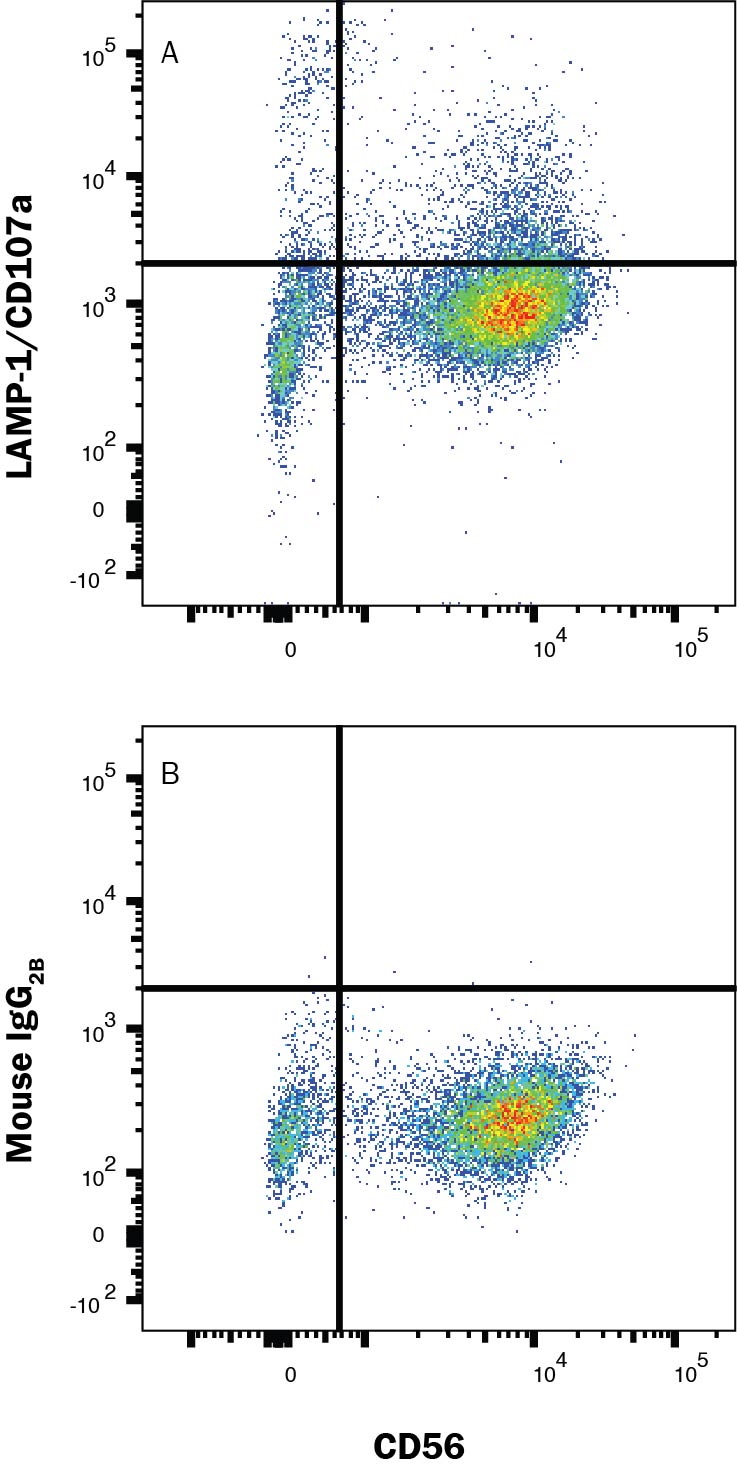

Detection of LAMP‑1/CD107a in Human NK cells by Flow Cytometry. Human NK Cells either (A) stimulated in a 1:1 ratio with K562 human chronic myelogenous leukemia cell line and 3 μM monensin for 5 hours or (B) ustimulated were stained with Mouse Anti-Human LAMP‑1/CD107a Alexa Fluor® 488‑conjugated Monoclonal Antibody (Catalog # IC4800G) and Mouse Anti-Human NCAM‑1/CD56 PE‑conjugated Monoclonal Antibody (Catalog # FAB2408P). Quadrant markers were set based on control antibody staining (Catalog # IC0041G). View our protocol for Staining Membrane-associated Proteins.
LAMP1/CD107a in HeLa Human Cell Line. LAMP1/CD107a was detected in formaldehyde fixed HeLa human cervical epithelial carcinoma cell line using Mouse Anti-Human LAMP1/CD107a Alexa Fluor® 488‑conjugated Monoclonal Antibody (Catalog # IC4800G) at 1:10 dilution for 3 hours at room temperature and counterstained with DAPI (blue). Specific staining was localized to lysosomes. View our protocol for Fluorescent ICC Staining of Cells on Coverslips.
Preparation and Storage
  • Shipping
    The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.
  • Stability & Storage
    Protect from light. Do not freeze.
    • 12 months from date of receipt, 2 to 8 °C as supplied.
Background: LAMP-1/CD107a
Lysosome-associated membrane protein-1 (LAMP-1), also known as CD107a, is a 100‑130 kDa member of the LAMP family of glycoproteins. It is expressed in lysosomal and plasma membranes of macrophages, NK and T-cells, and with LAMP-2, is essential for the formation of phagolysosomes. On the cell surface, it also presents carbohydrates to selectins. Mature human LAMP-1 is a 389 amino acid (aa) type I transmembrane glycoprotein. It contains a 354 aa luminal/extracellular domain (ECD) (aa 28‑381) and a 12 aa cytoplasmic tail (aa 405‑416). The ECD has two large looping regions (aa 28‑193 and 227‑381) plus multiple N- and O-linked glycosylation sites. There is one potential splice variant that shows a 26 aa substitution in the signal sequence. Over aa 28‑380, human LAMP-1 shares 64% aa identity with mouse LAMP-1.
  • Long Name:
    Lysosome-associated Membrane Glycoprotein 1
  • Entrez Gene IDs:
    3916 (Human); 16783 (Mouse)
  • Alternate Names:
    CD107 antigen-like family member A; CD107a antigen; CD107a; LAMP1; LAMP-1; LAMPA; LGP120; lysosomal-associated membrane protein 1; lysosome-associated membrane glycoprotein 1; Lysosome-associated membrane protein 1
