Human RAGE Quantikine ELISA Kit

Catalog # Availability Size / Price Qty
Control Products Available
Human RAGE ELISA Cell Culture Supernate Standard Curve
3 Images
Product Details
Citations (44)
Supplemental Products
Reviews (1)

Human RAGE Quantikine ELISA Kit Summary

Assay Type
Solid Phase Sandwich ELISA
96-well strip plate
Assay Length
4.5 hours
Sample Type & Volume Required Per Well
Cell Culture Supernates (50 uL), Serum (50 uL), EDTA Plasma (50 uL), Heparin Plasma (50 uL)
16.14 pg/mL
Assay Range
78.0 - 5,000 pg/mL (Cell Culture Supernates, Serum, EDTA Plasma, Heparin Plasma)
Natural and recombinant human RAGE
< 0.5% cross-reactivity observed with available related molecules.< 50% cross-species reactivity observed with species tested.
No significant interference observed with available related molecules.

Product Summary

The Quantikine Human RAGE Immunoassay is a 4.5 hour solid-phase ELISA designed to measure human RAGE (extracellular domain) in cell culture supernates, serum, and plasma. It contains NS0-expressed recombinant human RAGE/Fc Chimera and has been shown to accurately quantitate the recombinant factor. Results obtained using natural human RAGE showed linear curves that were parallel to the standard curves obtained using the Quantikine kit standards. These results indicate that this kit can be used to determine relative mass values for naturally occurring RAGE.


Intra-Assay Precision (Precision within an assay) Three samples of known concentration were tested on one plate to assess intra-assay precision
Inter-Assay Precision (Precision between assays) Three samples of known concentration were tested in separate assays to assess inter-assay precision

Serum, EDTA Plasma, Heparin Plasma

Intra-Assay Precision Inter-Assay Precision
Sample 1 2 3 1 2 3
n 20 20 20 40 40 40
Mean 546 1527 3117 519 1449 2890
Standard Deviation 34 73 189 43 119 192
CV% 6.2 4.8 6.1 8.2 8.2 6.7

Cell Culture Supernates

Intra-Assay Precision Inter-Assay Precision
Sample 1 2 3 1 2 3
n 20 20 20 40 40 40
Mean 571 1549 3189 563 1568 3159
Standard Deviation 34 73 191 49 110 193
CV% 5.9 4.7 6 8.7 7 6.1


The recovery of RAGE spiked to levels throughout the range of the assay was evaluated.

Sample Type Average % Recovery Range %
Tissue Culture Media (n=4) 98 86-108

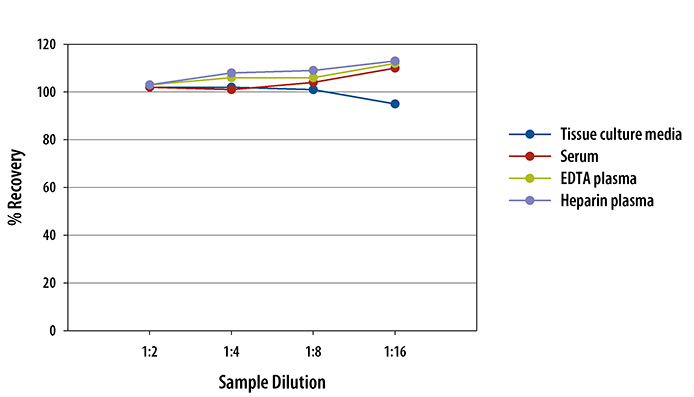

To assess the linearity of the assay, samples containing and/or spiked with high concentrations of RAGE were serially diluted with the appropriate Calibrator Diluent to produce samples with values within the dynamic range of the assay.
Human RAGE ELISA Linearity

Data Examples

Human RAGE ELISA Cell Culture Supernate Standard Curve

Human RAGE ELISA Serum/Plasma Standard Curve

Product Datasheets

Preparation and Storage

The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: RAGE/AGER

RAGE (Receptor for Advanced Glycation End product) is a transmembrane glycoprotein that binds advanced glycation end products (AGEs), beta-amyloid peptides, HMGB1/Amphoterin, and several S100 family proteins. AGEs are adducts formed by the non-enzymatic glycation and oxidation of proteins and lipids. A soluble form can also be generated by MMP-mediated shedding. RAGE is expressed in the CNS during development as well as in adult endothelial cells, smooth muscle cells, pericytes, monocytes, and neurons. It is locally upregulated in vascular inflammation (e.g. diabetes, atherosclerosis, vascular injury, Alzheimer’s disease). At these sites, RAGE binding to S100A1, EN-RAGE/S100A12, or S100B induces inflammatory immune cell adhesion and infiltration as well as vascular smooth muscle proliferation, neointimal expansion, atherosclerotic plaque development, and transport of A-beta into the cerebrospinal fluid. In cancer, RAGE binding to HMGB1, S100A8, or S100A9 promotes tumor growth and metastasis in addition to inflammatory cell infiltration.

Long Name:
Receptor for Advanced Glycation End Products
Entrez Gene IDs:
177 (Human); 11596 (Mouse); 81722 (Rat); 403168 (Canine)
Alternate Names:
advanced glycosylation end product-specific receptor; AGER; RAGE isoform delta; RAGE isoform sRAGE-delta; RAGE; Receptor for advanced glycosylation end products; receptor for advanced glycosylation end-products; SCARJ1
⚠ WARNING: This product can expose you to chemicals including N,N-Dimethylforamide, which is known to the State of California to cause cancer. For more information, go to

Assay Procedure

Refer to the product for complete assay procedure.

Bring all reagents and samples to room temperature before use. It is recommended that all samples, standards, and controls be assayed in duplicate.
  1.   Prepare all reagents, standard dilutions, and samples as directed in the product insert.
  2.   Remove excess microplate strips from the plate frame, return them to the foil pouch containing the desiccant pack, and reseal.

  3. 100 µL Assay Diluent
  4.   Add 100 µL of Assay Diluent to each well.

  5. 50 µL Standard, Control, or Sample
  6.   Add 50 µL of Standard, control, or sample to each well. Cover with a plate sealer, and incubate at room temperature for 2 hours.
  7.   Aspirate each well and wash, repeating the process 3 times for a total of 4 washes.

  8. 200 µL Conjugate
  9.   Add 200 µL of Conjugate to each well. Cover with a new plate sealer, and incubate at room temperature for 2 hours.
  10.   Aspirate and wash 4 times.

  11. 200 µL Substrate Solution
  12.   Add 200 µL Substrate Solution to each well. Incubate at room temperature for 30 minutes. PROTECT FROM LIGHT.

  13. 50 µL Stop Solution
  14.   Add 50 µL of Stop Solution to each well. Read at 450 nm within 30 minutes. Set wavelength correction to 540 nm or 570 nm.
