Key Product Details

Validated by

Biological Validation

Species Reactivity

Validated:

Human

Cited:

Human, Rat

Applications

Validated:

Flow Cytometry, CyTOF-ready

Cited:

Western Blot, Flow Cytometry

Label

Unconjugated

Antibody Source

Monoclonal Mouse IgG2B Clone # 218713
View all S1P1/EDG-1 Primary Antibodies »

Product Specifications

Immunogen

NS0 mouse myeloma cell line transfected with human S1P1/EDG‑1
Met1-Ser382
Accession # P21453

Specificity

Detects human S1P1/EDG‑1 by flow cytometry.

Clonality

Monoclonal

Host

Mouse

Isotype

IgG2B

Scientific Data Images for Human S1P1/EDG-1 Antibody

Detection of S1P1/EDG-1 antibody in CHO Chinese Hamster Cell Line Transfected with Human S1P1/EDG-1 and eGFP antibody by Flow Cytometry.

Detection of S1P1/EDG‑1 in CHO Chinese Hamster Cell Line Transfected with Human S1P1/EDG-1 and eGFP by Flow Cytometry.

CHO Chinese hamster ovary cell line transfected with either (A) human S1P1/EDG-1 or (B) irrelevant transfectants and eGFP were stained with Mouse Anti-Human S1P1/EDG-1 Monoclonal Antibody (Catalog # MAB2016) followed by Phycoerythrin-conjugated Anti-Mouse IgG Secondary Antibody (Catalog # F0102B). Quadrant markers were set based on control antibody staining (Catalog # MAB0041). View our protocol for Staining Membrane-associated Proteins.

Detection of Human S1P1/EDG-1 by Flow Cytometry

Detection of Human S1P1/EDG-1 by Flow Cytometry

S1PR1 expression by OECs is dynamically altered by microenvironment.OEC expression of S1PR1 under normoxia and hypoxia was qualitatively confirmed by immunocytochemistry (A). The percentage of cells expressing S1PR1 on the cell surface, as confirmed with flow cytometry, was enhanced under hypoxia as compared to the normoxic control (B). Combined stimuli of S1P and VEGF resulted in greater S1PR1 mRNA production after 24h in normoxia (C). Combined stimuli also resulted in a greater proportion of S1PR1+ OECs under both normoxia and hypoxia (D and E). Scale bars represent 40 μm. Data are mean ± SD (n = 4) and normalized to the average untreated control values for either normoxia or hypoxia (C, E; indicated by dashed line) accordingly. An asterisk indicates statistically significant differences (P<0.05) between conditions in normoxia or hypoxia respectively and N.S. displays no statistically significant difference between conditions. Image collected and cropped by CiteAb from the following publication (https://dx.plos.org/10.1371/journal.pone.0123437), licensed under a CC-BY license. Not internally tested by R&D Systems.

Applications for Human S1P1/EDG-1 Antibody

Application
Recommended Usage

CyTOF-ready

Ready to be labeled using established conjugation methods. No BSA or other carrier proteins that could interfere with conjugation.

Flow Cytometry

0.25 µg/106 cells
Sample: CHO Chinese hamster ovary cell line transfected with human S1P1/EDG-1 and eGFP

Reviewed Applications

Read 1 review rated 3 using MAB2016 in the following applications:

Flow Cytometry Panel Builder

Bio-Techne Knows Flow Cytometry

Save time and reduce costly mistakes by quickly finding compatible reagents using the Panel Builder Tool.

Advanced Features

  • Spectra Viewer - Custom analysis of spectra from multiple fluorochromes
  • Spillover Popups - Visualize the spectra of individual fluorochromes
  • Antigen Density Selector - Match fluorochrome brightness with antigen density
Build Your Panel Now
Flow Cytometry

Formulation, Preparation, and Storage

Purification

Protein A or G purified from hybridoma culture supernatant

Reconstitution

Reconstitute at 0.5 mg/mL in sterile PBS. For liquid material, refer to CoA for concentration.

Formulation

Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.

Shipping

Lyophilized product is shipped at ambient temperature. Liquid small pack size (-SP) is shipped with polar packs. Upon receipt, store immediately at the temperature recommended below.

Stability & Storage

Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 6 months, -20 to -70 °C under sterile conditions after reconstitution.

Calculators

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Background: S1P1/EDG-1

S1P1, also known as EDG-1, is a member of the endothelial differentiation gene family. It is a high affinity G protein-coupled receptor for the bioactive lipid, Sphingosine-1-phosphate. S1P1 signaling regulates endothelial cell survival, cytoskeletal remodeling, chemotaxis, and angiogenesis.

Long Name

Endothelial Differentiation Gene 1

Alternate Names

CD363, EDG1, S1PR1

Entrez Gene IDs

1901 (Human); 13609 (Mouse)

Gene Symbol

S1PR1

UniProt

P21453

Additional S1P1/EDG-1 Products

Product Documents for Human S1P1/EDG-1 Antibody

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot or batch number in the search box below.

Note: Certificate of Analysis not available for kit components.

Download SDS

Product Specific Notices for Human S1P1/EDG-1 Antibody

For research use only

Citations for Human S1P1/EDG-1 Antibody

Customer Reviews for Human S1P1/EDG-1 Antibody (1)

3 out of 5
1 Customer Rating
5 Stars
0%
4 Stars
0%
3 Stars
100%
2 Stars
0%
1 Stars
0%

Have you used Human S1P1/EDG-1 Antibody?

Submit a review and receive an Amazon gift card!

$25/€18/£15/$25CAN/¥2500 Yen for a review with an image

$10/€7/£6/$10CAN/¥1110 Yen for a review without an image

Submit a review
Amazon Gift Card

Customer Images

Showing  1 - 1 of 1 review Showing All
Filter By:
Clear Filters X
  • Human S1P1/EDG-1 Antibody

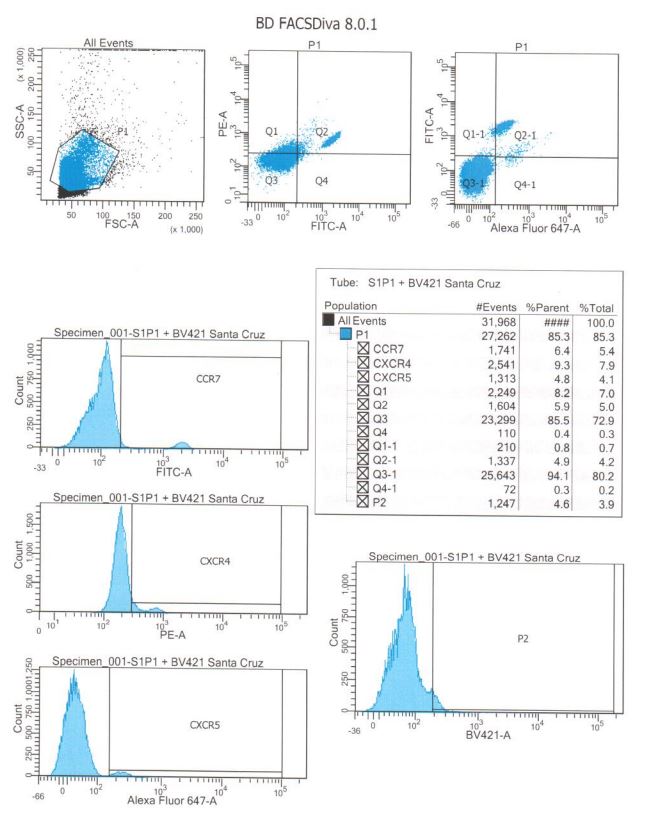

    Name: Anonymous
    Application: Flow Cytometry
    Sample Tested: Whole blood cells
    Species: Canine
    Verified Customer | Posted 10/12/2018
    Canine IP
    Human S1P1/EDG-1 Antibody MAB2016

There are no reviews that match your criteria.

Showing  1 - 1 of 1 review Showing All

FAQs

No product specific FAQs exist for this product.

View all FAQs for Antibodies
