Human TIM-3 Alexa Fluor® 647-conjugated Antibody

Clone 344823 was used by HLDA to establish CD designation.
  • Species Reactivity
  • Specificity
    Detects human TIM‑3 in direct ELISAs and Western blots. Does not cross-react with recombinant human (rh) TIM‑1, rhTIM‑4, recombinant mouse (rm) TIM‑1, rmTIM‑2, rmTIM‑3, rmTIM‑5, or rmTIM‑6.
  • Source
    Monoclonal Rat IgG2A Clone # 344823
  • Purification
    Protein A or G purified from hybridoma culture supernatant
  • Immunogen
    Mouse myeloma cell line NS0-derived recombinant human TIM‑3
    Accession # Q8TDQ0.2
  • Formulation
    Supplied in a saline solution containing BSA and Sodium Azide.
  • Label
    Alexa Fluor 647
  • Flow Cytometry
    5 µL/106 cells
    See below
Please Note: Optimal dilutions should be determined by each laboratory for each application. General Protocols are available in the Technical Information section on our website.
Data Examples

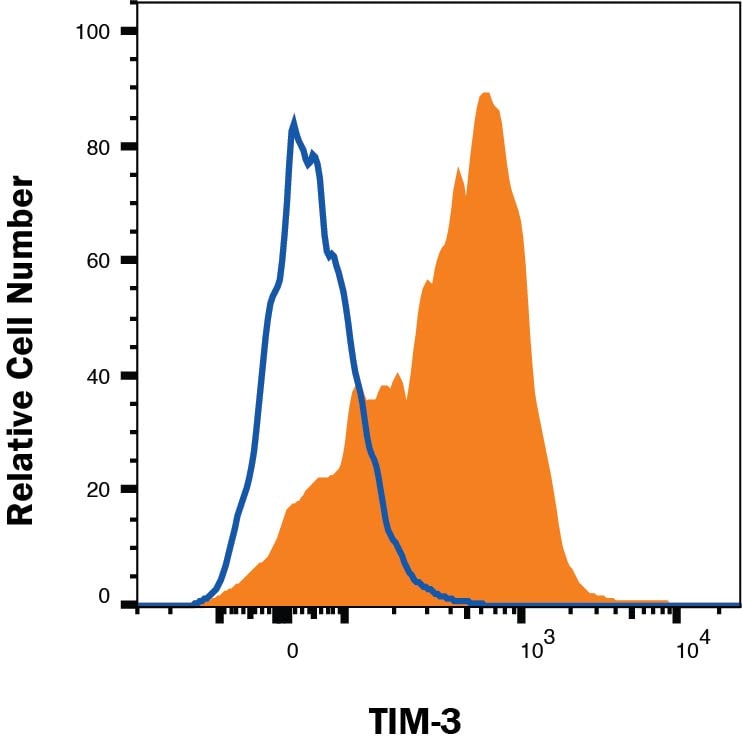

Detection of TIM‑3 in Th1-stimulated Human PBMCs by Flow Cytometry. Unstimulated (A) and Th1-stimulated (B) human peripheral blood mononuclear cells (PBMCs) were stained with Rat Anti-Human TIM‑3 Alexa Fluor® 647‑conjugated Monoclonal Antibody (Catalog # FAB2365R) and Mouse Anti-Human CD4 PE‑conjugated Monoclonal Antibody (Catalog # FAB3791P). Quadrant markers were set based on control antibody staining (Catalog # IC006R). View our protocol for Staining Membrane-associated Proteins.
Preparation and Storage
  • Shipping
    The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.
  • Stability & Storage
    Protect from light. Do not freeze.
    • 12 months from date of receipt, 2 to 8 °C as supplied.
Background: TIM-3
TIM-3 (T cell Immunoglobulin and Mucin domain-3), also known as HAVCR2, is a 60 kDa member of the TIM family of immune regulating molecules. TIMs are type I transmembrane glycoproteins with one Ig-like V-type domain and a Ser/Thr-rich mucin stalk region (1, 2). Mature human TIM-3 consists of a 181 amino acid (aa) extracellular domain (ECD), a 21 aa transmembrane segment, and a 78 aa cytoplasmic tail (3). An alternatively spliced isoform is truncated within the mucin-like stalk. Within the ECD, human TIM-3 shares 58% aa sequence identity with mouse and rat TIM-3. TIM-3 is up‑regulated on several populations of activated myeloid cells (macrophages, monocytes, dendritic cells, microglia, and mast cells) and T cells (Th1, CD8+, NK, and Treg) (3-10). Its binding to Galectin-9 induces a range of immunosuppressive functions which enhance immune tolerance and inhibit anti-tumor immunity (11). TIM-3 ligation attenuates CD8+ and Th1 cell responses (11-13) and promotes the activity of Treg and myeloid derived suppressor cells (8, 11, 13, 14). In addition, dendritic cell-expressed TIM-3 dampens inflammation by enabling the phagocytosis of apoptotic cells and the cross-presentation of apoptotic cell antigens (4). It also binds the alarmin HMGB1, thereby preventing the activation of TLRs in response to released tumor cell DNA (7). TIM-3 interactions with Galectin-9 can alternatively trigger immune stimulatory effects, such as the coactivation of NK cell cytotoxicity (10).
  • References:
    1. Sakuishi, K. et al. (2011) Trends Immunol. 32:345.
    2. Anderson, A.C. (2012) Curr. Opin. Immunol. 24:213.
    3. Monney, L. et al. (2002) Nature 415:536.
    4. Nakayama, M. et al. (2009) Blood 113:3821.
    5. Anderson, A.C. et al. (2007) Science 318:1141.
    6. Wiener, Z. et al. (2007) J. Invest. Dermatol. 127:906.
    7. Chiba, S. et al. (2012) Nat. Immunol. 13:832.
    8. Sanchez-Fueyo, A. et al. (2003) Nat. Immunol. 4:1093.
    9. Ndhlovu, L.C. et al. (2012) Blood 119:3734.
    10. Gleason, M.K. et al. (2012) Blood 119:3064.
    11. Zhu, C. et al. (2005) Nat. Immunol. 6:1245.
    12. Sakhdari, A. et al. (2012) PLoS ONE 7:e40146.
    13. Sabatos, C.A. et al. (2003) Nat. Immunol. 4:1102.
    14. Dardalhon, V. et al. (2010) J. Immunol. 185:1383.
  • Long Name:
    T Cell Immunoglobulin Mucin-3
  • Entrez Gene IDs:
    84868 (Human); 171285 (Mouse); 102141722 (Cynomolgus Monkey)
  • Alternate Names:
    CD366; FLJ14428; HAVCR2; HAVcr-2; hepatitis A virus cellular receptor 2; kidney injury molecule-3; T cell immunoglobulin mucin 3; T cell immunoglobulin mucin-3; T-cell immunoglobulin and mucin domain-containing protein 3; TIM 3; TIM3 T-cell membrane protein 3; TIM3; Tim-3; TIMD-3; TIMD3KIM-3
