Human VEGF QuantiGlo ELISA Kit

Catalog # Availability Size / Price Qty
Control Products Available
Best Seller
Human VEGF Chemiluminescent ELISA Cell Culture Supernate/Serum/Plasma/Saliva Standard Curve
3 Images
Product Details
Citations (23)
Supplemental Products

Human VEGF QuantiGlo ELISA Kit Summary

Assay Length
5.5 hours
Sample Type & Volume Required Per Well
Cell Culture Supernates (50 uL), Serum (50 uL), EDTA Plasma (50 uL), Heparin Plasma (50 uL), Saliva (50 uL), Urine (50 uL)
5.99 pg/mL
Assay Range
6.4 - 20,000 pg/mL (Cell Culture Supernates, Serum, EDTA Plasma, Heparin Plasma, Saliva, Urine)
Natural and recombinant human VEGF. This assay also recognizes recombinant human VEGF165b.
Cross-reactivity observed with 1 or more available related molecules.< 50% cross-species reactivity observed with species tested.
Interference observed with 1 or more available related molecules.

Product Summary

The QuantiGlo Human VEGF Chemiluminescent Immunoassay is a 5.5 hour solid phase ELISA designed to measure VEGF165 levels in cell culture supernates, serum, plasma, saliva, and urine. It contains Sf 21-expressed recombinant human VEGF165 and antibodies raised against the recombinant protein. Results obtained for naturally occurring human VEGF and recombinant human VEGF121 showed linear curves that were parallel to the standard curves obtained using the QuantiGlo kit standards. These results indicate that this kit can be used to determine relative mass values for natural human VEGF.


Intra-Assay Precision (Precision within an assay) Four samples of known concentration were tested on one plate to assess intra-assay precision
Inter-Assay Precision (Precision between assays) Four samples of known concentration were tested in separate assays to assess inter-assay precision

Cell Culture Supernates, Serum, EDTA Plasma, Heparin Plasma, Saliva

Intra-Assay Precision Inter-Assay Precision
Sample 1 2 3 4 1 2 3 4
n 20 20 20 20 20 20 20 20
Mean (pg/mL) 22.2 392 1857 13972 22.7 389 1843 13411
Standard Deviation 1.76 12.9 52.3 557 2 27.6 131 562
CV% 7.9 3.3 2.8 4 8.8 7.1 7.1 4.2


Intra-Assay Precision Inter-Assay Precision
Sample 1 2 4 1 2 3 4
n 20 20 20 20 20 20 20
Mean (pg/mL) 24.4 417 14245 22.9 383 1823 12825
Standard Deviation 1.24 16 608 2.36 28.9 141 536
CV% 5.1 3.8 4.3 10.3 7.5 7.7 4.2


The recovery of VEGF spiked to three different levels throughout the range of the assay in various matrices was evaluated.

Sample Type Average % Recovery Range %
Cell Culture Media (n=4) 103 95-113
EDTA Plasma (n=4) 104 98-110
Heparin Plasma (n=4) 104 96-111
Serum (n=4) 102 90-112
Urine (n=4) 99 90-106


To assess the linearity of the assay, samples containing or spiked with high concentrations of VEGF in various matrices were diluted with Calibrator Diluent to produce samples with values within the dynamic range of the assay.

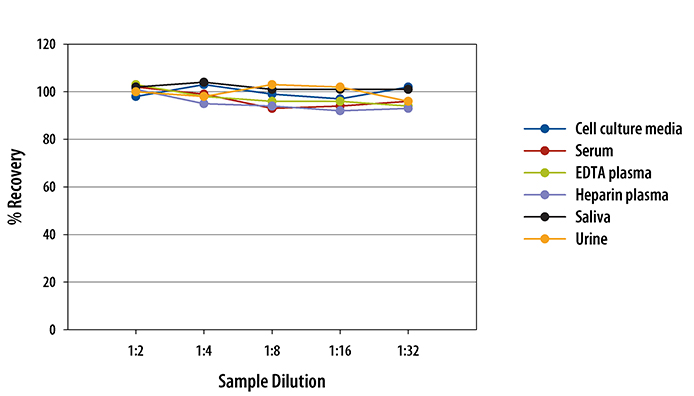

Human VEGF Chemiluminescent ELISA Linearity

Scientific Data

Human VEGF Chemiluminescent ELISA Cell Culture Supernate/Serum/Plasma/Saliva Standard Curve

Human VEGF Chemiluminescent ELISA Urine Standard Curve

Product Datasheets

You must select a language.


Preparation and Storage

The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: VEGF

Vascular endothelial growth factor (VEGF or VEGF-A), also known as vascular permeability factor (VPF), is a potent mediator of both angiogenesis and vasculogenesis in the fetus and adult (1-3). It is a member of the PDGF family that is characterized by the presence of eight conserved cysteine residues in a cystine knot structure and the formation of antiparallel disulfide-linked dimers (4). Humans express alternately spliced isoforms of 121, 145, 165, 183, 189, and 206 amino acids (aa) in length (4). VEGF165 appears to be the most abundant and potent isoform, followed by VEGF121 and VEGF189 (3, 4). Isoforms other than VEGF121 contain basic heparin-binding regions and are not freely diffusible (4). Human VEGF165 shares 88% aa sequence identity with corresponding regions of mouse and rat VEGF. VEGF is expressed in multiple cells and tissues including skeletal and cardiac muscle (5, 6), hepatocytes (7), osteoblasts (8), neutrophils (9), macrophages (10), keratinocytes (11), brown adipose tissue (12), CD34+ stem cells (13), endothelial cells (14), fibroblasts, and vascular smooth muscle cells (15). VEGF expression is induced by hypoxia and cytokines such as IL-1, IL-6, IL-8, oncostatin M, and TNF-alpha (3, 4, 9, 16). VEGF isoforms are differentially expressed during development and in the adult (3).

VEGF dimers bind to two related receptor tyrosine kinases, VEGF R1 (also called Flt-1) and VEGF R2 (Flk-1/KDR), and induce their homodimerization and autophosphorylation (3, 4, 7, 17, 18). These receptors have seven extracellular immunoglobulin-like domains and an intracellular split tyrosine kinase domain. They are expressed on vascular endothelial cells and a range of non-endothelial cells. Although VEGF affinity is highest for binding to VEGF R1, VEGF R2 appears to be the primary mediator of VEGF angiogenic activity (3, 4). VEGF165 also binds the semaphorin receptor, neuropilin-1, which promotes complex formation with VEGF R2 (19).
VEGF is best known for its role in vasculogenesis. During embryogenesis, VEGF regulates the proliferation, migration, and survival of endothelial cells (3, 4), thus regulating blood vessel density and size, but playing no role in determining vascular patterns. VEGF promotes bone formation through osteoblast and chondroblast recruitment and is also a monocyte chemoattractant (20-22). After birth, VEGF maintains endothelial cell integrity and is a potent mitogen for micro- and macro-vascular endothelial cells. In adults, VEGF functions mainly in wound healing and the female reproductive cycle (3). In diseased tissues, VEGF promotes vascular permeability. It is thus thought to contribute to tumor metastasis by promoting both extravasation and tumor angiogenesis (23, 24). Various strategies have been employed therapeutically to antagonize VEGF-mediated tumor angiogenesis (25). Circulating VEGF levels correlate with disease activity in autoimmune diseases such as rheumatoid arthritis, multiple sclerosis and systemic lupus erythematosus (26).

Long Name:
Vascular Endothelial Growth Factor
Entrez Gene IDs:
7422 (Human); 22339 (Mouse); 83785 (Rat); 281572 (Bovine); 403802 (Canine); 493845 (Feline); 30682 (Zebrafish)
Alternate Names:
MVCD1; VAS; vascular endothelial growth factor A; Vascular permeability factor; Vasculotropin; VEGF; VEGFA; VEGF-A; VEGFMGC70609; VPF; VPFvascular endothelial growth factor
