Axl (Ufo, Ark), Dtk (Sky, Tyro3, Rse, Brt), and Mer (human and mouse homologues of chicken c-Eyk) constitute a subfamily of the receptor tyrosine kinases (1, 2). The extracellular domains of these proteins contain two Ig-like motifs and two fibronectin type III motifs. This characteristic topology is also found in neural cell adhesion molecules and in receptor tyrosine phosphatases. The mouse Axl cDNA encodes an 888 amino acid (aa) precursor that includes an 18 aa signal sequence, a 427 aa extracellular domain, a 21 aa transmembrane segment, and a 422 aa cytoplasmic domain. The extracellular domains of mouse and human Axl share 81% aa sequence identity. These receptors bind the vitamin K-dependent protein growth arrest specific gene 6 (Gas6) which is structurally related to the anticoagulation factor protein S. Binding of Gas6 induces receptor autophosphorylation and downstream signaling pathways that can lead to cell proliferation, migration, or the prevention of apoptosis (3). This family of tyrosine kinase receptors is involved in hematopoiesis, embryonic development, tumorigenesis, and regulation of testicular functions.
Key Product Details
Species Reactivity
Validated:
Mouse
Cited:
Mouse
Applications
Validated:
Western Blot, ELISA Capture (Matched Antibody Pair)
Cited:
Western Blot, Luminex Development
Label
Unconjugated
Antibody Source
Monoclonal Rat IgG1 Clone # 107332
Loading...
Product Specifications
Immunogen
Mouse myeloma cell line NS0-derived recombinant mouse Axl
His20-Pro443
Accession # Q00993
His20-Pro443
Accession # Q00993
Specificity
Detects mouse Axl in ELISAs and Western blots. Does not cross-react with recombinant human (rh) Axl, rmDtk, or rmMer.
Clonality
Monoclonal
Host
Rat
Isotype
IgG1
Scientific Data Images for Mouse Axl Antibody

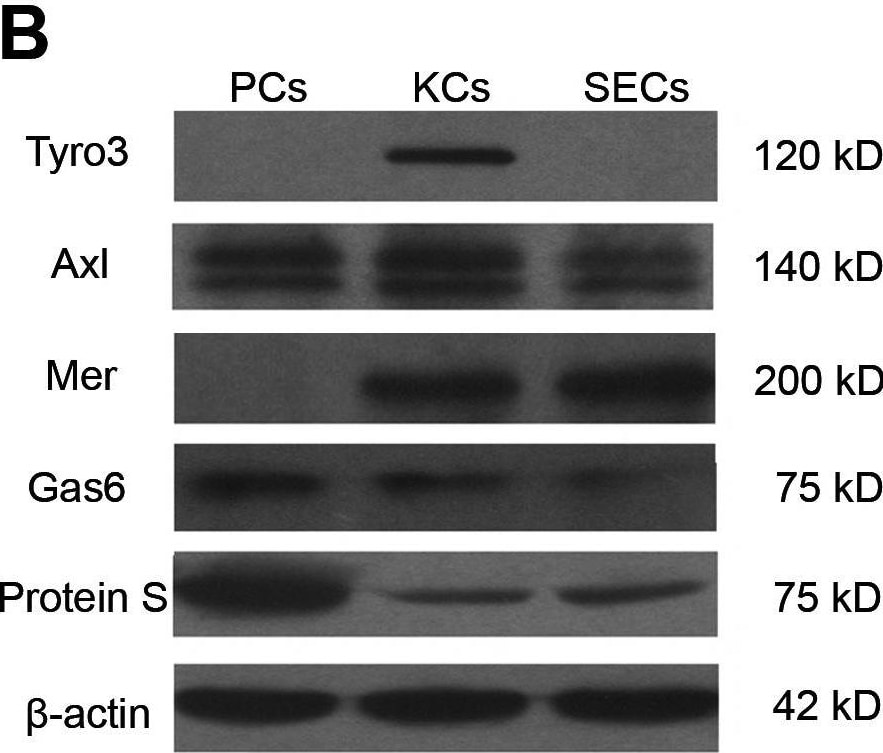

Detection of Mouse Axl by Western Blot
Expression of TAM RTKs, Gas6 and Protein S.(A) Western blot analyses of the liver lysates for the examination of TAM RTKs, Gas6 and Protein S. (B) Expression of TAM RTKs, Gas6 and Protein S in isolated liver cells: parenchymal cells (PCs), Kupffer cells(KCs) and sinusoidal endothelial cells (SECs). The primary cells were subjected to Western blotting. (C) Immunohistochemistry for the detection of TAM RTKs, Gas6 and Protein S. Arrowheads indicate PCs, and arrows indicate spindle-shaped sinusoidal cells corresponding to KCs and SECs. In negative controls (islets), sections were incubated with primary antibodies pre-incubated with an excess of blocking peptide. The livers of 15-week-old WT mice were used for the protein analyses. The images are representatives of at least three experiments. Scale bar = 20 µm. Image collected and cropped by CiteAb from the following open publication (https://pubmed.ncbi.nlm.nih.gov/23799121), licensed under a CC-BY license. Not internally tested by R&D Systems.
Detection of Mouse Axl by Western Blot
Expression of TAM RTKs, Gas6 and Protein S.(A) Western blot analyses of the liver lysates for the examination of TAM RTKs, Gas6 and Protein S. (B) Expression of TAM RTKs, Gas6 and Protein S in isolated liver cells: parenchymal cells (PCs), Kupffer cells(KCs) and sinusoidal endothelial cells (SECs). The primary cells were subjected to Western blotting. (C) Immunohistochemistry for the detection of TAM RTKs, Gas6 and Protein S. Arrowheads indicate PCs, and arrows indicate spindle-shaped sinusoidal cells corresponding to KCs and SECs. In negative controls (islets), sections were incubated with primary antibodies pre-incubated with an excess of blocking peptide. The livers of 15-week-old WT mice were used for the protein analyses. The images are representatives of at least three experiments. Scale bar = 20 µm. Image collected and cropped by CiteAb from the following open publication (https://pubmed.ncbi.nlm.nih.gov/23799121), licensed under a CC-BY license. Not internally tested by R&D Systems.Applications for Mouse Axl Antibody
Application
Recommended Usage
Western Blot
1 µg/mL
Sample: Recombinant Mouse Axl Fc Chimera (Catalog # 854-AX)
Sample: Recombinant Mouse Axl Fc Chimera (Catalog # 854-AX)
Mouse Axl Sandwich Immunoassay
Please Note: Optimal dilutions of this antibody should be experimentally determined.
Reviewed Applications
Read 7 reviews rated 3.9 using MAB854 in the following applications:
Formulation, Preparation, and Storage
Purification
Protein A or G purified from hybridoma culture supernatant
Reconstitution
Reconstitute at 0.5 mg/mL in sterile PBS. For liquid material, refer to CoA for concentration.
Loading...
Formulation
Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.
Shipping
Lyophilized product is shipped at ambient temperature. Liquid small pack size (-SP) is shipped with polar packs. Upon receipt, store immediately at the temperature recommended below.
Stability & Storage
Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
- 12 months from date of receipt, -20 to -70 °C as supplied.
- 1 month, 2 to 8 °C under sterile conditions after reconstitution.
- 6 months, -20 to -70 °C under sterile conditions after reconstitution.
Calculators
Background: Axl
References
- Yanagita, M. (2004) Curr. Opin. Nephrol. Hypertens. 13:465.
- Nagata, K. et al. (1996) J. Biol. Chem. 22:30022.
- Holland, S. et al. (2005) Canc. Res. 65:9294.
Long Name
Axl Receptor Tyrosine Kinase
Alternate Names
AI323647, ARK, JTK11, Tyro7, UFO
Gene Symbol
AXL
UniProt
Additional Axl Products
Product Documents for Mouse Axl Antibody
Certificate of Analysis
To download a Certificate of Analysis, please enter a lot or batch number in the search box below.
Note: Certificate of Analysis not available for kit components.
Product Specific Notices for Mouse Axl Antibody
For research use only
Related Research Areas
Citations for Mouse Axl Antibody
Powered by Bioz
Customer Reviews for Mouse Axl Antibody (7)
3.9 out of 5
7 Customer Ratings
Have you used Mouse Axl Antibody?
Submit a review and receive an Amazon gift card!
$25/€18/£15/$25CAN/¥2500 Yen for a review with an image
$10/€7/£6/$10CAN/¥1110 Yen for a review without an image
Submit a review
Customer Images
_0_0_0.png)
Showing
1
-
5 of
7 reviews
Showing All
Filter By:
-
Application: Western BlotSample Tested: bone marrowSpecies: MouseVerified Customer | Posted 09/29/2021Mouse Axl Antibody. Bone marrow.
-

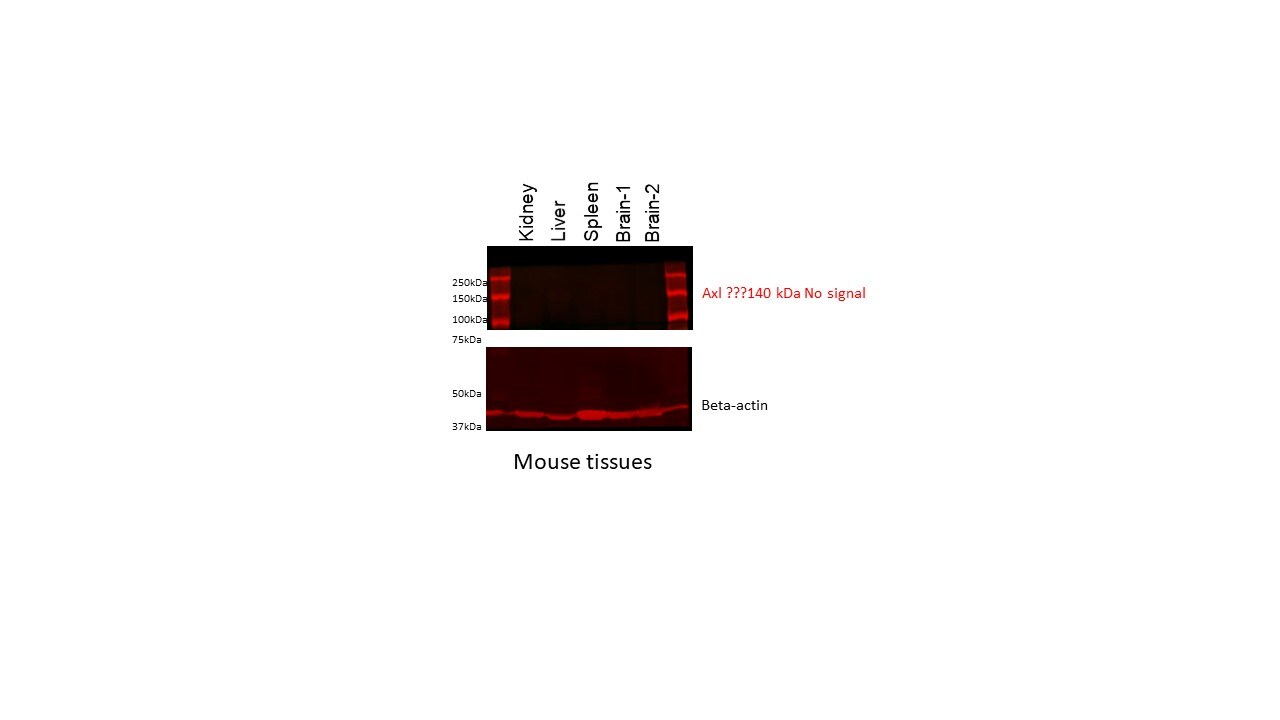

Application: Western BlotSample Tested: Adult kidney, Liver, Mouse Spleen and BrainSpecies: MouseVerified Customer | Posted 02/24/2020Mouse tissue lysate were separated on 12% SDS-PAGE. Western blotting was performed on PVDF membrane and b-actin was used as normalizer.No signal at all in any of he tissues.
-
Application: Western BlotSample Tested: Adult kidney, Adult brain, Liver tissue and Spleen tissueSpecies: MouseVerified Customer | Posted 02/24/2020
-

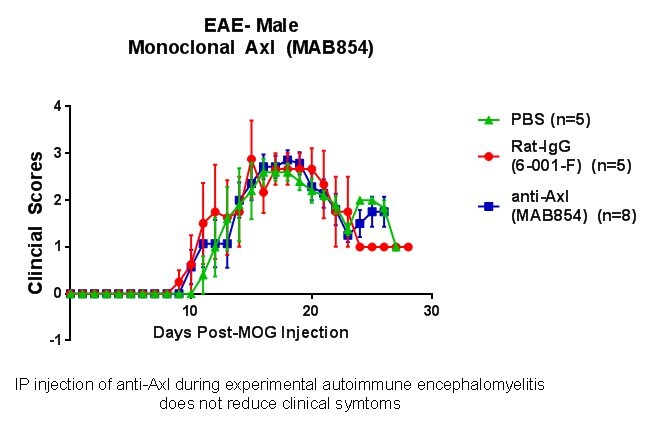

Application: Functional AssaySample Tested: Mouse brainSpecies: MouseVerified Customer | Posted 09/25/2018Mice were injected with MAB854 during EAE to activate or inhibit Axl receptor. No changes were observed.
-
Application: Flow CytometrySample Tested: 4T1 mouse breast cancer cell lineSpecies: MouseVerified Customer | Posted 04/12/2018Staining on live cells with MAB854 and a secondary antibody.
-
Application: Flow CytometrySample Tested: Mouse cell lineSpecies: MouseVerified Customer | Posted 03/15/2018
-
Application: Flow CytometrySample Tested: Mouse CellsSpecies: MouseVerified Customer | Posted 03/13/2018
