Mouse CD40 Ligand/TNFSF5 Antibody

Catalog # Availability Size / Price Qty
Detection of CD40 Ligand/TNFSF5 in Mouse Splenocytes by Flow Cytometry.
2 Images
Product Details
Citations (1)
Supplemental Products

Mouse CD40 Ligand/TNFSF5 Antibody Summary

Species Reactivity
Detects mouse CD40 Ligand in direct ELISAs. In direct ELISAs, no cross-reactivity with recombinant mouse (rm) CD27 Ligand, rmCD30 Ligand, or recombinant human CD40 Ligand is observed.
Monoclonal Rat IgG2A Clone # 208109
Protein A or G purified from hybridoma culture supernatant
Mouse myeloma cell line NS0-derived recombinant mouse CD40 Ligand/TNFSF5
Accession # P27548
Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.
Endotoxin Level
<0.10 EU per 1 μg of the antibody by the LAL method.


Recommended Concentration
Flow Cytometry
0.25 µg/106 cells
See below
Ready to be labeled using established conjugation methods. No BSA or other carrier proteins that could interfere with conjugation.
Measured by its ability to neutralize CD40 Ligand/TNFSF5-induced proliferation in mouse splenic B cells. The Neutralization Dose (ND50) is typically 0.0075-0.045 µg/mL in the presence of 0.5 ng/mL Recombinant Mouse CD40 Ligand/TNFSF5.

Please Note: Optimal dilutions should be determined by each laboratory for each application. General Protocols are available in the Technical Information section on our website.

Scientific Data

Flow Cytometry Detection of CD40 Ligand/TNFSF5 antibody in Mouse Splenocytes antibody by Flow Cytometry. View Larger

Detection of CD40 Ligand/TNFSF5 in Mouse Splenocytes by Flow Cytometry. Mouse splenocytes either (A) stimulated to induce Th1 cells or (B) unstimulated were stained with Rat Anti-Mouse CD40 Ligand/TNFSF5 Monoclonal Antibody (Catalog # MAB1163) followed by Allophycocyanin-conjugated Anti-Rat IgG Secondary Antibody (Catalog # F0113) and Rat Anti-Mouse CD4 PE-conjugated Monoclonal Antibody (Catalog # FAB554P). Quadrant markers were set based on control antibody staining (Catalog # MAB006). View our protocol for Staining Membrane-associated Proteins.

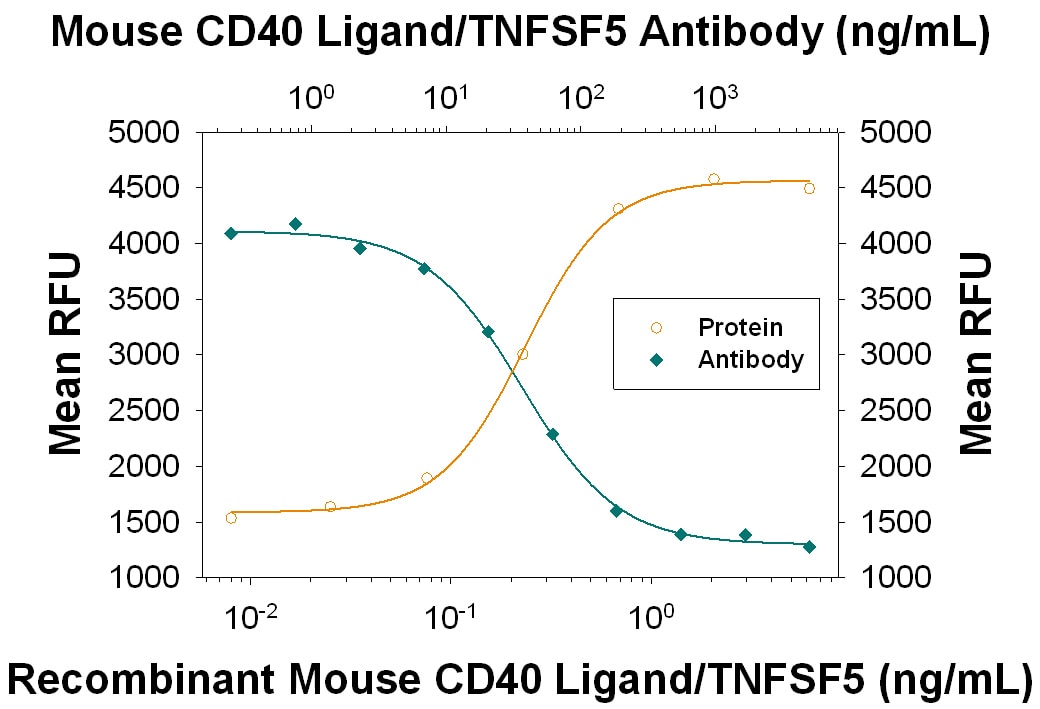

Neutralization Proliferation Induced by CD40 Ligand/TNFSF5 and Neutralization by Mouse CD40 Ligand/TNFSF5 Antibody. View Larger

Proliferation Induced by CD40 Ligand/TNFSF5 and Neutralization by Mouse CD40 Ligand/TNFSF5 Antibody. Recombinant Mouse CD40 Ligand/TNFSF5 (Catalog # 8230-CL) induces proliferation in mouse splenic B cells in a dose-dependent manner (orange line), as measured by Resazurin (Catalog # AR002). Proliferation elicited by Recombinant Mouse CD40 Ligand/TNFSF5 (0.5 ng/mL) is neutralized (green line) by increasing concentrations of Rat Anti-Mouse CD40 Ligand/TNFSF5 Monoclonal Antibody (Catalog # MAB1163). The ND50 is typically 0.0075-0.045 µg/mL.

Reconstitution Calculator

Reconstitution Calculator

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.


Preparation and Storage

Reconstitute at 0.5 mg/mL in sterile PBS.
The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below. *Small pack size (SP) is shipped with polar packs. Upon receipt, store it immediately at -20 to -70 °C
Stability & Storage
Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 6 months, -20 to -70 °C under sterile conditions after reconstitution.

Background: CD40 Ligand/TNFSF5

CD40 ligand (CD40L; also known as CD154, TNFSF5, TRAP, or gp39) is a 260 amino acid (aa) type II transmembrane glycoprotein belonging to the TNF family. Mouse CD40L consists of a 22 aa cytoplasmic domain, a 24 aa transmembrane domain, and 214 aa extracellular domain bearing a single glycosylation site (1, 2). CD40L is expressed predominantly on activated CD4+ T lymphocytes and also found in other types of cells, including NK cells, mast cells, basophils, and eosinophils. Murine CD40L shares 78% amino acid sequence identity with human CD40L. Native bioactive soluble CD40L exists. Soluble human trimeric CD40L secreted by stimulated T cells has been shown to be generated by proteolysis in the microsomes (3). Both membrane bound and soluble CD40L induce similar effects on B cells (3, 4). The receptor of CD40L is CD40, a type I transmembrane glycoprotein belonging to the TNF receptor family. CD40 is expressed on B lymphocytes, monocytes, dendritic cells, and thymic epithelium. Although all monomeric, dimeric, and trimeric forms of soluble CD40L can bind to CD40, the soluble trimeric form of CD40L has the most potent biological activity through oligomerization of cell surface CD40, a common feature of TNF receptor family members (2). The genetic defect in the hyper-IgM syndrome is due to point mutations or deletions of the gene encoding the CD40L, which prevent CD40L from interacting with CD40 (5‑7). CD40L mediates a range of activities on B cells including induction of activation-associated surface antigen, entry into the cell cycle, isotype switching, Ig secretion, and memory generation (8, 9). CD40-CD40L interaction also plays important roles in monocyte activation and dendritic cell maturation (10).

  1. Armitage, R.J. et al. (1992) Nature 357:80.
  2. Hollenbaugh, D. et al. (1992) EMBO J. 11:4313.
  3. Fabienne, P. et al. (1996) J. Biol. Chem. 271:5965.
  4. Fabienne, P. et al. (1996) Eur. J. Immunol 26:725.
  5. Arrufo, A. et al. (1993) Cell 72:291.
  6. Hill, A. and N. Chapel et al. (1993) Nature 361:494.
  7. Korthauer, U. et al. (1993) Nature 361:539.
  8. Spriggs, M.K. et al. (1992) J. Exp. Med. 176:1543.
  9. Fanslow, W.C. et al. (1994) Seminars in Immunology 6:267.
  10. Kooten, C.V. and J. Banchereau (2000) J. Leukoc. Biol. 67:2.
Entrez Gene IDs
959 (Human); 21947 (Mouse); 84349 (Rat)
Alternate Names
CD154 antigen; CD154; CD40 antigen ligand; CD40 Ligand; CD40L; CD40-L; CD40LG; CD40LIGM; gp39; hCD40L; HIGM1; T-B cell-activating molecule; T-BAM; T-cell antigen Gp39; TNF-related activation protein; TNFSF5; TNFSF5IMD3; TRAP; TRAPtumor necrosis factor (ligand) superfamily, member 5 (hyper-IgM syndrome); tumor necrosis factor (ligand) superfamily member 5; Tumor necrosis factor ligand superfamily member 5

Product Datasheets

You must select a language.


Citation for Mouse CD40 Ligand/TNFSF5 Antibody

R&D Systems personnel manually curate a database that contains references using R&D Systems products. The data collected includes not only links to publications in PubMed, but also provides information about sample types, species, and experimental conditions.

1 Citation: Showing 1 - 1

  1. Role of Valpha14+ NKT cells in the development of Hepatitis B virus-specific CTL: activation of Valpha14+ NKT cells promotes the breakage of CTL tolerance.
    Authors: Ito H, Ando K, Ishikawa T
    Int. Immunol., 2008-05-16;20(7):869-79.
    Species: Mouse
    Sample Types: In Vivo
    Applications: Neutralization
