Mouse IL-20 R beta Antibody

Catalog # Availability Size / Price Qty

Save Up to 40% on RUO Reagents with BIOSPRING24 (See Details)

Detection of IL‑20 R beta  in bEnd.3 Mouse Cell Line by Flow Cytometry.
2 Images
Product Details
Citations (1)
Supplemental Products

Mouse IL-20 R beta Antibody Summary

Species Reactivity
Detects mouse IL-20 R beta in direct ELISAs and Western blots. In direct ELISAs and Western blots, approximately 30% cross-reactivity with recombinant human IL‑20 R beta is observed.
Polyclonal Sheep IgG
Antigen Affinity-purified
Mouse myeloma cell line NS0-derived recombinant mouse IL‑20 R beta
Accession # NP_001032323
Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.


Recommended Concentration
Western Blot
0.1 µg/mL
Recombinant Mouse IL‑20 R beta Fc Chimera (Catalog # 4388-MR)
Flow Cytometry
2.5 µg/106 cells
See below
Ready to be labeled using established conjugation methods. No BSA or other carrier proteins that could interfere with conjugation.

Please Note: Optimal dilutions should be determined by each laboratory for each application. General Protocols are available in the Technical Information section on our website.

Scientific Data

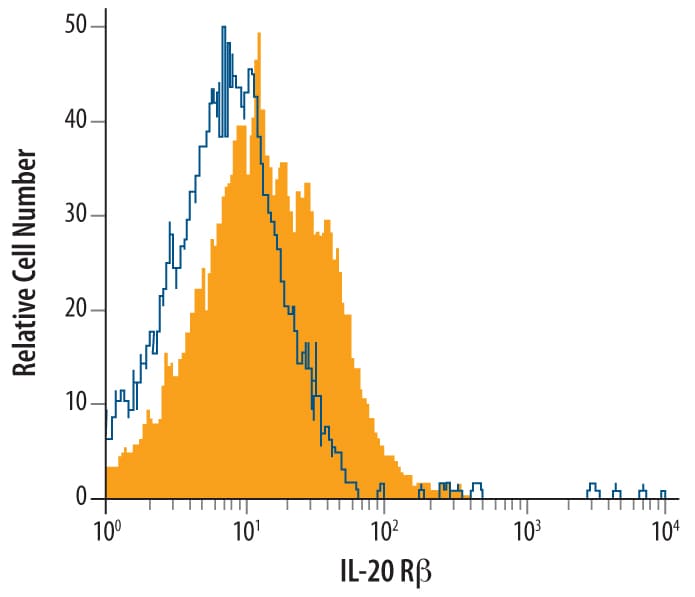

Flow Cytometry Detection of IL-20 R beta  antibody in bEnd.3 Mouse Cell Line antibody by Flow Cytometry. View Larger

Detection of IL‑20 R beta in bEnd.3 Mouse Cell Line by Flow Cytometry. bEnd.3 mouse endothelioma cell line was stained with Mouse IL-20 R beta Antigen Affinity-purified Polyclonal Antibody (Catalog # AF4388, filled histogram) or control antibody (Catalog # 5-001-A, open histogram), followed by NorthernLights™ 557-conjugated Anti-Sheep IgG Secondary Antibody (Catalog # NL010).

Immunocytochemistry/ Immunofluorescence Detection of Mouse IL-20 R beta/FNDC6 by Immunocytochemistry/Immunofluorescence View Larger

Detection of Mouse IL-20 R beta/FNDC6 by Immunocytochemistry/Immunofluorescence Expression of IL-19 and its receptors in three vital organs of ischemic AKI mice.(A) AKI mice (n = 5 in each group) were killed 48 h after renal IRI. Paraffined sections of kidney, liver, and lung tissue were stained using anti-IL-19 mAb, anti-IL-20R1 mAb, and anti-IL-20R2 polyclonal Ab. Anti-mIgG1 was a negative control. The reaction was detected using AEC chromogen stain (red), and the nuclei were counterstained with hematoxylin (blue). The bars represent 50 µm. All five mice in each group showed similar patterns. Shown sections are representative of five individual mice. (B) Mouse tissues of each group (n = 5) were isolated and homogenized to extract total protein. Mouse IL-19 expression in kidney, liver, and lung were analyzed using direct ELISA. *P<0.05 compared with sham-operated mice. (C–E) Experimental mice were killed 2 days after renal IRI. RTQ-PCR was done with primers specific for IL-19, IL-20R1, and IL-20R2. The relative quantification of PCR products was expressed as 2− delta delta Ct, corrected using GAPDH expression, and relative to levels of untreated cells. Data are the means ± SD of three experiments. *P<0.05 compared with sham-operated mice. Image collected and cropped by CiteAb from the following publication (, licensed under a CC-BY license. Not internally tested by R&D Systems.

Reconstitution Calculator

Reconstitution Calculator

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.


Preparation and Storage

Reconstitute at 0.2 mg/mL in sterile PBS.
The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below. *Small pack size (SP) is shipped with polar packs. Upon receipt, store it immediately at -20 to -70 °C
Stability & Storage
Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 6 months, -20 to -70 °C under sterile conditions after reconstitution.

Background: IL-20 R beta

IL-20 receptor beta (IL-20 R beta ), also known as IL-20 R2, is a type I transmembrane glycoprotein in the class II cytokine receptor family. These receptors are characterized by tandem fibronectin type III domains in their extracellular region and the lack of a WSXWS motif (1). Class II cytokine receptors form heterodimeric signaling receptor complexes that mediate class II cytokine signals. Subunits of the different receptor complexes are shared and serve multiple functions (1). Based on the structure of the human receptor, mouse IL-20 R beta should contain a 202 amino acid (aa) extracellular domain (ECD) with two fibronectin type III domains, a 16 aa transmembrane segment, and a 44 aa cytoplasmic domain (2). Within the ECD, mouse IL-20 R beta will share 81% aa sequence identity with human IL-20 R beta. It shares 18-29% aa sequence identity with the mouse class II cytokine receptors IFN-alpha R1, IFN-alpha R2, IFN-gamma R1, IFN-gamma R2, IL-10 R alpha, IL-10 R beta, IL-20 R alpha, IL-22BP, IL-22 R alpha, IL-28 R, and tissue factor. IL-20 R beta is generally expressed in psoriatic skin (keratinocytes and select endothelium), rheumatoid arthritis synovial membranes, and hepatocytes of LPS-treated mice, and it contributes to the local inflammatory reaction (3-6). IL-20 R beta heterodimerizes with IL-20 R alpha to form the receptor complex that mediates IL-19, IL-20, and IL-24 signals (3, 7-10). It also heterodimerizes with IL-22 R to form the functional receptor complex for IL-20 and IL-24 (7-9). Binding of these IL-10 family class II cytokines to their receptors induces activation of the JAK-STAT signal transduction pathway.


  1. Langer, J.A. et al. (2004) Cytokine Growth Factor Rev. 15:33.
  2. Accession # NP_001032323 and SwissProt # Q6UXL0.
  3. Blumberg, H. et al. (2001) Cell 104:9.
  4. Hsu, Y-H. et al. (2006) Arthritis Rheum. 54:2722.
  5. Wegenka, U.M. et al. (2007) J. Hepatol. 46:257.
  6. Chan, J.R. et al. (2006) J. Exp. Med. 203:2577.
  7. Parrish-Novak, J. et al. (2002) J. Biol. Chem. 277:47517.
  8. Dumoutier, L. et al. (2001) J. Immunol. 167:3545.
  9. Wang, M. et al. (2002) J. Biol. Chem. 277:7341.
  10. Pletnev, S. et al. (2003) Biochemistry 42:12617.
Long Name
Interleukin 20 Receptor beta
Entrez Gene IDs
53833 (Human); 213208 (Mouse)
Alternate Names
FNDC6; DIRS1; FNDC6; IL-20 R beta; IL20R beta; IL-20R2; IL20RB interleukin 20 receptor beta; IL20RB; IL-20Rb; MGC34923

Product Datasheets

You must select a language.


Citation for Mouse IL-20 R beta Antibody

R&D Systems personnel manually curate a database that contains references using R&D Systems products. The data collected includes not only links to publications in PubMed, but also provides information about sample types, species, and experimental conditions.

1 Citation: Showing 1 - 1

  1. Interleukin-20 targets podocytes and is upregulated in experimental murine diabetic nephropathy
    Authors: YH Hsu, HH Li, JM Sung, WY Chen, YC Hou, YH Weng, WT Lai, CH Wu, MS Chang
    Exp. Mol. Med., 2017-03-31;49(3):e310.
    Species: Mouse
    Sample Types: Whole Cells
    Applications: ICC
