Mouse Integrin alpha M/CD11b Alexa Fluor® 647-conjugated Antibody

FAB1124R 1 Citation Datasheet / COA / SDS

Catalog #	Availability	Size / Price	Qty
FAB1124R-025

Bulk Orders

Mouse Integrin alpha M/CD11b Alexa Fluor® 647-conjugated Antibody in Data

1 Image

Product Details

Citations (1)

Supplemental Products

Reviews

Summary Data Examples Preparation and Storage Reconstitution Calculator Background Product Datasheets Related Research Areas

Mouse Integrin alpha M/CD11b Alexa Fluor® 647-conjugated Antibody Summary

Species Reactivity

Mouse

Specificity

Detects mouse Integrin alpha M/CD11b. Cross-reaction with human Integrin alpha M has been reported (1, 2).

Source

Monoclonal Rat IgG_2B Clone # M1/70

Purification

Protein A or G purified from hybridoma culture supernatant

Immunogen

Con A-activated C57BL/10 splenocytes

Formulation

Supplied in a saline solution containing BSA and Sodium Azide.

Label

Alexa Fluor 647 (Excitation= 650 nm, Emission= 668 nm)

Applications

Recommended Concentration

Sample

Flow Cytometry

5 µL/10⁶ cells

See below

Please Note: Optimal dilutions should be determined by each laboratory for each application. General Protocols are available in the Technical Information section on our website.

Data Example

Flow Cytometry

View Larger

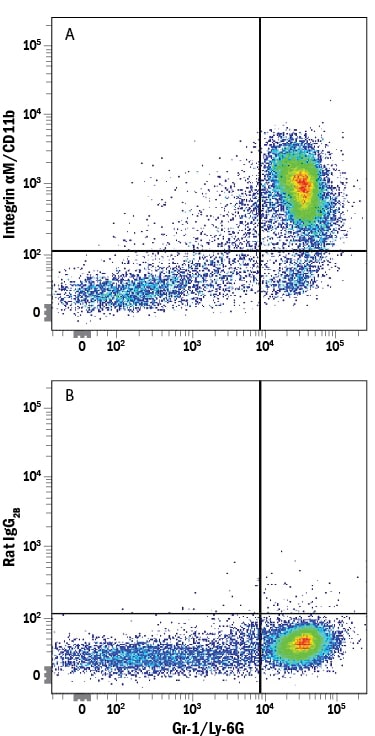

Detection of Integrin alpha M/CD11b in Mouse Bone Marrow Cells by Flow Cytometry. Mouse bone marrow cells were stained with Rat Anti-Mouse Gr-1/Ly-6G PE-conjugated Monoclonal Antibody (Catalog # FAB1037P) and either (A) Rat Anti-Mouse Integrin aM/CD11b Alexa Fluor® 647-conjugated Monoclonal Antibody (Catalog # FAB1124R) or (B) Rat IgG_2BAlexa Fluor 647 Isotype Control (Catalog # IC013R). View our protocol for Staining Membrane-associated Proteins.

Reconstitution Calculator

Preparation and Storage

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Protect from light. Do not freeze.

12 months from date of receipt, 2 to 8 °C as supplied.

Background: CD11b/Integrin alpha M

The Integrin family proteins are heterodimeric transmembrane receptors composed of an alpha and a beta subunit. The Integrin alpha M subunit, also known as MAC-1 alpha subunit or CD11b, combines with the Integrin beta 2 subunit (CD18) to form the non-covalent heterodimer Integrin alpha M/ beta 2, also known as MAC-1 and Complement Receptor type 3 (CR3). Integrin alpha M/ beta 2 is expressed on granulocytes, macrophages, dendritic cells and natural killer cells. Upon activation, alpha M/ beta 2 can bind several ligands (including ICAM-1, fibrinogen, and the C3 complement fragment, C3bi) to mediate phagocyte adhesion, migration and ingestion of complement-opsonized particles. The mouse extracellular domain (ECD) shares 87% and 74% amino acid sequence identity with rat and human ECD, respectively (3,4).

References

Beller, D.J. et al. (1982) J. Exp. Med. 156:1000.
Ault, K.A. and T.A. Springer (1981) J. Immunol. 126:359.
Mitroulis, I. et al. (2015) Pharmacol. Ther. 147:123.
Ross, G.D. et al. (2002) Immunol. Res. 25:219.

Entrez Gene IDs

3684 (Human); 16409 (Mouse)

Alternate Names

antigen CD11b (p170); CD11 antigen-like family member B; CD11b antigen; CD11b; Cell surface glycoprotein MAC-1 subunit alpha; Complement component 3 receptor 3 subunit; CR-3 alpha chain; CR3A; CR3AMGC117044; Integrin alpha M; integrin alpha-M; integrin, alpha M (complement component 3 receptor 3 subunit); ITGAM; Leukocyte adhesion receptor MO1; MAC-1; MAC1A; macrophage antigen alpha polypeptide; MO1A; neutrophil adherence receptor alpha-M subunit; Neutrophil adherence receptor; SLEB6

Product Datasheets

Product Datasheet

COA

SDS

Related Research Areas

Citation for Mouse Integrin alpha M/CD11b Alexa Fluor® 647-conjugated Antibody

R&D Systems personnel manually curate a database that contains references using R&D Systems products. The data collected includes not only links to publications in PubMed, but also provides information about sample types, species, and experimental conditions.

1 Citation: Showing 1 - 1
