Mouse L1CAM Antibody

Catalog # Availability Size / Price Qty
Detection of L1CAM in Mouse Splenocytes by Flow Cytometry.
2 Images
Product Details
Citations (4)
Supplemental Products

Mouse L1CAM Antibody Summary

Species Reactivity
Detects mouse L1CAM in direct ELISAs. In direct ELISAs, no cross-reactivity with recombinant human (rh) ALCAM, rhBCAM, rhEPCAM, rhMCAM, rhNCAM, rhNCAM-L1, rhOBCAM, recombinant mouse (rm)MAdCAM-1, or rmOCAM is observed.
Monoclonal Rat IgG2A Clone # 555
Protein A or G purified from hybridoma culture supernatant
Mouse cerebellum-derived partially purified L1CAM
Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.


Recommended Concentration
Flow Cytometry
0.25 µg/106 cells
Mouse splenocytes and Neuro‑2A mouse neuroblastoma cells
Ready to be labeled using established conjugation methods. No BSA or other carrier proteins that could interfere with conjugation.

Please Note: Optimal dilutions should be determined by each laboratory for each application. General Protocols are available in the Technical Information section on our website.

Scientific Data

Flow Cytometry Detection of L1CAM antibody in Mouse Splenocytes antibody by Flow Cytometry. View Larger

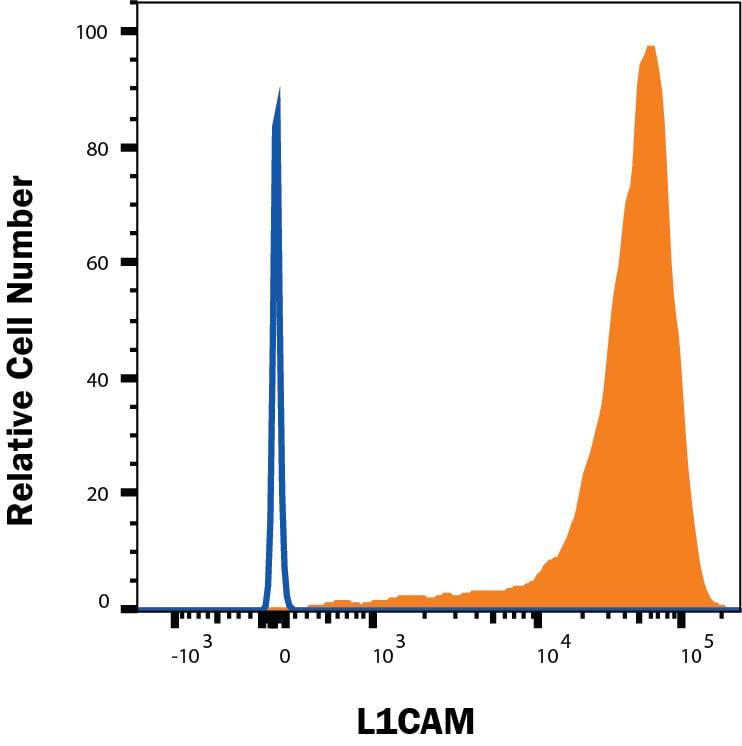

Detection of L1CAM in Mouse Splenocytes by Flow Cytometry. Mouse splenocytes were stained with Rat Anti-Mouse L1CAM Monoclonal Antibody (Catalog # MAB5674, filled histogram) or isotype control antibody (MAB006, open histogram), followed by Phycoerythrin-conjugated Anti-Rat IgG F(ab')2Secondary Antibody (F0105B).

Flow Cytometry View Larger

Detection of L1CAM in Neuro-2A cells by Flow Cytometry. Neuro-2A cells were stained with Rat Anti-Mouse L1CAM Monoclonal Antibody (Catalog # MAB5674, filled histogram) or isotype control antibody (Catalog # MAB006, open histogram), followed by Phycoerythrin-conjugated Anti-Rat IgG Secondary Antibody (Catalog # F0105B). View our protocol for Staining Membrane-associated Proteins.

Reconstitution Calculator

Reconstitution Calculator

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.


Preparation and Storage

Reconstitute at 0.5 mg/mL in sterile PBS.
Reconstitution Buffer Available
Reconstitution Buffer 1 (PBS)
Catalog #
Size / Price
The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below. *Small pack size (SP) is shipped with polar packs. Upon receipt, store it immediately at -20 to -70 °C
Stability & Storage
Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 6 months, -20 to -70 °C under sterile conditions after reconstitution.

Background: L1CAM

L1CAM, also known as Neural Cell Adhesion Molecule L1 (NCAM-L1) and CD171, is a 200‑220 kDa type I transmembrane glycoprotein of the immunoglobulin superfamily and L1/neurofascin/NgCAM family (1, 2). L1CAM is expressed by neurons, especially by growing axons on their growth cones (2). Non-neuronal cells such as Schwann cells, astrocytes, epithelial cells, and cells of myelomonocytic and lymphoid origin also express L1CAM (2). Mature mouse L1CAM consists of a 1104 amino acid (aa) extracellular domain (ECD) with 6 Ig-like domains and 5 fibronectin type-III domains, a 23 aa transmembrane region, and a 114 aa cytoplasmic tail (3). Mouse L1CAM shares 88% aa sequence identity with human L1CAM. L1CAM is critical for neural development. Specifically, L1CAM plays a key role in neuronal cell migration, axon outgrowth, axon fasciculation, synaptogenesis, and myelination (4). L1CAM mediates homophilic cell-cell interaction but also binds heterophilically with Axonin-1, CD24, CD9, Neurocan and several Integrins (4). L1CAM can undergo membrane‑proximal cleavage by ADAM10 and ADAM17, leading to the release of the soluble ECD and the generation of a membrane‑bound stub (4). The soluble ECD can serve as a substrate for integrin-mediated cell adhesion, thereby stimulating cellular motility and cell migration (4). L1CAM also plays a role in the ontogeny of human tumors, and its expression is linked to poor prognosis (1). Overexpression promotes tumor cell invasion and motility, growth in nude mice, and tumor metastasis (1). Proteolytic processing by ADAM10 and
presenilin/ gamma -secretase is essential for the nuclear signaling of L1CAM in human carcinoma cell lines (1). Defects in L1CAM are the cause of the neurological MASA/CRASH syndrome (5, 6).

  1. Riedle, S. et al. (2009) Biochem. J. 420:391.
  2. Kenwrick, S. and P. Doherty (1998) Bioessays 20:668.
  3. Crossin, K.L. and L.A. Krushel (2000) Dev. Dyn. 218:260.
  4. Maretzky, T. et al. (2005) Mol. Cell. Biol. 25:9040.
  5. Kamiguchi, H. et al. (1998) Mol. Cell Neurosci. 12:48.
  6. Striha, L. et al. (2000) J. Child Neurol. 15:239.
Long Name
Cell Adhesion Molecule L1
Entrez Gene IDs
3897 (Human); 16728 (Mouse); 50687 (Rat)
Alternate Names
antigen identified by monoclonal R1; CAML1; CAML1N-CAML1; CD171 antigen; CD171; HSAS; HSAS1; L1 cell adhesion molecule; L1CAM; MASA; MIC5; N-CAM-L1; NCAM-L1; neural cell adhesion molecule L1; S10; SPG1

Product Datasheets

You must select a language.


Citations for Mouse L1CAM Antibody

R&D Systems personnel manually curate a database that contains references using R&D Systems products. The data collected includes not only links to publications in PubMed, but also provides information about sample types, species, and experimental conditions.

4 Citations: Showing 1 - 4
Filter your results:

Filter by:

  1. Proteomic and functional analyses of the periodic membrane skeleton in neurons
    Authors: R Zhou, B Han, R Nowak, Y Lu, E Heller, C Xia, AH Chishti, VM Fowler, X Zhuang
    Nature Communications, 2022-06-09;13(1):3196.
    Species: Mouse
    Sample Types: Whole Cells
    Applications: ICC
  2. Anandamide-Modulated Changes in Metabolism, Glycosylation Profile and Migration of Metastatic Melanoma Cells
    Authors: A Sobiepanek, M Milner-Kra, P Musolf, T Starecki, T Kobiela
    Cancers, 2022-03-10;14(6):.
    Species: Mouse
    Sample Types: Whole Cells
    Applications: ELISA Capture
  3. L1CAM Is a Marker for Enriching Corticospinal Motor Neurons in the Developing Brain
    Authors: B Samata, R Takaichi, Y Ishii, K Fukushima, H Nakagawa, Y Ono, J Takahashi
    Front Cell Neurosci, 2020-02-19;14(0):31.
    Species: Mouse
    Sample Types: Whole Tissue
    Applications: IHC
  4. Promotion of spinal cord regeneration by neural stem cell-secreted trimerized cell adhesion molecule l1.
    Authors: He, Xiaowen, Knepper, Michael, Ding, Cheng, Li, Jun, Castro, Suita, Siddiqui, Maham, Schachner, Melitta
    PLoS ONE, 2012-09-25;7(9):e46223.
    Species: Mouse
    Sample Types: Tissue Homogenates
    Applications: Western Blot
