Key Product Details

Species Reactivity

Validated:

Mouse, Rat

Cited:

Human, Rat

Applications

Validated:

Immunohistochemistry, Western Blot, Flow Cytometry, CyTOF-ready

Cited:

Immunohistochemistry, Immunoprecipitation

Label

Unconjugated

Antibody Source

Polyclonal Sheep IgG
Loading...

Product Specifications

Immunogen

Chinese hamster ovary cell line CHO-derived recombinant mouse Integrin beta 5
Gly24-Asn719
Accession # NP_001139356

Specificity

Detects mouse and rat in Western blots.

Clonality

Polyclonal

Host

Sheep

Isotype

IgG

Scientific Data Images for Mouse/Rat Integrin  beta 5 Antibody

Detection of Mouse and Rat Integrin  beta 5 antibody by Western Blot.

Detection of Mouse and Rat Integrin beta 5 by Western Blot.

Western blot shows lysates of CMT-93 mouse rectal carcinoma cell line and C6 rat glioma cell line. PVDF membrane was probed with 1 µg/mL of Sheep Anti-Mouse Integrin beta 5 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF8035) followed by HRP-conjugated Anti-Sheep IgG Secondary Antibody (Catalog # HAF016). A specific band was detected for Integrin beta 5 at approximately 95 kDa (as indicated). This experiment was conducted under reducing conditions and using Immunoblot Buffer Group 1.

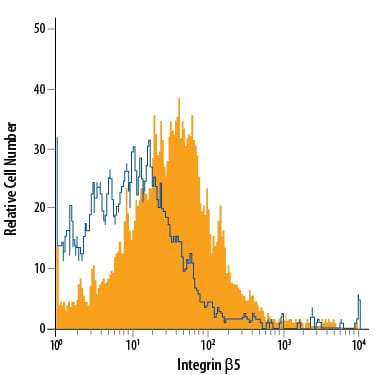

Detection of Integrin  beta 5 antibody in bEnd.3 Mouse Cell Line antibody by Flow Cytometry.

Detection of Integrin beta 5 in bEnd.3 Mouse Cell Line by Flow Cytometry.

bEnd.3 mouse endothelioma cell line was stained with Sheep Anti-Mouse/Rat Integrin beta 5 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF8035, filled histogram) or isotype control antibody (Catalog # 5-001-A, open histogram), followed by Allophycocyanin-conjugated Anti-Sheep IgG Secondary Antibody (Catalog # F0127).

Integrin  beta 5 antibody in Mouse Brain by Immunohistochemistry (IHC-Fr).

Integrin beta 5 in Mouse Brain.

Integrin beta 5 was detected in perfusion fixed frozen sections of mouse brain using Sheep Anti-Mouse/Rat Integrin beta 5 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF8035) at 15 µg/mL overnight at 4 °C. Tissue was stained using the Northern-Lights™ 557-conjugated Anti-Sheep IgG Secondary Antibody (red; Catalog # NL010). Specific staining was localized to glial cells. View our protocol for Fluorescent IHC Staining of Frozen Tissue Sections.

Applications for Mouse/Rat Integrin  beta 5 Antibody

Application
Recommended Usage

CyTOF-ready

Ready to be labeled using established conjugation methods. No BSA or other carrier proteins that could interfere with conjugation.

Flow Cytometry

2.5 µg/106 cells
Sample: bEnd.3 mouse endothelioma cell line

Immunohistochemistry

5-15 µg/mL
Sample: Perfusion fixed frozen sections of mouse brain

Western Blot

1 µg/mL
Sample: CMT‑93 mouse rectal carcinoma cell line and C6 rat glioma cell line

Flow Cytometry Panel Builder

Bio-Techne Knows Flow Cytometry

Save time and reduce costly mistakes by quickly finding compatible reagents using the Panel Builder Tool.

Advanced Features

  • Spectra Viewer - Custom analysis of spectra from multiple fluorochromes
  • Spillover Popups - Visualize the spectra of individual fluorochromes
  • Antigen Density Selector - Match fluorochrome brightness with antigen density
Build Your Panel Now

Formulation, Preparation, and Storage

Purification

Antigen Affinity-purified

Reconstitution

Sterile PBS to a final concentration of 0.2 mg/mL. For liquid material, refer to CoA for concentration.


Loading...

Formulation

Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.

Shipping

Lyophilized product is shipped at ambient temperature. Liquid small pack size (-SP) is shipped with polar packs. Upon receipt, store immediately at the temperature recommended below.

Stability & Storage

Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 6 months, -20 to -70 °C under sterile conditions after reconstitution.

Calculators

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Background: Integrin beta 5

The beta 5 integrin is a 95-110 kDa member of the integrin beta chain family, integrin superfamily of molecules. It is expressed by select cell types, including microglia, keratinocytes, fibroblasts, endothelial cells, adhesive monocytes and macrophages, retinal pigment epithelium, immature dendritic cells and colonic epithelium. The Integrin beta 5 subunit forms a noncovalent heterodimer with the alpha v integrin subunit, and together they bind vitronectin, and the Thy-1 antigen. alpha v beta 5 is reported to participate in phagocytosis, and act in concert with CD81, CD36 and stabilin-2 on the cell surface. When alpha v beta 5 binds Thy-1, the heterodimer apparently interfers with cell membrane activation of TGF-beta. Intracellularly, it appears to regulate actin skeleton remodeling via focal adhesion complex formation, and may contribute to cryptic pathways associated with antigen presentation. Mature mouse Integrin beta 5 is a 775 amino acid (aa) type I transmembrane glycoprotein that contains a 696 aa extracellular domain (ECD) (aa 24-719) and a 56 aa cytoplasmic region. The ECD contains a 243 aa vWF-A domain (aa 136-378) and a Cys-rich tandem repeat region (aa 465-630). There is one splice variant that shows a 57 aa substitution for aa 760-798. This splice form does not appear to be expressed by the human Integrin beta 5 gene. Over aa 24-719, mouse Integrin beta 5 shares 91% and 97% aa sequence identity with human and rat Integrin beta 5, respectively.

Alternate Names

ITGB5

Entrez Gene IDs

3693 (Human); 16419 (Mouse); 257645 (Rat); 102123619 (Cynomolgus Monkey)

Gene Symbol

ITGB5

UniProt

Additional Integrin beta 5 Products

Product Documents for Mouse/Rat Integrin  beta 5 Antibody

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot or batch number in the search box below.

Note: Certificate of Analysis not available for kit components.

Product Specific Notices for Mouse/Rat Integrin  beta 5 Antibody

For research use only

Citations for Mouse/Rat Integrin  beta 5 Antibody

Customer Reviews for Mouse/Rat Integrin  beta 5 Antibody

There are currently no reviews for this product. Be the first to review Mouse/Rat Integrin  beta 5 Antibody and earn rewards!

Have you used Mouse/Rat Integrin  beta 5 Antibody?

Submit a review and receive an Amazon gift card!

$25/€18/£15/$25CAN/¥2500 Yen for a review with an image

$10/€7/£6/$10CAN/¥1110 Yen for a review without an image

Submit a review
Amazon Gift Card

Protocols

Find general support by application which include: protocols, troubleshooting, illustrated assays, videos and webinars.

FAQs

No product specific FAQs exist for this product.

View all FAQs for Antibodies
