Mouse/Rat/Porcine/Canine TGF-beta 1 Quantikine ELISA Kit

R&D Systems | Catalog # MB100B

Product is in the process of discontinuation. A replacement product will be available soon.
R&D Systems
Discontinued Product
MB100B has been discontinued. An alternative/replacement product is available: DB100C. View all TGF-beta 1 products.

Key Product Details

Assay Length

4.5 hours

Sample Type & Volume Required Per Well

Cell Culture Supernates (100 µL), Serum (40 µL), EDTA Plasma (40 µL), Heparin Plasma (40 µL)

Sensitivity

15.4 pg/mL

Assay Range

31.2-2000 pg/mL (Cell Culture Supernates, Serum, EDTA Plasma, Heparin Plasma)
Loading...

Product Summary for Mouse/Rat/Porcine/Canine TGF-beta 1 Quantikine ELISA Kit

The Quantikine Mouse/Rat/Porcine/Canine TGF-beta 1 Immunoassay is a 4.5 hour solid phase ELISA designed to measure TGF-beta 1 in acid activated cell culture supernates, serum, and plasma. It contains recombinant TGF-beta 1 expressed by CHO cells and has been shown to quantitate the recombinant factor accurately. Results obtained using natural TGF-beta 1 showed linear curves that were parallel to the standard curves obtained using the recombinant kit standards. These results indicate that this kit will provide accurate quantitation for both recombinant and natural TGF-beta 1.

Product Specifications

Measurement

Quantitative ELISA

Detection Method

Colorimetric - 450nm (TMB)

Conjugate

HRP

Species

Mouse, Rat, Porcine, Canine

Specificity

Natural and recombinant TGF-beta 1. This kit also recognizes human TGF-beta 1.2.

Cross-reactivity

Cross-reactivity observed with 1 or more available related molecules. Cross-species reactivity not tested.

Interference

Interference observed with 1 or more available related molecules.

Precision

Intra-Assay Precision (Precision within an assay) Three samples of known concentration were tested on one plate to assess intra-assay precision.

Inter-Assay Precision (Precision between assays) Three samples of known concentration were tested in separate assays to assess inter-assay precision.

Cell Culture Supernates

Intra-Assay Precision Inter-Assay Precision
Sample 1 2 3 1 2 3
n 20 20 20 22 21 22
Mean (pg/mL) 88 198 816 97 209 826
Standard Deviation 3.0 4.9 19.6 8.1 17.3 47.0
CV% 3.4 2.5 2.4 8.4 8.3 5.7

EDTA Plasma, Heparin Plasma, Serum

Intra-Assay Precision Inter-Assay Precision
Sample 1 2 3 1 2 3
n 20 20 20 28 37 30
Mean (pg/mL) 78 180 695 79 185 730
Standard Deviation 2.3 3.4 17.3 7.2 17.2 46.8
CV% 2.9 1.9 2.5 9.1 9.3 6.4

Recovery for Mouse/Rat/Porcine/Canine TGF-beta 1 Quantikine ELISA Kit

The recovery of TGF-beta 1 spiked to levels throughout the range of the assay followed by activation was evaluated.

Sample Type Average % Recovery Range %
Mouse Cell Culture Supernates (n=4) 105 83-114
Porcine Cell Culture Supernates (n=2) 109 102-118
Rat Cell Culture Supernates (n=3) 112 93-125

Linearity

To assess the linearity of the assay, the activated samples containing and/or spiked with high concentrations of TGF-beta 1 were diluted with Calibrator Diluent and then assayed.

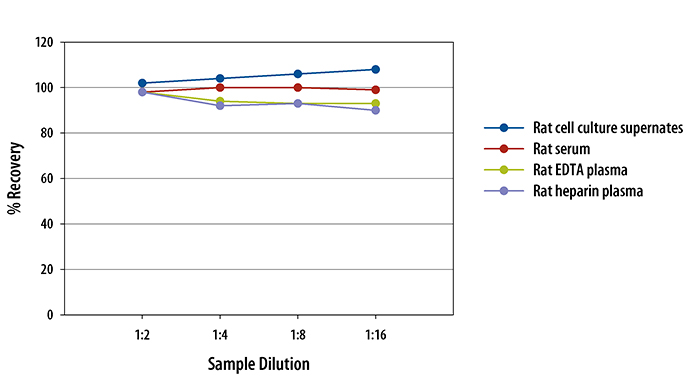

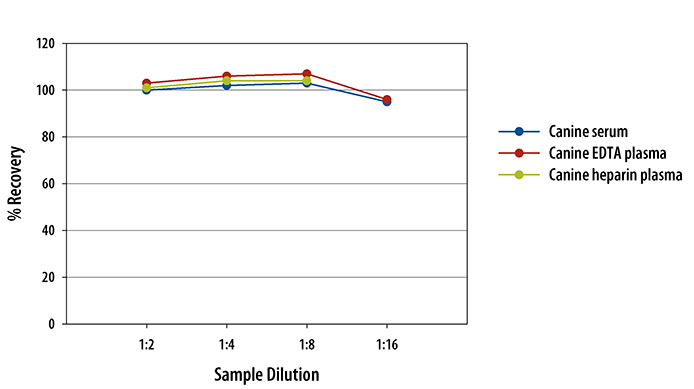

Mouse/Rat/Porcine/Canine TGF-beta 1 ELISA Linearity

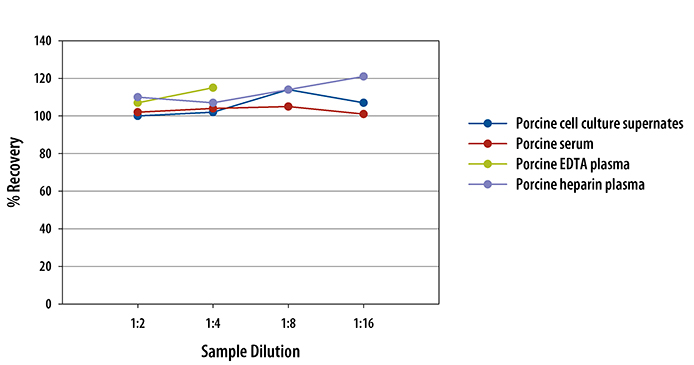

Mouse/Rat/Porcine/Canine TGF-beta 1 ELISA Linearity

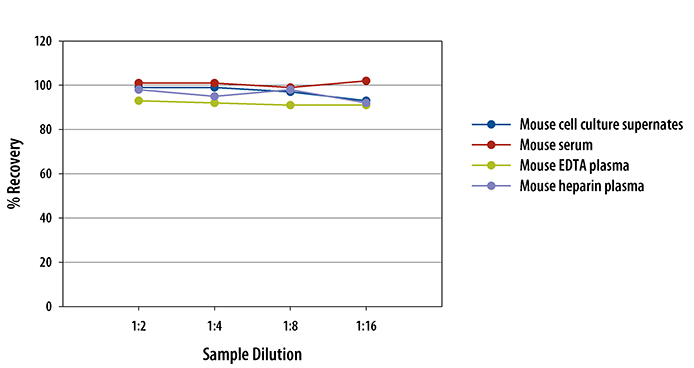

Mouse/Rat/Porcine/Canine TGF-beta 1 ELISA Linearity
Mouse/Rat/Porcine/Canine TGF-beta 1 ELISA Linearity

Scientific Data Images for Mouse/Rat/Porcine/Canine TGF-beta 1 Quantikine ELISA Kit

Mouse/Rat/Porcine/Canine TGF-beta 1 ELISA Cell Culture Supernate Standard Curve

Mouse/Rat/Porcine/Canine TGF-beta 1 ELISA Cell Culture Supernate Standard Curve

Mouse/Rat/Porcine/Canine TGF-beta 1 ELISA Serum/Plasma Standard Curve

Mouse/Rat/Porcine/Canine TGF-beta 1 ELISA Serum/Plasma Standard Curve

Preparation and Storage

Shipping

The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: TGF-beta 1

Transforming growth factor beta (TGF-beta ) proteins (including the three closely related mammalian isoforms TGF-beta 1, -2 and -3) are pleiotropic cytokines that regulate extracellular matrix production, wound healing, immune functions, cell proliferation and differentiation. They belong to the large TGF-beta superfamily, which also includes the activins/inhibins/MIS, bone morphogenetic proteins (BMPs), growth/differentiation factors (GDFs), Lefty1 and 2, and the distantly related GDNF family of neurotrophic factors. All family members show a characteristic cysteine-knot that is formed from multiple intrachain disulfide bonds (1-3).
The mouse, rat, porcine and canine TGF-beta 1 cDNAs encode a 390 amino acid (aa) residue precursor that contains a 29 aa signal peptide and a 361 aa pro-protein. The pro-protein for each species is proteolytically processed via a furin-like convertase to generate an N-terminal 249 aa latency-associated peptide (LAP), and a C-terminal 112 aa mature TGF-beta 1 (4-9). Both LAP and mature TGF-beta 1 exist as disulfide-linked homodimers. After proteolytic cleavage and secretion, the two homodimers remain non-covalently associated as the small latent TGF-beta 1 complex. In most cell types, this complex is also covalently linked via LAP to a latent TGF-beta binding protein (LTBP). This creates a secreted, large latent complex. The TGF-beta 1 present in either the small or the large latent complex is not available for TGF-beta receptor binding and activation, and is, therefore, latent. Whereas LAP is both necessary and sufficient to confer latency to TGF-beta 1, LTBP facilitates the proper folding and secretion of the small latent complex. LTBP is also a structural component of the extracellular matrix and directs the localization of the latent complex to the extracellular matrix (10-15). To date, four LTBPs that share multiple EGF-like, LTBP- and fibrillin-specific domains have been cloned. Three of the four LTBPs (#1, 3, and 4) have been shown to bind the small latent complexes of all TGF-beta isoforms (16). Activation of the latent TGF-beta complex is an important step that regulates TGF-beta function in vivo. Multiple activation mechanisms have been identified. These involve proteasedependent (plasmin and matrix metalloprotease) and protease-independent (binding of LAP to thrombospondin 1 or a subset of integrins) pathways (5, 15, 17-21). Mature mouse TGF-beta 1 shows 100% aa sequence identity to mature rat TGF-beta 1 (6, 7), and both rat and mouse TGF-beta 1 show 99% aa sequence identity with mature porcine, human, and canine TGF-beta 1 (4, 9, 22). Mature porcine TGF-beta 1 shows absolute identity to both mature human and canine TGF-beta 1.
The signalling high-affinity receptor for TGF-beta 1 is a heteromeric complex consisting of a type I (TGF-beta RI) and a type II (TGF-beta RII) transmembrane serine/threonine kinase receptor. TGF-beta RII is a constitutively active kinase. Upon binding TGF-beta 1, it phosphorylates and activates the TGF-beta RI. In turn, TGF-beta RI phosphorylates and activates Smad proteins that regulate transcription. TGF-beta RI, alternatively named activin receptor-like kinase (ALK-5), is present in almost all cell types. Two other type I receptors, ALK-1 and ALK-2 have also been implicated as alternative partners for TGF-beta RII in the TGF-beta signalling receptor complex. Besides the type I and type II receptors, accessory receptors including the type III receptor, TGF-beta RIII (also known as betaglycan), and endoglin, which modulate TGF-beta responses, have been identified (2, 23-26).

Long Name

Transforming Growth Factor beta 1

Alternate Names

TGF beta1, TGFB, TGFB1, TGFbeta 1

Entrez Gene IDs

7040 (Human); 21803 (Mouse); 59086 (Rat); 397078 (Porcine); 100033900 (Equine)

Gene Symbol

TGFB1

Additional TGF-beta 1 Products

Product Documents for Mouse/Rat/Porcine/Canine TGF-beta 1 Quantikine ELISA Kit

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot or batch number in the search box below.

Note: Certificate of Analysis not available for kit components.

Product Specific Notices for Mouse/Rat/Porcine/Canine TGF-beta 1 Quantikine ELISA Kit

For research use only

⚠ WARNING: This product can expose you to chemicals including N,N-Dimethylforamide, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

Citations for Mouse/Rat/Porcine/Canine TGF-beta 1 Quantikine ELISA Kit

Customer Reviews for Mouse/Rat/Porcine/Canine TGF-beta 1 Quantikine ELISA Kit (8)

4.9 out of 5
8 Customer Ratings
5 Stars
88%
4 Stars
13%
3 Stars
0%
2 Stars
0%
1 Stars
0%

Have you used Mouse/Rat/Porcine/Canine TGF-beta 1 Quantikine ELISA Kit?

Submit a review and receive an Amazon gift card!

$25/€18/£15/$25CAN/¥2500 Yen for a review with an image

$10/€7/£6/$10CAN/¥1110 Yen for a review without an image

Submit a review
Amazon Gift Card

Customer Images


Showing  1 - 5 of 8 reviews Showing All
Filter By:
  • Mouse/Rat/Porcine/Canine TGF-beta 1 Quantikine ELISA Kit
    Name: Martin Torres
    Sample Tested: Serum
    Verified Customer | Posted 09/24/2021

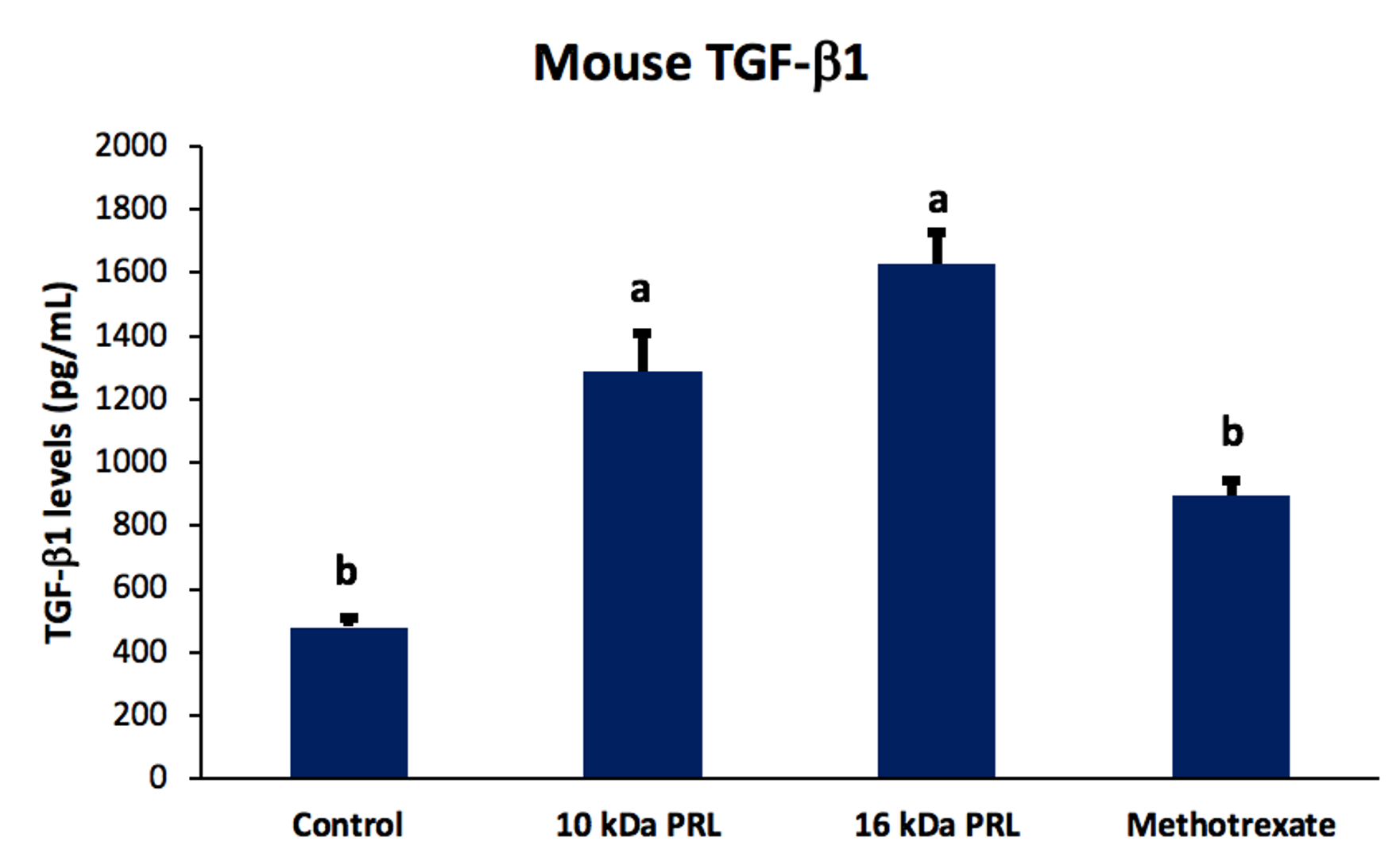

    This kit was used to assess TGF-b1 from mouse hepatic tissue after prolactin treatments. Instructions were very easy to follow and the system is accurate and reliable. We will definitely acquire more of these kits for further research. In the picture, the effect of prolactin treatments on the expression of this cytokine were evaluated in mouse seric samples, previously treated with: control (no treatment), 10 kDa prolactin, 16 kDa prolactin, and a prolactin receptor inhibitor (methotrexate)
