Mouse VCAM-1/CD106 Quantikine ELISA Kit

Catalog # Availability Size / Price Qty
Mouse VCAM-1/CD106 ELISA Cell Culture Supernate Standard Curve
3 Images
Product Details
Citations (26)
Supplemental Products

Mouse VCAM-1/CD106 Quantikine ELISA Kit Summary

Assay Type
Solid Phase Sandwich ELISA
96-well strip plate
Assay Length
4.5 hours
Sample Type & Volume Required Per Well
Cell Culture Supernates (50 uL), Serum (10 uL), EDTA Plasma (10 uL)
0.06 ng/mL
Assay Range
0.3 - 20 ng/mL (Cell Culture Supernates, Serum, EDTA Plasma)
Natural and recombinant mouse sVCAM-1
< 0.5% cross-reactivity observed with available related molecules.< 50% cross-species reactivity observed with species tested.
No significant interference observed with available related molecules.

Product Summary

The Quantikine Mouse soluble VCAM-1 Immunoassay is a 4.5 hour solid phase ELISA designed to measure mouse sVCAM-1 levels in cell culture supernates, serum, and EDTA plasma. It contains NS0-expressed recombinant mouse sVCAM-1 and antibodies raised against the recombinant protein. Results obtained for naturally occurring mouse sVCAM-1 showed linear curves that were parallel to the standard curves obtained using the Quantikine kit standards. These results indicate that this kit can be used to determine relative mass values of natural mouse sVCAM-1.


Intra-Assay Precision (Precision within an assay) Three samples of known concentration were tested on one plate to assess intra-assay precision
Inter-Assay Precision (Precision between assays) Three samples of known concentration were tested in separate assays to assess inter-assay precision

Cell Culture Supernates

Intra-Assay Precision Inter-Assay Precision
Sample 1 2 3 1 2 3
n 20 20 20 20 20 20
Mean (ng/mL) 0.96 2.84 8.55 0.87 2.64 8.5
Standard Deviation 0.05 0.13 0.37 0.07 0.18 0.63
CV% 5.2 4.6 4.3 8 6.8 7.4

Serum, EDTA Plasma

Intra-Assay Precision Inter-Assay Precision
Sample 1 2 3 1 2 3
n 20 20 20 20 20 20
Mean (ng/mL) 0.93 2.61 8.58 0.86 2.46 8.46
Standard Deviation 0.07 0.17 0.4 0.05 0.11 0.65
CV% 7.5 6.5 4.7 5.8 4.5 7.7


The recovery of mouse sVCAM-1 spiked to three levels throughout the range of the assay in various matrices was evaluated.

Sample Type Average % Recovery Range %
Cell Culture Supernates (n=6) 100 89-112
EDTA Plasma (n=4) 100 81-119
Serum (n=10) 99 80-118

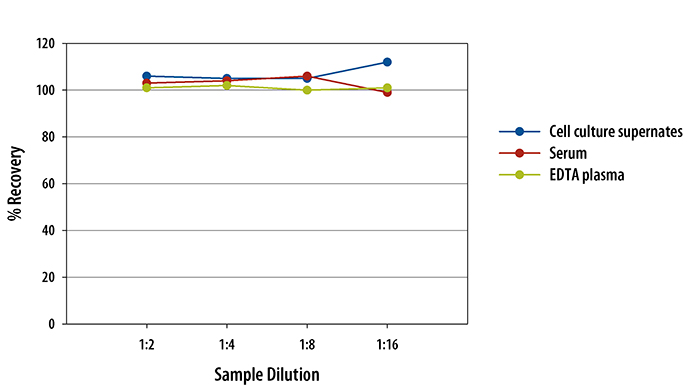

To assess the linearity of the assay, six samples of each matrix containing and/or spiked with high concentrations of mouse sVCAM-1 were diluted with Calibrator Diluent and then assayed.
Mouse VCAM-1/CD106 ELISA Linearity

Scientific Data

Mouse VCAM-1/CD106 ELISA Cell Culture Supernate Standard Curve

Mouse VCAM-1/CD106 ELISA Serum/Plasma Standard Curve

Product Datasheets

You must select a language.


Preparation and Storage

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.
Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: VCAM-1/CD106

VCAM-1 (Vascular Cell Adhesion Molecule-1; CD106) is a transmembrane molecule that mediates the adhesion of immune cells to the vascular endothelium during inflammation. It binds to several integrins including alpha4/beta1 (VLA-4), alpha4/beta7, alpha9/beta1, and alphaD/beta2. It is expressed constitutively in the bone marrow where it regulates T cell, B cell, and hematopoietic progenitor cell migration. A soluble form VCAM-1 can promote monocyte chemotaxis.

Long Name:
Vascular Cell Adhesion Molecule 1
Entrez Gene IDs:
7412 (Human); 22329 (Mouse)
Alternate Names:
CD106 antigen; CD106; DKFZp779G2333; INCAM-100; L1CAM; MGC99561; vascular cell adhesion molecule 1; vascular cell adhesion protein 1; V-CAM 1; VCAM1; VCAM-1
⚠ WARNING: This product can expose you to chemicals including N,N-Dimethylforamide, which is known to the State of California to cause cancer. For more information, go to

Assay Procedure

Refer to the product for complete assay procedure.

Bring all reagents and samples to room temperature before use. It is recommended that all samples, standards, and controls be assayed in duplicate.
  1.   Prepare all reagents, standard dilutions, and samples as directed in the product insert.
  2.   Remove excess microplate strips from the plate frame, return them to the foil pouch containing the desiccant pack, and reseal.

  3. 50 µL Assay Diluent
  4.   Add 50 µL of the appropriate Assay Diluent to each well.

  5. 50 µL Standard, Control, or Sample
  6.   Add 50 µL of Standard, Control, or sample to each well. Cover with a plate sealer, and incubate at room temperature for 3 hours.
  7.   Aspirate each well and wash, repeating the process 4 times for a total of 5 washes.

  8. 100 µL Conjugate
  9.   Add 100 µL of Conjugate to each well. Cover with a new plate sealer, and incubate at room temperature for 1 hour.
  10.   Aspirate and wash 5 times.

  11. 100 µL Substrate Solution
  12.   Add 100 µL Substrate Solution to each well. Incubate at room temperature for 30 minutes. PROTECT FROM LIGHT.

  13. 100 µL Stop Solution
  14.   Add 100 µL of Stop Solution to each well. Read at 450 nm within 30 minutes. Set wavelength correction to 540 nm or 570 nm.
