N-Cadherin Antibody (13A9) - BSA Free

Novus Biologicals | Catalog # NBP1-48309

Novus Biologicals
Loading...

Key Product Details

Validated by

Knockout/Knockdown, Biological Validation

Species Reactivity

Validated:

Human, Mouse, Rat

Cited:

Human, Mouse, Rat

Applications

Validated:

Immunohistochemistry, Immunohistochemistry-Paraffin, Western Blot, Flow Cytometry, Flow (Intracellular), Immunocytochemistry/ Immunofluorescence, Simple Western, Immunoprecipitation

Cited:

Immunohistochemistry, Immunohistochemistry-Paraffin, Western Blot, Flow Cytometry, Immunocytochemistry, Immunocytochemistry/ Immunofluorescence, Simple Western, Immunoprecipitation, IF/IHC

Label

Unconjugated

Antibody Source

Monoclonal Mouse IgG1 Clone # 13A9

Format

BSA Free
Loading...

Product Specifications

Immunogen

This N-Cadherin Antibody (13A9) was developed against the cytoplasmic domain of human N Cadherin [Swiss-Prot# P19022].

Localization

Cell membrane; Single-pass type I membrane protein.

Marker

Mesenchymal Cells Marker

Clonality

Monoclonal

Host

Mouse

Isotype

IgG1

Theoretical MW

140 kDa.
Disclaimer note: The observed molecular weight of the protein may vary from the listed predicted molecular weight due to post translational modifications, post translation cleavages, relative charges, and other experimental factors.

Scientific Data Images for N-Cadherin Antibody (13A9) - BSA Free

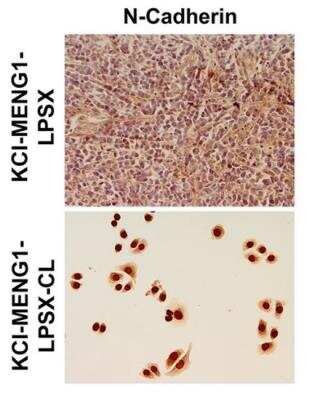

Immunocytochemistry: N-Cadherin Antibody (13A9) [NBP1-48309]

Immunocytochemistry: N-Cadherin Antibody (13A9) [NBP1-48309]

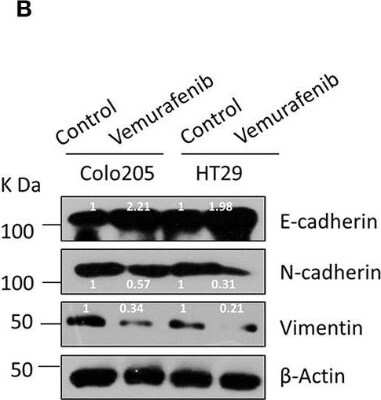

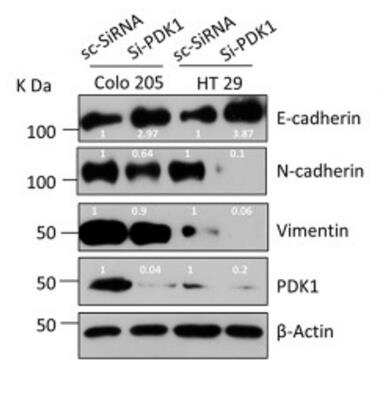

Western Blot: N-Cadherin Antibody (13A9) [NBP1-48309]

Western Blot: N-Cadherin Antibody (13A9) [NBP1-48309]

Western Blot: N-Cadherin Antibody (13A9) [NBP1-48309]

Western Blot: N-Cadherin Antibody (13A9) [NBP1-48309]

Western Blot: N-Cadherin Antibody (13A9) [NBP1-48309] - Analysis of N-Cadherin expression in HeLa whole cell lysate.
Immunocytochemistry: N-Cadherin Antibody (13A9) [NBP1-48309]

Immunocytochemistry: N-Cadherin Antibody (13A9) [NBP1-48309]

Flow (Intracellular): N-Cadherin Antibody (13A9) [NBP1-48309]

Flow (Intracellular): N-Cadherin Antibody (13A9) [NBP1-48309]

Flow (Intracellular): N-Cadherin Antibody (13A9) [NBP1-48309] - An intracellular stain was performed on HeLa with NBP1-48309 and a matched isotype control. Cells were fixed with 4% PFA and then permeablized with 0.1% saponin. Cells were incubated in an antibody dilution of 1 ug/mL for 30 minutes at room temperature, followed by Mouse F(ab)2 IgG (H+L) PE-conjugated Antibody.
Simple Western: N-Cadherin Antibody (13A9) [NBP1-48309]

Simple Western: N-Cadherin Antibody (13A9) [NBP1-48309]

Simple Western: N-Cadherin Antibody (13A9) [NBP1-48309] - Simple Western lane view shows a specific band for N Cadherin in 1.0 mg/mL of HeLa lysate. This experiment was performed under reducing conditions using the 12-230 kDa separation system.
Western Blot: N-Cadherin Antibody (13A9) [NBP1-48309]

Western Blot: N-Cadherin Antibody (13A9) [NBP1-48309]

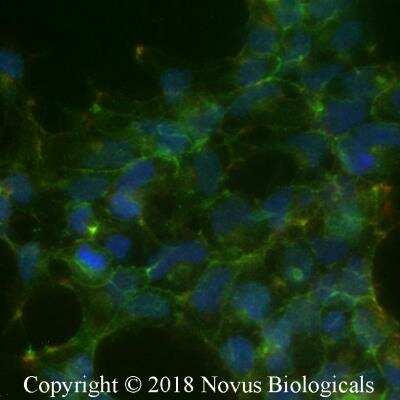

Immunocytochemistry/ Immunofluorescence: N-Cadherin Antibody (13A9) [NBP1-48309]

Immunocytochemistry/ Immunofluorescence: N-Cadherin Antibody (13A9) [NBP1-48309]

Immunocytochemistry/Immunofluorescence: N-Cadherin Antibody (13A9) [NBP1-48309] - Adult mouse neural stem cells stained for N-Cadherin. Antibody at 1:100. ICC/IF image submitted by a verified customer review.

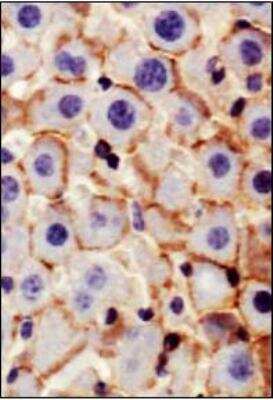

Immunohistochemistry: N-Cadherin Antibody (13A9) [NBP1-48309]

Immunohistochemistry: N-Cadherin Antibody (13A9) [NBP1-48309]

Flow Cytometry: N-Cadherin Antibody (13A9) [NBP1-48309]

Flow Cytometry: N-Cadherin Antibody (13A9) [NBP1-48309]

Flow Cytometry: N-Cadherin Antibody (13A9) [NBP1-48309] - An intracellular stain was performed on U-251 MG cells with N-Cadherin Antibody (13A9) NBP1-48309AF594 (blue) and a matched isotype control (orange). Cells were fixed with 4% PFA and then permeabilized with 0.1% saponin. Cells were incubated in an antibody dilution of 2.5 ug/mL for 30 minutes at room temperature. Both antibodies were conjugated to Alexa Fluor 594.
Immunocytochemistry/ Immunofluorescence: N-Cadherin Antibody (13A9) [NBP1-48309]

Immunocytochemistry/ Immunofluorescence: N-Cadherin Antibody (13A9) [NBP1-48309]

Immunocytochemistry/Immunofluorescence: N-Cadherin Antibody (13A9) [NBP1-48309] - HEK 293 cells were fixed for 10 minutes using 10% formalin and then permeabilized for 5 minutes using 1X PBS + 0.5% Triton X-100. The cells were incubated with anti- at 5 ug/mL overnight at 4C and detected with an anti-mouse DyLight 488 (Green) at a 1:500 dilution. Actin was detected with Phalloidin 568 (Red) at a 1:200 dilution. Nuclei were counterstained with DAPI (Blue). Cells were imaged using a 40X objective.
Immunohistochemistry: N-Cadherin Antibody (13A9) [NBP1-48309]

Immunohistochemistry: N-Cadherin Antibody (13A9) [NBP1-48309]

Immunohistochemistry: N-Cadherin Antibody (13A9) [NBP1-48309] - IHC analysis of N Cadherin in mouse liver using DAB with hematoxylin counterstain.

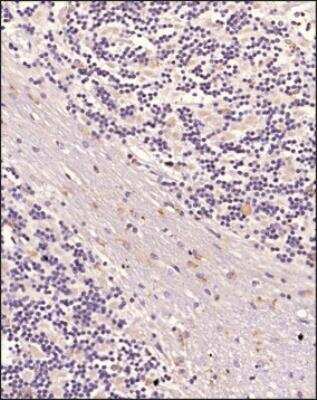

Immunohistochemistry-Paraffin: N-Cadherin Antibody (13A9) [NBP1-48309]

Immunohistochemistry-Paraffin: N-Cadherin Antibody (13A9) [NBP1-48309]

Immunohistochemistry-Paraffin: N-Cadherin Antibody (13A9) [NBP1-48309] - Analysis of a FFPE tissue section of human brain using 1:200 dilution of N-Cadherin antibody. The staining was developed using HRP labeled anti-mouse secondary antibody and DAB reagent, and nuclei of cells were counter-stained with hematoxylin.
Flow Cytometry: N-Cadherin Antibody (13A9) [NBP1-48309]

Flow Cytometry: N-Cadherin Antibody (13A9) [NBP1-48309]

Flow Cytometry: N-Cadherin Antibody (13A9) [NBP1-48309] - An intracellular stain was performed on HeLa cells with NBP1-48309AF488 and a matched isotype control (orange). Cells were fixed with 4% PFA and then permeabilized with 0.1% saponin. Cells were incubated in an antibody dilution of 10 ug/mL for 30 minutes at room temperature. Both antibodies were conjugated to Alexa Fluor 488.
N-Cadherin Antibody (13A9) - BSA Free

N-Cadherin (13A9) in U-2 OS Human Cell Line.

N-Cadherin (13A9) was detected in immersion fixed U-2 OS human osteosarcoma cell line using Mouse anti- N-Cadherin (13A9) Protein G Purified Monoclonal Antibody conjugated to Alexa Fluor® 647 (Catalog # NBP1-48309AF647) (light blue) at 10 µg/mL overnight at 4C. Cells were counterstained with DAPI (blue). Cells were imaged using a 100X objective and digitally deconvolved.
N-Cadherin Antibody (13A9) - BSA Free

N-Cadherin (13A9) in U-251 MG Human Cell Line.

N-Cadherin (13A9) was detected in immersion fixed U-251 MG human glioblastoma cell line using Mouse anti-N-Cadherin (13A9) Protein G Purified Monoclonal Antibody conjugated to DyLight 550 (Catalog # NBP1-48309R) (red) at 10 µg/mL overnight at 4C. Cells were counterstained with DAPI (blue). Cells were imaged using a 100X objective and digitally deconvolved.
N-Cadherin Antibody (13A9) - BSA Free

Immunocytochemistry/ Immunofluorescence: N-Cadherin Antibody (13A9) - BSA Free [NBP1-48309] -

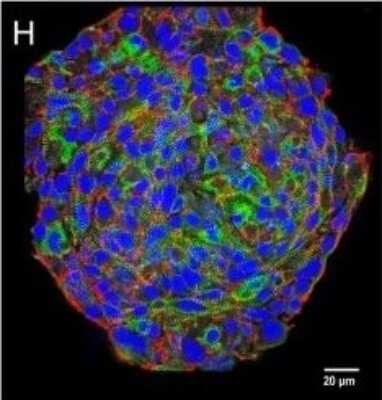

Immunohistochemical characterization of tissue, 2D-, and 3D-cultures. Nuclei are labeled with DAPI (blue) in all images. (A) Cryosection of an adult mouse heart immunostained for myomesin (red) and vimentin (green). (B) Confocal optical section on the substrate level of a spheroid made of hiPSC-CM and CF cultured for 1 month. Immunostaining for myosin heavy chain (red), and vimentin (green). (C) Confocal optical section above the substrate level of the same spheroid as shown in (B). (D) 2D-cultured cardiac fibroblasts immunostained for alpha-SMA (red) and all actin (green) shown as a maximum intensity projection of optical sections. (E) Single confocal optical sections perpendicular to the substrate through a CF-only, small spheroid (above) cultured for 5 days and immunostained for all actin (red) and alpha-SMA (green), and an optical section at midlevel (below). (F) Cryosection of fibroblast-only spheroid cultured for 3 weeks immunostained for vimentin (red) and alpha-SMA (green). (G) Western blot experiments and quantitative assessment of the ratio of alpha-SMA/vimentin (n = 4, ***p < 0.001) demonstrating the difference of alpha-SMA content in 2D vs. 3D cultures of pure CF. (H) Whole-mount immunostaining of a cardiomyocyte-only spheroid 1 month in culture, N-cadherin (red) and EH-myomesin (green). (I) Cardiomyocyte-only spheroid 1 month in culture, whole-mount immunostained for all-actin (red) and laminin (green). Image collected and cropped by CiteAb from the following open publication (https://pubmed.ncbi.nlm.nih.gov/32118040), licensed under a CC-BY license. Not internally tested by Novus Biologicals.

Applications for N-Cadherin Antibody (13A9) - BSA Free

Application
Recommended Usage

Immunocytochemistry/ Immunofluorescence

1:100

Immunohistochemistry

1:50-1:200

Immunohistochemistry-Paraffin

1:50-1:100

Immunoprecipitation

1:10-1:500

Simple Western

1:50

Western Blot

0.5 ug/ml
Application Notes
In Western Blot a band is observed at approx. 140 kDa.

In Simple Western only 10 - 15 uL of the recommended dilution is used per data point.
See Simple Western Antibody Database for Simple Western validation: Tested in HeLa lysate 1.0 mg/mL, separated by Size, antibody dilution of 1:50, apparent MW was 155 kDa. Separated by Size-Wes, Sally Sue/Peggy Sue.
The observed molecular weight of the protein may vary from the listed predicted molecular weight due to post translational modifications, post translation cleavages, relative charges, and other experimental factors.

Reviewed Applications

Read 2 reviews rated 5 using NBP1-48309 in the following applications:

Flow Cytometry Panel Builder

Bio-Techne Knows Flow Cytometry

Save time and reduce costly mistakes by quickly finding compatible reagents using the Panel Builder Tool.

Advanced Features

  • Spectra Viewer - Custom analysis of spectra from multiple fluorochromes
  • Spillover Popups - Visualize the spectra of individual fluorochromes
  • Antigen Density Selector - Match fluorochrome brightness with antigen density
Build Your Panel Now

Formulation, Preparation, and Storage

Purification

Protein G purified

Formulation

PBS

Format

BSA Free

Preservative

0.05% Sodium Azide

Concentration

1 mg/ml

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store at 4C short term. Aliquot and store at -20C long term. Avoid freeze-thaw cycles.

Background: N-Cadherin

N-Cadherin, also referred to as Neural Cadherin (NCAD) or Cadherin-2 (CHD2), is a 130 kDa protein that is a member of the calcium-dependent adhesion molecule family of classical (type I) cadherins (1-4). Under the CDH2 gene, human N-cadherin is synthesized as a 906 amino acid protein with a theoretical molecular weight of 99.8 kDa (5). The N-cadherin protein structure is similar to other classical type I cadherins including epithelial (E-) cadherin and placental (P-) cadherin (1,2). N-cadherin consists of a 25 amino acid (aa) N-terminal signal peptide and 134 aa pro-peptide, a 565 aa extracellular domain (ECD) with five cadherin repeats, a 21 aa transmembrane segment, and a 161 aa cytoplasmic domain (1-3,5). The ECD of N-cadherin monomers is responsible for homotypic binding through either cis or trans adhesion (2,3).

N-cadherin is expressed on multiple cell types but is most highly expressed by mesenchymal cells and neural tissue (2). Functionally, N-cadherin has a number of roles including maintaining structural integrity and adhesion, cell signaling, and formation of neuronal synapses and the vascular wall (2). The cytoplasmic tail interacts with beta-catenin which then binds with alpha-catenin, forming the cadherin-catenin adhesion complex, an important component of adhesions junctions (1-3). Given its role in adhesion, N-cadherin serves as an indicator of epithelial-to-mesenchymal transition (EMT) (1-4). The loss of E-cadherin during EMT corresponds with an increase in N-cadherin expression (1-4). This "cadherin-switch" is associated with increased migratory and invasive behavior observed in tumor progress (1-4). Proteases including activity of a disintegrin and metalloprotease 10 (ADAM10), matrix metalloproteinases (MMPs), caspase 3, presenilin, and calpain can cleave N-cadherin as a mechanism for regulating Wnt/beta-catenin signaling and inducing oncogenic signals (3,4). In addition to its expression in solid tumors, N-cadherin has been indicated in hematological disorders such as leukemia and multiple myeloma (1). N-cadherin antagonists are currently being studied as potential therapeutics for a variety of cancer studies (1-2).

References

1. Mrozik, K. M., Blaschuk, O. W., Cheong, C. M., Zannettino, A., & Vandyke, K. (2018). N-cadherin in cancer metastasis, its emerging role in haematological malignancies and potential as a therapeutic target in cancer. BMC Cancer. https://doi.org/10.1186/s12885-018-4845-0

2. Loh, C. Y., Chai, J. Y., Tang, T. F., Wong, W. F., Sethi, G., Shanmugam, M. K., Chong, P. P., & Looi, C. Y. (2019). The E-Cadherin and N-Cadherin Switch in Epithelial-to-Mesenchymal Transition: Signaling, Therapeutic Implications, and Challenges. Cells. https://doi.org/10.3390/cells8101118

3. Derycke, L. D., & Bracke, M. E. (2004). N-cadherin in the spotlight of cell-cell adhesion, differentiation, embryogenesis, invasion and signalling. The International Journal of Developmental Biology. https://doi.org/10.1387/ijdb.041793ld

4. Yu, W., Yang, L., Li, T., & Zhang, Y. (2019). Cadherin Signaling in Cancer: Its Functions and Role as a Therapeutic Target. Frontiers in Oncology. https://doi.org/10.3389/fonc.2019.00989

5. Unitprot (P1903)

Long Name

Neural Cadherin

Alternate Names

Cadherin-2, CD325, CDH2, NCadherin

Entrez Gene IDs

12558 (Mouse)

Gene Symbol

CDH2

UniProt

Additional N-Cadherin Products

Product Documents for N-Cadherin Antibody (13A9) - BSA Free

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot or batch number in the search box below.

Product Specific Notices for N-Cadherin Antibody (13A9) - BSA Free

This product is for research use only and is not approved for use in humans or in clinical diagnosis. Primary Antibodies are guaranteed for 1 year from date of receipt.

Citations for N-Cadherin Antibody (13A9) - BSA Free

Customer Reviews for N-Cadherin Antibody (13A9) - BSA Free (2)

5 out of 5
2 Customer Ratings
5 Stars
100%
4 Stars
0%
3 Stars
0%
2 Stars
0%
1 Stars
0%

Have you used N-Cadherin Antibody (13A9) - BSA Free?

Submit a review and receive an Amazon gift card!

$25/€18/£15/$25CAN/¥2500 Yen for a review with an image

$10/€7/£6/$10CAN/¥1110 Yen for a review without an image

Submit a review
Amazon Gift Card

Customer Images


Showing  1 - 2 of 2 reviews Showing All
Filter By:
  • N-Cadherin Antibody (13A9)
    Name: Anonymous
    Application: Immunocytochemistry
    Sample Tested: adult mouse neural stem cells
    Species: Mouse
    Verified Customer | Posted 07/23/2020

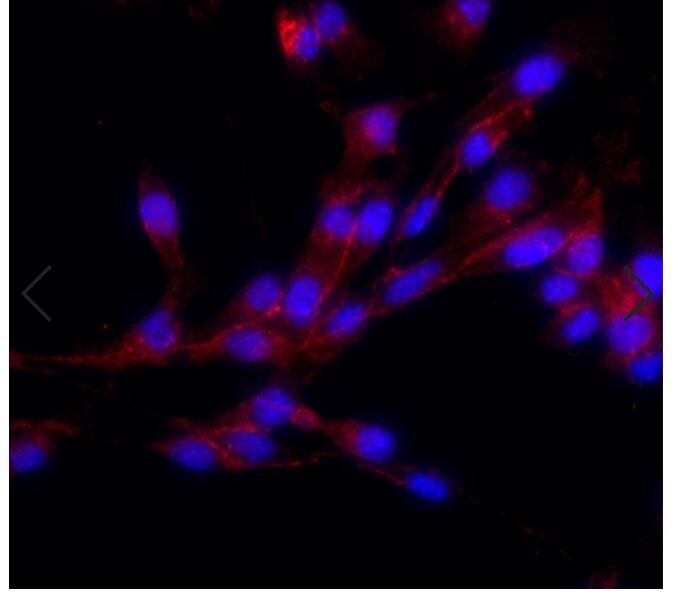

    NSC stained for n-cad 1:1000
    N-Cadherin Antibody (13A9) - BSA Free NBP1-48309
  • Name: Anonymous
    Application: Western Blot
    Sample Tested: Human
    Species: Human
    Verified Customer | Posted 12/28/2011

There are no reviews that match your criteria.

Showing  1 - 2 of 2 reviews Showing All

Protocols

View specific protocols for N-Cadherin Antibody (13A9) - BSA Free (NBP1-48309):


Western Blot Protocol
1. Perform SDS-PAGE (4-12% MOPS) on samples to be analyzed, loading 25 ug of total protein per lane.
2. Transfer proteins to Nitrocellulose according to the instructions provided by the manufacturer of the transfer apparatus.
3. Rinse membrane with dH2O and then stain the blot using Ponceau S for 1-2 minutes to access the transfer of proteins onto the nitrocellulose membrane. Rinse the blot in water to remove excess stain and mark the lane locations and locations of molecular weight markers using a pencil.
4. Rinse the blot in TBS for approximately 5 minutes.
5. Block the membrane using 5% NFDM + 1% BSA in TBS + Tween, 1 hour at RT.
6. Rinse the membrane in dH2O and then wash the membrane in wash buffer [TBS + 0.1% Tween] 3 times for 10 minutes each.
7. Dilute the anti-N Cadherin primary antibody (NBP1-48309) in blocking buffer and incubate 1 hour at room temperature.
8. Rinse the membrane in dH2O and then wash the membrane in wash buffer [TBS + 0.1% Tween] 3 times for 10 minutes each.
9. Apply the diluted mouse-IgG HRP-conjugated secondary antibody in blocking buffer (as per manufacturers instructions) and incubate 1 hour at room temperature.
10. Wash the blot in wash buffer [TBS + 0.1% Tween] 3 times for 10 minutes each (this step can be repeated as required to reduce background).
11. Apply the detection reagent of choice in accordance with the manufacturers instructions (Pierce ECL).
Note: Tween-20 can be added to the blocking or antibody dilution buffer at a final concentration of 0.05-0.2%, provided it does not interfere with antibody-antigen binding.

Immunohistochemistry-Paraffin Embedded Sections

Antigen Unmasking:
Bring slides to a boil in 10 mM sodium citrate buffer (pH 6.0) then maintain at a sub-boiling temperature for 10 minutes. Cool slides on bench-top for 30 minutes.

Staining:
1. Wash sections in deionized water three times for 5 minutes each.
2. Wash sections in wash buffer for 5 minutes.
3. Block each section with 100-400 ul blocking solution for 1 hour at room temperature.
4. Remove blocking solution and add 100-400 ul diluted primary antibody. Incubate overnight at 4 C.
5. Remove antibody solution and wash sections in wash buffer three times for 5 minutes each.
6. Add 100-400 ul biotinylated diluted secondary antibody. Incubate 30 minutes at room temperature.
7. Remove secondary antibody solution and wash sections three times with wash buffer for 5 minutes each.
8. Add 100-400 ul Streptavidin-HRP reagent to each section and incubate for 30 minutes at room temperature.
9. Wash sections three times in wash buffer for 5 minutes each.
10. Add 100-400 ul DAB substrate to each section and monitor staining closely.
11. As soon as the sections develop, immerse slides in deionized water.
12. Counterstain sections in hematoxylin.
13. Wash sections in deionized water two times for 5 minutes each.
14. Dehydrate sections.
15. Mount coverslips.


Immunocytochemistry Protocol

Culture cells to appropriate density in 35 mm culture dishes or 6-well plates.

1. Remove culture medium and add 10% formalin to the dish. Fix at room temperature for 30 minutes.
2. Remove the formalin and add ice cold methanol. Incubate for 5-10 minutes.
3. Remove methanol and add washing solution (i.e. PBS). Be sure to not let the specimen dry out. Wash three times for 10 minutes.
4. To block nonspecific antibody binding incubate in 10% normal goat serum from 1 hour to overnight at room temperature.
5. Add primary antibody at appropriate dilution and incubate at room temperature from 2 hours to overnight at room temperature.
6. Remove primary antibody and replace with washing solution. Wash three times for 10 minutes.
7. Add secondary antibody at appropriate dilution. Incubate for 1 hour at room temperature.
8. Remove antibody and replace with wash solution, then wash for 10 minutes. Add Hoechst 33258 to wash solution at 1:25,0000 and incubate for 10 minutes. Wash a third time for 10 minutes.
9. Cells can be viewed directly after washing. The plates can also be stored in PBS containing Azide covered in Parafilm (TM). Cells can also be cover-slipped using Fluoromount, with appropriate sealing.

*The above information is only intended as a guide. The researcher should determine what protocol best meets their needs. Please follow safe laboratory procedures.
