Simple Plex Mouse/Rat TGF-beta 1 Cartridge

Name: Simple Plex Mouse/Rat TGF-beta 1 Cartridge
Brand: R&D Systems
SKU: SPCKB-MP-001191
Price: 450 USD
Availability: InStock

R&D Systems | Catalog # SPCKB-MP-001191

Submit a review

Citations

Product Documents

Simple Plex Mouse/Rat TGF-beta 1 assay kit for use on Ella instrument. Contains cartridge, sample diluent SD21, and wash buffer.

Customize My Cartridge on Bio-Techne

Simple Plex cartridges are custom built to fit your needs. Choose from over 350 assays spanning human, mouse, rat, and non-human primate. Just select your sample type, cartridge size (16, 32, or 72 samples), and up to 8 analytes per cartridge. Customize your cartridge on Bio-Techne.com

Customize My Cartridge

Compatible Instruments
Product Specifications
Sample Values
Precision
Recovery
Linearity
Scientific Data
Preparation & Storage
Background
Product Documents
Specific Notices
Research Areas

Key Product Details

Assay Length

90 minutes

Sample Type & Volume Required Per Well*

Serum (10 µL), Platelet-poor EDTA Plasma (10 µL), Platelet-poor Heparin Plasma (10 µL)

Sensitivity

5.29 pg/mL

Assay Range

20.8-12684 pg/mL (Serum, Platelet-poor EDTA Plasma, Platelet-poor Heparin Plasma)

Simple Plex Mouse/Rat TGF-beta 1 Cartridge Summary

Simple Plex assay is for the detection of mouse and rat Transforming Growth Factor beta 1 (TGF-beta 1) in serum and platelet-poor plasma (EDTA/Heparin) in Sample Diluent SD21.

*The Sample Volume represented is based on the amount of sample incorporated into the reaction after taking into account the assay's minimum required dilution for a given matrix. Serial dilution may be necessary to achieve some of the final sample volumes represented.

View all TGF-beta 1 Simple Plex »

Compatible Instruments

Ella Automated Immunoassay System

Efficiently analyze biomarkers with Ella's advanced technology, providing accurate, precise results in under 90 minutes. Quantify up to 8 targets per assay through a streamlined automated workflow. Choose from >350 highly validated Simple Plex assays or Simple Plex discovery assays.

Learn More

Product Specifications

Assay Type

Automated sandwich ELISA

Format

Microfluidic cartridge containing three Glass Nano Reactors (GNR)

Species

Mouse, Rat

Specificity

Natural and recombinant mouse/rat TGF-beta 1.

Cross-reactivity

Cross-reactivity observed with 1 or more available related molecules. < 50% cross-species reactivity observed with species tested.

Interference

No significant interference observed with available related molecules.

Sample Values

Refer to data sheet for sample activation procedures.

TGF-beta 1 Sample Activation Kit DY010 aslo available for purchase.

Precision

Intra-Assay Precision (Precision within an assay) Each control was tested multiple times in one TGF-beta 1 assay.

Inter-Assay Precision (Precision between assays) Replicates of each TGF-beta 1 control were tested in multiple assays performed by at least three technicians using two lots of reagents for TGF-beta 1.

Platelet-poor EDTA Plasma, Platelet-poor Heparin Plasma, Serum

	Intra-Assay Precision		Inter-Assay Precision
Sample	1	2	1	2
n	16	16	28	28
Mean (pg/mL)	111	5909	102	5235
Standard Deviation	6.47	316	11.1	477
CV%	5.8	5.4	10.9	9.1

Recovery for Simple Plex Mouse/Rat TGF-beta 1 Cartridge

Recovery was not necessary as mouse/rat TGF-beta 1 shows 5 points of natural linearity.

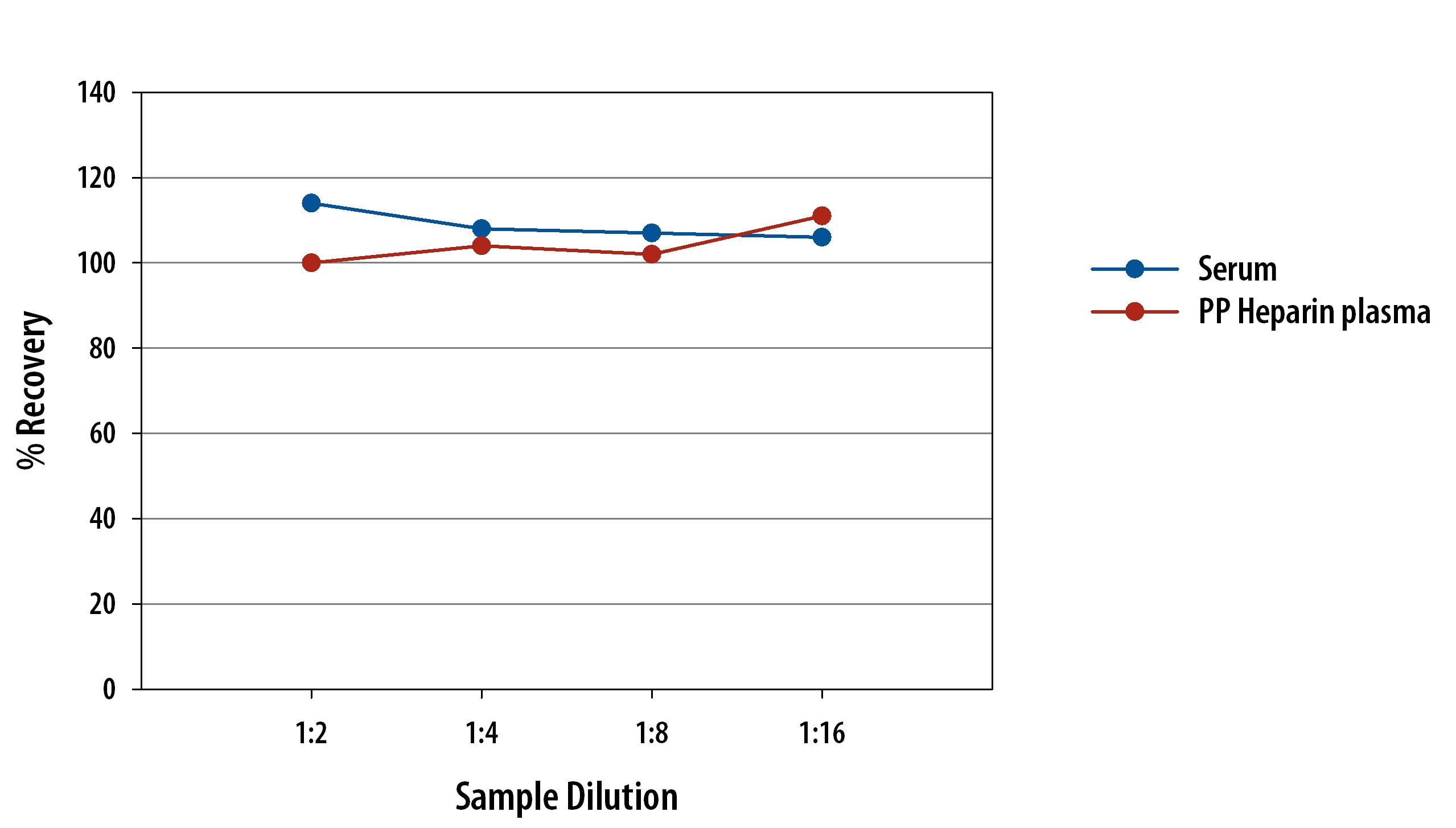

Linearity

Samples containing and/or spiked with high concentrations of mouse/rat TFG- beta 1 were serially diluted with Sample Diluent to produce samples within the dynamic range of the assay.

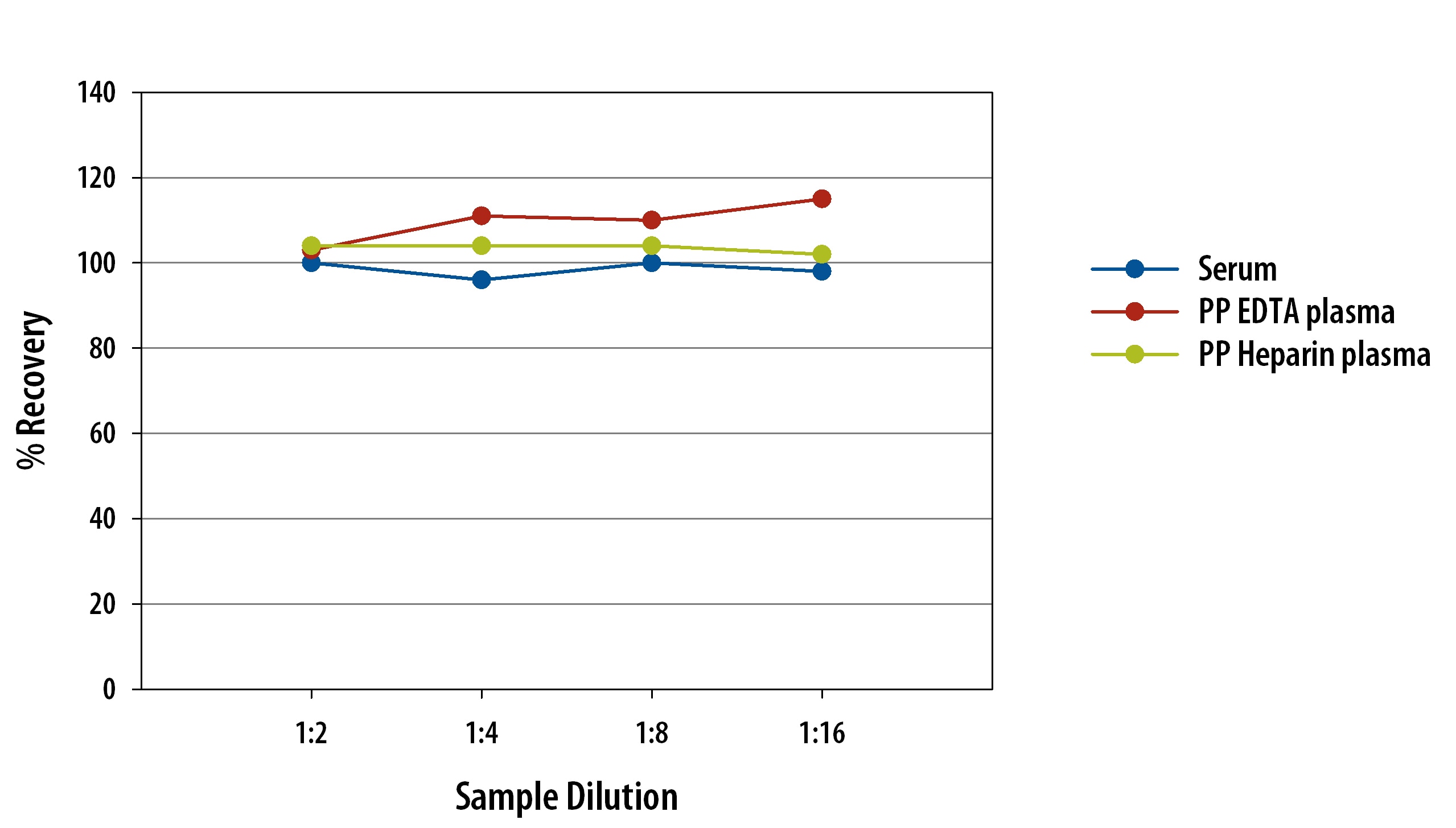

Mouse TGF-beta 1 Simple Plex Assay Linearity

Scientific Data Images for Simple Plex Mouse/Rat TGF-beta 1 Cartridge

Simple Plex Mouse/Rat TGF-beta 1 Assay Standard Curve

Data shown represents typical performance results for Lower Limit of Quantitation (LLOQ) and Upper Limit of Quantitation (ULOQ) for Simple Plex Mouse/Rat TGF-beta 1 Assay. Assay range is 20.8-12,684 pg/mL.

Preparation and Storage

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: TGF-beta 1

TGF-beta 1 (Transforming Growth Factor beta 1) is a pleiotrophic cytokine that regulates immune function, proliferation, and epithelial-mesenchymal transition. TGF-beta 1 associates with LAP to form a latent complex. It can be is activated from latency by plasmin, matrix metalloproteases, thrombospondin 1, and a subset of integrins. TGF-beta 1 signals through complexes of TGF-beta RII with TGF-beta RI/ALK-5 or ALK-1. TGF-beta signaling is modulated by the accessory receptors TGF-beta RIII/Betaglycan and Endoglin/CD105.
