Human B7-1/CD80 Alexa Fluor® 488-conjugated Antibody

Catalog # Availability Size / Price Qty
FAB140G-100UG

15% Off Limited-time Savings on Your Reagents, Assays, and Kits
Now through September 27th, you can save 15% on Bio-Techne reagents, assays, and kits (including Novus, Tocris, and R&D Systems). Use promotion code SAVE15 at checkout on orders over $1,000. See terms and conditions for offer details.

Detection of B7-1/CD80 in Raji Human Cell Line by Flow Cytometry.
1 Image
Product Details
FAQs
Supplemental Products
Reviews (1)

Human B7-1/CD80 Alexa Fluor® 488-conjugated Antibody Summary

Species Reactivity
Human
Specificity
Detects human B7‑1/CD80 in ELISAs. In sandwich immunoassays, no cross-reactivity or interference with recombinant human (rh) B7-2, recombinant mouse (rm) B7-1, rmB7-2, rhB7-H1, rhB7-H2, rhB7-H3 or rmPD-L2 is observed.
Source
Monoclonal Mouse IgG1 Clone # 37711
Purification
Protein A or G purified from hybridoma culture supernatant
Immunogen
S. frugiperda insect ovarian cell line Sf 21-derived recombinant human B7‑1/CD80
Val35-Asn242 (predicted)
Accession # P33681
Formulation
Supplied in a saline solution containing BSA and Sodium Azide.
Label
Alexa Fluor 488 (Excitation= 488 nm, Emission= 515-545 nm)

Applications

Recommended Concentration
Sample
Flow Cytometry
0.25-1 µg/106 cells
See below

Please Note: Optimal dilutions should be determined by each laboratory for each application. General Protocols are available in the Technical Information section on our website.

Data Example

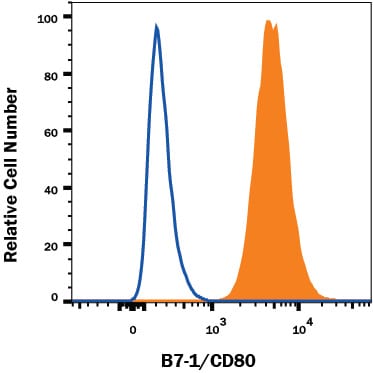

Flow Cytometry Detection of B7-1/CD80 antibody in Raji Human Cell Line antibody by Flow Cytometry. View Larger

Detection of B7-1/CD80 in Raji Human Cell Line by Flow Cytometry. Raji human Burkitt's lymphoma cell line was stained with Mouse Anti-Human B7-1/CD80 Alexa Fluor® 488-conjugated Monoclonal Antibody (Catalog # FAB140G, filled histogram) or isotype control antibody (Catalog # IC002G, open histogram). View our protocol for Staining Membrane-associated Proteins.

Reconstitution Calculator

Reconstitution Calculator

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Preparation and Storage

Shipping
The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage
Protect from light. Do not freeze.
  • 12 months from date of receipt, 2 to 8 °C as supplied.

Background: B7-1/CD80

B7-1 and B7-2, together with their receptors CD28 and CTLA-4, constitute one of the dominant co-stimulatory pathways that regulate T- and B-cell responses. Although both CTLA-4 and CD28 can bind to the same ligands, CTLA-4 binds to B7-1 and B7-2 with a 20‑100 fold higher affinity than CD28 and is involved in the down‑regulation of the immune response. B7-1 is expressed on activated B cells, activated T cells, and macrophages. B7-2 is constitutively expressed on interdigitating dendritic cells, Langerhans cells, peripheral blood dendritic cells, memory B cells, and germinal center B cells. Additionally, B7-2 is expressed at low levels on monocytes and can be up‑regulated through Interferon gamma. B7-1 and B7-2 are both members of the Immunoglobulin superfamily. Human B7-1 is a 288 amino acid (aa) protein containing a 34 aa signal peptide, a 208 aa extracellular domain, a 21 aa transmembrane domain, and a 25 aa cytoplasmic domain. Human B7-1 and B7-2 share 26% aa sequenceidentity. Human and mouse B7-1 share 44% aa sequenceidentity. However, it has been observed that both human and mouse B7-1 and B7-2 can bind to either human or mouse CD28 and CTLA-4, suggesting that there are conserved amino acids which form the B7-1/B7-2/CD28/CTLA-4 critical binding sites.

References
  1. Azuma, M. et al. (1993) Nature 366:76.
  2. Freeman, G.J. et al. (1993) Science 262:909.
  3. Freeman, G. et al. (1991) J. Exp. Med. 174:625.
  4. Selvakumar, A. et al. (1993) Immunogenetics 38:292.
  5. Chen, C. et al. (1994) J. Immunol. 152:4929.
  6. Freeman, G.J. et al. (1993) J. Exp. Med. 178:2185.
Entrez Gene IDs
941 (Human); 12519 (Mouse); 25408 (Rat); 102140078 (Cynomolgus Monkey)
Alternate Names
Activation B7-1 antigen; B7; B71; B7-1; BB1; CD28LG1; CD28LGB7-1 antigen); CD80 antigen; CD80 molecule; CD80; costimulatory factor CD80; costimulatory molecule variant IgV-CD80; CTLA-4 counter-receptor B7.1; T-lymphocyte activation antigen CD80
