Key Product Details

Validated by

Biological Validation

Species Reactivity

Validated:

Human

Cited:

Human, Porcine

Applications

Validated:

Flow Cytometry

Cited:

Flow Cytometry, FACS

Label

Phycoerythrin (Excitation = 488 nm, Emission = 565-605 nm)

Antibody Source

Monoclonal Mouse IgG1 Clone # 37711
View all B7-1/CD80 Primary Antibodies »

Product Specifications

Immunogen

S. frugiperda insect ovarian cell line Sf 21-derived recombinant human B7‑1/CD80
Val35-Asn242 (predicted)
Accession # P33681

Specificity

Detects human B7‑1/CD80 in ELISAs. In sandwich immunoassays, no cross-reactivity or interference with recombinant human (rh) B7-2, recombinant mouse (rm) B7-1, rmB7-2, rhB7-H1, rhB7-H2, rhB7-H3 or rmPD-L2 is observed.

Clonality

Monoclonal

Host

Mouse

Isotype

IgG1

Scientific Data Images for Human B7‑1/CD80 PE‑conjugated Antibody

Detection of B7‑1/CD80 antibody in Raji Human Burkitt's Cell Line antibody by Flow Cytometry.

Detection of B7‑1/CD80 in Raji Human Burkitt's Cell Line by Flow Cytometry.

Raji human Burkitt's lymphoma cell line was stained with Mouse Anti-Human B7-1/CD80 PE-conjugated Monoclonal Antibody (Catalog # FAB140P, filled histogram) or isotype control antibody (Catalog # IC002P, open histogram). View our protocol for Staining Membrane-associated Proteins.
Detection of Human B7-1/CD80 by Flow Cytometry

Detection of Human B7-1/CD80 by Flow Cytometry

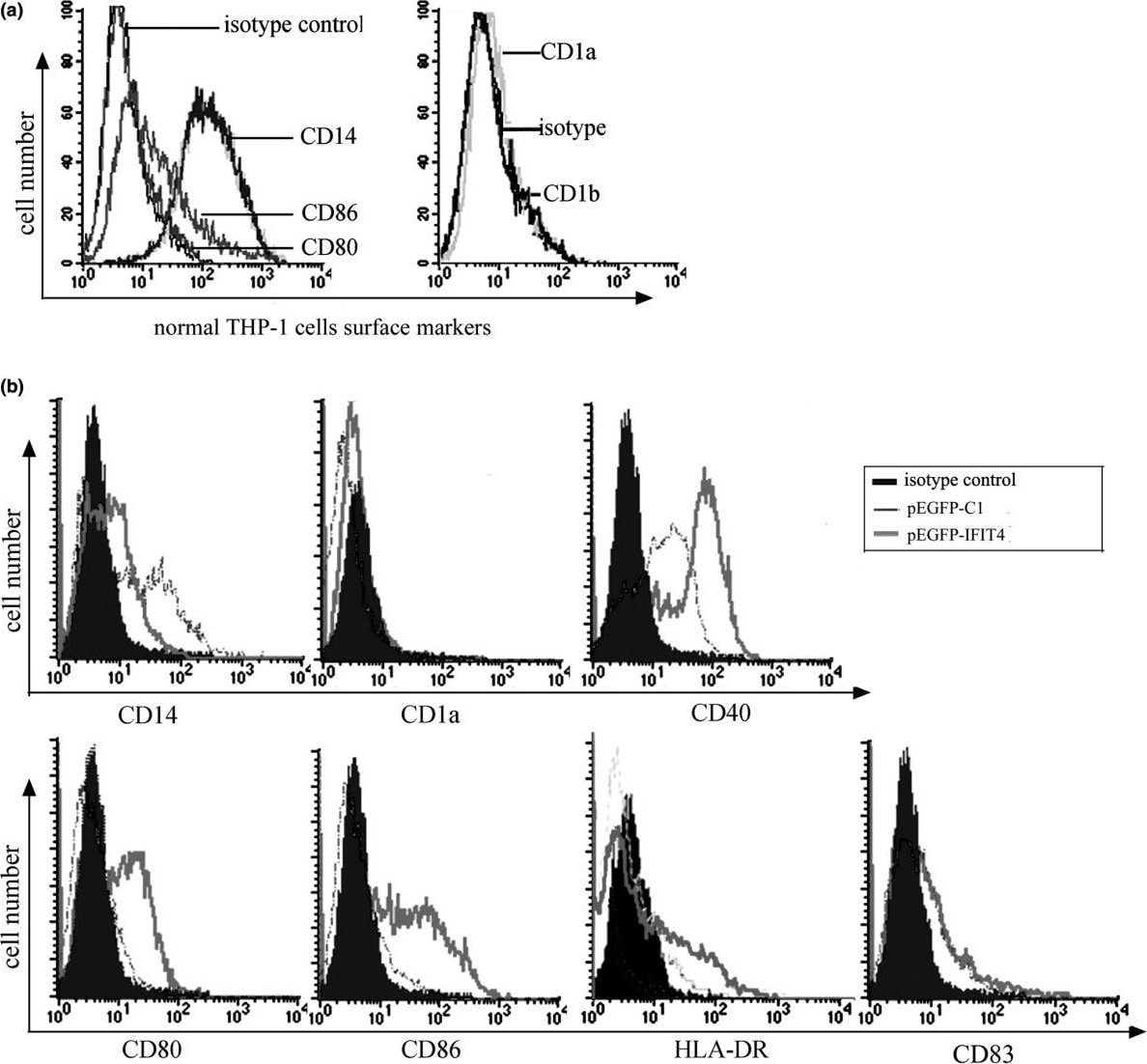

Comparison of the phenotypic profiles of DCLCs primed with or without IFIT4 over-expression. (a) Surface antigens of normal THP-1 cells were examined by flow cytometry. (b) To analyze the effect of IFIT4 on phenotypic changes of dendritic cell-like cells (DCLCs) during the process of differentiation, THP-1 cells were transfected with pEGFP-IFIT4 or pEGFP-C1; 36 hours later, cells were stimulated with granulocyte-macrophage colony-stimulating factor (GM-CSF; 50 ng/ml) and IL-4 (20 ng/ml) for 90 hours to generate DCLCs. These DCLCs primed with pEGFP-IFIT4 or pEGFP-C1 transfection were incubated with fluorochrome-conjugated monoclonal antibodies (mAbs) and the antigens of CD40, CD80, CD86, CD83, HLA-DR, CD14 and CD1a on the surface of those DCLCs were analyzed by flow cytometry. Appropriate fluorochrome or isotype control mAbs of each antibody species were used as negative controls. Shaded histograms represent isotype control antibodies. The thick line represents DCLCs primed with pEGFP-IFIT4 transfection, whereas the slender lines represent DCLCs primed with pEGFP-C1 transfection. All experiments were performed three times and a set of representative histograms was presented. IFIT4, interferon-induced protein with tetratricopeptide repeats 4. Image collected and cropped by CiteAb from the following publication (https://pubmed.ncbi.nlm.nih.gov/18706081), licensed under a CC-BY license. Not internally tested by R&D Systems.
Detection of Porcine B7-1/CD80 by Flow Cytometry

Detection of Porcine B7-1/CD80 by Flow Cytometry

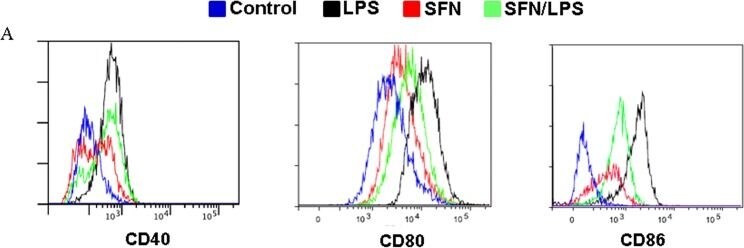

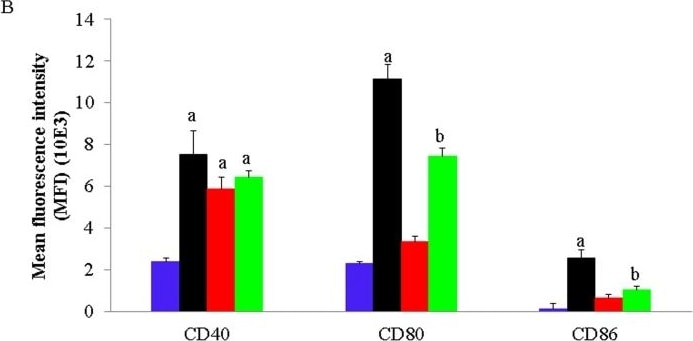

SFN inhibits LPS induced moDC maturation and enhances the phagocytic activity.moDCs at day 7 in culture were used for cell phagocytosis and cell differentiation status analysis. moDCs were pre-incubated for 1 h with or without SFN (10 μM) before stimulation for 24 h LPS (1.0 μg/ml) or to the indicated concentrations. CD40, CD80, and CD86 cellular surface markers expression were analyzed by flow cytometry (A). The flow cytometry results shown were from one experiment of two independent experiments. CD40, CD80 and CD86 mean fluorescence intensity (MFI) determined by flow cytometry (B). The flow cytometry results were combined from two independent experiments and each experiment was performed from triplications. Data are mean ± standard deviations (SD) (the letters a and b P<0.01). The phagocytic activity of moDCs was examined after stimulating with different concentration of LPS (0,5 μg/ml, 1,0 μg/ml, and 2,0 μg/ml) with or without 24 h pre-treatment with SFN (C). The mRNA expression of DCs surface markers CD40, CD80 and CD86 were quantified using qRT-PCR (D). The mRNA expression and phagocytosis results were combined from three independent experiments and each experiment was performed in four replications. The data represented as the mean ± standard deviations (SD) (* P < 0.05; ** P < 0.01; *** P < 0.001). Image collected and cropped by CiteAb from the following publication (https://pubmed.ncbi.nlm.nih.gov/25793534), licensed under a CC-BY license. Not internally tested by R&D Systems.
Detection of Porcine B7-1/CD80 by Flow Cytometry

Detection of Porcine B7-1/CD80 by Flow Cytometry

SFN inhibits LPS induced moDC maturation and enhances the phagocytic activity.moDCs at day 7 in culture were used for cell phagocytosis and cell differentiation status analysis. moDCs were pre-incubated for 1 h with or without SFN (10 μM) before stimulation for 24 h LPS (1.0 μg/ml) or to the indicated concentrations. CD40, CD80, and CD86 cellular surface markers expression were analyzed by flow cytometry (A). The flow cytometry results shown were from one experiment of two independent experiments. CD40, CD80 and CD86 mean fluorescence intensity (MFI) determined by flow cytometry (B). The flow cytometry results were combined from two independent experiments and each experiment was performed from triplications. Data are mean ± standard deviations (SD) (the letters a and b P<0.01). The phagocytic activity of moDCs was examined after stimulating with different concentration of LPS (0,5 μg/ml, 1,0 μg/ml, and 2,0 μg/ml) with or without 24 h pre-treatment with SFN (C). The mRNA expression of DCs surface markers CD40, CD80 and CD86 were quantified using qRT-PCR (D). The mRNA expression and phagocytosis results were combined from three independent experiments and each experiment was performed in four replications. The data represented as the mean ± standard deviations (SD) (* P < 0.05; ** P < 0.01; *** P < 0.001). Image collected and cropped by CiteAb from the following publication (https://pubmed.ncbi.nlm.nih.gov/25793534), licensed under a CC-BY license. Not internally tested by R&D Systems.

Applications for Human B7‑1/CD80 PE‑conjugated Antibody

Application
Recommended Usage

Flow Cytometry

10 µL/106 cells
Sample: Raji human Burkitt's lymphoma cell line

Reviewed Applications

Read 1 review rated 3 using FAB140P in the following applications:

Spectra Viewer

Plan Your Experiments

Use our spectra viewer to interactively plan your experiments, assessing multiplexing options. View the excitation and emission spectra for our fluorescent dye range and other commonly used dyes.

Spectra Viewer
Spectra Viewer

Flow Cytometry Panel Builder

Bio-Techne Knows Flow Cytometry

Save time and reduce costly mistakes by quickly finding compatible reagents using the Panel Builder Tool.

Advanced Features

  • Spectra Viewer - Custom analysis of spectra from multiple fluorochromes
  • Spillover Popups - Visualize the spectra of individual fluorochromes
  • Antigen Density Selector - Match fluorochrome brightness with antigen density
Build Your Panel Now
Flow Cytometry

Formulation, Preparation, and Storage

Purification

Protein A or G purified from hybridoma culture supernatant

Formulation

Supplied in a saline solution containing BSA and Sodium Azide.

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Protect from light. Do not freeze.
  • 12 months from date of receipt, 2 to 8 °C as supplied.

Background: B7-1/CD80

B7-1 and B7-2, together with their receptors CD28 and CTLA-4, constitute one of the dominant co-stimulatory pathways that regulate T- and B-cell responses. Although both CTLA-4 and CD28 can bind to the same ligands, CTLA-4 binds to B7-1 and B7-2 with a 20-100 fold higher affinity than CD28 and is involved in the down‑regulation of the immune response. B7-1 is expressed on activated B cells, activated T cells, and macrophages. B7-2 is constitutively expressed on interdigitating dendritic cells, Langerhans cells, peripheral blood dendritic cells, memory B cells, and germinal center B cells. Additionally, B7-2 is expressed at low levels on monocytes and can be up-regulated through interferon gamma. B7-1 and B7-2 are both members of the Immunoglobulin superfamily. Human B7-1 is a 288 amino acid (aa) protein containing a 34 aa signal peptide, a 208 aa extracellular domain, a 21 aa transmembrane domain, and a 25 aa cytoplasmic domain. Human B7-1 and B7-2 share 26% aa sequence identity. Human and mouse B7-1 share 44% aa sequence identity. However, it has been observed that both human and mouse B7-1 and B7-2 can bind to either human or mouse CD28 and CTLA-4, suggesting that there are conserved amino acids which form the B7-1/B7-2/CD28/CTLA-4 critical binding sites.

References

  1. Azuma, M. et al. (1993) Nature 366:76.
  2. Freeman, G.J. et al. (1993) Science 262:909.
  3. Freeman, G. et al. (1991) J. Exp. Med. 174:625.
  4. Selvakumar, A. et al. (1993) Immunogenetics 38:292.
  5. Chen, C. et al. (1994) J. Immunol. 152:4929.
  6. Freeman, G.J. et al. (1993) J. Exp. Med. 178:2185.

Alternate Names

B71, CD80

Entrez Gene IDs

941 (Human); 12519 (Mouse); 25408 (Rat); 102140078 (Cynomolgus Monkey)

Gene Symbol

CD80

UniProt

P33681

Additional B7-1/CD80 Products

Product Documents for Human B7‑1/CD80 PE‑conjugated Antibody

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot or batch number in the search box below.

Note: Certificate of Analysis not available for kit components.

Download SDS

Product Specific Notices for Human B7‑1/CD80 PE‑conjugated Antibody

For research use only

Citations for Human B7‑1/CD80 PE‑conjugated Antibody

Customer Reviews for Human B7‑1/CD80 PE‑conjugated Antibody (1)

3 out of 5
1 Customer Rating
5 Stars
0%
4 Stars
0%
3 Stars
100%
2 Stars
0%
1 Stars
0%

Have you used Human B7‑1/CD80 PE‑conjugated Antibody?

Submit a review and receive an Amazon gift card!

$25/€18/£15/$25CAN/¥2500 Yen for a review with an image

$10/€7/£6/$10CAN/¥1110 Yen for a review without an image

Submit a review
Amazon Gift Card

Customer Images

Showing  1 - 1 of 1 review Showing All
Filter By:
Clear Filters X
  • Human B7-1/CD80 Antibody
    Name: Anonymous
    Application: Flow Cytometry
    Sample Tested: Human PBMC
    Species: Human
    Verified Customer | Posted 03/01/2019

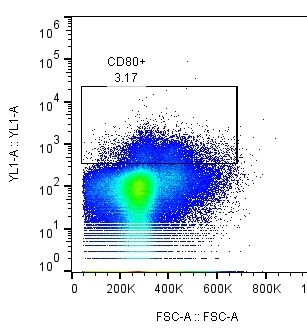

    Human PBMCs were stained with anti-human CD80 PE.
