Human Fc gamma  RIIIA/CD16a Antibody

R&D Systems | Catalog # MAB107512

R&D Systems
Discontinued Product
MAB107512 has been discontinued. View all Fc gamma RIIIA/CD16a products.

Key Product Details

Species Reactivity

Human

Applications

Immunohistochemistry, Flow Cytometry, Immunocytochemistry

Label

Unconjugated

Antibody Source

Monoclonal Rabbit IgG Clone # 2829B
Loading...

Product Specifications

Immunogen

Mouse myeloma cell line NS0-derived human Fc gamma RIIIA/CD16a
Gly17-Gln208
Accession # P08637

Specificity

Detects human Fc gamma RIIIA/CD16a in direct ELISAs.

Clonality

Monoclonal

Host

Rabbit

Isotype

IgG

Scientific Data Images for Human Fc gamma  RIIIA/CD16a Antibody

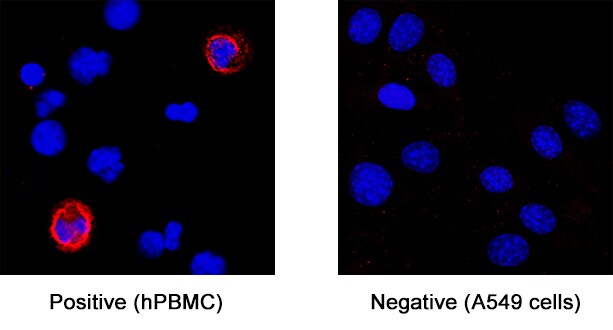

Fc gamma  RIIIA/CD16a in Human PBMCs.

Fc gamma  RIIIA/CD16a was detected in immersion fixed human peripheral blood mononuclear cells (PBMCs) (positive staining) and A549 human lung carcinoma cell line (negative staining) using Rabbit Anti-Human Fc gamma  RIIIA/CD16a Monoclonal Antibody (Catalog # MAB107512) at 3 µg/mL for 3 hours at room temperature. Cells were stained using the NorthernLights™ 557-conjugated Anti-Rabbit IgG Secondary Antibody (red; NL004) and counterstained with DAPI (blue). Specific staining was localized to cell surface. Staining was performed using our protocol for Fluorescent ICC Staining of Non-adherent Cells.

Fc gamma  RIIIA/CD16a in Human Spleen.

Fc gamma  RIIIA/CD16a was detected in immersion fixed paraffin-embedded sections of human spleen using Rabbit Anti-Human Fc gamma  RIIIA/CD16a Monoclonal Antibody (Catalog # MAB107512) at 3 µg/mL for 1 hour at room temperature followed by incubation with the Anti-Rabbit IgG VisUCyte™ HRP Polymer Antibody (VC003). Before incubation with the primary antibody, tissue was subjected to heat-induced epitope retrieval using Antigen Retrieval Reagent-Basic (CTS013). Tissue was stained using DAB (brown) and counterstained with hematoxylin (blue). Specific staining was localized to lymphocytes. Staining was performed using our protocol for IHC Staining with VisUCyte HRP Polymer Detection Reagents.

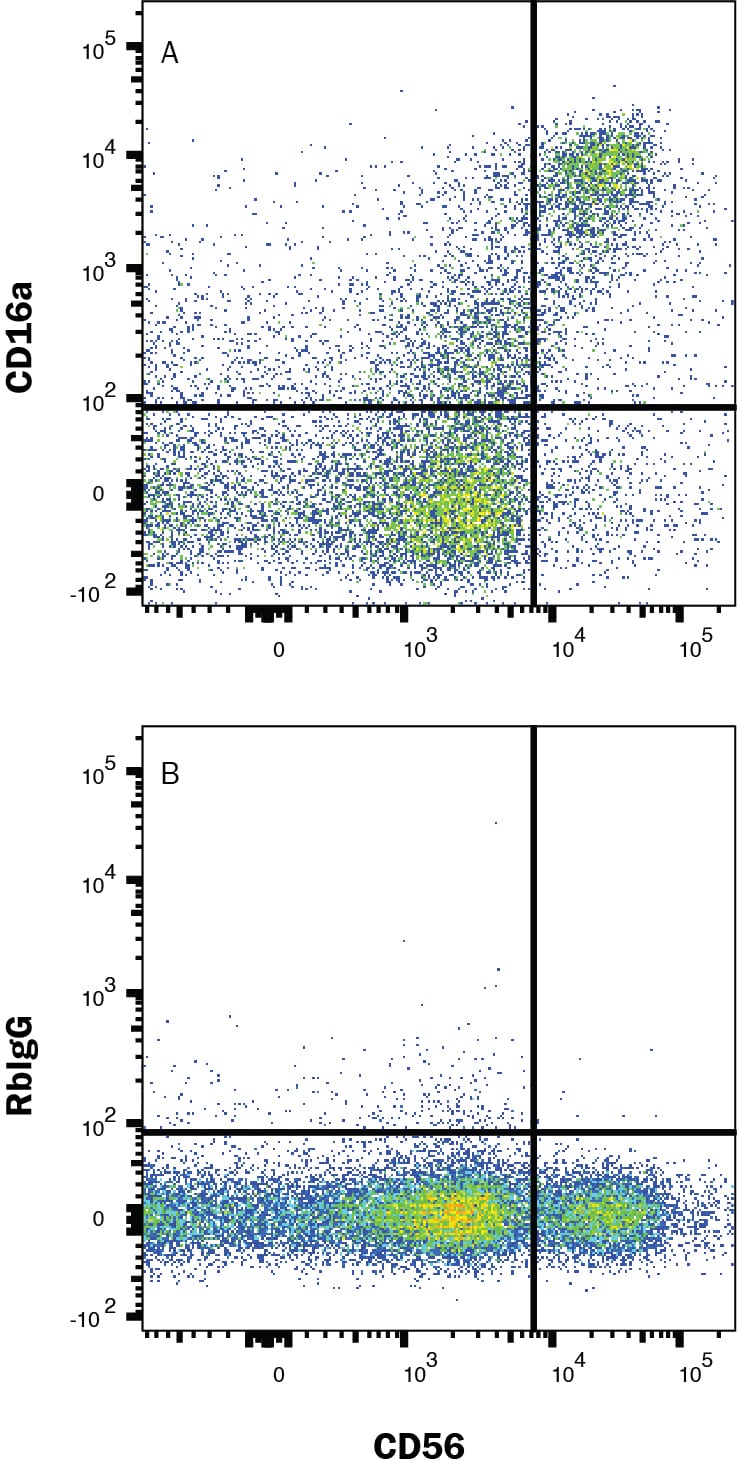

Detection of Fc gamma RIIIA/CD16a in Human PBMCs by Flow Cytometry.

Human peripheral blood mononuclear cell (PBMC) lymphocytes were stained with Rabbit Anti-Human NCAM-1/CD56 Alexa Fluor® 647-conjugated Monoclonal Antibody (FAB24086R) and either (A) Rabbit Anti-Human Fc gamma RIIIA/CD16a Monoclonal Antibody (Catalog # MAB107512) or (B) Rabbit IgG Isotype Control (MAB1050) followed by PE-conjugated Anti-Rabbit IgG Secondary Antibody (F0110).

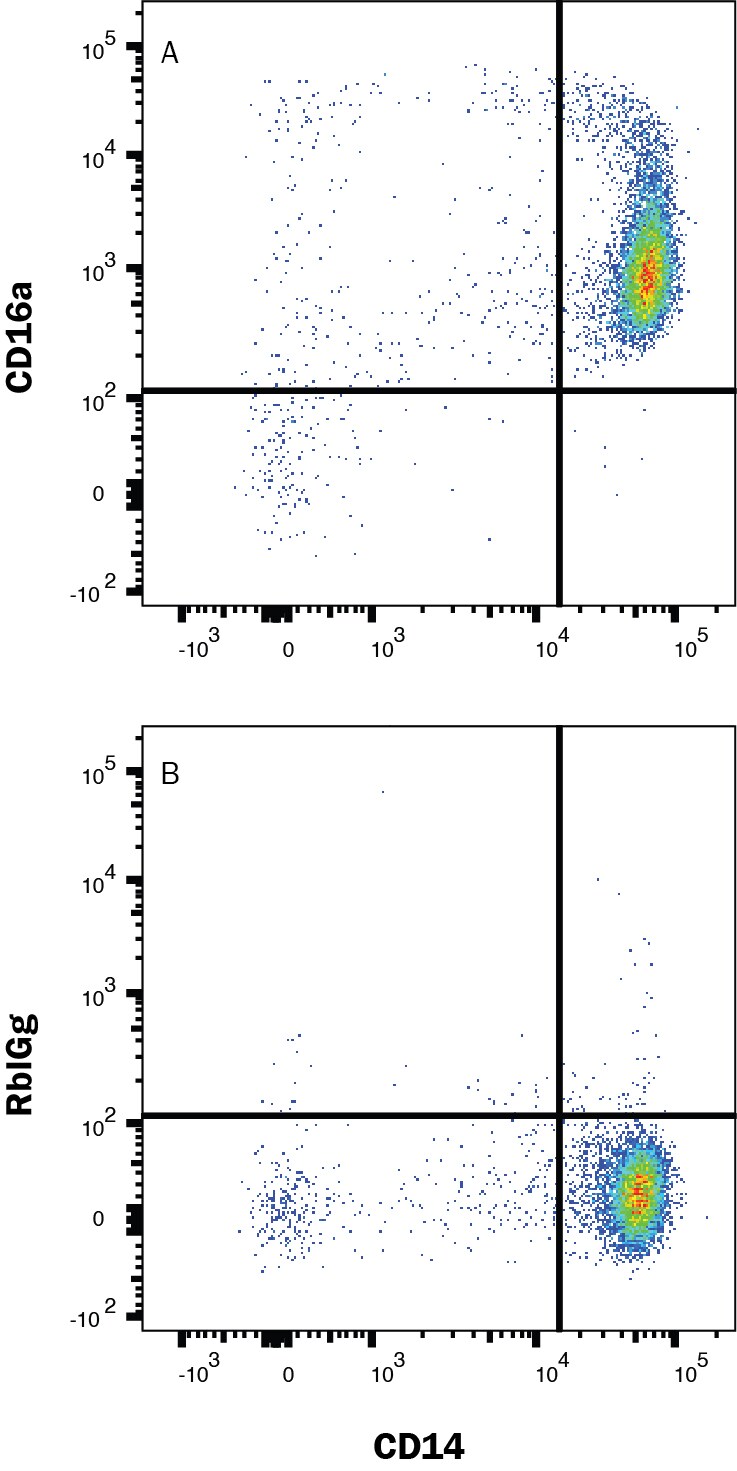

Detection of Fc gamma RIIIA/CD16a in Human PBMCs by Flow Cytometry.

Human peripheral blood mononuclear cell (PBMC) monocytes were stained with Mouse Anti-Human CD14 APC-conjugated Monoclonal Antibody (FAB3832A) and either (A) Rabbit Anti-Human Fc gamma RIIIA/CD16a Monoclonal Antibody (Catalog # MAB107512) or (B) Rabbit IgG Isotype Control (MAB1050) followed by PE-conjugated Anti-Rabbit IgG Secondary Antibody (F0110).

Applications for Human Fc gamma  RIIIA/CD16a Antibody

Application
Recommended Usage

Flow Cytometry

0.25 µg/106 cells
Sample: Human peripheral blood mononuclear cells (PBMCs)

Immunocytochemistry

3-25 µg/mL
Sample: Immersion fixed human peripheral blood mononuclear cells (PBMCs)

Immunohistochemistry

3-25 µg/mL
Sample: Immersion fixed paraffin-embedded sections of human spleen

Flow Cytometry Panel Builder

Bio-Techne Knows Flow Cytometry

Save time and reduce costly mistakes by quickly finding compatible reagents using the Panel Builder Tool.

Advanced Features

  • Spectra Viewer - Custom analysis of spectra from multiple fluorochromes
  • Spillover Popups - Visualize the spectra of individual fluorochromes
  • Antigen Density Selector - Match fluorochrome brightness with antigen density
Build Your Panel Now

Formulation, Preparation, and Storage

Purification

Protein A or G purified from cell culture supernatant

Reconstitution

Reconstitute at 0.5 mg/mL in sterile PBS. For liquid material, refer to CoA for concentration.

Formulation

Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.

Shipping

Lyophilized product is shipped at ambient temperature. Liquid small pack size (-SP) is shipped with polar packs. Upon receipt, store immediately at the temperature recommended below.

Stability & Storage

Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 6 months, -20 to -70 °C under sterile conditions after reconstitution.

Calculators

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Background: Fc gamma RIIIA/CD16a

Fc gamma RIIIa is a low/intermediate affinity receptor for polyvalent immune-complexed IgG. It is involved in phagocytosis, secretion of enzymes and inflammatory mediators, antibody-dependent cytotoxicity and clearance of immune complexes (1, 2). In humans, it is a 50-70 kDa type I transmembrane activating receptor expressed by NK cells, T cells, monocytes, and macrophages (1). Fc gamma RIIIb is highly related, sharing 97% amino acid (aa) identity within the extracellular domain (ECD), but is a GPI-linked receptor expressed on human neutrophils and eosinophils (1, 2). The ECD of Fc gamma RIIIa shares 63%, 61%, 65%, 59% and 58% aa identity with mouse Fc gamma RIV, rat Fc gamma RIIIa, feline CD16, bovine CD16 and porcine Fc gamma RIIIb paralogs, respectively. The Fc gamma RIIIa cDNA encodes 254 aa including a 16 aa signal sequence, 191 aa ECD with two C2-type Ig-like domains and five potential N-glycosylation sites, a 22 aa transmembrane (TM) sequence and a 25 aa cytoplasmic domain. In humans, a single nucleotide polymorphism creates high binding (176V) and low binding (176F) forms that, when homozygous, may influence susceptibility to autoimmune diseases or response to therapeutic IgG antibodies (3, 4). Catalog # 4325-FC is expressed as the 176V isoform of Fc gamma RIIIa. Fc gamma RIIIa surface expression requires interaction of an accessory chain, either the common gamma -chain or CD3 zeta (5, 6). Glycosylation patterns, electrophoretic mobility and binding affinity appear to differ between NK cell and monocyte Fc gamma RIIIa (7). The ECD of both Fc gamma RIIIa and b can be proteolytically cleaved and retain binding activity in soluble form (8-11). In monocytes and macrophages, activation and phagocytosis can trigger Fc gamma RIIIa release (11). Soluble Fc gamma RIII can be detected in normal plasma and is increased in rheumatoid arthritis and in coronary artery diseases (9, 10).

References

  1. Nimmerjahn, F. and J.V. Ravetch (2006) Immunity 24:19.
  2. Ravetch, J.V. and B. Perussia (1989) J. Exp. Med. 170:481.
  3. Wu, J. et al. (1997) J. Clin. Invest. 100:1059.
  4. Dall’Ozzo, S. et al. (2004) Cancer Res. 64:4664.
  5. Kim, M.-K. et al. (2003) Blood 101:4479.
  6. Lanier, L.L. et al. (1989) Nature 342:803.
  7. Edberg, J.C. and R.P. Kimberley (1997) J. Immunol. 159:3849.
  8. Li, P. et al. (2007) J. Biol. Chem. 282:6210.
  9. Masuda, M. et al. (2003) J. Rheumatol. 30:1911.
  10. Masuda, M. et al. (2006) Atherosclerosis 188:377.
  11. Webster, N.L. et al. (2006) J. Leukoc. Biol. 79:294.

Long Name

Fc gamma Receptor III A

Alternate Names

CD16a, FCGR3A, FcgRIIIA

Entrez Gene IDs

2214 (Human); 304966 (Rat)

Gene Symbol

FCGR3A
