Human IL-23R PerCP-conjugated Antibody

Catalog # Availability Size / Price Qty
FAB14001C-100
FAB14001C-025
Detection of IL‑23 R in Human PBMCs by Flow Cytometry.
1 Image
Product Details
Citations (2)
FAQs
Supplemental Products
Reviews

Human IL-23R PerCP-conjugated Antibody Summary

Species Reactivity
Human
Specificity
Detects human IL-23 R in direct ELISAs and Western blots. Does not cross-react with recombinant mouse IL‑23 R.
Source
Monoclonal Mouse IgG2B Clone # 218213
Purification
Protein A or G purified from hybridoma culture supernatant
Immunogen
Mouse myeloma cell line NS0-derived recombinant human IL-23 R
Gly24-Ile354
Accession # Q5VWK5
Formulation
Supplied in a saline solution containing BSA and Sodium Azide.
Label
PerCP (Peridinin-chlorophyll Protein Complex) (Excitation= 482 and 564 nm, Emission= 675 nm)

Applications

Recommended Concentration
Sample
Flow Cytometry
10 µL/106 cells
See below

Please Note: Optimal dilutions should be determined by each laboratory for each application. General Protocols are available in the Technical Information section on our website.

Scientific Data

Flow Cytometry View Larger

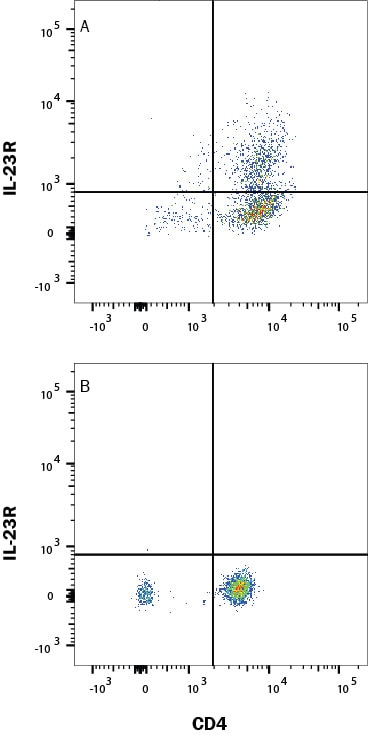

Detection of IL‑23 R in Human PBMCs by Flow Cytometry. Human peripheral blood mononuclear cells (PBMCs) (A) cultured with plate-bound 5 μg/mL anti-Human CD3, 2 μg/mL anti-Human CD28 (AF-342-PB), 20 ng/mL Recombinant Human IL-2 (202-GMP), 10 ng/mL TGF-beta (100-B), 20 ng/mL Recombinant Human IL-23 (1290-IL), 40 ng/mL Recombinant Human IL-6 (206-IL), 10 ng/mL Recombinant Human IL-1 beta (201-LB), and 10 μg/mL anti-Human IFN-gamma (AF-285-NA) for 7 days to induce Th17 development or (B) resting, were stained with Mouse Anti-Human CD4 CFS-conjugated Monoclonal Antibody (FAB2791F) and Mouse Anti-Human IL-23 R PerCP-conjugated Monoclonal Antibody (Catalog # FAB14001C). Quadrant markers were set based on Mouse IgG2B Isotype Control (IC0041C). Staining was performed using our Staining Membrane-associated Proteins protocol.

Reconstitution Calculator

Reconstitution Calculator

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Preparation and Storage

Shipping
The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage
Protect from light. Do not freeze.
  • 12 months from date of receipt, 2 to 8 °C as supplied.

Background: IL-23R

Interleukin 23 (IL-23) is a heterodimeric cytokine composed of two disulfide-linked subunits, a p19 subunit that is unique to IL-23, and a p40 subunit that is shared with IL-12 (1 - 5). The functional IL-23 receptor complex consists of two receptor subunits, the IL-12 receptor beta 1 subunit (IL-12 R beta 1) and the IL-23-specific receptor subunit (IL-23 R) (3). Human IL-23 R cDNA encodes a 629 aa type I transmembrane protein with a 23 aa residue signal peptide, a 330 aa residue extracellular domain, a 23 aa residue transmembrane domain and a 253 aa residue cytoplasmic region. IL-23 R shares structural features with the IL-12 R beta 2, including an N-terminal Ig-like domain, two cytokine receptor domains and multiple glycosylation sites in the extracellular domain. IL-23 R lacks the three extracellular membrane-proximal fibronectin-type III domains present on IL-12 R beta 2. IL-23 R has a WQPWS sequence in the transmembrane-proximal cytokine receptor domain similar to the cytokine receptor signature WSXWS motif. The cytoplasmic region of IL-23 R has three potential Src homology 2 domain-binding sites and two potential Stat-binding sites. The gene for human IL-23 R is located on human chromosome 1 within 150 kb of IL-12 R beta 2. Human and mouse IL-23 R share 66% amino acid sequence identity. Based on quantitative real-time PCR, human IL-23 R mRNA is expressed in a human Th1 and Th0 clone as well as several NK cell lines and clones. Low but detectable levels of IL-23 R mRNA is also expressed in EBV-transformed B cells and activated PBMC. IL-23 initiates a signal transduction cascade similar to that of IL-12, and involves Jak2, Tyk2, Stat1, Stat3, Stat4, and Stat5. IL-23 has biological activities that are similar to, but distinct from IL-12.

References
  1. Oppmann, B. et al. (2000) Immunity 13:715.
  2. Lankford, C.S. and D.M. Frucht (2003) J. Leukoc. Biol. 73:49.
  3. Parham, C. et al. (2002) J. Immunol. 168:5448.
  4. Belladonna, M.L. et al. (2002) J. Immunol. 168:5448.
  5. Aggarwal, S. et al. (2003) J. Biol. Chem. 278:1910.
Long Name
Interleukin 23 Receptor
Entrez Gene IDs
149233 (Human); 209590 (Mouse); 102133210 (Cynomolgus Monkey)
Alternate Names
IBD17; IL-23 R; IL-23 receptor; IL23R; IL-23R; interleukin 23 receptor; interleukin-23 receptor

Product Datasheets

You must select a language.

x

Citations for Human IL-23R PerCP-conjugated Antibody

R&D Systems personnel manually curate a database that contains references using R&D Systems products. The data collected includes not only links to publications in PubMed, but also provides information about sample types, species, and experimental conditions.

2 Citations: Showing 1 - 2
Filter your results:

Filter by:

  1. Blocking interleukin-23 ameliorates neuromuscular and thymic defects in myasthenia gravis
    Authors: JA Villegas, J Van Wassen, J Merrheim, K Matta, S Hamadache, C Flaugère, P Pothin, F Truffault, S Hascoët, N Santelmo, M Alifano, S Berrih-Akn, R le Panse, N Dragin
    Journal of Neuroinflammation, 2023-01-13;20(1):9.
    Species: Human
    Sample Types: Whole Cells
    Applications: Flow Cytometry
  2. Synoviocytes and skin fibroblasts show opposite effects on IL-23 production and IL-23 receptor expression during cell interactions with immune cells
    Authors: M Noack, P Miossec
    Arthritis Research & Therapy, 2022-09-10;24(1):220.
    Species: Human
    Sample Types: Whole Cells
    Applications: Flow Cytometry
