Human Lipocalin-2/NGAL Quantikine ELISA Kit

(30 citations)
(1 Review)
  • Assay Type
    Solid Phase Sandwich ELISA
  • Format
    96-well strip plate
  • Assay Length
    4.5 hours
  • Sample Type & Volume Required Per Well
    Cell Culture Supernates (50 uL), Serum (50 uL), Heparin Plasma (50 uL), Saliva (50 uL), Urine (50 uL)
  • Sensitivity
    0.04 ng/mL
  • Assay Range
    0.2 - 10 ng/mL (Cell Culture Supernates, Serum, Heparin Plasma, Saliva, Urine)
  • Specificity
    Natural and recombinant human Lipocalin-2
  • Cross-reactivity
    < 0.5% cross-reactivity observed with available related molecules.< 50% cross-species reactivity observed with species tested.
  • Interference
    No significant interference observed with available related molecules.
Control Available
QC115, Quantikine Immunoassay Control Set 736 for Human Lipocalin-2 - Please Inquire
Product Summary
The Quantikine Human Lipocalin-2 Immunoassay is a 4.5 hour solid-phase ELISA designed to measure human Lipocalin-2 in cell culture supernates, serum, plasma, urine, and saliva. It contains NS0-expressed recombinant human Lipocalin-2 and has been shown to accurately quantitate the recombinant factor. Results obtained using natural human Lipocalin-2 showed linear curves that were parallel to the standard curves obtained using the Quantikine kit standards. These results indicate that this kit can be used to determine relative mass values for naturally occurring human Lipocalin-2.

Intra-Assay Precision (Precision within an assay) Three samples of known concentration were tested on one plate to assess intra-assay precision.
Inter-Assay Precision (Precision between assays) Three samples of known concentration were tested in separate assays to assess inter-assay precision.
Cell Culture Supernates, Serum, Heparin Plasma, Saliva, Urine
Intra-Assay Precision Inter-Assay Precision
Standard Deviation0.0410.1070.3340.0830.2040.387


The recovery of Lipocalin-2 spiked to levels throughout the range of the assay in various matrices was evaluated.

Sample Type Average % Recovery Range %
Cell Culture Media (n=4) 93 88-101
Urine (n=4) 90 84-97

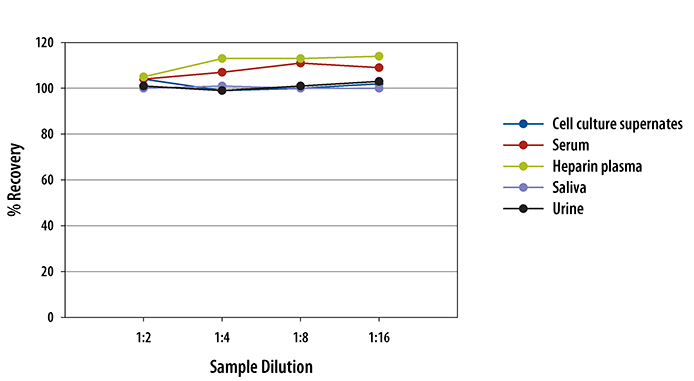

To assess the linearity of the assay, samples containing high concentrations of Lipocalin-2 were serially diluted with the Calibrator Diluent to produce samples with values within the dynamic range of the assay.
Human Lipocalin-2/NGAL Quantikine ELISA Kit
Preparation and Storage
  • Storage
    Store the unopened product at 2 - 8 °C. Do not use past expiration date.
Background: Lipocalin-2/NGAL
The Lipocalin family comprises a diverse group of mostly secreted soluble proteins that bind hydrophobic ligands and act as transporters, carrying small molecules to specific cells. Lipocalins are related by possessing an 8-stranded beta-barrel structure. Lipocalin-1, also named tear lipocalin (TL), von Ebners gland protein (VEG) and tear pre-albumin, binds a large number of hydrophobic molecules and exhibits cysteine proteinase inhibitor and endonuclear activities. Lipocalin-2, also known as neutrophil gelatinase-associated lipocalin (NGAL), is a component of granules in neutrophils from tissues that are normally exposed to microorganisms and is upregulated during inflammation. Lipocalin-2 can form homodimers and can heterodimerize with the neutrophil gelatinase MMP-9.
    • Long Name
      Neutrophil Gelatinase-associated Lipocalin
    • Entrez Gene IDs
      3934 (Human); 16819 (Mouse); 170496 (Rat);
    • Alternate Names
      24p3; 25 kDa alpha-2-microglobulin-related subunit of MMP-9; HNL; LCN2; lipocalin 2 (oncogene 24p3); lipocalin 2; Lipocalin2; Lipocalin-2; migration-stimulating factor inhibitor; MSFI; neutrophil gelatinase-associated lipocalin; NGAL; NGALlipocalin-2; Oncogene 24p3; p25; Siderocalin;
    Related Research Areas
    Assay Procedure
    Refer to the product for complete assay procedure.

    The conjugate must remain at 2-8 °C during use. Bring all other reagents and samples to room temperature before use. It is recommended that all samples, standards, and controls be assayed in duplicate.
    1.   Prepare all reagents, standard dilutions, and samples as directed in the product insert.
    2.   Remove excess microplate strips from the plate frame, return them to the foil pouch containing the desiccant pack, and reseal.

    3. 100 µL Assay Diluent
    4.   Add 100 µL of Assay Diluent to each well.

    5. 50 µL Standard, Control, or Sample
    6.   Add 50 µL of Standard, control, or sample to each well. Cover with a plate sealer, and incubate at 2-8 °C for 2 hours.
    7.   Aspirate each well and wash, repeating the process 3 times for a total of 4 washes.

    8. 200 µL cold Conjugate
    9.   Add 200 µL of cold Conjugate to each well. Cover with a new plate sealer, and incubate at 2-8 °C for 2 hours.
    10.   Aspirate and wash 4 times.

    11. 200 µL Substrate Solution
    12.   Add 200 µL Substrate Solution to each well. Incubate at room temperature for 30 minutes. PROTECT FROM LIGHT.

    13. 50 µL Stop Solution
    14.   Add 50 µL of Stop Solution to each well. Read at 450 nm within 30 minutes. Set wavelength correction to 540 nm or 570 nm.

    R&D Systems personnel manually curate a database that contains references using R&D Systems products. The data collected includes not only links to publications in PubMed, but also provides information about sample types, species, and experimental conditions.
