Key Product Details

Validated by

Biological Validation

Species Reactivity

Validated:

Human, Mouse

Cited:

Human, Mouse

Applications

Validated:

Flow Cytometry

Cited:

Flow Cytometry

Label

Allophycocyanin (Excitation = 620-650 nm, Emission = 660-670 nm)

Antibody Source

Monoclonal Mouse IgG1 Clone # 305719
Loading...

Product Specifications

Immunogen

Mouse myeloma cell line NS0-derived recombinant human IL-12 R beta 2
Cys28-Asn622
Accession # Q99665

Specificity

Detects human and mouse IL-12 R beta 2 in direct ELISAs. In direct ELISAs, no cross-reactivity with recombinant human IL-1 R beta 1 is observed.

Clonality

Monoclonal

Host

Mouse

Isotype

IgG1

Scientific Data Images for Human/Mouse IL‑12 R beta 2 APC‑conjugated Antibody

Detection of IL-12 R beta 2 antibody in Human TH1 cells antibody by Flow Cytometry.

Detection of IL‑12 R beta 2 in Human TH1 cells by Flow Cytometry.

Human CD4+peripheral blood mononuclear cells (PBMCs) either (A) untreated or (B) treated with 1 ug/mL plate-bound Mouse Anti-Human CD3e Monoclonal Antibody (Catalog # MAB100), 10 ng/mL Recombinant Human IL-12 (Catalog # 219-IL), and 10 ng/mL Recombinant Human IL-2 (Catalog # 202-IL) for 5 days to induce Th1 cell development, followed by restimulation with 50 ng/mL PMA and 200 ng/mL Calcium Ionomycin for 2 to 3 hours, were stained with Mouse Anti-Human CD4 PE-conjugated Monoclonal Antibody (Catalog # FAB3791P) and Mouse Anti-Human/Mouse IL-12 R beta 2 APC-conjugated Monoclonal Antibody (Catalog # FAB1959A). Quadrant markers were set based on control antibody staining using Mouse IgG1Allophycocyanin Isotype Control (Catalog # IC002A). View our protocol for Staining Membrane-associated Proteins.

Applications for Human/Mouse IL‑12 R beta 2 APC‑conjugated Antibody

Application
Recommended Usage

Flow Cytometry

10 µL/106 cells
Sample: Human CD4+ peripheral blood mononuclear cells (PBMCs) treated with Mouse Anti-Human CD3 epsilon Monoclonal Antibody (Catalog # MAB100), Recombinant Human IL‑12 (Catalog # 219-IL), and Recombinant Human IL‑2 (Catalog # 202-IL) to induce Th1 cell development, followed by restimulation with PMA and Calcium Ionomycin.

Reviewed Applications

Read 1 review rated 3 using FAB1959A in the following applications:

Spectra Viewer

Plan Your Experiments

Use our spectra viewer to interactively plan your experiments, assessing multiplexing options. View the excitation and emission spectra for our fluorescent dye range and other commonly used dyes.

Spectra Viewer

Flow Cytometry Panel Builder

Bio-Techne Knows Flow Cytometry

Save time and reduce costly mistakes by quickly finding compatible reagents using the Panel Builder Tool.

Advanced Features

  • Spectra Viewer - Custom analysis of spectra from multiple fluorochromes
  • Spillover Popups - Visualize the spectra of individual fluorochromes
  • Antigen Density Selector - Match fluorochrome brightness with antigen density
Build Your Panel Now

Formulation, Preparation, and Storage

Purification

Protein A or G purified from hybridoma culture supernatant

Formulation

Supplied in a saline solution containing BSA and Sodium Azide.

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Protect from light. Do not freeze.
  • 12 months from date of receipt, 2 to 8 °C as supplied.

Background: IL-12 R beta 2

Interleukin 12 (IL-12), the founding member of the IL-12 family of heterodimeric cytokines, is composed of two disulfide-linked 35 kDa and 40 kDa subunits. The 35 kDa subunit (p35) is a alpha -helical protein homologous to IL-6 and G-CSF. The 40 kDa subunit (p40) contains one fibronectin type III and one Ig C2-like domain, and has a high degree of structural homology to type I cytokine receptors. Whereas p35 subunit is unique to IL-12, the p40 subunit is also a subunit of IL-23. IL-12 is an essential mediator of cellular-immunity that induces T cells and natural-killer cells to produce IFN-gamma. It is also required for the expansion and activation Th1 cells (1, 2).

The biological activities of IL-12 are mediated through the high-affinity receptor complex composed of the IL-12 Receptor beta 1 (IL-12 R beta 1) and IL-12 Receptor beta 2 (IL‑12 R beta 2) subunits. IL-12 R beta 1 is a 100 kDa protein that is also a subunit of the IL-23 receptor complex. It binds IL-12/IL-23 p40 and is associated with Tyk2. IL‑12 R beta 2 is a 130 kDa protein that interacts with p35 and is associated with Jak2. Both receptor subunits are type I membrane proteins that share similarities with the gp130/G-CSF R subgroup in the cytokine receptor superfamily. IL-12 R beta 2 cDNA encodes a 862 amino acid (aa) protein with a putative 27 aa signal peptide that is cleaved to generate the mature protein with a 595 aa extracellular domain, a 24 aa transmembrane domain and a 216 aa cytoplasmic region. Human and mouse IL‑12 R beta 2 share 68% amino acid sequence identity. Whereas IL-12 R beta 1 expression has been detected in activated T cells, NK cells and B cells, the expression of IL‑12 R beta 2 is more restricted. Among T cells, IL-12 R beta 2 is absent on naive T cells. Activation of T cells via TCR up‑regulates IL‑12 R beta 2 expression on human Th1 but not Th2 cells (1‑4).

References

  1. Trinchieri, G. et al. (2003) Immunity 19:641.
  2. Brombacher, F. et al. (2003) Trends in Immunol. 23:207.
  3. Trinchieri, G. (2003) Nature Reviews Immunol. 3:133.
  4. Rogge, L. et al. (1997) J. Exp. Med. 185:825.

Long Name

Interleukin 12 Receptor beta 2

Alternate Names

IL-12Rb2, IL12R beta 2, IL12RB2

Entrez Gene IDs

3595 (Human); 16162 (Mouse)

Gene Symbol

IL12RB2

UniProt

Additional IL-12 R beta 2 Products

Product Documents for Human/Mouse IL‑12 R beta 2 APC‑conjugated Antibody

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot or batch number in the search box below.

Note: Certificate of Analysis not available for kit components.

Product Specific Notices for Human/Mouse IL‑12 R beta 2 APC‑conjugated Antibody

For research use only

Citations for Human/Mouse IL‑12 R beta 2 APC‑conjugated Antibody

Customer Reviews for Human/Mouse IL‑12 R beta 2 APC‑conjugated Antibody (1)

3 out of 5
1 Customer Rating
5 Stars
0%
4 Stars
0%
3 Stars
100%
2 Stars
0%
1 Stars
0%

Have you used Human/Mouse IL‑12 R beta 2 APC‑conjugated Antibody?

Submit a review and receive an Amazon gift card!

$25/€18/£15/$25CAN/¥2500 Yen for a review with an image

$10/€7/£6/$10CAN/¥1110 Yen for a review without an image

Submit a review
Amazon Gift Card

Customer Images


Showing  1 - 1 of 1 review Showing All
Filter By:
  • Human/Mouse IL-12 R beta 2 APC-conjugated Antibody
    Name: Anonymous
    Application: Flow Cytometry

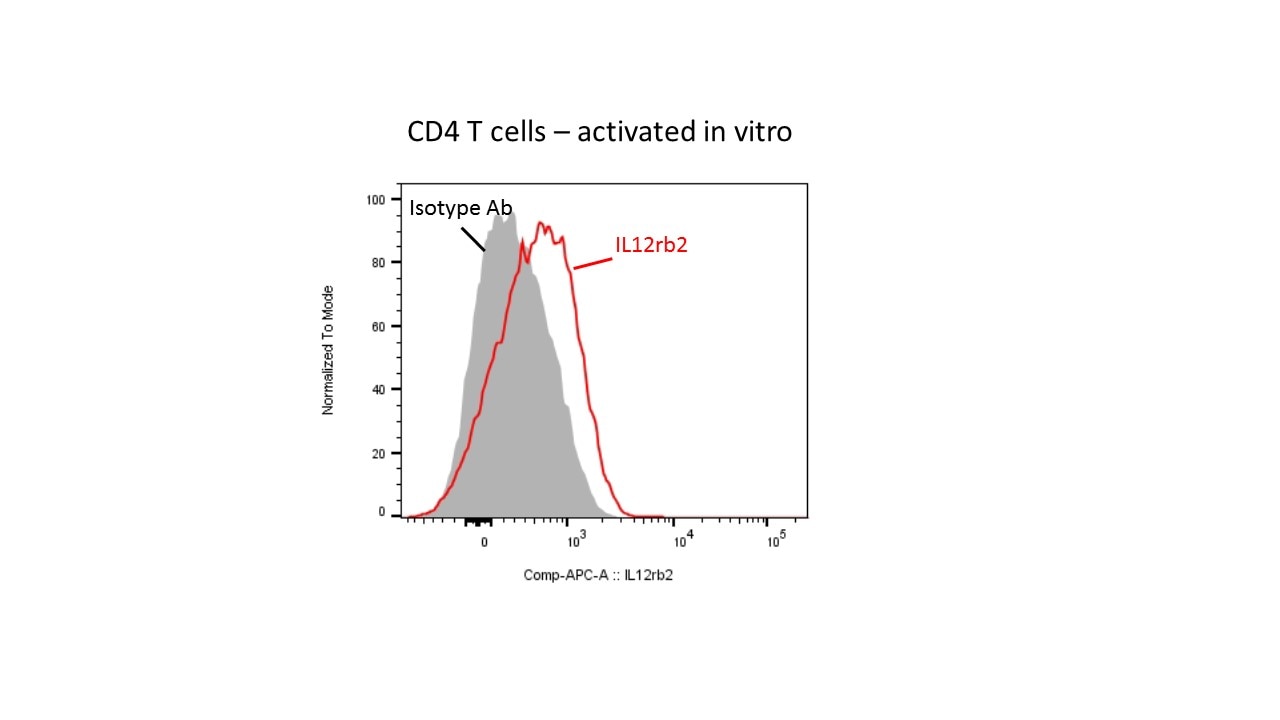

    Sample Tested: activated mouse CD4 T cell
    Species: Mouse
    Verified Customer | Posted 08/14/2016
    mouse CD4 T cells were activated with anti-CD3 and anti-CD28 antibodies in presence of IL-2 for 5 days.
    Human/Mouse IL‑12 R beta 2 APC‑conjugated Antibody FAB1959A

There are no reviews that match your criteria.

Showing  1 - 1 of 1 review Showing All

FAQs

No product specific FAQs exist for this product.

View all FAQs for Antibodies
