Syntaxin 7 (STX7) is a widely expressed protein embedded in endosomal and lysosomal membranes, and serves as a component of the SNARE complex. STX7 is involved in endocytic trafficking from early endosomes to late endosomes and lysosomes. This is in contrast to STX8, which is involved in clathrin-independent vesicular transport. Human STX7 is a type IV single-pass transmembrane protein (very short exoplasmic C-terminus) that is 261 amino acids (aa) in length. It contains a coiled-coil region (aa 47‑69), a t-SNARE domain (aa 165‑227) that is likely involved in protein-protein interactions, and a short, two amino acid, C-terminal luminal sequence. Over aa 21‑187, human STX7 shares 97% aa identity with mouse STX7.
Scientific images may be resized, cropped, or adjusted for brightness or contrast for presentation purposes. These updates are limited to presentation and do not affect the underlying scientific interpretation of the data. Where available, additional source data may be provided upon request.
Key Product Details
Species Reactivity
Validated:
Human, Mouse, Rat
Cited:
Mouse, Rat, Transgenic Mouse
Applications
Validated:
Western Blot, Immunocytochemistry
Cited:
Western Blot, Immunocytochemistry
Label
Unconjugated
Antibody Source
Polyclonal Sheep IgG
Loading...
Product Specifications
Immunogen
E. coli-derived recombinant human Syntaxin 7
Asn21-Glu187
Accession # O15400
Asn21-Glu187
Accession # O15400
Specificity
Detects human, mouse, and rat Syntaxin 7 in Western blots.
Clonality
Polyclonal
Host
Sheep
Isotype
IgG
Scientific Data Images for Syntaxin 7 Antibody
Detection of Human Syntaxin 7 by Western Blot.
Western blot shows recombinant human Syntaxin 12, 16, 1A, 1B2, 5, 6, 7, 8, and 1B1 (5 ng/lane). PVDF membrane was probed with 1 µg/mL Sheep Anti-Human/Mouse/Rat Syntaxin 7 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF5478) followed by HRP-conjugated Anti-Sheep IgG Secondary Antibody (HAF016). A specific band for Syntaxin 7 was detected at approximately 29 kDa (as indicated). This experiment was conducted under reducing conditions and using Immunoblot Buffer Group 1.
Detection of Human, Mouse, and Rat Syntaxin 7 by Western Blot.
Western blot shows lysates of BJAB human Burkitt's lymphoma cell line, MCF-7 human breast cancer cell line, C2C12 mouse myoblast cell line, BaF3 mouse pro-B cell line, L1.2 mouse pro-B cell line, and Rat-2 rat embryonic fibroblast cell line. PVDF membrane was probed with 1 µg/mL Sheep Anti-Human/Mouse/Rat Syntaxin 7 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF5478) followed by HRP-conjugated Anti-Sheep IgG Secondary Antibody (HAF016). A specific band for Syntaxin 7 was detected at approximately 39 kDa (as indicated). This experiment was conducted under reducing conditions and using Immunoblot Buffer Group 1.
Syntaxin 7 in HeLa Human Cell Line.
Syntaxin 7 was detected in immersion fixed HeLa human cervical epithelial carcinoma cell line using Sheep Anti-Human/Mouse/Rat Syntaxin 7 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF5478) at 15 µg/mL for 3 hours at room temperature. Cells were stained using the NorthernLights™ 557-conjugated Anti-Sheep IgG Secondary Antibody (red; NL010) and counterstained with DAPI (blue). Specific staining was localized to lysosomes. View our protocol for Fluorescent ICC Staining of Cells on Coverslips.

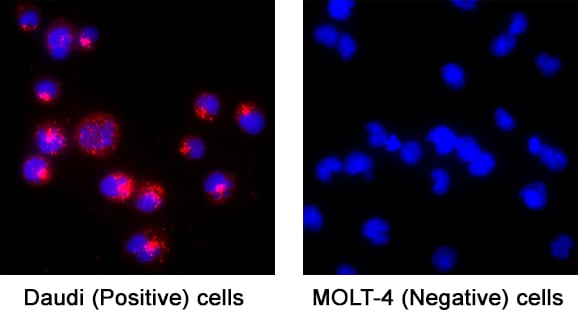

Detection of Syntaxin 7 in Daudi Human Burkitt's Lymphoma Cell Line (Positive) and MOLT‑4 Human Acute Lymphoblastic Leukemia Cell Line (Negative) Cells.
Syntaxin 7 was detected in immersion fixed Daudi Human Burkitt's Lymphoma Cell Line (Positive) and MOLT‑4 Human Acute Lymphoblastic Leukemia Cell Line (Negative) Cells using Sheep Anti-Human/Mouse/Rat Syntaxin 7 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF5478) at 5 µg/mL for 3 hours at room temperature. Cells were stained using the NorthernLights™ 557-conjugated Anti-Goat IgG Secondary Antibody (red; Catalog # NL001) and counterstained with DAPI (blue). Specific staining was localized to cytoplasm. View our protocol for Fluorescent ICC Staining of Non-adherent Cells.
Detection of Syntaxin 7 by Western Blot
CRISPR Proteomics Identifies 48 KSHV K5 Targets in Endothelial Cells(A) Schematic overview of the quantitative proteomic analysis of cells with lytic versus latent KSHV infection. HuAR2T.rKSHV.219 Cas9 cells harboring control or K5-specific sgRNAs were transduced with LV RTA or control LV BFP, sorted on BFP+ or RFP+, and analyzed by MS.(B) KSHV K5 protein significantly (q < 0.1) downregulates 48 proteins in endothelial cells, of which 30 are known K5 targets (left side of blue circle) and 18 proteins represent K5 targets identified in this study (yellow circle).(C–E) Scatterplots display pairwise comparison between lytic control and CRISPR K5 (C), latent and lytic control (D), and latent and lytic CRISPR K5 (E) KSHV infections. Each point represents a single protein, plotted by its log2 (fold change in abundance) versus the statistical significance (p and q value) of that change. Values were corrected for multiple hypothesis testing using the method of Benjamini-Hochberg. Dotted lines: q = 0.05.(F) Flow cytometry analysis of HuAR2T cells transduced with LV K5 or control LV and stained with isotype control antibody or antibody specific for the indicated proteins.(G and H) Immunoblot analysis of HuAR2T cells transduced with LV K5 or control LV, sorted on GFP+, and probed with the indicated antibody.See also Figure S2 and Table S3. Image collected and cropped by CiteAb from the following open publication (https://pubmed.ncbi.nlm.nih.gov/33053346), licensed under a CC-BY license. Not internally tested by R&D Systems.Applications for Syntaxin 7 Antibody
Application
Recommended Usage
Immunocytochemistry
5-15 µg/mL
Sample: Immersion fixed HeLa Human Cervical Epithelial Carcinoma, Daudi Human Burkitt's Lymphoma (Positive) and MOLT‑4 Human Acute Lymphoblastic Leukemia (Negative) Cell Line Cells.
Sample: Immersion fixed HeLa Human Cervical Epithelial Carcinoma, Daudi Human Burkitt's Lymphoma (Positive) and MOLT‑4 Human Acute Lymphoblastic Leukemia (Negative) Cell Line Cells.
Western Blot
1 µg/mL
Sample: BJAB human Burkitt's lymphoma cell line, MCF-7 human breast cancer cell line, C2C12 mouse myoblast cell line, BaF3 mouse pro-B cell line, L1.2 mouse pro-B cell line, and Rat-2 rat embryonic fibroblast cell line
Sample: BJAB human Burkitt's lymphoma cell line, MCF-7 human breast cancer cell line, C2C12 mouse myoblast cell line, BaF3 mouse pro-B cell line, L1.2 mouse pro-B cell line, and Rat-2 rat embryonic fibroblast cell line
Reviewed Applications
Read 3 reviews rated 4 using AF5478 in the following applications:
Formulation, Preparation, and Storage
Purification
Antigen Affinity-purified
Reconstitution
Reconstitute at 0.2 mg/mL in sterile PBS. For liquid material, refer to CoA for concentration.
Loading...
Formulation
Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.
Shipping
Lyophilized product is shipped at ambient temperature. Liquid small pack size (-SP) is shipped with polar packs. Upon receipt, store immediately at the temperature recommended below.
Stability & Storage
Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
- 12 months from date of receipt, -20 to -70 °C as supplied.
- 1 month, 2 to 8 °C under sterile conditions after reconstitution.
- 6 months, -20 to -70 °C under sterile conditions after reconstitution.
Calculators
Background: Syntaxin 7
Alternate Names
STX7
Gene Symbol
STX7
UniProt
Additional Syntaxin 7 Products
Product Documents for Syntaxin 7 Antibody
Certificate of Analysis
To download a Certificate of Analysis, please enter a lot or batch number in the search box below.
Note: Certificate of Analysis not available for kit components.
Product Specific Notices for Syntaxin 7 Antibody
For research use only
Citations for Syntaxin 7 Antibody
Powered by Bioz
Customer Reviews for Syntaxin 7 Antibody (3)
4 out of 5
3 Customer Ratings
Have you used Syntaxin 7 Antibody?
Submit a review and receive an Amazon gift card!
$25/€18/£15/$25CAN/¥2500 for a review with an image
$10/€7/£6/$10CAN/¥1110 for a review without an image
Submit a review
Customer Images
Showing
1
-
3 of
3 reviews
Showing All
Filter By:
-

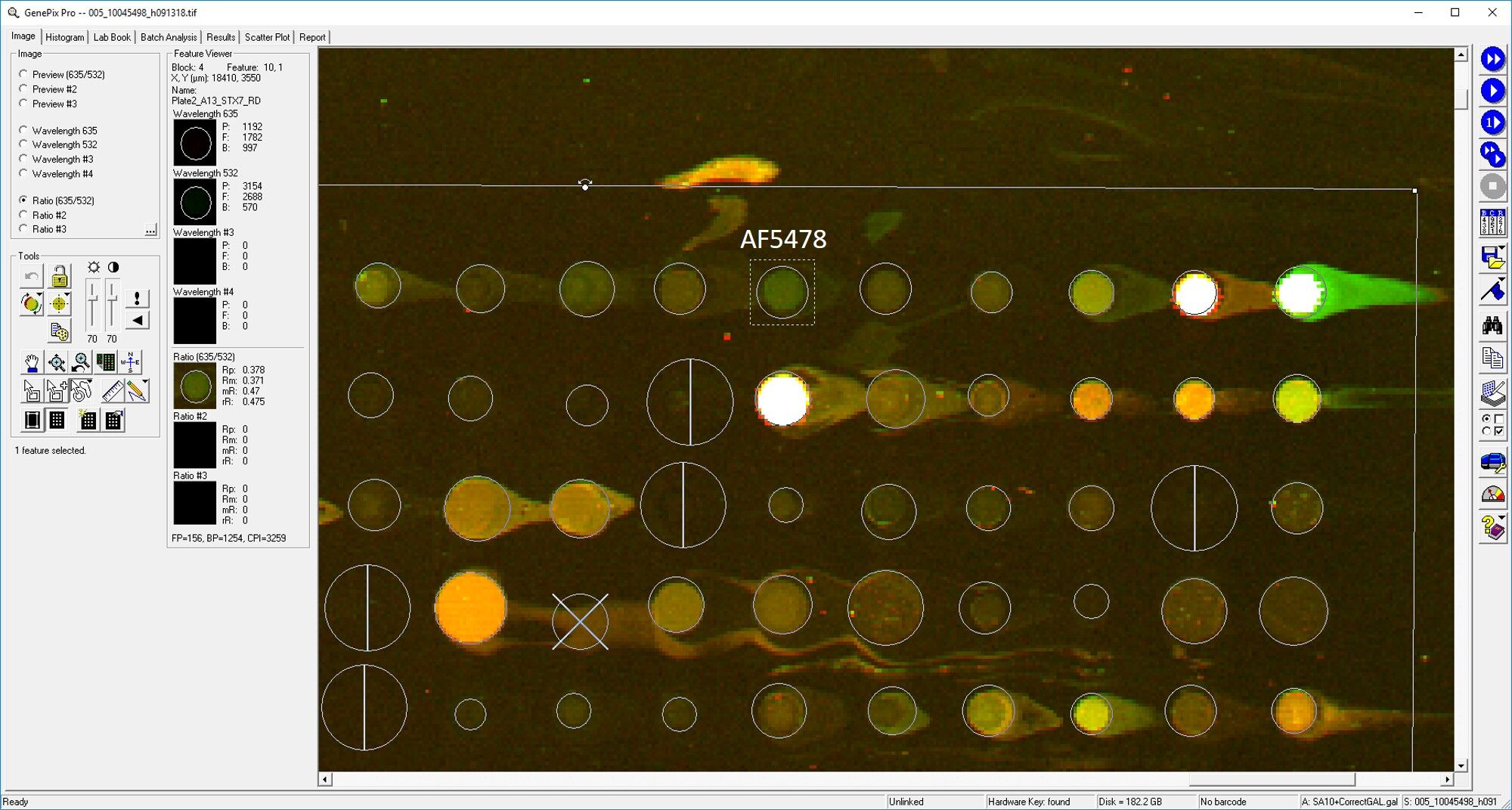

Application: MicroarraysSample Tested: EDTA PlasmaSpecies: HumanVerified Customer | Posted 03/11/2019
-
Application: MicroarraySample Tested: EDTA PlasmaSpecies: HumanVerified Customer | Posted 11/09/2018
-

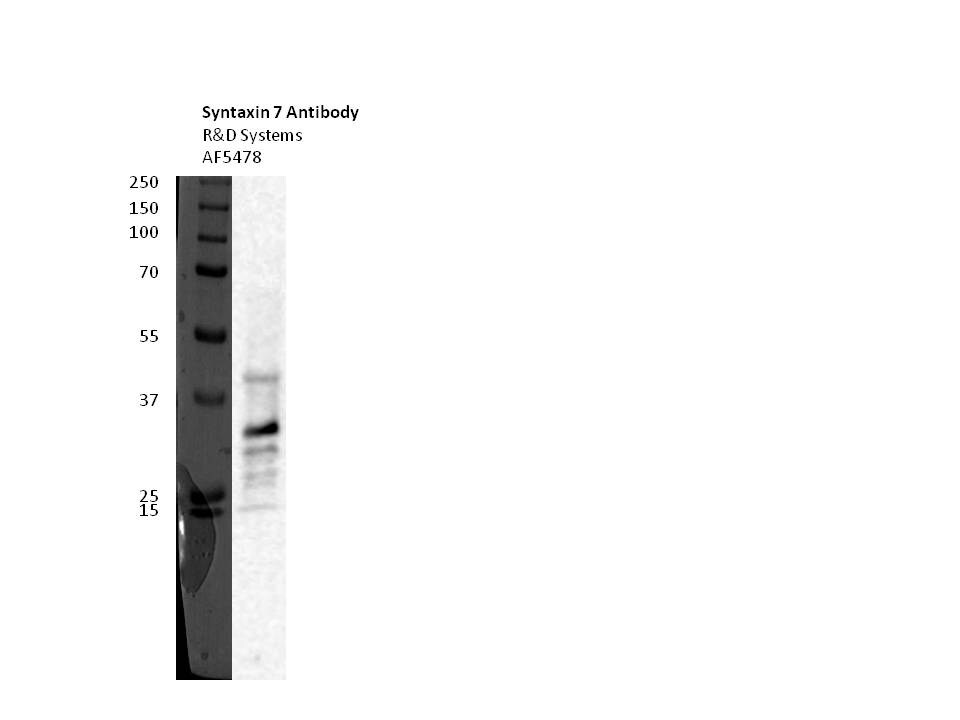

Application: Western BlotSample Tested: T84 human colon carcinoma cell lineSpecies: HumanVerified Customer | Posted 04/25/2017whole cell lystae 100 ug protein 10% gel some non-specific bands
