Key Product Details

Validated by

Biological Validation

Species Reactivity

Validated:

Human

Cited:

Human, Mouse

Applications

Validated:

Western Blot, Simple Western

Cited:

Western Blot, Simple Western, Immunoprecipitation

Label

Unconjugated

Antibody Source

Polyclonal Sheep IgG
View all SH2D2A Primary Antibodies »

Product Specifications

Immunogen

E. coli-derived recombinant human SH2D2A
Ile279-Gln389
Accession # Q9NP31

Specificity

Detects human SH2D2A in direct ELISAs and Western blots.

Clonality

Polyclonal

Host

Sheep

Isotype

IgG

Scientific Data Images for Human SH2D2A Antibody

Detection of Human SH2D2A antibody by Western Blot.

Detection of Human SH2D2A by Western Blot.

Western blot shows lysates of Jurkat human acute T cell leukemia cell line (untreated), human primary differentiated Th2 cells and human primary differentiated Th17 cells treated (+) with 1 µg/mL Hamster Anti-Mouse CD3e Monoclonal Antibody (Catalog # MAB484) and 5 µg/mL Rat Anti-Mouse CD28 Monoclonal Antibody (Catalog # MAB4831) for 120 minutes. PVDF membrane was probed with 1 µg/mL of Sheep Anti-Human SH2D2A Polyclonal Antibody (Catalog # AF6020) followed by HRP-conjugated Anti-Sheep IgG Secondary Antibody (Catalog # HAF016). A specific band was detected for SH2D2A at approximately 52 kDa (as indicated). This experiment was conducted under reducing conditions and using Immunoblot Buffer Group 1.

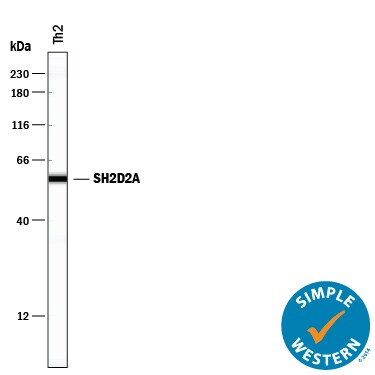

Detection of Human SH2D2A antibody by Simple WesternTM.

Detection of Human SH2D2A by Simple WesternTM.

Simple Western lane view shows lysate of human primary differentiated Th2 cells loaded at 0.2 mg/mL. A specific band was detected for SH2D2A at approximately 58 kDa (as indicated) using 10 µg/mL of Sheep Anti-Human SH2D2A Antigen Affinity-purified Polyclonal Antibody (Catalog # AF6020) followed by 1:50 dilution of HRP-conjugated Anti-Sheep IgG Secondary Antibody (Catalog # HAF016). This experiment was conducted under reducing conditions and using the 12-230 kDa separation system.

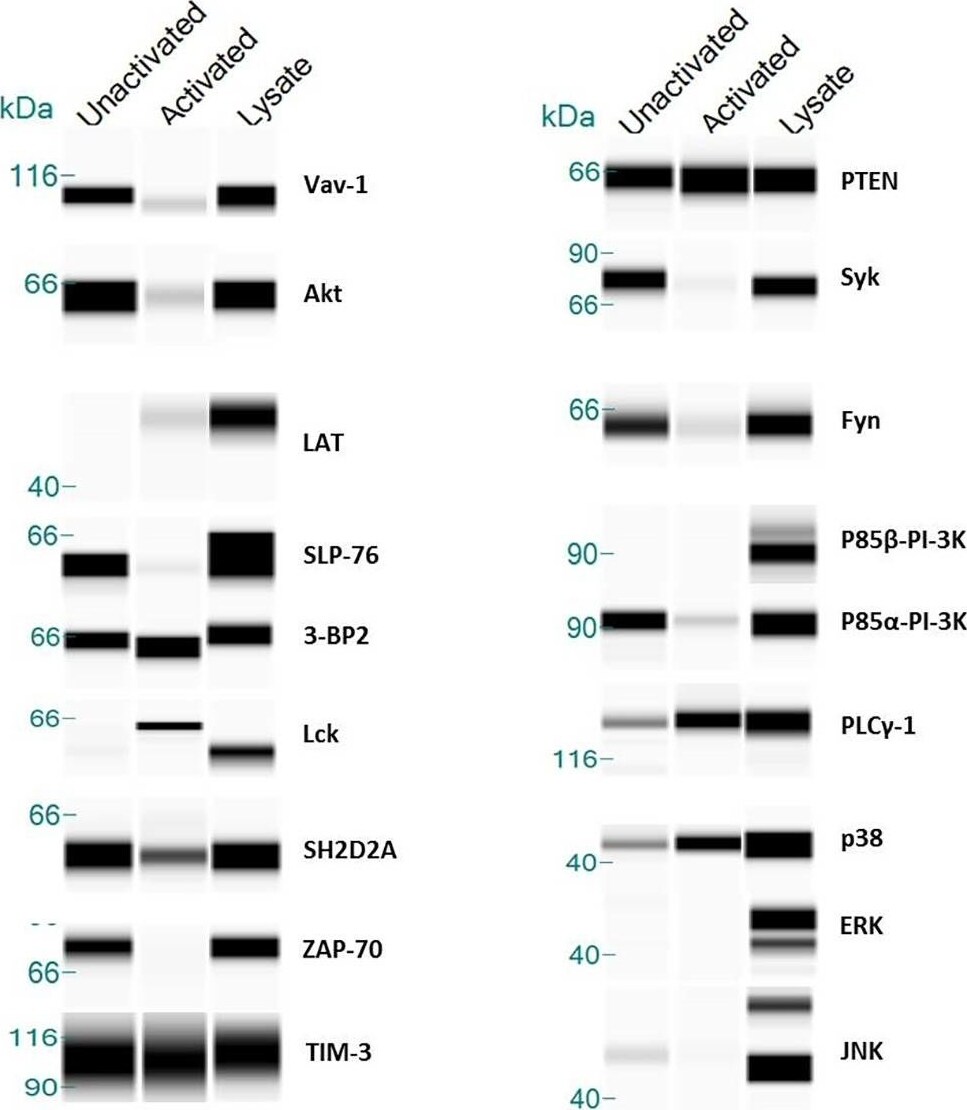

Detection of Human Human SH2D2A Antibody by Simple Western

Detection of Human Human SH2D2A Antibody by Simple Western

TIM-3 Association with Intracellular Kinases in CD8+/MART-1+ T cells.TIM-3 co-immunoprecipitation analysis of unactivated and 15 min. stimulation with anti-CD3/CD28 beads (activated). Equivalent amounts of protein (~2mg) were co-immunoprecipitated with pAb anti-TIM-3 antibody and western blot was performed using capillary electrophoresis. Cleared lysate served as a loading control for individual antibody reactivity. Image collected and cropped by CiteAb from the following publication (https://pubmed.ncbi.nlm.nih.gov/26492563), licensed under a CC-BY license. Not internally tested by R&D Systems.

Applications for Human SH2D2A Antibody

Application
Recommended Usage

Simple Western

10 µg/mL
Sample: Human primary differentiated Th2 cells

Western Blot

1 µg/mL
Sample: Jurkat human acute T cell leukemia cell line (untreated), human primary differentiated Th2 cells and human primary differentiated Th17 cells treated (+) with 1 µg/mL Hamster Anti-Mouse CD3 epsilon Monoclonal Antibody (Catalog # MAB484) and 5 µg/mL Rat Anti-Mouse CD28 Monoclonal Antibody (Catalog # MAB4831)

Formulation, Preparation, and Storage

Purification

Antigen Affinity-purified

Reconstitution

Reconstitute at 0.2 mg/mL in sterile PBS. For liquid material, refer to CoA for concentration.

Formulation

Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.

Shipping

Lyophilized product is shipped at ambient temperature. Liquid small pack size (-SP) is shipped with polar packs. Upon receipt, store immediately at the temperature recommended below.

Stability & Storage

Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 6 months, -20 to -70 °C under sterile conditions after reconstitution.

Calculators

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Background: SH2D2A

SH2D2A (SH2 domain-containing protein 2A; also TSAd and VRAP) is a 52 kDa protein best described as a multifunctional intracellular adaptor molecule. It is expressed in activated CD4+ and CD8+ T cells, endothelial cells, and fibroblasts. SH2D2A is found in both cytoplasm and nucleus, and has multiple binding partners. After TCR activation, SH2D2A interacts with LCK, prolonging its activity. It also binds to SMAD2 and SMAD3, and constitutively interacts with PI3K and PLC gamma, thus participating in VEGF:KDR signaling. Human SH2D2A is 389 amino acids (aa) in length and contains one SH2 domain (aa 95‑186) and a Pro-rich region (aa 187‑389). Phosphorylation occurs on Y39, Y216 and Y305, and on S217 and S296.

Alternate Names

F2771, RIBP, SCAP, TSAd, VRAP

Entrez Gene IDs

9047 (Human); 27371 (Mouse); 310688 (Rat)

Gene Symbol

SH2D2A

UniProt

Q9NP31
