Detects human SMAC/Diablo in Western blots. Also detects mouse and rat SMAC/Diablo when the salt concentration of blotting buffer is reduced to 0.15 M NaCl, and 1 μg/mL anti-SMAC/Diablo concentration is used.
Polyclonal Rabbit IgG
E. coli-derived recombinant human SMAC/Diablo Ala56-Asp239 Accession # Q9NR28
Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied as a 0.2 µm filtered solution in PBS.
Please Note: Optimal dilutions should be determined by each laboratory for each application. General Protocols are available in the Technical Information section on our website.
Detection of Human SMAC/Diablo by Western Blot. Western blot shows lysates of SH-SY5Y human neuroblastoma cell line, CHP-100 human neuroblastoma cell line, and Jurkat human acute T cell leukemia cell line. PVDF membrane was probed with 0.5 µg/mL Rabbit Anti-Human SMAC/Diablo Antigen Affinity-purified Polyclonal Antibody (Catalog # AF789) followed by HRP-conjugated Anti-Rabbit IgG Secondary Antibody (Catalog # HAF008). For additional reference, Recombinant Human SMAC/Diablo (Catalog # 789-SM) (0.5 ng/lane) was included. A specific band for SMAC/Diablo was detected at approximately 22 kDa (as indicated). This experiment was conducted under reducing conditions and using Immunoblot Buffer Group 6.

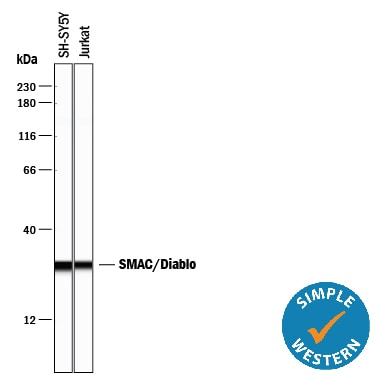

Detection of Human SMAC/Diablo by Simple WesternTM. Simple Western lane view shows lysates of SH‑SY5Y human neuroblastoma cell line and Jurkat human acute T cell leukemia cell line, loaded at 0.2 mg/mL. A specific band was detected for SMAC/Diablo at approximately 29 kDa (as indicated) using 5 µg/mL of Rabbit Anti-Human SMAC/Diablo Antigen Affinity-purified Polyclonal Antibody (Catalog # AF789). This experiment was conducted under reducing conditions and using the 12-230 kDa separation system.
Preparation and Storage
Reconstitute at 0.2 mg/mL in sterile PBS.
The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below. *Small pack size (SP) is shipped with polar packs. Upon receipt, store it immediately at -20 to -70 °C
Stability & Storage
Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
12 months from date of receipt, -20 to -70 °C as supplied.
1 month, 2 to 8 °C under sterile conditions after reconstitution.
6 months, -20 to -70 °C under sterile conditions after reconstitution.
SMAC (second mitochondria derived activator of caspase)/Diablo promotes caspase activation by interacting with the inhibitor of apoptosis (IAP) proteins in the cytochrome c/Apaf-1/caspase-9 pathway.
Du, C. et al. (2000) Cell 102:33.
Chai, J. et al. (2000) Nature 406:855.
Srinivasula, S. et al. (2000) J. Biol. Chem. 275:36152.
Ekert, P. et al. (2001) J. Cell Biol. 152:483.
Verhagen, A. (2000) Cell 102:43.
Second Mitochondria-derived Activator of Caspase
Entrez Gene IDs:
0610041G12Rik; Diablo; diablo, IAP-binding mitochondrial protein; Direct IAP-binding protein with low pI; mitochondrial Smac protein; Second mitochondria-derived activator of caspase; Smac; SMACmitochondrial
