Tenascin-XB2 (TN-XB2; also TN-XB-Short/S and tenascin-X isoform 2) is a 73-75 kDa member of the tenascin family of extracellular matrix molecules. It is expressed by adrenal gland, and represents the use of an intronic promoter that is tied to an internal start site within the TN-XB gene. A duplication of the TN-XB2 region has created a gene called TN-XA that codes for the same ORF but is not translated. Although TN-XB2 has been reported to bind to tropoelastin, plus collagens I, III and V, other studies using soluble fragments of TN-XB report only tropoelastin interaction. Human TN-XB2 is 673 amino acids (aa) in length. It contains four fibronectin type III repeats (aa 82-442), and one C-terminal fibrinogen-like globular region (aa 449-664). Antibodies to TN-XB2 recognize full-length 465 kDA Tenascin X (TN-XB), 75 kDa and 140-150 kDa C-terminal fragments. Although human TN-XB2 shares 84% aa identity with full-length mouse TN-XB in its C-terminus, there does not appear to be an equivalent alternative start site in the mouse gene.
Human Tenascin X Antibody
R&D Systems | Catalog # AF6999
Scientific images may be resized, cropped, or adjusted for brightness or contrast for presentation purposes. These updates are limited to presentation and do not affect the underlying scientific interpretation of the data. Where available, additional source data may be provided upon request.
Key Product Details
Species Reactivity
Validated:
Cited:
Applications
Validated:
Cited:
Label
Antibody Source
Product Specifications
Immunogen
Met1-Gly673
Accession # AAH33740
Specificity
Clonality
Host
Isotype
Scientific Data Images for Human Tenascin X Antibody
Detection of Human Tenascin X by Western Blot.
Western blot shows lysates of human heart tissue. PVDF membrane was probed with 1 µg/mL of Sheep Anti-Human Tenascin X Antigen Affinity-purified Polyclonal Antibody (Catalog # AF6999) followed by HRP-conjugated Anti-Sheep IgG Secondary Antibody (Catalog # HAF016). A specific band was detected for Tenascin X at approximately 470 kDa (as indicated). This experiment was conducted under reducing conditions and using Immunoblot Buffer Group 1.Tenascin X in Human Lung Mesothelioma.
Tenascin X was detected in immersion fixed paraffin-embedded sections of human lung mesothelioma using Sheep Anti-Human Tenascin X Antigen Affinity-purified Polyclonal Antibody (Catalog # AF6999) at 15 µg/mL overnight at 4 °C. Tissue was stained using the Anti-Sheep HRP-DAB Cell & Tissue Staining Kit (brown; Catalog # CTS019) and counterstained with hematoxylin (blue). Specific staining was localized to stromal cells. View our protocol for Chromogenic IHC Staining of Paraffin-embedded Tissue Sections.Detection of Human Tenascin X by Simple WesternTM.

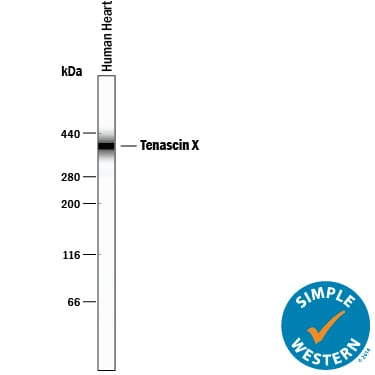

Simple Western lane view shows lysates of human heart tissue, loaded at 0.2 mg/mL. A specific band was detected for Tenascin X at approximately 400 kDa (as indicated) using 50 µg/mL of Sheep Anti-Human Tenascin X Antigen Affinity-purified Polyclonal Antibody (Catalog # AF6999) followed by 1:50 dilution of HRP-conjugated Anti-Sheep IgG Secondary Antibody (Catalog # HAF016). This experiment was conducted under reducing conditions and using the 66-440 kDa separation system.Applications for Human Tenascin X Antibody
Immunohistochemistry
Sample: Immersion fixed paraffin-embedded sections of human lung mesothelioma
Simple Western
Sample: Human heart tissue
Western Blot
Sample: Human heart tissue
Formulation, Preparation, and Storage
Purification
Reconstitution
Sterile PBS to a final concentration of 0.2 mg/mL. For liquid material, refer to CoA for concentration.
Formulation
Shipping
Stability & Storage
- 12 months from date of receipt, -20 to -70 °C as supplied.
- 1 month, 2 to 8 °C under sterile conditions after reconstitution.
- 6 months, -20 to -70 °C under sterile conditions after reconstitution.
