Mouse CXCL16 Antibody

(3 citations)
  • Species Reactivity
    Mouse
  • Specificity
    Detects mouse CXCL16 in ELISAs and Western blots. In direct ELISAs and Western blots, no cross-reactivity with recombinant human CXCL1, 2, 3, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, recombinant mouse CXCL1, 2, 6, 9, 10, 11, 12, 13, 14, 15, recombinant rat CXCL1, 2, 3, 5, or recombinant porcine CXCL8 is observed.
  • Source
    Monoclonal Rat IgG2A Clone # 142417
  • Purification
    Protein A or G purified from hybridoma culture supernatant
  • Immunogen
    E. coli-derived recombinant mouse CXCL16
    Asn27-Pro114
    Accession # Q8BSU2
  • Formulation
    Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied as a 0.2 µm filtered solution in PBS.
  • Endotoxin Level
    <0.10 EU per 1 μg of the antibody by the LAL method.
  • Label
    Unconjugated
Applications
  •
    Recommended
    Concentration
    Sample
  • Western Blot
    1 µg/mL
    Recombinant Mouse CXCL16 Chemokine Domain (Catalog # 503-CX) under non-reducing conditions only
    • Mouse CXCL16 Sandwich Immunoassay
      Reagent
  • ELISA Capture (Matched Antibody Pair)
    2-8 µg/mL
    Mouse CXCL16 Antibody (Catalog # MAB503)
  • ELISA Detection (Matched Antibody Pair)
    0.1-0.4 µg/mL
    Mouse CXCL16 Biotinylated Antibody (Catalog # BAF503)

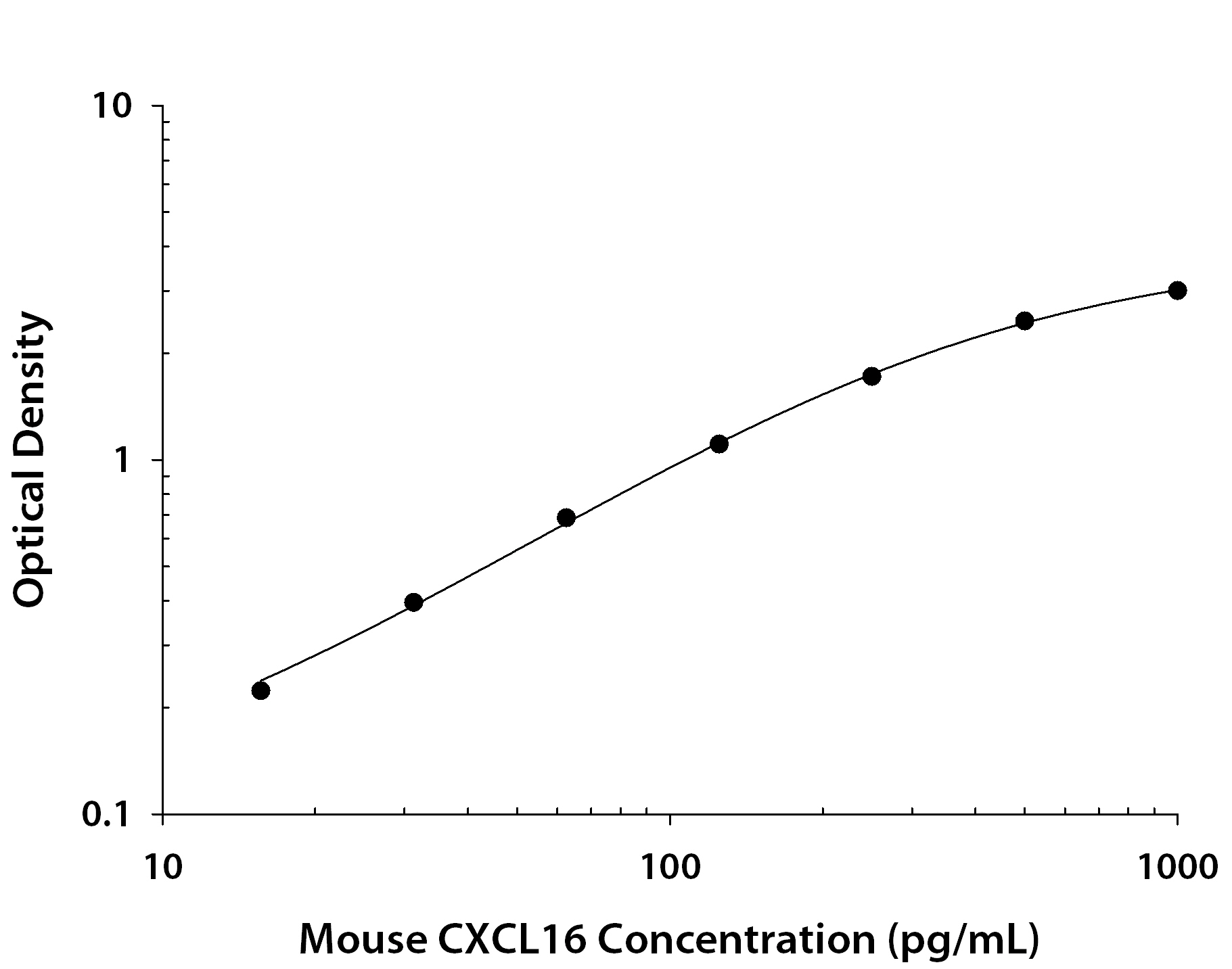

  • ELISA Standard

    Recombinant Mouse CXCL16 Protein (Catalog # 503-CX)
  • Neutralization
    Measured by its ability to neutralize CXCL16-induced chemotaxis in the BaF3 mouse pro‑B cell line transfected with mouse CXCR6. Matloubian, M. et al. (2000) Nature Immunol. 1:298. The Neutralization Dose (ND50) is typically 0.15-0.6 µg/mL in the presence of 7.5 ng/mL Recombinant Mouse CXCL16 Chemokine Domain.
Please Note: Optimal dilutions should be determined by each laboratory for each application. General Protocols are available in the Technical Information section on our website.
Data Examples
Chemotaxis Induced by CXCL16 and Neutralization by Mouse CXCL16 Antibody. Recombinant Mouse CXCL16 Chemokine Domain (Catalog # 503-CX) chemoattracts the BaF3 mouse pro‑B cell line transfected with mouse CXCR6 in a dose-dependent manner (orange line). The amount of cells that migrated through to the lower chemotaxis chamber was measured by Resazurin (Catalog # AR002). Chemotaxis elicited by Recombinant Mouse CXCL16 Chemokine Domain (7.5 ng/mL) is neutralized (green line) by increasing concentrations of Rat Anti-Mouse CXCL16 Monoclonal Antibody (Catalog # MAB503). The ND50 is typically 0.15‑0.6 µg/mL.
Preparation and Storage
  • Reconstitution
    Reconstitute at 0.5 mg/mL in sterile PBS.
  • Shipping
    The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below. *Small pack size (SP) is shipped with polar packs. Upon receipt, store it immediately at -20 to -70 °C
  • Stability & Storage
    Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
    • 12 months from date of receipt, -20 to -70 °C as supplied.
    • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
    • 6 months, -20 to -70 °C under sterile conditions after reconstitution.
Background: CXCL16
Mouse CXCL16 (CXC chemokine 16) is a non-ELR motif-containing CXC chemokine with a transmembrane domain. CX3CL1/Fractalkine andCXCL16 are the only two transmembrane chemokines within the superfamily. Mouse CXCL16 cDNA encodes a 246 amino acid (aa) precursor protein with a putative 26 aa signal peptide, an 88 aa chemokine domain, an 87 aa mucin-like spacer region, a 22 aa transmembrane domain, and a 23 aa cytoplasmic tail. Mouse and human CXCL16 share 49% aa sequence identity. Mouse CXCL16 is produced by dendritic cells in lymphoid organ T cell zones and bycells in the splenic red pulp both as membrane-bound and soluble forms. Based on northern blot analysis, CXCL16 is also expressed in some non-lymphoid tissues such as lung, small intestine and kidney. The receptor for CXCL16 has been identified as CXCR6 (previously called Bonzo, STRL33 or TYMSTR), which is also a coreceptor for HIV entry. CXCR6 is expressed on naive CD8 cells, natural killer T cells and activated CD8 and CD4 T cells.
  • Entrez Gene IDs:
    58191 (Human); 66102 (Mouse)
  • Alternate Names:
    chemokine (C-X-C motif) ligand 16; CXC chemokine ligand 16; CXCL16; CXCLG16; Scavenger receptor for phosphatidylserine and oxidized low density lipoprotein; SCYB16; Small-inducible cytokine B16; SRPSOXC-X-C motif chemokine 16; SR-PSOXTransmembrane chemokine CXCL16
Related Research Areas
Citations:

R&D Systems personnel manually curate a database that contains references using R&D Systems products. The data collected includes not only links to publications in PubMed, but also provides information about sample types, species, and experimental conditions.

3 Citations: Showing 1 - 3
Filter your results:

Species
Applications
Sample Type
  1. Response patterns of cytokines/chemokines in two murine strains after irradiation.
    Authors: Zhang M, Yin L, Zhang K, Sun W, Yang S, Zhang B, Salzman P, Wang W, Liu C, Vidyasagar S, Zhang L, Ju S, Okunieff P, Zhang L
    Cytokine, 2012;58(2):169-77.
    Species: Mouse
    Sample Type: Plasma
    Application: Luminex Assay Development
  2. Excreted urinary mediators in an animal model of experimental immune nephritis with potential pathogenic significance.
    Authors: Wu T, Xie C, Bhaskarabhatla M, Yan M, Leone A, Chen SS, Zhou XJ, Putterman C, Mohan C
    Arthritis Rheum., 2007;56(3):949-59.
    Species: Mouse
    Sample Type: In Vivo
    Application: In vivo
  3. A disintegrin and metalloproteinase 10-mediated cleavage and shedding regulates the cell surface expression of CXC chemokine ligand 16.
    Authors: Gough PJ, Garton KJ, Wille PT, Rychlewski M, Dempsey PJ, Raines EW
    J. Immunol., 2004;172(6):3678-85.
    Species: Mouse
    Sample Type: Cell Culture Supernates
    Application: ELISA Development
