Mouse CXCR7/RDC-1 Antibody

(2 citations)
  • Species Reactivity
    Mouse
  • Specificity
    Detects CXCR7/RDC‑1 in direct ELISAs and Western blots. In direct ELISAs, less than 1% cross‑reactivity with recombinant mouse CXCR5 is observed.
  • Source
    Polyclonal Sheep IgG
  • Purification
    Antigen Affinity-purified
  • Immunogen
    Mouse myeloma cell line NS0-derived recombinant mouse CXCR7 extracellular N-terminus and loops
    Met1-Leu47, Ser103-Lys118, Lys184-Glu213, and Leu274-Ala296
    Accession # P56485
  • Formulation
    Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied as a 0.2 µm filtered solution in PBS.
  • Label
    Unconjugated
Applications
  •
    Recommended
    Concentration
    Sample
  • Western Blot
    1 µg/mL
    See below
  • Flow Cytometry
    2.5 µg/106 cells
    See below
  • CyTOF-ready
    Ready to be labeled using established conjugation methods. No BSA or other carrier proteins that could interfere with conjugation.
Please Note: Optimal dilutions should be determined by each laboratory for each application. General Protocols are available in the Technical Information section on our website.
Data Examples
Detection of Mouse CXCR7/RDC‑1 by Western Blot. Western blot shows lysates of mouse spleen tissue. PVDF Membrane was probed with 1 µg/mL of Mouse CXCR7/RDC‑1 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF4227) followed by HRP-conjugated Anti-Sheep IgG Secondary Antibody (Catalog # HAF016). A specific band was detected for CXCR7/RDC‑1 at approximately 60 kDa (as indicated). This experiment was conducted under reducing conditions and using Immunoblot Buffer Group 8.

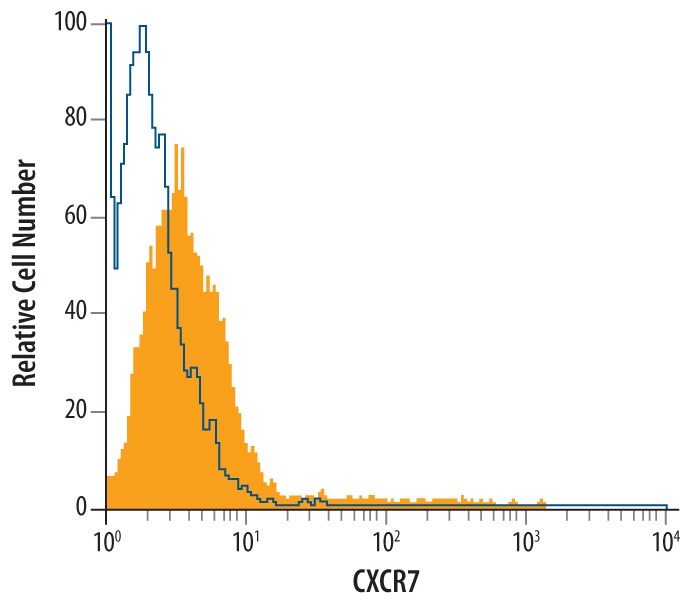

Detection of CXCR7/RDC‑1 in Mouse Neural Progenitor Cells by Flow Cytometry. Undifferentiated mouse neural progenitor cells were stained with Sheep Anti-Mouse CXCR7/RDC‑1 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF4227, filled histogram) or control antibody (Catalog # 5‑001‑A, open histogram), followed by NorthernLights™ 557-conjugated Anti-Sheep IgG Secondary Antibody (Catalog # NL010).
Preparation and Storage
  • Reconstitution
    Reconstitute at 0.2 mg/mL in sterile PBS.
  • Shipping
    The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below. *Small pack size (SP) is shipped with polar packs. Upon receipt, store it immediately at -20 to -70 °C
  • Stability & Storage
    Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
    • 12 months from date of receipt, -20 to -70 °C as supplied.
    • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
    • 6 months, -20 to -70 °C under sterile conditions after reconstitution.
Background: CXCR7/RDC-1

CXCR7 (CXC chemokine receptor 7; also GPRN1, RDC1 and chemokine orphan receptor 1) is a 60 kDa member of the G-protein coupled receptor 1 family. It is expressed on multiple cell types, including neurons, T cells, NK cells, neutrophils, B cells plus angiogenic endothelial cells. CXCR7 forms both homodimers and heterodimers with CXCR4. It selectively binds I-TAC and SDF1, and appears to involve beta -arrestin2 during signaling. Notably, a CXCR7:CXCR4 heterodimer shows increased responsiveness to SDF1, and I-TAC may actually block some SDF1-mediated migration activity. Mouse CXCR7 is a 7-transmembrane glycoprotein that is 362 amino acids (aa) in length. It contains a 47 aa N-terminal extracellular region plus a 43 aa C-terminal cytoplasmic domain. Over aa 1‑47, 103‑118, 184‑213 and 274‑296 collectively, mouse CXCR7 shares 97% and 91% aa identity with rat and human CXCR7, respectively.

  • Entrez Gene IDs:
    57007 (Human); 12778 (Mouse); 84348 (Rat)
  • Alternate Names:
    ACKR3; chemokine (C-X-C motif) receptor 7; Chemokine orphan receptor 1CMKOR1C-X-C chemokine receptor type 7; CMKOR1; CXCR7; CXC-R7; CXCR-7; G protein-coupled receptor; GPR159; GPR159G-protein coupled receptor 159; RDC-1; RDC1G-protein coupled receptor RDC1 homolog
Related Research Areas
Citations:

R&D Systems personnel manually curate a database that contains references using R&D Systems products. The data collected includes not only links to publications in PubMed, but also provides information about sample types, species, and experimental conditions.

2 Citations: Showing 1 - 2
Filter your results:

Species
Applications
Sample Type
  1. The role of SDF-1-CXCR4/CXCR7 axis in the therapeutic effects of hypoxia-preconditioned mesenchymal stem cells for renal ischemia/reperfusion injury.
    Authors: Liu H, Liu S, Li Y, Wang X, Xue W, Ge G, Luo X
    PLoS ONE, 2012;7(4):e34608.
    Species: Mouse
    Sample Type: Whole Cells
    Application: Neut
  2. Hypoxic preconditioning advances CXCR4 and CXCR7 expression by activating HIF-1alpha in MSCs.
    Authors: Liu H, Xue W, Ge G, Luo X, Li Y, Xiang H, Ding X, Tian P, Tian X
    Biochem. Biophys. Res. Commun., 2010;401(4):509-15.
    Species: Mouse
    Sample Type: Cell Lysates
    Application: WB
