Simple Plex Human TNF-alpha 2nd Gen Cartridge

R&D Systems | Catalog # SPCKB-PS-002803

Simple Plex Human TNF-alpha 2nd Gen assay kit contains cartridge, sample diluent SD13, and wash buffer. Sample type indicated with PS (Plasma/Serum).
R&D Systems
Loading...

Key Product Details

Assay Length

90 minutes

Sample Type & Volume Required Per Well*

Cell Culture Supernates (10 µL), Serum (25 µL), EDTA Plasma (25 µL), Heparin Plasma (25 µL), Cerebrospinal Fluid (25 µL)

Sensitivity

0.03 pg/mL

Assay Range

0.3-1160 pg/mL (Cell Culture Supernates, Serum, EDTA Plasma, Heparin Plasma, Cerebrospinal Fluid)

Simple Plex Human TNF-alpha 2nd Gen Cartridge Summary

Simple Plex assay for the detection of human TNF-alpha in cell culture supernatant (CCS), serum, plasma (EDTA/Heparin), and cerebrospinal fluid (CSF).

*The Sample Volume represented is based on the amount of sample incorporated into the reaction after taking into account the assay's minimum required dilution for a given matrix. Serial dilution may be necessary to achieve some of the final sample volumes represented.

Compatible Instruments

Ella Automated Immunoassay System

Ella Automated Immunoassay System

Efficiently analyze biomarkers with Ella's advanced technology, providing accurate, precise results in under 90 minutes. Quantify up to 8 targets per assay through a streamlined automated workflow. Choose from >350 highly validated Simple Plex assays or Simple Plex discovery assays.
Loading...

Product Specifications

Assay Type

Automated sandwich ELISA

Format

Microfluidic cartridge containing three Glass Nano Reactors (GNR)

Species

Human

Specificity

Natural and recombinant human TNF-alpha.

Cross-reactivity

Cross-reactivity observed with 1 or more available related molecules. < 50% cross-species reactivity observed with species tested.

Interference

No significant interference observed with available related molecules.

Precision

Intra-Assay Precision (Precision within an assay) Each control was tested 16 times in one assay.

Inter-Assay Precision (Precision between assays) Replicates of each control were tested in multiple assays performed by at least three technicians using two lots of reagents.

Cell Culture Supernates, Cerebrospinal Fluid, EDTA Plasma, Heparin Plasma, Serum

Intra-Assay Precision Inter-Assay Precision
Sample 1 2 1 2
n 16 16 36 35
Mean (pg/mL) 6.99 383 0.662 36.9
Standard Deviation 0.345 20.6 7.81 408
CV% 4.9 5.4 8.5 9.0

Recovery for Simple Plex Human TNF-alpha 2nd Gen Cartridge

Recovery at three different spiked concentrations within the range of the assay was evaluated.

Sample Type Average % Recovery Range %
Cerebrospinal Fluid (n=6) 109 103-115
EDTA Plasma (n=4) 97 89-105
Heparin Plasma (n=4) 89 77-96
Serum (n=4) 99 92-108

Linearity

Samples containing and/or spiked with high concentrations of human IL-6 were serially diluted with Sample Diluent to produce samples within the dynamic range of the assay.

Human TNF-alpha Assay Linearity

Scientific Data Images for Simple Plex Human TNF-alpha 2nd Gen Cartridge

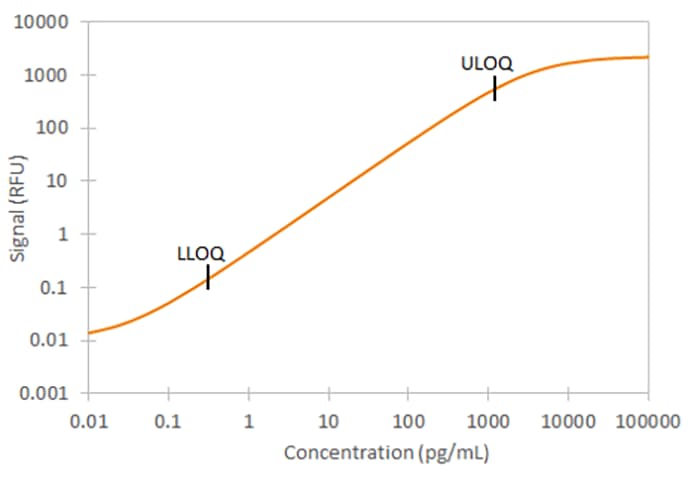

Human TNF-alpha Assay Standard Curve

Human TNF-alpha Assay Standard Curve

Preparation and Storage

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: TNF-alpha

TNF-alpha (Tumor necrosis factor alpha) plays a central role in inflammation, immune system development, apoptosis, and lipid metabolism. TNF-alpha was first identified as a cytotoxic factor produced by macrophages capable of killing mouse tumor cells. It is the prototypic ligand and along with Lymphotoxin-alpha, were identified as the first members of the TNF superfamily. Active TNF-alpha and other members of the TNF superfamily exist as a homotrimer with high structural homology. Receptor binding occurs at the interface of two TNF-alpha monomers. And receptor activation occurs when all three monomer interfaces are engaged with a receptor. For TNF-alpha, receptor binding and activation occurs through TNF R1 or TNF RII, and subsequently leads to activation of NF-kB or MAPK signaling pathways. Another pathway that TNF-alpha can activate utilizes the death domain of TNF RI to induce apoptosis. TNF-alpha promotes the inflammatory response largely through NF-kB signaling, and inhibition of TNF-alpha has proven successful in treating many autoimmune disorders. TNF-alpha is also present on the cell surface as membrane-bound TNF-alpha can induce the lysis of neighboring tumor cells and virus infected cells. TNF-alpha protein is translated as a type II transmembrane protein containing an N-terminal transmembrane domain. The soluble cytokine is released from its cell-anchoring TM domain by proteolytic processing by metalloproteases.

Long Name

Tumor Necrosis Factor alpha

Alternate Names

Cachetin, DIF, TNF, TNF-A, TNFA, TNFalpha, TNFG1F, TNFSF1A, TNFSF2

Entrez Gene IDs

7124 (Human); 21926 (Mouse); 24835 (Rat); 397086 (Porcine); 280943 (Bovine); 403922 (Canine); 102139631 (Cynomolgus Monkey); 100033834 (Equine); 493755 (Feline); 100009088 (Rabbit)

Gene Symbol

TNF

Additional TNF-alpha Products

Product Documents for Simple Plex Human TNF-alpha 2nd Gen Cartridge

Loading product document information...

Loading product document information...

Certificate of Analysis

To download a Certificate of Analysis, please enter your Simple Plex catalog number and lot number in the search boxes below.

Product Specific Notices for Simple Plex Human TNF-alpha 2nd Gen Cartridge

For research use only
