Simple Plex Mouse TNF-alpha Cartridge

R&D Systems | Catalog # SPCKB-MP-000822

Simple Plex Mouse TNF-alpha assay kit for use on Ella instrument. Contains cartridge, sample diluent SD09, and wash buffer.
R&D Systems

Customize This Cartridge

Simple Plex cartridges are custom built to fit your needs. Choose from over 350 assays spanning human, mouse, rat, and non-human primate. Just select your sample type, cartridge size (16, 32, or 72 samples), and up to 8 analytes per cartridge. Customize this cartridge.


Key Product Details

Assay Length

90 minutes

Sample Type & Volume Required Per Well*

Mouse Cell Culture Supernates (10 µL), Mouse Serum (25 µL), Mouse EDTA Plasma (25 µL), Mouse Heparin Plasma (25 µL)

Sensitivity

0.06 pg/mL

Assay Range

0.31-2930 pg/mL (Mouse Cell Culture Supernates, Mouse Serum, Mouse EDTA Plasma, Mouse Heparin Plasma)

Simple Plex Mouse TNF-alpha Cartridge Summary

Simple Plex assay for the detection of mouse TNF-alpha in cell culture supernatant (CCS), serum, plasma (EDTA/Heparin).

*The Sample Volume represented is based on the amount of sample incorporated into the reaction after taking into account the assay's minimum required dilution for a given matrix. Serial dilution may be necessary to achieve some of the final sample volumes represented.

Compatible Instruments

Ella Automated Immunoassay System

Ella Automated Immunoassay System

Efficiently analyze biomarkers with Ella's advanced technology, providing accurate, precise results in under 90 minutes. Quantify up to 8 targets per assay through a streamlined automated workflow. Choose from >350 highly validated Simple Plex assays or Simple Plex discovery assays.
Loading...

Product Specifications

Assay Type

Automated sandwich ELISA

Format

Microfluidic cartridge containing three Glass Nano Reactors (GNR)

Species

Mouse

Specificity

Natural and recombinant mouse TNF-alpha.

Cross-reactivity

< 0.5% cross-reactivity observed with available related molecules. < 50% cross-species reactivity observed with species tested.

Interference

No significant interference observed with available related molecules.

Precision

Intra-Assay Precision (Precision within an assay) Each control was tested 16 times in one assay.

Inter-Assay Precision (Precision between assays) Replicates of each control were tested in multiple assays performed by at least three technicians using two lots of reagents.

Mouse Cell Culture Supernates, Mouse EDTA Plasma, Mouse Heparin Plasma, Mouse Serum

Intra-Assay Precision Inter-Assay Precision
Sample 1 2 1 2
n 16 16 32 32
Mean (pg/mL) 8.38 391 8.30 427
Standard Deviation 0.748 38.1 1.08 53.4
CV% 8.9 9.8 13.0 12.5

Recovery for Simple Plex Mouse TNF-alpha Cartridge

Recovery at three different spiked concentrations within the range of the assay was evaluated.

Sample Type Average % Recovery Range %
Mouse EDTA Plasma (n=4) 101 97-103
Mouse Heparin Plasma (n=4) 102 93-109
Mouse Serum (n=4) 94 91-97

Linearity

Samples containing and/or spiked with high concentrations of mouse TNF-alpha were serially diluted with Sample Diluent to produce samples within the dynamic range of the assay

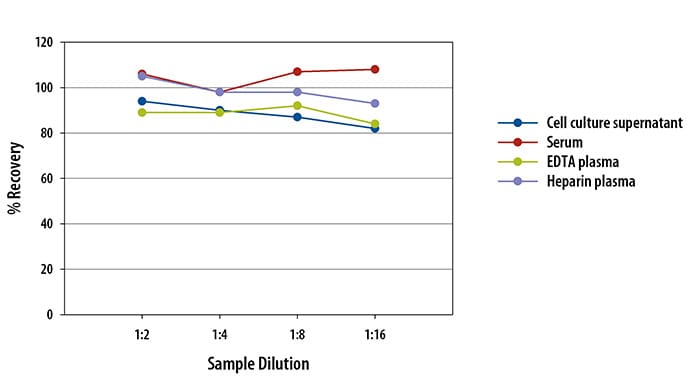

Mouse TNF-alpha Simple Assay Linearity

Scientific Data Images for Simple Plex Mouse TNF-alpha Cartridge

Mouse TNF-alpha Simple Assay Standard Curve

Mouse TNF-alpha Ella Assay Standard Curve

Preparation and Storage

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: TNF-alpha

TNF-alpha (Tumor necrosis factor alpha) plays a central role in inflammation, immune system development, apoptosis, and lipid metabolism. TNF-alpha was first identified as a cytotoxic factor produced by macrophages capable of killing mouse tumor cells. It is the prototypic ligand and along with Lymphotoxin-alpha, were identified as the first members of the TNF superfamily. Active TNF-alpha and other members of the TNF superfamily exist as a homotrimer with high structural homology. Receptor binding occurs at the interface of two TNF-alpha monomers. And receptor activation occurs when all three monomer interfaces are engaged with a receptor. For TNF-alpha, receptor binding and activation occurs through TNF R1 or TNF RII, and subsequently leads to activation of NF-kB or MAPK signaling pathways. Another pathway that TNF-alpha can activate utilizes the death domain of TNF RI to induce apoptosis. TNF-alpha promotes the inflammatory response largely through NF-kB signaling, and inhibition of TNF-alpha has proven successful in treating many autoimmune disorders. TNF-alpha is also present on the cell surface as membrane-bound TNF-alpha can induce the lysis of neighboring tumor cells and virus infected cells. TNF-alpha protein is translated as a type II transmembrane protein containing an N-terminal transmembrane domain. The soluble cytokine is released from its cell-anchoring TM domain by proteolytic processing by metalloproteases.

Long Name

Tumor Necrosis Factor alpha

Alternate Names

Cachetin, DIF, TNF, TNF-A, TNFA, TNFalpha, TNFG1F, TNFSF1A, TNFSF2

Entrez Gene IDs

7124 (Human); 21926 (Mouse); 24835 (Rat); 397086 (Porcine); 280943 (Bovine); 403922 (Canine); 102139631 (Cynomolgus Monkey); 100033834 (Equine); 493755 (Feline); 100009088 (Rabbit)

Gene Symbol

TNF

Additional TNF-alpha Products

Product Documents for Simple Plex Mouse TNF-alpha Cartridge

Loading product document information...

Loading product document information...

Certificate of Analysis

To download a Certificate of Analysis, please enter your Simple Plex catalog number and lot number in the search boxes below.

Product Specific Notices for Simple Plex Mouse TNF-alpha Cartridge

For research use only
