StemXVivo Ectoderm Kit

For ectoderm differentiation of human pluripotent stem cells
Catalog # Availability Size / Price Qty
Differentiation of Pluripotent Stem Cells into Ectoderm.
2 Images
Product Details
Citations (4)

StemXVivo Ectoderm Kit Summary

Kit Summary

For the differentiation of human pluripotent stem cells into ectoderm.

Key Benefits

  • Ectoderm differentiation in 4 days
  • Optimized components to reduce experimental variation
  • Contains differentiation supplements and an antibody to verify ectoderm differentiation
  • Involves validated and straightforward protocols

Why Differentiate Human Pluripotent Stem Cells into Ectoderm In Vitro?

Ectoderm is one of three primary germ layers formed during the process of gastrulation in the vertebrate embryo and gives rise to the nervous system and epidermal tissues.

Ectoderm differentiation is also an essential first step for the formation of downstream derivative cell types for use in regenerative medicine, such as neurons and keratinocytes.

Ectoderm differentiation in vitro:

  • Uses fully defined supplements to drive reproducible differentiation.
  • Produces a healthy ectodermal cell population to increase consistency between studies and reduce unwanted experimental variability.
  • Provides results in 4 days to save time and reagents.

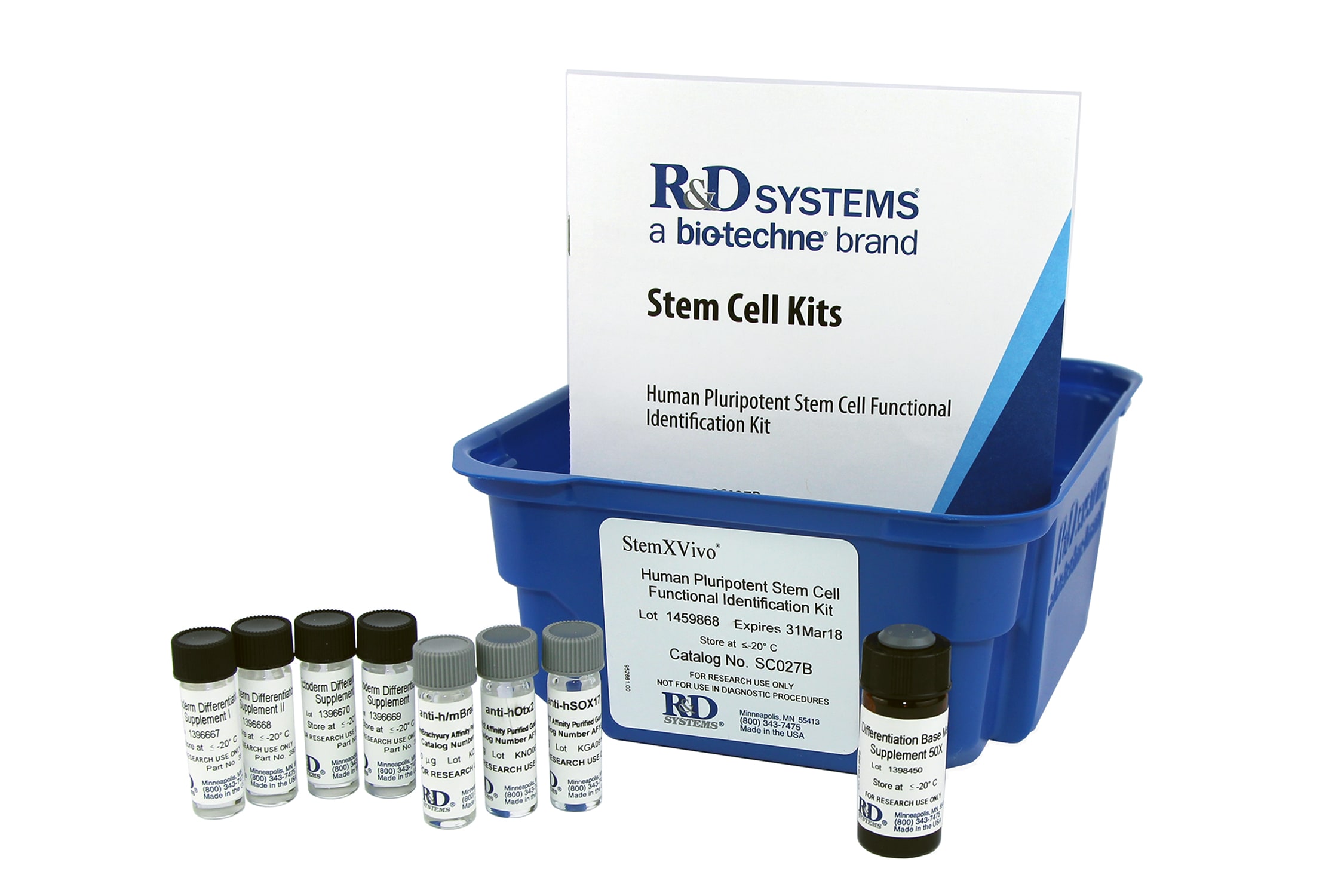

Kit Contents

This kit contains the following reagents to drive pluripotent stem cell differentiation into ectodermal cells and an antibody to verify differentiation status:

  • Ectoderm Base Media Supplement (50X)
  • Ectoderm Differentiation Supplement
  • Ectoderm Marker: Goat Anti-Human Otx2 Antigen Affinity-purified Polyclonal Antibody

The quantity of each component in this kit is sufficient to make 150 mL of media for differentiation. This is enough media for the differentiation of six 60 mm plates or two 24-well plates.



Shipping Conditions
The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.
Store the unopened product at -20 to -70 °C. Use a manual defrost freezer and avoid repeated freeze-thaw cycles. Do not use past expiration date.

Product Datasheets

You must select a language.


Scientific Data

Cell Differentiation/Maturation Differentiation of Pluripotent Stem Cells into Ectoderm. View Larger

Differentiation of Pluripotent Stem Cells into Ectoderm. BG01V human embryonic stem cells were differentiated into ectoderm using the media supplements included in this kit. To evaluate lineage commitment, the cells were stained with the Anti-Human Otx2 antibody included. The cells were stained using NorthernLights(NL)557-conjugated Donkey anti-Goat IgG secondary antibody (R&D Systems, Catalog # NL001; red), and the nuclei were counterstained with DAPI (blue).

Assay Procedure

Refer to the product datasheet for complete product details.

Briefly, human pluripotent stem cells are differentiated into ectoderm cells using the following ectoderm differentiation procedure:

  • Plate cells on coated plates
  • Replace MEF Conditioned Media with Differentiation Media
  • Evaluate differentiation status using the included Otx2 antibody
  • Cells are ready for downstream applications on Day 4


Reagents Provided

Reagents supplied in the StemXVivo® Ectoderm Kit (Catalog # SC031).

  • Ectoderm Base Media Supplement (50X)
  • Ectoderm Differentiation Supplement
  • Ectoderm Marker: Goat Anti-Human Otx2 Antigen Affinity-purified Polyclonal Antibody


Other Supplies Required


  • RPMI Medium 1640
  • BSA, very low endotoxin
  • DMEM/F-12
  • GlutaMAX™ (Invitrogen), or equivalent
  • Penicillin-Streptomycin (optional)
  • Phosphate-Buffered Saline (PBS)
  • Cultrex® PathClear® Basement Membrane Extract Reduced Growth Factor (Catalog # 3433-005-01)
  • MEF Conditioned Media (Catalog # AR005)
  • Trypan Blue solution
  • Accutase® (Innovative Cell Technologies), or equivalent
  • 95% Ethanol
  • 4% Paraformaldehyde in PBS
  • 1% BSA
  • 0.3% Triton™ X-100, 1% BSA, 10% normal donkey serum in PBS
  • Mounting medium (Catalog # CTS011)
  • Secondary developing reagents (Catalog # NL001, NL002, or NL003)
  • Sterile, deionized water


  • Human pluripotent stem cells
  • 24-well culture plates
  • 12 mm cover slips
  • 15 mL centrifuge tubes
  • 50 mL centrifuge tubes
  • 0.2 μm syringe filter
  • 0.2 μm, 500 mL filter units
  • 10 mL syringes
  • Serological pipettes
  • Pipettes and pipette tips
  • Glass slides
  • Fine pointed curved forceps


  • 37 °C and 5% CO2 incubator
  • 37 °C water bath
  • Centrifuge
  • Hemocytometer
  • Inverted microscope
  • Fluorescence microscope

Precaution: The acute and chronic effects of overexposure to reagents of this kit are unknown. Safe laboratory procedures should be followed and protective clothing should be worn when handling kit reagents.

Some components of this kit contain sodium azide, which may react with lead and copper plumbing to form explosive metallic azides. Flush with large volumes of water during disposal.


Procedure Overview

This protocol is designed for BG01V human embryonic stem cells grown in Mouse Embryonic Fibroblast (MEF) Conditioned Media (Catalog #AR005). If using different cell lines or growth media, this protocol may need to be optimized.

Coat wells with Cultrex® Basement Membrane Extract.

Incubate at room temperature for 1-2 hours.

SC031B Step 1&2

Plate human pluripotent stem cells onto the coated plates at 1.1 x 105 cells/cm2 in MEF Media containing FGF basic.

SC031B Step 3

Culture the cells overnight at 37 °C and 5% CO2.The next day each well should be approximately 50% confluent.

SC031B Step 4

Day 1 of Differentiation

Remove the MEF Conditioned Media with Ectoderm Differentiation Media.

Incubate at 37 °C and 5% CO2 for 12-24 hours.

SC031B Step 5&6

Days 2 and 3 of Differentiation

Refresh media

On Day 4, the cells are ready for further differentiation to downstream cell types or analysis by immunocytochemistry and/or flow cytometry.

SC031B Step 6
