CXCR4 Antibody - BSA Free

Novus Biologicals | Catalog # NB100-74396

Novus Biologicals
Loading...

Key Product Details

Validated by

Biological Validation

Species Reactivity

Validated:

Human, Mouse, Rat

Cited:

Human, Mouse, Rat

Applications

Validated:

Immunohistochemistry, Immunohistochemistry-Paraffin, Immunohistochemistry-Frozen, Western Blot, Flow Cytometry, Immunocytochemistry/ Immunofluorescence

Cited:

Immunohistochemistry, Immunohistochemistry-Paraffin, Immunohistochemistry-Frozen, Western Blot, ELISA, Flow Cytometry, Immunocytochemistry/ Immunofluorescence, IF/IHC

Label

Unconjugated

Antibody Source

Polyclonal Rabbit IgG

Format

BSA Free
Loading...

Product Specifications

Immunogen

A synthetic peptide made to a C-terminal region of the human CXCR4 protein (within residues 300-352). [Swiss-Prot P61073]

Reactivity Notes

Rat reactivity reported in scientific literature (PMID:33116799).

Localization

Cell membrane; Multi-pass membrane protein. Note: In unstimulated cells, diffuse pattern on plasma membrane. On agonist stimulation, colocalizes with ITCH at the plasma membrane where it becomes ubiquitinated.

Clonality

Polyclonal

Host

Rabbit

Isotype

IgG

Scientific Data Images for CXCR4 Antibody - BSA Free

Immunocytochemistry/ Immunofluorescence: CXCR4 Antibody [NB100-74396]

Immunocytochemistry/ Immunofluorescence: CXCR4 Antibody [NB100-74396]

Western Blot: CXCR4 Antibody [NB100-74396]

Western Blot: CXCR4 Antibody [NB100-74396]

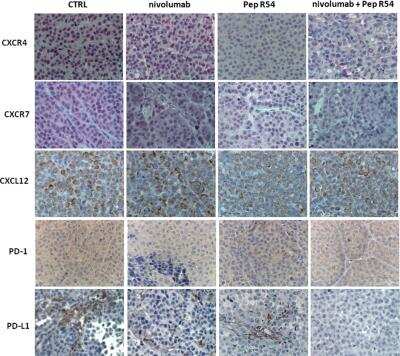

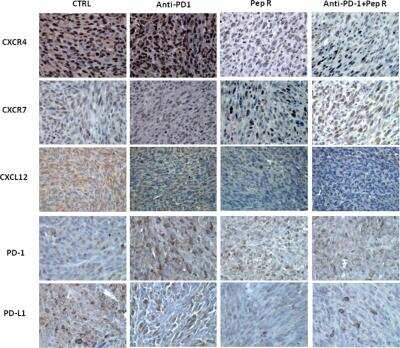

Immunohistochemistry: CXCR4 Antibody [NB100-74396]

Immunohistochemistry: CXCR4 Antibody [NB100-74396]

Immunohistochemistry: CXCR4 Antibody [NB100-74396]

Immunohistochemistry: CXCR4 Antibody [NB100-74396]

Western Blot: CXCR4 Antibody [NB100-74396]

Western Blot: CXCR4 Antibody [NB100-74396]

Western Blot: CXCR4 Antibody [NB100-74396] - Analysis of CXCR4 in HeLa whole cell extract.
Western Blot: CXCR4 Antibody [NB100-74396]

Western Blot: CXCR4 Antibody [NB100-74396]

Western Blot: CXCR4 Antibody [NB100-74396] - Analysis of CXCR4 protein in human small intestine tissue lysate using 1:500 dilution of rabbit polyclonal CXCR4 antibody (Lot A2). The signal was developed using ECL method and the antibody generated a specific band of CXCR4 at ~40 kDa position.
Immunocytochemistry/ Immunofluorescence: CXCR4 Antibody [NB100-74396]

Immunocytochemistry/ Immunofluorescence: CXCR4 Antibody [NB100-74396]

Immunocytochemistry/Immunofluorescence: CXCR4 Antibody [NB100-74396] - CXCR4 antibody was tested in HeLa cells with FITC (green). Nuclei were counterstained with DAPI (blue).
Immunohistochemistry: CXCR4 Antibody [NB100-74396]

Immunohistochemistry: CXCR4 Antibody [NB100-74396]

Immunohistochemistry: CXCR4 Antibody [NB100-74396] - Immunostaining of CXCR4 in human cervical carcinoma tissue sections.
CXCR4 Antibody

Immunocytochemistry/ Immunofluorescence: CXCR4 Antibody [NB100-74396] -

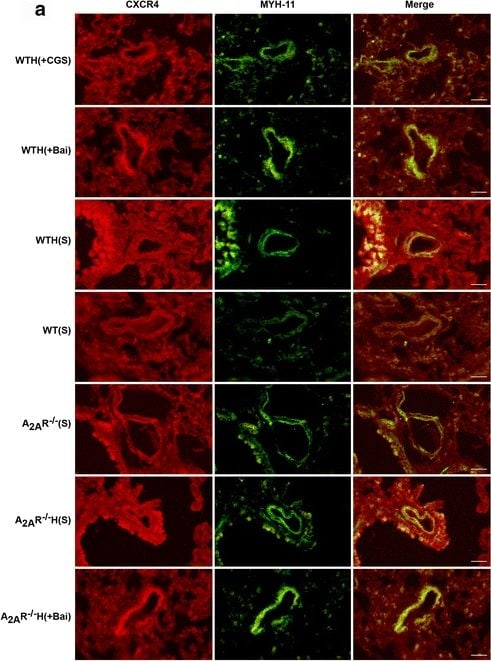

Immunocytochemistry/ Immunofluorescence: CXCR4 Antibody [NB100-74396] - The A2AR & baicalin attenuated CXCR4 expression in the hypoxia-induced PAH mouse model. CXCR4 & MYH11 expression levels in mouse PASMCs were analyzed by immunofluorescence staining (a; n = 3). CXCR4 protein is stained red, & MYH11 is stained green to indicate the PASMCs (×400; scale bars indicate 50 μm). CXCR4 fluorescence intensity was calculated (b; n = 3). CXCR4 protein expression levels in lung tissue were examined by western blot. GAPDH served as an internal control (c, d; n = 3). Data are presented as the mean ± SD. #Value significantly greater than the corresponding value in saline-treated normoxic mice (##P < 0.01). *Value significantly less than the corresponding value in hypoxic mice (*P < 0.05, **P < 0.01). §Value significantly less than the corresponding value in baicalin-treated mice (§P < 0.05, §§P < 0.01). +Value significantly different between WT & A2AR−/− mice (+P < 0.05, ++P < 0.01). WTH, wild-type hypoxic; A2AR−/−H, A2AR−/− hypoxic; s, saline-treated Image collected & cropped by CiteAb from the following publication (https://pubmed.ncbi.nlm.nih.gov/28774332), licensed under a CC-BY license. Not internally tested by Novus Biologicals.
CXCR4 Antibody

Immunocytochemistry/ Immunofluorescence: CXCR4 Antibody [NB100-74396] -

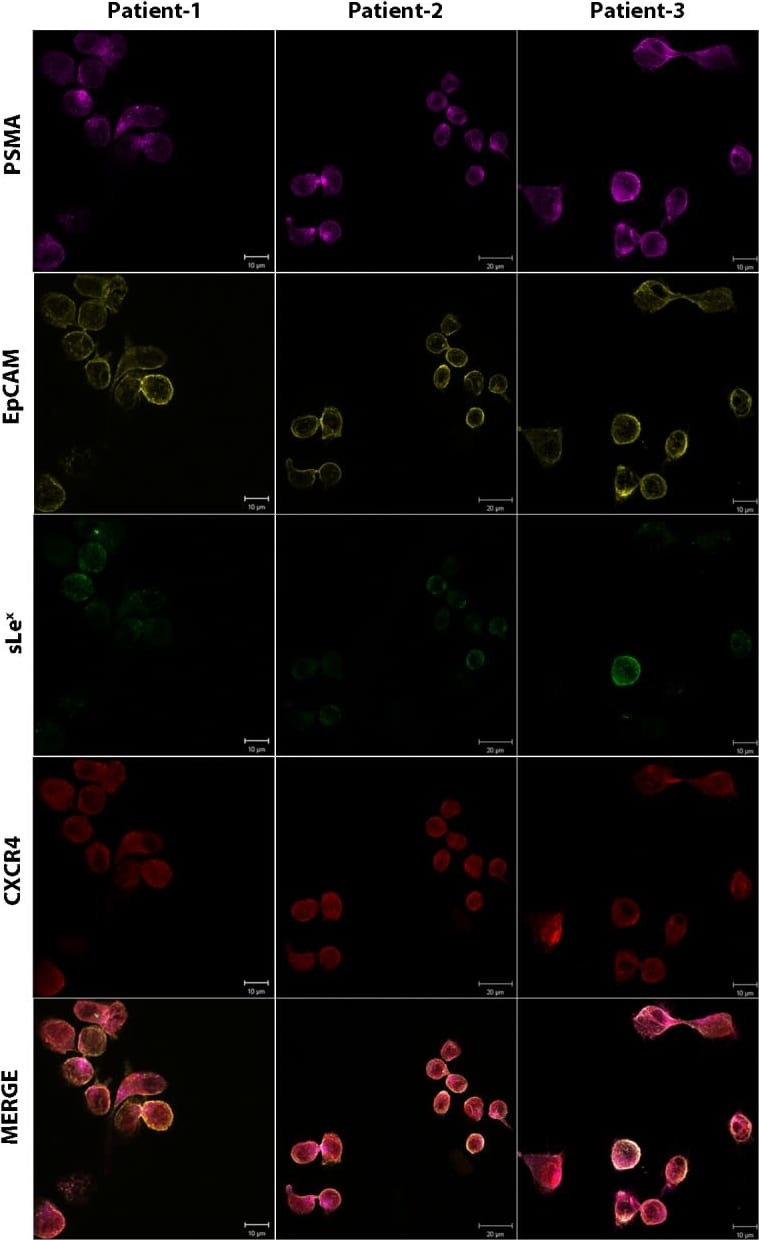

Immunocytochemistry/ Immunofluorescence: CXCR4 Antibody [NB100-74396] - Isolation of prostate CTCs from metastatic PCa patients using anti-CD45 immunomagnetic depletion.2.5 ml blood from three metastatic PCa patients (> 50 CTCs/ 2.5 ml blood) was processed via ficoll density centrifugation & the PBMC fraction was collected. Immunomagnetic anti-CD45 depletion was performed on the obtained PBMCs & the remaining cells were washed, cytospunned onto the slides. Slides were stained for PSMA, EpCAM, sLex, & CXCR4 using the protocol as described in Figure S1. MDA, PC3, & KG1 cells were simultaneously stained as a control for the following markers: PSMA= Magenta, EpCAM= Yellow, HECA-452= Green, CXCR4= Red. All prostate CTCs expressed CXCR4, while, sLex expression was variable. The analysis of sLex intensity is shown in Figure 4. Image collected & cropped by CiteAb from the following publication (https://pubmed.ncbi.nlm.nih.gov/24386459), licensed under a CC-BY license. Not internally tested by Novus Biologicals.

Applications for CXCR4 Antibody - BSA Free

Application
Recommended Usage

Immunocytochemistry/ Immunofluorescence

1:50

Immunohistochemistry

1:200-1:1000

Immunohistochemistry-Paraffin

1:200-1:1000

Western Blot

1:5000

Reviewed Applications

Read 1 review rated 3 using NB100-74396 in the following applications:

Flow Cytometry Panel Builder

Bio-Techne Knows Flow Cytometry

Save time and reduce costly mistakes by quickly finding compatible reagents using the Panel Builder Tool.

Advanced Features

  • Spectra Viewer - Custom analysis of spectra from multiple fluorochromes
  • Spillover Popups - Visualize the spectra of individual fluorochromes
  • Antigen Density Selector - Match fluorochrome brightness with antigen density
Build Your Panel Now

Formulation, Preparation, and Storage

Purification

Unpurified

Formulation

Whole antisera

Format

BSA Free

Preservative

0.05% Sodium Azide

Concentration

This product is unpurified. The exact concentration of antibody is not quantifiable.

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store at 4C short term. Aliquot and store at -20C long term. Avoid freeze-thaw cycles.

Background: CXCR4

CXCR4 (C-X-C chemokine receptor type 4) is a member of GPCR1 family and is expressed as a multipass membrane protein in several tissues wherein it acts as a receptor for the C-X-C chemokine CXCL12/SDF-1 that transduces a signal by increasing intracellular calcium ion levels and enhancing MAPK1/MAPK3 activation. CXCR4 acts as a receptor for extracellular ubiquitin; leading to enhanced intracellular calcium ions and reduced cellular cAMP levels. CXCR4 is involved in hematopoiesis, cardiac ventricular septum formation and plays an essential role in vascularization of the gastrointestinal tract via regulating vascular branching and/or remodeling processes in endothelial cells. CXCR4 is involved in cerebellar development and mediates hippocampal-neuron survival in CNS. It also acts as a coreceptor (CD4 being the primary receptor) for HIV-1 X4 isolates and as a primary receptor for some HIV-2 isolates, and promotes Env-mediated fusion of the virus.

Long Name

C-X-C Motif Chemokine Receptor 4

Alternate Names

CD184, D2S201E, FB22, Fusin, HM89, HSY3RR, LAP-3, LAP3, LCR1, LESTR, NPY3R, NPYRL, NPYY3R, WHIMS

Entrez Gene IDs

7852 (Human); 12767 (Mouse)

Gene Symbol

CXCR4

UniProt

Additional CXCR4 Products

Product Documents for CXCR4 Antibody - BSA Free

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot or batch number in the search box below.

Product Specific Notices for CXCR4 Antibody - BSA Free

This product is for research use only and is not approved for use in humans or in clinical diagnosis. Primary Antibodies are guaranteed for 1 year from date of receipt.

Citations for CXCR4 Antibody - BSA Free

Customer Reviews for CXCR4 Antibody - BSA Free (1)

3 out of 5
1 Customer Rating
5 Stars
0%
4 Stars
0%
3 Stars
100%
2 Stars
0%
1 Stars
0%

Have you used CXCR4 Antibody - BSA Free?

Submit a review and receive an Amazon gift card!

$25/€18/£15/$25CAN/¥2500 Yen for a review with an image

$10/€7/£6/$10CAN/¥1110 Yen for a review without an image

Submit a review
Amazon Gift Card

Customer Images


Showing  1 - 1 of 1 review Showing All
Filter By:
  • Name: Anonymous
    Application: Western Blot
    Sample Tested: 293T lysate
    Species: Human
    Verified Customer | Posted 09/11/2014
    Western blot for CXCR3 in 293T cells
    CXCR4 Antibody - BSA Free NB100-74396

There are no reviews that match your criteria.

Showing  1 - 1 of 1 review Showing All

Protocols

View specific protocols for CXCR4 Antibody - BSA Free (NB100-74396):


Western Blot Protocol

1. Perform SDS-PAGE on samples to be analyzed, loading 40 ug of total protein per lane.
2. Transfer proteins to membrane according to the instructions provided by the manufacturer of the membrane and transfer apparatus.
3. Stain according to standard Ponceau S procedure (or similar product) to assess transfer success, and mark molecular weight standards where appropriate.
4. Rinse the blot.
5. Block the membrane using standard blocking buffer for at least 1 hour.
6. Wash the membrane in wash buffer three times for 10 minutes each.
7. Dilute primary antibody in blocking buffer and incubate 1 hour at room temperature.
8. Wash the membrane in wash buffer three times for 10 minutes each.
9. Apply the diluted HRP conjugated secondary antibody in blocking buffer (as per manufacturers instructions) and incubate 1 hour at room temperature.
10. Wash the blot in wash buffer three times for 10 minutes each (this step can be repeated as required to reduce background).
11. Apply the detection reagent of choice in accordance with the manufacturers instructions.
Note: Tween-20 can be added to the blocking or antibody dilution buffer at a final concentration of 0.05-0.2%.


Immunohistochemistry-Paraffin Embedded Sections

Antigen Unmasking:
Bring slides to a boil in 10 mM sodium citrate buffer (pH 6.0) then maintain at a sub-boiling temperature for 10 minutes. Cool slides on bench-top for 30 minutes.

Staining:
1. Wash sections in deionized water three times for 5 minutes each.
2. Wash sections in wash buffer for 5 minutes.
3. Block each section with 100-400 ul blocking solution for 1 hour at room temperature.
4. Remove blocking solution and add 100-400 ul diluted primary antibody. Incubate overnight at 4 C.
5. Remove antibody solution and wash sections in wash buffer three times for 5 minutes each.
6. Add 100-400 ul biotinylated diluted secondary antibody. Incubate 30 minutes at room temperature.
7. Remove secondary antibody solution and wash sections three times with wash buffer for 5 minutes each.
8. Add 100-400 ul Streptavidin-HRP reagent to each section and incubate for 30 minutes at room temperature.
9. Wash sections three times in wash buffer for 5 minutes each.
10. Add 100-400 ul DAB substrate to each section and monitor staining closely.
11. As soon as the sections develop, immerse slides in deionized water.
12. Counterstain sections in hematoxylin.
13. Wash sections in deionized water two times for 5 minutes each.
14. Dehydrate sections.
15. Mount coverslips.


Immunocytochemistry Protocol

Culture cells to appropriate density in 35 mm culture dishes or 6-well plates.

1. Remove culture medium and add 10% formalin to the dish. Fix at room temperature for 30 minutes.
2. Remove the formalin and add ice cold methanol. Incubate for 5-10 minutes.
3. Remove methanol and add washing solution (i.e. PBS). Be sure to not let the specimen dry out. Wash three times for 10 minutes.
4. To block nonspecific antibody binding incubate in 10% normal goat serum from 1 hour to overnight at room temperature.
5. Add primary antibody at appropriate dilution and incubate at room temperature from 2 hours to overnight at room temperature.
6. Remove primary antibody and replace with washing solution. Wash three times for 10 minutes.
7. Add secondary antibody at appropriate dilution. Incubate for 1 hour at room temperature.
8. Remove antibody and replace with wash solution, then wash for 10 minutes. Add Hoechst 33258 to wash solution at 1:25,0000 and incubate for 10 minutes. Wash a third time for 10 minutes.
9. Cells can be viewed directly after washing. The plates can also be stored in PBS containing Azide covered in Parafilm (TM). Cells can also be cover-slipped using Fluoromount, with appropriate sealing.

*The above information is only intended as a guide. The researcher should determine what protocol best meets their needs. Please follow safe laboratory procedures.

Find general support by application which include: protocols, troubleshooting, illustrated assays, videos and webinars.

FAQs for CXCR4 Antibody - BSA Free

Showing  1 - 1 of 1 FAQ Showing All
  • Q: Which is your best CXCR4 for immunohistochemistry in paraffin tissues? I would like to detect it in paraffin embedded tissues from human breast cancer samples.

    A: CXCR4 antibody (NB100-74396) is our best selling product among all the CXCR4 antibodies and it has been validated for IHC-P in human cervical carcinoma tissue sections. NB100-74396 has been cited in at least 7 research publications. Additionally, here is a list of all of our CXCR4 antibodies that has been verified in IHC-P in human samples.

Showing  1 - 1 of 1 FAQ Showing All
View all FAQs for Antibodies
