Human ALK-1 Antibody

Catalog #: AF370
18 Citations 1 Review Datasheet / COA / SDS
Catalog # Availability Size / Price Qty
AF370
AF370-SP

Save 15% on Select RUO Reagents. See Details.

Detection of Mouse ALK-1 by Western Blot
4 Images
Product Details
Citations (18)
FAQs
Supplemental Products
Reviews (1)
Summary Data Examples Preparation and Storage Reconstitution Calculator Background Product Datasheets Related Research Areas

Human ALK-1 Antibody Summary

Species Reactivity
Human
Specificity
Detects human ALK-1 in direct ELISAs and Western blots. In direct ELISAs and Western blots, approximately 10% cross‑reactivity with recombinant mouse ALK-1 is observed and less than 1% cross-reactivity with recombinant human (rh) Activin RIA and rhActivin RIB is observed.
Source
Polyclonal Goat IgG
Purification
Antigen Affinity-purified
Immunogen
Mouse myeloma cell line NS0-derived recombinant human ALK‑1
Asp22-Gln118
Accession # P37023
Formulation
Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. See Certificate of Analysis for details.
*Small pack size (-SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.
Label
Unconjugated

Applications

Recommended Concentration
Sample
Western Blot
0.1 µg/mL
Recombinant Human ALK‑1 Fc Chimera (Catalog # 370-AL)
Immunoprecipitation
David, L. et al. (2007) Blood. 109:1953.


Please Note: Optimal dilutions should be determined by each laboratory for each application. General Protocols are available in the Technical Information section on our website.

Scientific Data

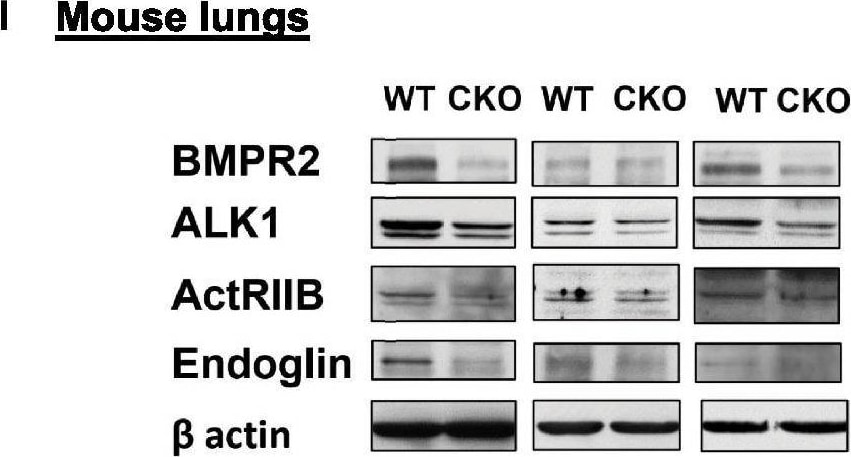

Western Blot Detection of Mouse ALK-1 by Western Blot View Larger

Detection of Mouse ALK-1 by Western Blot GATA6 deficiency in PAEC and PASMC results in loss of BMP receptors. (A) qPCR of HPAECs transfected with GATA6 or control scr siRNA ( − ) to measure indicated mRNA, each experiment was repeated at least three times. Data are means ± SE, n = 4–7. **p < 0.01, ***p < 0.001 by Mann Whitney U test. (B) Chromatin immune precipitation (ChiP) assay in HPAECs, n = 8–10. Representative gel images and data quantification are shown. Data are means ± SE, ***p < 0.001, ****p < 0.0001 by Mann Whitney U test. (C,D) Immunoblot analysis of control human PASMC transfected with siRNA GATA6 or control scr siRNA for 48 h. Data are means ± SE, 3 subjects/group, *p < 0.05 by Mann Whitney U test. Please see Fig. 2F,G for GATA6 immunoblots. (E,F) Expression of BmpR2, Alk1, ActRIIB, and endoglin measured by qPCR in PAEC (F) and whole lungs (G) from WT and Gata6 CKO mice. Data are means ± SE; E: n = 4–5/group; F: n = 6–11 mice/group. Male and female mice responded similarly. *p < 0.05, **p < 0.01 by Mann Whitney U test ((E,F) BmpR2, Alk1, and ActRIIB) and unpaired tau test (F Endoglin). (G,H) Control HPAECs transfected with siGATA6 or control scr siRNA ( − ) were assayed by immunoblot analysis to detect indicated BMP receptors. Values are means ± SE of the relative protein levels by densitometry, n = 4–7.*p < 0.05, ***p < 0.001 by Mann Whitney U test. (I,J) Immunoblot analysis of whole lung tissue from Gata6 CKO and WT mice. Values are means ± SE of the relative protein levels by densitometry, n = 3–5/group. Male and female mice responded similarly. *p < 0.05, **p < 0.01 by Mann Whitney U test. The original blots are presented in Supplementary Fig. S17. Image collected and cropped by CiteAb from the following open publication (https://pubmed.ncbi.nlm.nih.gov/37087509), licensed under a CC-BY license. Not internally tested by R&D Systems.

Western Blot Detection of Mouse ALK-1 by Western Blot View Larger

Detection of Mouse ALK-1 by Western Blot GATA6 deficiency in PAEC and PASMC results in loss of BMP receptors. (A) qPCR of HPAECs transfected with GATA6 or control scr siRNA ( − ) to measure indicated mRNA, each experiment was repeated at least three times. Data are means ± SE, n = 4–7. **p < 0.01, ***p < 0.001 by Mann Whitney U test. (B) Chromatin immune precipitation (ChiP) assay in HPAECs, n = 8–10. Representative gel images and data quantification are shown. Data are means ± SE, ***p < 0.001, ****p < 0.0001 by Mann Whitney U test. (C,D) Immunoblot analysis of control human PASMC transfected with siRNA GATA6 or control scr siRNA for 48 h. Data are means ± SE, 3 subjects/group, *p < 0.05 by Mann Whitney U test. Please see Fig. 2F,G for GATA6 immunoblots. (E,F) Expression of BmpR2, Alk1, ActRIIB, and endoglin measured by qPCR in PAEC (F) and whole lungs (G) from WT and Gata6 CKO mice. Data are means ± SE; E: n = 4–5/group; F: n = 6–11 mice/group. Male and female mice responded similarly. *p < 0.05, **p < 0.01 by Mann Whitney U test ((E,F) BmpR2, Alk1, and ActRIIB) and unpaired tau test (F Endoglin). (G,H) Control HPAECs transfected with siGATA6 or control scr siRNA ( − ) were assayed by immunoblot analysis to detect indicated BMP receptors. Values are means ± SE of the relative protein levels by densitometry, n = 4–7.*p < 0.05, ***p < 0.001 by Mann Whitney U test. (I,J) Immunoblot analysis of whole lung tissue from Gata6 CKO and WT mice. Values are means ± SE of the relative protein levels by densitometry, n = 3–5/group. Male and female mice responded similarly. *p < 0.05, **p < 0.01 by Mann Whitney U test. The original blots are presented in Supplementary Fig. S17. Image collected and cropped by CiteAb from the following open publication (https://pubmed.ncbi.nlm.nih.gov/37087509), licensed under a CC-BY license. Not internally tested by R&D Systems.

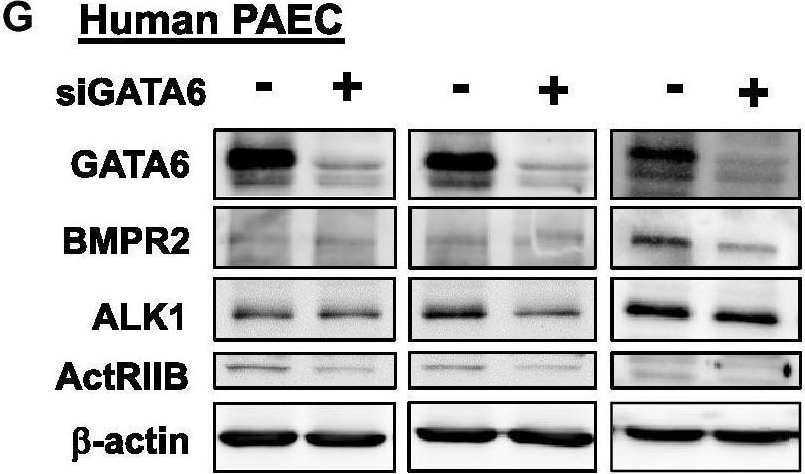

Western Blot Detection of Human ALK-1 by Western Blot View Larger

Detection of Human ALK-1 by Western Blot GATA6 deficiency in PAEC and PASMC results in loss of BMP receptors. (A) qPCR of HPAECs transfected with GATA6 or control scr siRNA ( − ) to measure indicated mRNA, each experiment was repeated at least three times. Data are means ± SE, n = 4–7. **p < 0.01, ***p < 0.001 by Mann Whitney U test. (B) Chromatin immune precipitation (ChiP) assay in HPAECs, n = 8–10. Representative gel images and data quantification are shown. Data are means ± SE, ***p < 0.001, ****p < 0.0001 by Mann Whitney U test. (C,D) Immunoblot analysis of control human PASMC transfected with siRNA GATA6 or control scr siRNA for 48 h. Data are means ± SE, 3 subjects/group, *p < 0.05 by Mann Whitney U test. Please see Fig. 2F,G for GATA6 immunoblots. (E,F) Expression of BmpR2, Alk1, ActRIIB, and endoglin measured by qPCR in PAEC (F) and whole lungs (G) from WT and Gata6 CKO mice. Data are means ± SE; E: n = 4–5/group; F: n = 6–11 mice/group. Male and female mice responded similarly. *p < 0.05, **p < 0.01 by Mann Whitney U test ((E,F) BmpR2, Alk1, and ActRIIB) and unpaired tau test (F Endoglin). (G,H) Control HPAECs transfected with siGATA6 or control scr siRNA ( − ) were assayed by immunoblot analysis to detect indicated BMP receptors. Values are means ± SE of the relative protein levels by densitometry, n = 4–7.*p < 0.05, ***p < 0.001 by Mann Whitney U test. (I,J) Immunoblot analysis of whole lung tissue from Gata6 CKO and WT mice. Values are means ± SE of the relative protein levels by densitometry, n = 3–5/group. Male and female mice responded similarly. *p < 0.05, **p < 0.01 by Mann Whitney U test. The original blots are presented in Supplementary Fig. S17. Image collected and cropped by CiteAb from the following open publication (https://pubmed.ncbi.nlm.nih.gov/37087509), licensed under a CC-BY license. Not internally tested by R&D Systems.

Western Blot Detection of Human ALK-1 by Western Blot View Larger

Detection of Human ALK-1 by Western Blot GATA6 deficiency in PAEC and PASMC results in loss of BMP receptors. (A) qPCR of HPAECs transfected with GATA6 or control scr siRNA ( − ) to measure indicated mRNA, each experiment was repeated at least three times. Data are means ± SE, n = 4–7. **p < 0.01, ***p < 0.001 by Mann Whitney U test. (B) Chromatin immune precipitation (ChiP) assay in HPAECs, n = 8–10. Representative gel images and data quantification are shown. Data are means ± SE, ***p < 0.001, ****p < 0.0001 by Mann Whitney U test. (C,D) Immunoblot analysis of control human PASMC transfected with siRNA GATA6 or control scr siRNA for 48 h. Data are means ± SE, 3 subjects/group, *p < 0.05 by Mann Whitney U test. Please see Fig. 2F,G for GATA6 immunoblots. (E,F) Expression of BmpR2, Alk1, ActRIIB, and endoglin measured by qPCR in PAEC (F) and whole lungs (G) from WT and Gata6 CKO mice. Data are means ± SE; E: n = 4–5/group; F: n = 6–11 mice/group. Male and female mice responded similarly. *p < 0.05, **p < 0.01 by Mann Whitney U test ((E,F) BmpR2, Alk1, and ActRIIB) and unpaired tau test (F Endoglin). (G,H) Control HPAECs transfected with siGATA6 or control scr siRNA ( − ) were assayed by immunoblot analysis to detect indicated BMP receptors. Values are means ± SE of the relative protein levels by densitometry, n = 4–7.*p < 0.05, ***p < 0.001 by Mann Whitney U test. (I,J) Immunoblot analysis of whole lung tissue from Gata6 CKO and WT mice. Values are means ± SE of the relative protein levels by densitometry, n = 3–5/group. Male and female mice responded similarly. *p < 0.05, **p < 0.01 by Mann Whitney U test. The original blots are presented in Supplementary Fig. S17. Image collected and cropped by CiteAb from the following open publication (https://pubmed.ncbi.nlm.nih.gov/37087509), licensed under a CC-BY license. Not internally tested by R&D Systems.

Reconstitution Calculator

Reconstitution Calculator

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Preparation and Storage

Reconstitution
Reconstitute at 0.2 mg/mL in sterile PBS. For liquid material, refer to CoA for concentration.
Loading...
Shipping
Lyophilized product is shipped at ambient temperature. Liquid small pack size (-SP) is shipped with polar packs. Upon receipt, store immediately at the temperature recommended below.
Stability & Storage
Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 6 months, -20 to -70 °C under sterile conditions after reconstitution.

Background: ALK-1

Transforming Growth Factor beta (TGF-beta ) superfamily ligands exert their biological activities via binding to heteromeric receptor complexes of two types (I and II) of serine/threonine kinases. Type II receptors are constitutively active kinases that phosphorylate type I receptors upon ligand binding. In turn, activated type I kinases phosphorylate downstream signaling molecules including the various smads. Transmembrane proteoglycans, including the type III receptor (betaglycan) and endoglin, can bind and present some of the TGF-beta superfamily ligands to type I and II receptor complexes and enhance their cellular responses. Seven type I receptors (also termed activin receptor-like kinase (ALK)) and five type II receptors have been isolated from mammals. ALK-2, -3, -4, -5, and -6 are also known as Activin R1A, BMPR-1A, Activin R1B, TGF-beta R1, and BMPR-1B, respectively, reflecting their ligand preferences. Evidence suggests that TGF-beta 1, TGF-beta 3 and an unknown ligand present in serum can activate chimeric ALK-1. ALK-1 shares with other type I receptors a cysteine-rich domain with conserved cysteine spacing in the extracellular region, and a glycine- and serine-rich domain (the GS domain) preceding the kinase domain. ALK-1 is expressed highly in endothelial cells and other highly vascularized tissues. The expression patterns of ALK-1 parallels that of endoglin. Mutations in ALK-1 as well as in endoglin are associated with hereditary hemorrhagic telangiectasia (HHT), suggesting a critical role for ALK-1 in the control of blood vessel development or repair. Human and mouse ALK-1 share approximately 71% amino acid sequence identity in their extracellular regions.

References
  1. ten Dijke, P. et al. (1993) Oncogene 8:2879.
  2. ten Dijke, P. et al. (1994) Science 264:101.
  3. Lux, A. et al. (1999) J. Biol. Chem. 274:9984.
Long Name
Activin Receptor-like Kinase 1
Entrez Gene IDs
94 (Human); 11482 (Mouse)
Alternate Names
activin A receptor type II-like 1; activin A receptor, type II-like kinase 1; Activin receptor-like kinase 1; ACVRL1; ACVRLK1ORW2; ALK1; ALK-1; ALK1TGF-B superfamily receptor type I; EC 2.7.11; HHT; HHT2EC 2.7.11.30; serine/threonine-protein kinase receptor R3; SKR3; TSR-I

Product Datasheets

You must select a language.

x
Product Datasheet
COA
SDS

Citations for Human ALK-1 Antibody

R&D Systems personnel manually curate a database that contains references using R&D Systems products. The data collected includes not only links to publications in PubMed, but also provides information about sample types, species, and experimental conditions.

18 Citations: Showing 1 - 10
Filter your results:

Filter by:

  1. High concentrations of soluble endoglin can inhibit BMP9 signaling in non-endothelial cells
    Authors: C Andersson-, B Liu, I Quist-Løkk, PD Upton, OE Olsen, H Hella, X Yang, Z Tong, NW Morrell, T Holien, W Li
    Scientific Reports, 2023-04-24;13(1):6639.
  2. Elevated BMPR2 expression amplifies osteoblast differentiation in ankylosing spondylitis
    Authors: Sungsin Jo, Seung Hoon Lee, Chanhyeok Jeon, Hye-Ryeong Jo, Eunae Ko, Min Whangbo et al.
    Journal of Rheumatic Diseases
  3. Computational and Experimental Analyses for Pathogenicity Prediction of ACVRL1 Missense Variants in Hereditary Hemorrhagic Telangiectasia
    Authors: Iwasa, T;Urasaki, A;Kakihana, Y;Nagata-Akaho, N;Harada, Y;Takeda, S;Kawamura, T;Shiraishi, I;Kurosaki, K;Morisaki, H;Yamada, O;Nakagawa, O;
    Journal of clinical medicine
    Species: Mouse
    Sample Types: Transfected Whole Cells
    Applications: Immunocytochemistry
  4. WNK1 collaborates with TGF-beta in endothelial cell junction turnover and angiogenesis
    Authors: AB Jaykumar, S Plumber, DM Barry, D Binns, C Wichaidit, M Grzemska, S Earnest, EJ Goldsmith, O Cleaver, MH Cobb
    Proceedings of the National Academy of Sciences of the United States of America, 2022-07-22;119(30):e2203743119.
    Species: Human
    Sample Types: Cell Lysates
    Applications: Western Blot
  5. BMP-9 and LDL crosstalk regulates ALK-1 endocytosis and LDL transcytosis in endothelial cells
    Authors: B Tao, JR Kraehling, S Ghaffari, CM Ramirez, S Lee, JW Fowler, WL Lee, C Fernandez-, A Eichmann, WC Sessa
    J Biol Chem, 2020-10-23;0(0):.
    Species: Human
    Sample Types: Whole Cells
    Applications: ICC
  6. Decreased Colonic Activin Receptor-Like Kinase 1 Disrupts Epithelial Barrier Integrity in Patients with Crohn's disease
    Authors: T Toyonaga, EC Steinbach, BP Keith, JB Barrow, MR Schaner, EA Wolber, C Beasley, J Huling, Y Wang, NL Allbritton, N Chaumont, TS Sadiq, MJ Koruda, A Jain, MD Long, EL Barnes, HH Herfarth, KL Isaacs, JJ Hansen, MT Shanahan, R Rahbar, TS Furey, P Sethupathy, SZ Sheikh
    Cell Mol Gastroenterol Hepatol, 2020-06-16;0(0):.
    Species: Human
    Sample Types: Cell Lysates
    Applications: Western Blot
  7. BMP9 signaling promotes the normalization of tumor blood vessels
    Authors: C Viallard, C Audiger, N Popovic, N Akla, K Lanthier, I Legault-Na, H Melichar, S Costantino, S Lesage, B Larrivée
    Oncogene, 2020-02-10;0(0):.
    Species: Transgenic Mouse
    Sample Types: Cell Culture Supernates
    Applications: Western Blot
  8. BMP9 (Bone Morphogenetic Protein-9)/Alk1 (Activin-Like Kinase Receptor Type I) Signaling Prevents Hyperglycemia-Induced Vascular Permeability
    Authors: Naoufal Akla, Claire Viallard, Natalija Popovic, Cindy Lora Gil, Przemyslaw Sapieha, Bruno Larrivée
    Arteriosclerosis, Thrombosis, and Vascular Biology
  9. Defective fluid shear stress mechanotransduction mediates hereditary hemorrhagic telangiectasia
    Authors: Nicolas Baeyens, Bruno Larrivée, Roxana Ola, Brielle Hayward-Piatkowskyi, Alexandre Dubrac, Billy Huang et al.
    Journal of Cell Biology
  10. Key role of the endothelial TGF-beta/ALK1/endoglin signaling pathway in humans and rodents pulmonary hypertension.
    Authors: Gore B, Izikki M, Mercier O, Dewachter L, Fadel E, Humbert M, Dartevelle P, Simonneau G, Naeije R, Lebrin F, Eddahibi S
    PLoS ONE, 2014-06-23;9(6):e100310.
    Species: Human
    Sample Types: Tissue Homogenates
    Applications: Western Blot
  11. Anti-human activin receptor-like kinase 1 (ALK1) antibody attenuates bone morphogenetic protein 9 (BMP9)-induced ALK1 signaling and interferes with endothelial cell sprouting.
    Authors: van Meeteren LA, Thorikay M, Bergqvist S, Pardali E, Stampino CG, Hu-Lowe D, Goumans MJ, ten Dijke P
    J. Biol. Chem., 2012-04-05;287(22):18551-61.
    Species: Human
    Sample Types: Recombinant Protein
    Applications: Surface Plasmon Resonance
  12. Functional analysis of the BMP9 response of ALK1 mutants from HHT2 patients: a diagnostic tool for novel ACVRL1 mutations.
    Authors: Ricard N, Bidart M, Mallet C
    Blood, 2010-05-25;116(9):1604-12.
    Species: Human
    Sample Types: Whole Cells
    Applications: Flow Cytometry
  13. Endoglin and activin receptor-like-kinase 1 are co-expressed in the distal vessels of the lung: implications for two familial vascular dysplasias, HHT and PAH.
    Authors: Mahmoud M, Borthwick GM, Hislop AA, Arthur HM
    Lab. Invest., 2008-11-17;89(1):15-25.
    Species: Mouse
    Sample Types: Whole Tissue
    Applications: IHC-Fr
  14. Induction of an epithelial integrin alphavbeta6 in human cytomegalovirus-infected endothelial cells leads to activation of transforming growth factor-beta1 and increased collagen production.
    Authors: Tabata T, Kawakatsu H, Maidji E, Sakai T, Sakai K, Fang-Hoover J, Aiba M, Sheppard D, Pereira L
    Am. J. Pathol., 2008-03-18;172(4):1127-40.
    Species: Human
    Sample Types: Cell Lysates, Whole Cells
    Applications: Flow Cytometry, Western Blot
  15. Activin receptor-like kinase 1 inhibits human microvascular endothelial cell migration: potential roles for JNK and ERK.
    Authors: David L, Mallet C, Vailhe B, Lamouille S, Feige JJ, Bailly S
    J. Cell. Physiol., 2007-11-01;213(2):484-9.
    Species: Human
    Sample Types: Cell Lysates
    Applications: Western Blot
  16. Cyclic stretch controls the expression of CD40 in endothelial cells by changing their transforming growth factor-beta1 response.
    Authors: Korff T, Aufgebauer K, Hecker M
    Circulation, 2007-10-29;116(20):2288-97.
    Species: Human
    Sample Types: Whole Cells
    Applications: Neutralization
  17. The transforming growth factor-beta/Smad2,3 signalling axis is impaired in experimental pulmonary hypertension.
    Authors: Zakrzewicz A, Kouri FM, Nejman B, Kwapiszewska G, Hecker M, Sandu R, Dony E, Seeger W, Schermuly RT, Eickelberg O, Morty RE
    Eur. Respir. J., 2007-03-28;29(6):1094-104.
    Species: Rat
    Sample Types: Cell Lysates
    Applications: Western Blot
  18. Identification of BMP9 and BMP10 as functional activators of the orphan activin receptor-like kinase 1 (ALK1) in endothelial cells.
    Authors: David L, Mallet C, Mazerbourg S, Feige JJ, Bailly S
    Blood, 2006-10-26;109(5):1953-61.
    Species: Human
    Sample Types: Cell Lysates
    Applications: Immunoprecipitation

FAQs

No product specific FAQs exist for this product, however you may

View all Antibody FAQs
Loading...

Reviews for Human ALK-1 Antibody

Average Rating: 5 (Based on 1 Review)

5 Star
100%
4 Star
0%
3 Star
0%
2 Star
0%
1 Star
0%

Have you used Human ALK-1 Antibody?

Submit a review and receive an Amazon gift card.

$25/€18/£15/$25CAN/¥75 Yuan/¥2500 Yen for a review with an image

$10/€7/£6/$10 CAD/¥70 Yuan/¥1110 Yen for a review without an image

Submit a Review

Filter by:


Human ALK-1 Antibody
By Anonymous on 10/17/2018
Application: WB Sample Tested: Calu-6 human lung carcinoma cell line,HCC827 human non-small cell lung cancer cell line Species: Human
Western Blot Human ALK-1 Antibody AF370
