Human B7-H7/HHLA2 Antibody (907812R)
R&D Systems | Catalog # MAB80841R
Recombinant Monoclonal Antibody.
Scientific images may be resized, cropped, or adjusted for brightness or contrast for presentation purposes. These updates are limited to presentation and do not affect the underlying scientific interpretation of the data. Where available, additional source data may be provided upon request.
Key Product Details
Species Reactivity
Human
Applications
Blockade of Receptor-ligand Interaction, Flow Cytometry, CyTOF-ready
Label
Unconjugated
Antibody Source
Recombinant Monoclonal Mouse IgG1 Clone # 907812R
Loading...
Product Specifications
Immunogen
Human embryonic kidney cell line HEK293-derived human B7-H7/HHLA2
Met1-Asn344
Accession # Q9UM44
Met1-Asn344
Accession # Q9UM44
Specificity
Detects human B7-H7/HHLA2 in direct ELISAs.
Clonality
Monoclonal
Host
Mouse
Isotype
IgG1
Endotoxin Level
<0.10 EU per 1 μg of the antibody by the LAL method.
Scientific Data Images for Human B7-H7/HHLA2 Antibody (907812R)

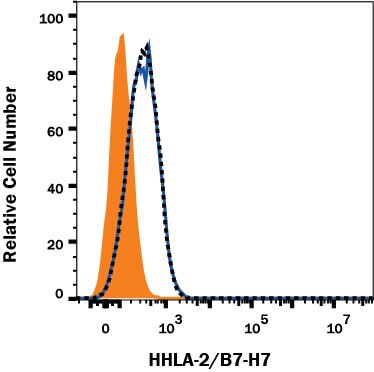

TMIGD2/CD28H Binding to B7-H7/HHLA2-transfected HEK293 Human Cell Line is Blocked by Human B7-H7/HHLA2 Antibody.
In a functional flow cytometry test, biotinylated recombinant human TMIGD2/CD28H (10 ng/mL, Catalog # 8316-TR) binds to HEK293 human embryonic kidney cell line transfected with human B7-H7/HHLA2 (black dotted line). Binding is completely blocked (orange histogram) by 2.5 µg/mL of Mouse Anti-Human B7-H7/HHLA2 Monoclonal Antibody (Catalog # MAB80841R). Mouse IgG1 Isotype Control (Catalog # MAB002) at 2.5 µg/mL was used as a control (blue line). Cells were stained with Streptavidin-APC (Catalog # F0050).

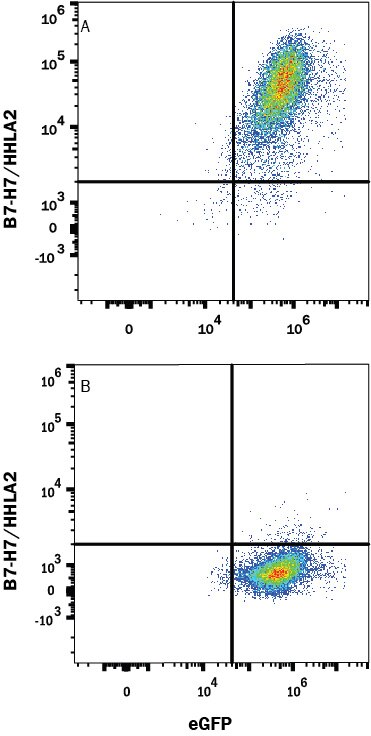

Detection of B7-H7/HHLA2 in HEK Human Cell Line Transfected with Human B7-H7/HHLA2 and eGFP by Flow Cytometry.
HEK293 human embryonic kidney cell line transfected with either (A) human B7-H7/HHLA2 or (B) irrelevant protein, and eGFP was stained with Mouse Anti-Human B7-H7/HHLA2 Monoclonal Antibody (Catalog # MAB80841R) followed by anti-Mouse IgG APC-conjugated secondary antibody (Catalog # F0101B). Quadrant markers were set based on control antibody staining (Catalog # MAB002). View our protocol for Staining Membrane-associated Proteins.Applications for Human B7-H7/HHLA2 Antibody (907812R)
Application
Recommended Usage
Blockade of Receptor-ligand Interaction
In a functional flow cytometry test, biotinylated recombinant human TMIGD2/CD28H binds to HEK293 human embryonic kidney cell line transfected with human B7-H7/HHLA2. Binding is completely blocked by Mouse Anti-Human B7-H7/HHLA2 Monoclonal Antibody.
CyTOF-ready
Ready to be labeled using established conjugation methods. No BSA or other carrier proteins that could interfere with conjugation.
Flow Cytometry
0.25 µg/106 cells
Sample: HEK Human Cell Line Transfected with Human B7-H7/HHLA2 and eGFP
Sample: HEK Human Cell Line Transfected with Human B7-H7/HHLA2 and eGFP
Flow Cytometry Panel Builder
Bio-Techne Knows Flow Cytometry
Save time and reduce costly mistakes by quickly finding compatible reagents using the Panel Builder Tool.
Advanced Features
- Spectra Viewer - Custom analysis of spectra from multiple fluorochromes
- Spillover Popups - Visualize the spectra of individual fluorochromes
- Antigen Density Selector - Match fluorochrome brightness with antigen density
Formulation, Preparation, and Storage
Purification
Protein A or G purified from cell culture supernatant
Reconstitution
Reconstitute at 0.2 mg/mL in sterile PBS. For liquid material, refer to CoA for concentration.
Loading...
Formulation
Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.
Shipping
Lyophilized product is shipped at ambient temperature. Liquid small pack size (-SP) is shipped with polar packs. Upon receipt, store immediately at the temperature recommended below.
Stability & Storage
Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
- 12 months from date of receipt, -20 to -70 °C as supplied.
- 1 month, 2 to 8 °C under sterile conditions after reconstitution.
- 6 months, -20 to -70 °C under sterile conditions after reconstitution.
Calculators
Background: B7-H7/HHLA2
B7‑H7 is constitutively expressed on monocytes and is up-regulated by LPS and IFN-gamma stimulation. It is expressed on LPS/IFN-gamma treated B cells but not on resting B cells (5). B7-H7 binds to cell surface determinants on resting and mature T cells, B cells, and monocytes as well as on immature and mature dendritic cells (5). Soluble B7-H7 inhibits the proliferation of activated CD4+ and CD8+ T cells and their production of IFN-gamma, TNF-alpha, IL-5, IL-10, IL-13, IL-17A, and IL-22 (5).
References
- Zou, W. and L. Chen (2008) Nat. Rev. Immunol. 8:467.
- Bour-Jordan, H. et al. (2011) Immunol. Rev. 241:180.
- Mager, D.L. et al. (1999) Genomics 59:255.
- Flajnik, M.M. et al. (2012) Immunogenetics 64:571.
- Zhao, R. et al. (2013) Proc. Natl. Acad. Sci. USA 110:9879.
Long Name
B7 Homolog 7
Alternate Names
B7H7, HHLA2
Gene Symbol
HHLA2
UniProt
Additional B7-H7/HHLA2 Products
Product Documents for Human B7-H7/HHLA2 Antibody (907812R)
Certificate of Analysis
To download a Certificate of Analysis, please enter a lot or batch number in the search box below.
Note: Certificate of Analysis not available for kit components.
Product Specific Notices for Human B7-H7/HHLA2 Antibody (907812R)
For research use only
