Human CCL16/HCC-4 Antibody

(1 citations)
  • Species Reactivity
    Human
  • Specificity
    Detects human CCL16/HCC‑4 in direct ELISAs and Western blots.
  • Source
    Monoclonal Mouse IgG1 Clone # 70218
  • Purification
    Protein A or G purified from ascites
  • Immunogen
    E. coli-derived recombinant human CCL16/HCC-4
    Gln24-Gln120
    Accession # O15467
  • Formulation
    Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied as a 0.2 µm filtered solution in PBS.
  • Endotoxin Level
    <0.10 EU per 1 μg of the antibody by the LAL method.
  • Label
    Unconjugated
Applications
  •
    Recommended
    Concentration
    Sample
  • Western Blot
    1 µg/mL
    Recombinant Human CCL16/HCC‑4 (Catalog # 802-HC)
  • Immunohistochemistry
    8-25 µg/mL
    Immersion fixed paraffin-embedded sections of human tonsil
  • CyTOF-ready
    Ready to be labeled using established conjugation methods. No BSA or other carrier proteins that could interfere with conjugation.
  • Intracellular Staining by Flow Cytometry
    0.25 µg/106 cells
    THP‑1 human acute monocytic leukemia cell line fixed with paraformaldehyde and permeabilized with saponin
    • Human CCL16/HCC-4 Sandwich Immunoassay
      Reagent
  • ELISA Capture (Matched Antibody Pair)
    2-8 µg/mL
    Human CCL16/HCC‑4 Antibody (Catalog # MAB328)
  • ELISA Detection (Matched Antibody Pair)
    0.1-0.4 µg/mL
    Human CCL16/HCC‑4 Biotinylated Antibody (Catalog # BAF802)

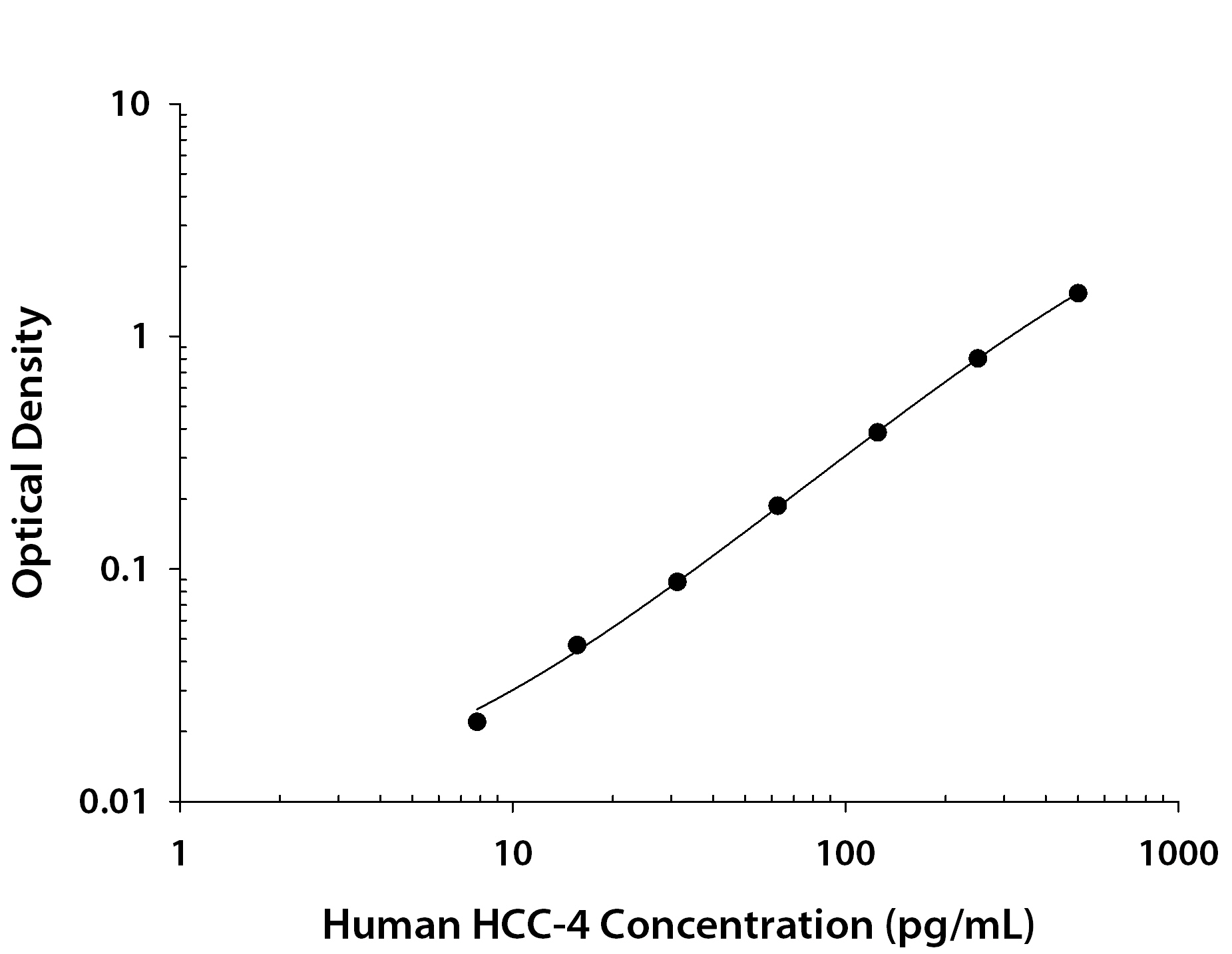

  • ELISA Standard

    Recombinant Human CCL16/HCC-4 Protein (Catalog # 802-HC)
  • Neutralization
    Measured by its ability to neutralize CCL16/HCC‑4-induced chemotaxis in the BaF3 mouse pro‑B cell line transfected with human CCR1. The Neutralization Dose (ND50) is typically 5-20 µg/mL in the presence of 0.75 µg/mL Recombinant Human CCL16/HCC‑4.
Please Note: Optimal dilutions should be determined by each laboratory for each application. General Protocols are available in the Technical Information section on our website.
Data Examples
Chemotaxis Induced by CCL16/HCC‑4 and Neutral­ization by Human CCL16/
HCC‑4 Antibody.
Recombinant Human CCL16/
HCC‑4 (Catalog # 802‑HC) chemoattracts the BaF3 mouse pro‑B cell line transfected with human CCR1 in a dose-dependent manner (orange line). The amount of cells that migrated through to the lower chemotaxis chamber was measured by Resazurin (Catalog # AR002). Chemotaxis elicited by Recombinant Human CCL16/
HCC‑4 (0.75 µg/mL) is neutralized (green line) by increasing concentrations of Mouse Anti-Human CCL16/
HCC‑4 Monoclonal Antibody (Catalog # MAB328). The ND50 is typically 5‑20 µg/mL.
Preparation and Storage
  • Reconstitution
    Reconstitute at 0.5 mg/mL in sterile PBS.
  • Shipping
    The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below. *Small pack size (SP) is shipped with polar packs. Upon receipt, store it immediately at -20 to -70 °C
  • Stability & Storage
    Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
    • 12 months from date of receipt, -20 to -70 °C as supplied.
    • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
    • 6 months, -20 to -70 °C under sterile conditions after reconstitution.
Background: CCL16/HCC-4

Human HCC-4, also named NCC-4, liver-expressed chemokine (LEC), and lymphocyte and monocyte chemoattractant (LMC), is a novel CC chemokine identified through bioinformatics. HCC-4 cDNA encodes a 120 amino acid (aa) residue precursor protein with a 23 aa residue predicted signal peptide that is cleaved to generate a 97 aa residue mature protein. HCC-4 is distantly related to other CC chemokines, exhibiting less than 30% aa sequence identity. Among these CC chemokines, HCC-4 has the most similarity to HCC-1. Two potential polyadenylation signals are present on the human HCC-4 gene, and as a result, two transcripts containing approximately 1,500 base pairs and 500 base pairs have been detected. HCC-4 is expressed weakly by some lymphocytes, including NK cells, gamma δ T cells, and some T cell clones. The expression of HCC-4 in monocytes is highly upregulated in the presence of IL-10. The HCC-4 gene has been mapped to chromosome 17q where multiple CC chemokines are clustered.

Recombinant HCC-4 has been shown to chemoattract human monocytes and THP-1 cells but not resting lymphocytes or neutrophils. HCC-4 has also been found to suppress proliferation of myeloid progenitor cells. The HCC-4 induced calcium flux in THP-1 cells can be desensitized by prior exposure to RANTES, suggesting that HCC-4 and RANTES share the same receptor in THP-1 cells.

  • References:
    1. Shoudai, K. et al. (1998) Biochim. Biophys. Acta 1396:273.
    2. Hedrick, J. et al. (1998) Blood 91:4242.
    3. Youn, B-S. et al. (1998) BBRC 247:217.
  • Entrez Gene IDs:
    6360 (Human)
  • Alternate Names:
    C-C motif chemokine 16; CCL16; chemokine (C-C motif) ligand 16; Chemokine CC-4; Chemokine LEC; CKb12; HCC4; HCC-4; HCC-4Liver-expressed chemokine; LCC-1Lymphocyte and monocyte chemoattractant; LEC; liver CC chemokine-1; LMC; LMCSmall-inducible cytokine A16; monotactin-1; Mtn-1; NCC-4; NCC4IL-10-inducible chemokine; NCC-4ILINCK; new CC chemokine 4; SCYA16MGC117051; SCYL4; small inducible cytokine subfamily A (Cys-Cys), member 16
Related Research Areas
Citations:

R&D Systems personnel manually curate a database that contains references using R&D Systems products. The data collected includes not only links to publications in PubMed, but also provides information about sample types, species, and experimental conditions.

1 Citations: Showing 1 - 1

  1. CCL16/LEC powerfully triggers effector and antigen-presenting functions of macrophages and enhances T cell cytotoxicity.
    Authors: Cappello P, Caorsi C, Bosticardo M
    J. Leukoc. Biol., 2004;75(1):135-42.
    Species: Mouse
    Sample Type: Whole Cells
    Application: Neut
