CKAP4 (Cytoskeleton-associated protein 4; also CLIMP63 and p63) is a 63-64 kDa molecule that belongs to no known protein family. It is found intracellularly, and on the plasma membrane of select cells such as vascular smooth muscle and Type II Greater alveolar lung cells. CKAP4 has a bimodal distribution. First, it is embedded in the membrane of a compartment that links the ER with the Golgi apparatus. This localization is dependent upon its ability to form homooligomers, and its presence serves to anchor microtubules and direct the formation of tubular ER. Second, it is embedded in the plasma membrane and serves as a receptor for SP-A/surfactant protein-A (in lung) and tPA (in vessels). Human CKAP4 is a 602 amino acid (aa) type II transmembrane nonglycosylated protein. It contains a 106 aa N-terminal cytoplasmic region plus a 475 aa C-terminal luminal domain (aa 128-602). The luminal domain contains three coiled-coil regions (aa 130-214; 256-460; 533-602) plus three utilized phosphorylation sites. CKAP4 undergoes reversible palmitoylation. There are two potential isoform variants. One contains an alternative start at Met269, while another shows a deletion of aa 258-435. Over aa 128-602, human CKAP4 shares 82% aa sequence identity with mouse CKAP4.
Human CKAP4/p63 Antibody
R&D Systems | Catalog # AF7355
Key Product Details
Species Reactivity
Validated:
Human
Cited:
Human, Mouse, Primate - Chlorocebus aethiops (African Green Monkey)
Applications
Validated:
Western Blot, Immunocytochemistry, Simple Western
Cited:
Western Blot, Immunocytochemistry
Label
Unconjugated
Antibody Source
Polyclonal Sheep IgG
Loading...
Product Specifications
Immunogen
Mouse myeloma cell line NS0-derived recombinant human CKAP4/p63
His128-Val602
Accession # Q07065
His128-Val602
Accession # Q07065
Specificity
Detects human CKAP4/p63 in direct ELISAs and Western blots. In direct ELISAs, approximately 45% cross-reactivity with recombinant mouse CKAP4/p63 is observed.
Clonality
Polyclonal
Host
Sheep
Isotype
IgG
Scientific Data Images for Human CKAP4/p63 Antibody
Detection of Human CKAP4/p63 by Western Blot.
Western blot shows lysates of JEG-3 human epithelial choriocarcinoma cell line, TK-6 human lymphoblast cell line, and HEK293 human embryonic kidney cell line. PVDF membrane was probed with 1 µg/mL of Sheep Anti-Human CKAP4/p63 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF7355) followed by HRP-conjugated Anti-Sheep IgG Secondary Antibody (HAF016). A specific band was detected for CKAP4/p63 at approximately 63 kDa (as indicated). This experiment was conducted under reducing conditions and using Immunoblot Buffer Group 8.CKAP4/p63 in HeLa Human Cell Line.
CKAP4/p63 was detected in immersion fixed HeLa human cervical epithelial carcinoma cell line using Sheep Anti-Human CKAP4/p63 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF7355) at 10 µg/mL for 3 hours at room temperature. Cells were stained using the NorthernLights™ 557-conjugated Anti-Sheep IgG Secondary Antibody (red; NL010) and counterstained with DAPI (blue). Specific staining was localized to cytoplasm. View our protocol for Fluorescent ICC Staining of Cells on Coverslips.CKAP4/p63 in NHEK Human Normal Epidermal Keratinocytes.
CKAP4/p63 was detected in immersion fixed NHEK human normal epidermal keratinocytes using Sheep Anti-Human CKAP4/p63 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF7355) at 10 µg/mL for 3 hours at room temperature. Cells were stained using the NorthernLights™ 493-conjugated Anti-Sheep IgG Secondary Antibody (green; NL012). Cytokeratin 14 was also detected using Mouse Anti-Human Cytokeratin 14 Monoclonal Antibody (MAB3164) and stained using the NorthernLights™ 557-conjugated Anti-Mouse IgG Secondary Antibody (red; NL007). Cells were counterstained with DAPI (blue). Specific staining of CKAP4/p63 was localized to perinuclear space and cell membrane. View our protocol for Fluorescent ICC Staining of Cells on Coverslips.Detection of Human CKAP4/p63 by Simple WesternTM.

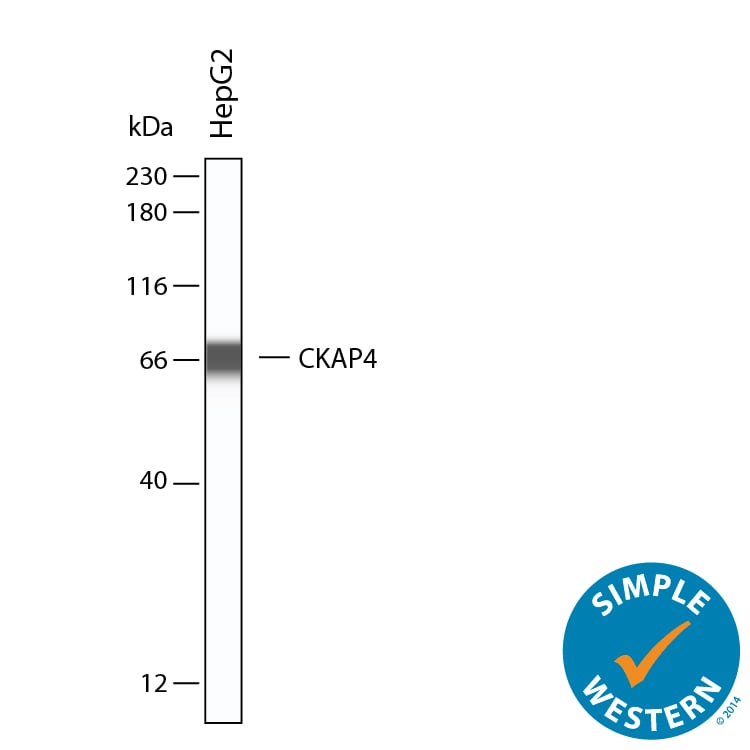

Simple Western shows lysates of HepG2 human hepatocellular carcinoma cell line, loaded at 0.2 mg/ml. A specific band was detected for CKAP4/p63 at approximately 65 kDa (as indicated) using 4 µg/mL of Sheep Anti-Human CKAP4/p63 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF7355). This experiment was conducted under reducing conditions and using the 12-230 kDa separation system.Applications for Human CKAP4/p63 Antibody
Application
Recommended Usage
Immunocytochemistry
5-15 µg/mL
Sample: Immersion fixed HeLa human cervical epithelial carcinoma cell line and NHEK human normal epidermal keratinocytes
Sample: Immersion fixed HeLa human cervical epithelial carcinoma cell line and NHEK human normal epidermal keratinocytes
Simple Western
4 µg/mL
Sample: HepG2 human hepatocellular carcinoma cell line
Sample: HepG2 human hepatocellular carcinoma cell line
Western Blot
1 µg/mL
Sample: JEG‑3 human epithelial choriocarcinoma cell line, TK‑6 human lymphoblast cell line, and HEK293 human embryonic kidney cell line
Sample: JEG‑3 human epithelial choriocarcinoma cell line, TK‑6 human lymphoblast cell line, and HEK293 human embryonic kidney cell line
Formulation, Preparation, and Storage
Purification
Antigen Affinity-purified
Reconstitution
Sterile PBS to a final concentration of 0.2 mg/mL. For liquid material, refer to CoA for concentration.
Loading...
Formulation
Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. See Certificate of Analysis for details.
*Small pack size (-SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.
*Small pack size (-SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.
Shipping
Lyophilized product is shipped at ambient temperature. Liquid small pack size (-SP) is shipped with polar packs. Upon receipt, store immediately at the temperature recommended below.
Stability & Storage
Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
- 12 months from date of receipt, -20 to -70 °C as supplied.
- 1 month, 2 to 8 °C under sterile conditions after reconstitution.
- 6 months, -20 to -70 °C under sterile conditions after reconstitution.
Calculators
Background: CKAP4/p63
Long Name
Cytoskeleton-associated Protein-4/Climp-63
Alternate Names
CLIMP-63, ERGIC-63, p63
Gene Symbol
CKAP4
