Key Product Details

Species Reactivity

Human

Applications

Neutralization, Flow Cytometry

Label

Unconjugated

Antibody Source

Recombinant Monoclonal Rabbit IgG Clone # 2742B
View all HVEM/TNFRSF14 Primary Antibodies »

Product Specifications

Immunogen

Human embryonic kidney cell HEK293-derived human HVEM/TNFRSF14
Pro37-Val202
Accession # Q92956

Specificity

Detects human HVEM/TNFRSF14 in ELISA.

Clonality

Monoclonal

Host

Rabbit

Isotype

IgG

Scientific Data Images for Human HVEM/TNFRSF14 Antibody

Detection of HVEM/TNFRSF14 in Human PBMC B Cells by Flow Cytometry.

Human PBMC lymphocytes were stained with (A) Rabbit Anti-Human HVEM/TNFRSF14 Monoclonal Antibody (Catalog # MAB3563) or (B) isotype control antibody (MAB1050), followed by Allophycocyanin-conjugated Anti-Rabbit IgG Secondary Antibody (F0111) and Mouse Anti-Human PE-conjugated CD19 (FAB4867P). Cells were gated on Mouse Anti-Human Alexa Fluor® 405-conjugated CD14 (FAB3832V), Mouse Anti-Human Alexa Fluor® 488-conjugated CD3 (FAB100G), and Mouse Anti-Human Alexa Fluor® 700-conjugated CD56 (FAB24086N) negative populations. Staining was performed using our Staining Membrane-associated Proteins protocol.

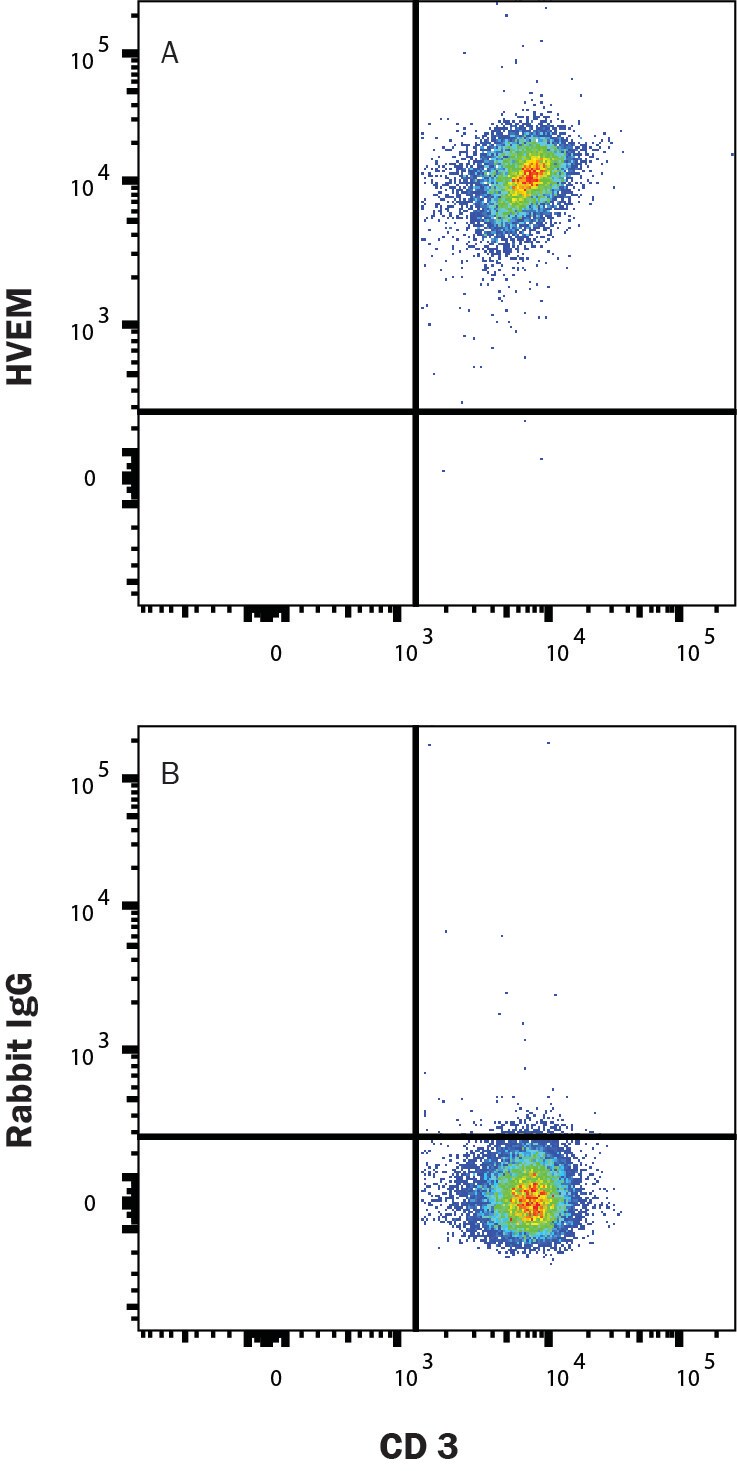

Detection of HVEM/TNFRSF14 in Human PBMC T cells by Flow Cytometry.

Human PBMC lymphocytes were stained with (A) Rabbit Anti-Human HVEM/TNFRSF14 Monoclonal Antibody (Catalog # MAB3563) or (B) isotype control antibody (MAB1050), followed by Allophycocyanin-conjugated Anti-Rabbit IgG Secondary Antibody (F0111) and Mouse Anti-Human Alexa Fluor® 488-conjugated CD3 (FAB100G). Cells were gated on Mouse Anti-Human Alexa Fluor® 405-conjugated CD14 (FAB3832V), Mouse Anti-Human PE-conjugated CD19 (FAB4867P), and Mouse Anti-Human Alexa Fluor® 700-conjugated CD56 (FAB24086N) negative populations. Staining was performed using our Staining Membrane-associated Proteins protocol.

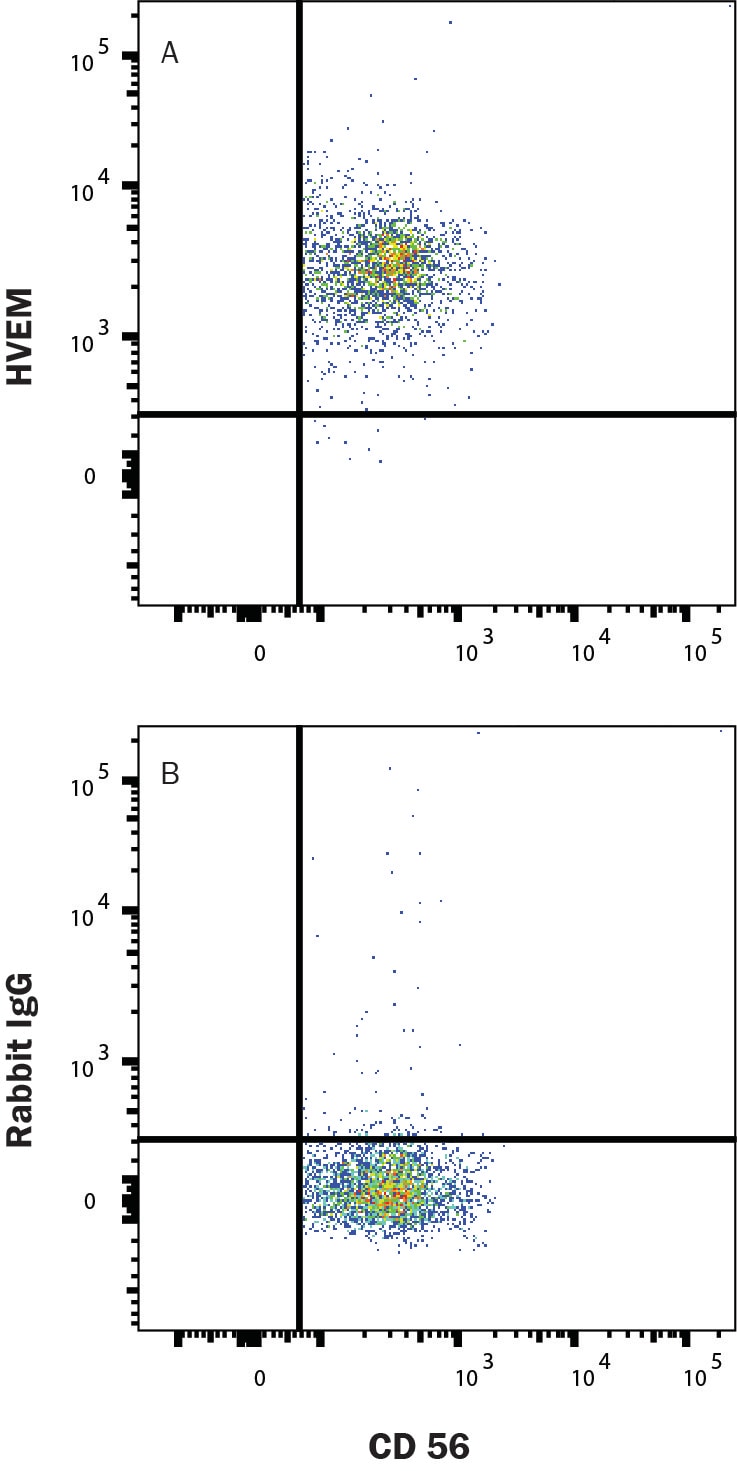

Detection of HVEM/TNFRSF14 in Human PBMC NK cells by Flow Cytometry

Human PBMC lymphocytes were stained with (A) Rabbit Anti-Human HVEM/TNFRSF14 Monoclonal Antibody (Catalog # MAB3563) or (B) isotype control antibody (MAB1050), followed by Allophycocyanin-conjugated Anti-Rabbit IgG Secondary Antibody (F0111) and Mouse Anti-Human Alexa Fluor® 700-conjugated CD56 (FAB24086N). Cells were gated on Mouse Anti-Human Alexa Fluor® 405-conjugated CD14 (FAB3832V), Mouse Anti-Human PE-conjugated CD19 (FAB4867P), and Mouse Anti-Human Alexa Fluor® 488-conjugated CD3 (FAB100G) negative populations. Staining was performed using our Staining Membrane-associated Proteins protocol.

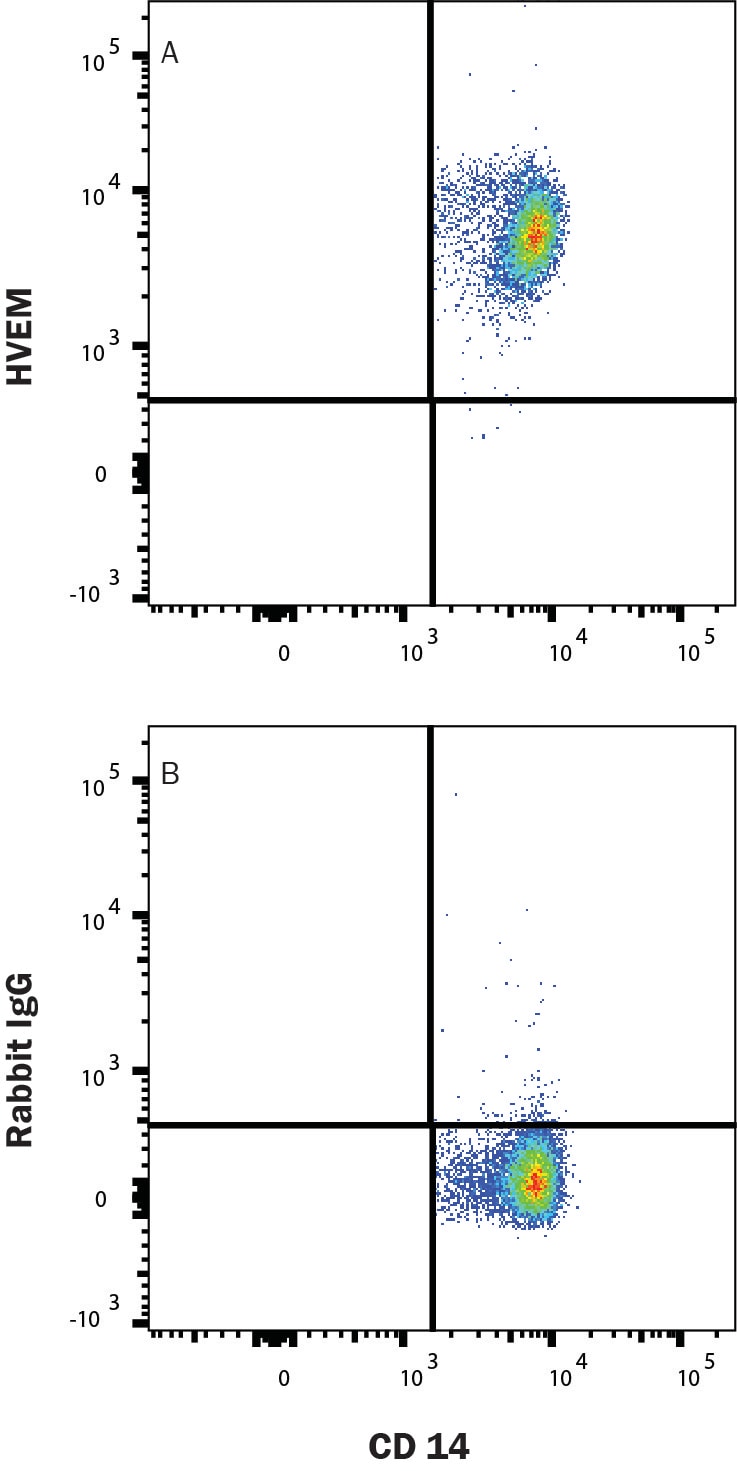

Detection of HVEM/TNFRSF14 in Human PBMC Monocytes by Flow Cytometry

Human PBMC monocytes were stained with (A) Rabbit Anti-Human HVEM/TNFRSF14 Monoclonal Antibody (Catalog # MAB3563) or (B) isotype control antibody (MAB1050), followed by Allophycocyanin-conjugated Anti-Rabbit IgG Secondary Antibody (F0111) and Mouse Anti-Human Alexa Fluor® 405-conjugated CD14 (FAB3832V). Cells were gated on Mouse Anti-Human Alexa Fluor® 488-conjugated CD3 (FAB100G), Mouse Anti-Human PE-conjugated CD19 (FAB4867P), and Mouse Anti-Human Alexa Fluor® 700-conjugated CD56 (FAB24086N) negative populations. Staining was performed using our Staining Membrane-associated Proteins protocol.

Applications for Human HVEM/TNFRSF14 Antibody

Application
Recommended Usage

Flow Cytometry

0.25 µg/106 cells
Sample: Human PBMCs

Neutralization

In a functional ELISA binding assay, 0.075-0.45 ug/mL of this antibody will block 50% of the binding of  1 ug/mL of recombinant human BTLA His-tag protein (catalog# 9235-BT) to immobilized recombinant human HVEM Fc Chimera coat 1 ug/mL (100 µL/well). At 1 ug/mL, this antibody will block >90% of the binding.

Flow Cytometry Panel Builder

Bio-Techne Knows Flow Cytometry

Save time and reduce costly mistakes by quickly finding compatible reagents using the Panel Builder Tool.

Advanced Features

  • Spectra Viewer - Custom analysis of spectra from multiple fluorochromes
  • Spillover Popups - Visualize the spectra of individual fluorochromes
  • Antigen Density Selector - Match fluorochrome brightness with antigen density
Build Your Panel Now
Flow Cytometry

Formulation, Preparation, and Storage

Purification

Protein A or G purified from cell culture supernatant

Reconstitution

Reconstitute at 0.5 mg/mL in sterile PBS. For liquid material, refer to CoA for concentration.

Formulation

Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.

Shipping

Lyophilized product is shipped at ambient temperature. Liquid small pack size (-SP) is shipped with polar packs. Upon receipt, store immediately at the temperature recommended below.

Stability & Storage

Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 6 months, -20 to -70 °C under sterile conditions after reconstitution.

Calculators

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Background: HVEM/TNFRSF14

HVEM (herpesvirus entry mediator), also known as TNFRSF14 and CD270, is a type I membrane protein in the TNF receptor superfamily, and it can both promote and inhibit T cell activity (1). Mature human HVEM consists of a 164 amino acid (aa) extracellular domain (ECD) with three cysteine-rich domains (CRD), a 21 aa transmembrane segment, and a 60 aa cytoplasmic tail with a TRAF interaction domain (2, 3). Within the ECD, human HVEM shares 55% aa sequence identity with mouse and rat HVEM. Alternative splicing generates an additional isoform with a substitution of the N-terminal 10 amino acids including the signal peptide. HVEM is highly expressed on naïve CD4+ T cells, CD8+ T memory cells, regulatory T cells, dendritic cells, monocytes, and neutrophils (4-8). Its expression declines during effector T cell activation but is up-regulated during Treg activation (4, 5). HVEM functions as a receptor for BTLA, CD160, LIGHT/TNFSF14, and Lymphotoxin-alpha (4, 9‑12). Ligation of HVEM by LIGHT triggers T cell, monocyte, and neutrophil activation (8, 10) and contributes to Th1 inflammation and cardiac allograft rejection (13, 14). In contrast, HVEM binding to CD160 or BTLA suppresses T cell and dendritic cell activation (4, 7, 9, 10) and dampens intestinal inflammation (15). HVEM enhances the development of CD8+ T cell memory and Treg function (5, 6). It is additionally expressed on intestinal epithelial cells, where its binding by intraepithelial lymphocyte (IEL) expressed CD160 promotes epitheilal integrity and host defense (16). The herpesvirus envelope glycoprotein gD, which binds HVEM to initiate membrane fusion, can antagonize both BTLA and LIGHT binding (2, 9, 11).

References

  1. del Rio, M.L. et al. (2010) J. Leukoc. Biol. 87:223.
  2. Montgomery, R.I. et al. (1996) Cell 87:427.
  3. Hsu, H. et al. (1997) J. Biol. Chem. 272:13471.
  4. Sedy, J. R. et al. (2005) Nat. Immunol. 6:90.
  5. Tao, R. et al. (2008) J. Immunol. 180:6649.
  6. Steinberg, M.W. et al. (2013) PLoS One 8:e77992.
  7. de Trez, C. et al. (2008) J. Immunol. 180:238.
  8. Heo, S.K. et al. (2006) J. Leukoc. Biol. 79:330.
  9. Gonzalez, L.C. et al. (2005) Proc. Natl. Acad Sci. USA 102:1116.
  10. Cai, G. et al. (2008) Nat. Immunol. 9:176.
  11. Mauri, D.N. et al. (1998) Immunity 8:21.
  12. Harrop, J.A. et al. (1998) J. Biol. Chem. 273:27548.
  13. Wang, J. et al. (2005) J. Immunol. 174:8173.
  14. Ye, Q. et al. (2002) J. Exp. Med. 195:795.
  15. Steinberg, M.W. et al. (2008) J. Exp. Med. 205:1463.
  16. Shui, J.W. et al. (2012) Nature 488:222.

Long Name

Herpesvirus Entry Mediator

Alternate Names

ATAR, CD270, LIGHTR, TNFRSF14

Entrez Gene IDs

8764 (Human); 230979 (Mouse); 102137807 (Cynomolgus Monkey)

Gene Symbol

TNFRSF14

UniProt

Q92956
