Key Product Details

Species Reactivity

Validated:

Human, Mouse

Cited:

Human, Mouse, Transgenic Mouse

Applications

Validated:

Western Blot, Flow Cytometry, Immunocytochemistry, CyTOF-ready

Cited:

Immunohistochemistry, Immunohistochemistry-Paraffin, Western Blot, Flow Cytometry, Immunocytochemistry

Label

Unconjugated

Antibody Source

Monoclonal Rat IgG2A Clone # 145901
View all Frizzled-4 Primary Antibodies »

Product Specifications

Immunogen

Mouse myeloma cell line NS0-derived recombinant mouse Frizzled-4
Phe37-Glu180
Accession # Q61088

Specificity

Detects human and mouse Frizzled-4 in Western blots. In Western blots, no cross-reactivity with recombinant mouse (rm) Frizzled-1, -2, -3, -6, -7, -8, or recombinant human Frizzled-5 is observed. Detects Frizzled-4 by flow cytometry and immunohistochemistry on mouse differentiated embryoid bodies derived from the mouse embryonic cell line, D3.

Clonality

Monoclonal

Host

Rat

Isotype

IgG2A

Applications for Human/Mouse Frizzled‑4 Antibody

Application
Recommended Usage

CyTOF-ready

Ready to be labeled using established conjugation methods. No BSA or other carrier proteins that could interfere with conjugation.

Flow Cytometry

2.5 µg/106 cells
Sample: HEK293 human embryonic kidney cell line

Immunocytochemistry

8-25 µg/mL
Sample: Immersion fixed HEK293 human embryonic kidney cell line

Western Blot

1 µg/mL
Sample: Recombinant Human Frizzled-4 (Catalog # 5847-FZ)
Recombinant Mouse Frizzled-4 Fc Chimera (Catalog # 194-FZ)

Reviewed Applications

Read 4 reviews rated 4.3 using MAB194 in the following applications:

Flow Cytometry Panel Builder

Bio-Techne Knows Flow Cytometry

Save time and reduce costly mistakes by quickly finding compatible reagents using the Panel Builder Tool.

Advanced Features

  • Spectra Viewer - Custom analysis of spectra from multiple fluorochromes
  • Spillover Popups - Visualize the spectra of individual fluorochromes
  • Antigen Density Selector - Match fluorochrome brightness with antigen density
Build Your Panel Now
Flow Cytometry

Formulation, Preparation, and Storage

Purification

Protein A or G purified from hybridoma culture supernatant

Reconstitution

Reconstitute at 0.5 mg/mL in sterile PBS. For liquid material, refer to CoA for concentration.

Formulation

Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.

Shipping

Lyophilized product is shipped at ambient temperature. Liquid small pack size (-SP) is shipped with polar packs. Upon receipt, store immediately at the temperature recommended below.

Stability & Storage

Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 6 months, -20 to -70 °C under sterile conditions after reconstitution.

Calculators

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Background: Frizzled-4

Frizzled-4, designated CD344, is a 7-transmembrane glycoprotein of the Frizzled family within the G-protein coupled receptor superfamily (1, 2). Frizzled proteins function as receptors for Wnt proteins and can activate canonical Wnt/beta-catenin signaling as well as planar cell polarity and calcium flux pathways (1). Frizzled-4 is particularly important in angiogenic Wnt pathway signaling (1, 5). Frizzleds contain a divergent N-terminal signal peptide, a highly conserved ~120  amino acid (aa) cysteine-rich domain (CRD), a variable length linker region, seven transmembrane domains, and a variable-length C-terminal tail (1). The mouse Frizzled-4 cDNA encodes 537 aa with a 36 aa signal sequence and a 186 aa N-terminal extracellular sequence (4). The portion expressed includes aa 37-180, and shares 93%, 94%, 90%, 89% and 88% identity with human, rat, equine, bovine and canine Frizzled-4, respectively. This portion competes for Wnt binding with endogenous receptors. In humans, a 122 aa soluble form that diverges at aa 95 is proposed to be a positive regulator of Wnt signaling pathways (5). Frizzled-4 is unusual in binding a non-wnt ligand, Norrin, in addition to binding Wnt ligands (1, 3, 6). Norrin binds the Frizzled-4 CRD, activates Wnt signaling pathways and uses LRP5/6 as co-receptors (3, 6). Deletion of either Frizzled-4 or Norrin in mice results in a similar phenotype including malformation of vasculature in the retina, cerebellar degeneration, and loss of hair cells in the inner ear (1, 3, 7). In humans, blindness due to familial exudative vitreoretinopathy (FEVR) is associated with mutations producing loss of function of Frizzled-4 or Norrin, designated EVR1 and EVR2, respectively (1, 3, 8). Frizzled-4 expression has been found in many tissues, including mouse ovary, where it influences corpus luteum vasculogenesis and is necessary for fertility (4, 9).

References

  1. Huang, H-C. and P.S. Klein (2004) Genome Biol. 5:234.
  2. Parmalee, N.L. and J. Kitajewski (2008) Curr. Drug Targets 9:558.
  3. Xu, Q. et al. (2004) Cell 116:883.
  4. Wang, Y. et al. (1996) J. Biol. Chem. 271:4468.
  5. Sagara, N. et al. (2001) Biochem. Biophys. Res. Commun. 282:750.
  6. Smallwood, P.M. et al. (2007) J. Biol. Chem. 282:4057.
  7. Wang, Y. et al. (2001) J. Neurosci. 21:4761.
  8. Robitaille, J. et al. (2002) Nat. Genet. 32:326.
  9. Hsieh, M. et al. (2005) Biol. Reprod. 73:1135.

Alternate Names

CD344, Frizzled4, FZD4

Entrez Gene IDs

8322 (Human); 14366 (Mouse)

Gene Symbol

FZD4

UniProt

Q61088

Additional Frizzled-4 Products

Product Documents for Human/Mouse Frizzled‑4 Antibody

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot or batch number in the search box below.

Note: Certificate of Analysis not available for kit components.

Download SDS

Product Specific Notices for Human/Mouse Frizzled‑4 Antibody

For research use only

Related Research Areas

Wnt Family
Wnt Receptors

Citations for Human/Mouse Frizzled‑4 Antibody

Customer Reviews for Human/Mouse Frizzled‑4 Antibody (4)

4.3 out of 5
4 Customer Ratings
5 Stars
50%
4 Stars
25%
3 Stars
25%
2 Stars
0%
1 Stars
0%

Have you used Human/Mouse Frizzled‑4 Antibody?

Submit a review and receive an Amazon gift card!

$25/€18/£15/$25CAN/¥2500 Yen for a review with an image

$10/€7/£6/$10CAN/¥1110 Yen for a review without an image

Submit a review
Amazon Gift Card

Customer Images

Showing  1 - 4 of 4 reviews Showing All
Filter By:
Clear Filters X
  • Human/Mouse Frizzled-4 Antibody
    Name: Anonymous
    Application: Immunocytochemistry/Immunofluorescence
    Sample Tested: Mesenchymal stem cells
    Species: Human
    Verified Customer | Posted 11/12/2021
    Human/Mouse Frizzled‑4 Antibody MAB194
  • Human/Mouse Frizzled-4 Antibody
    Name: Anonymous

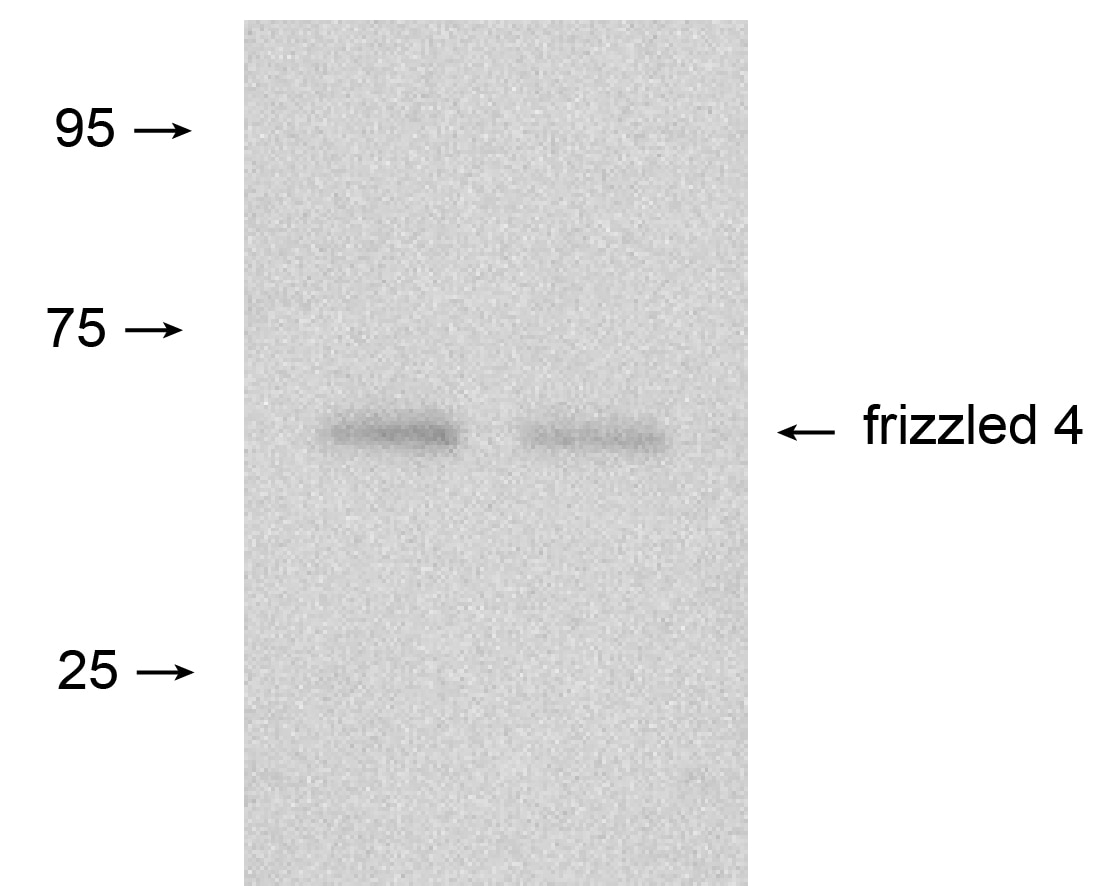

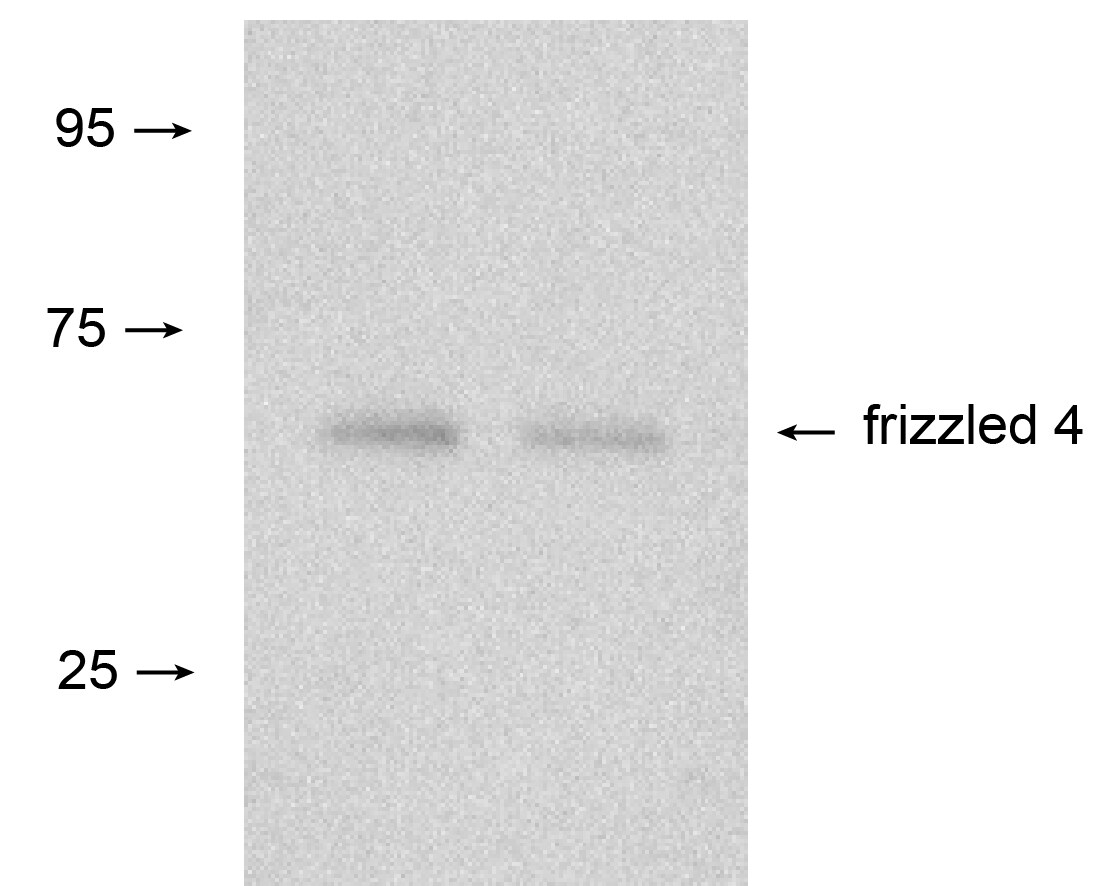

    Application: Western Blot
    Sample Tested: cortex organoid
    Species: Human
    Verified Customer | Posted 08/23/2021
    Human/Mouse Frizzled‑4 Antibody MAB194
  • Human/Mouse Frizzled-4 Antibody
    Name: Emily Thompson
    Application: Western Blot
    Sample Tested: primary cortical neuron culture
    Species: Mouse
    Verified Customer | Posted 12/08/2020
    Human/Mouse Frizzled‑4 Antibody MAB194
  • Name: Anonymous

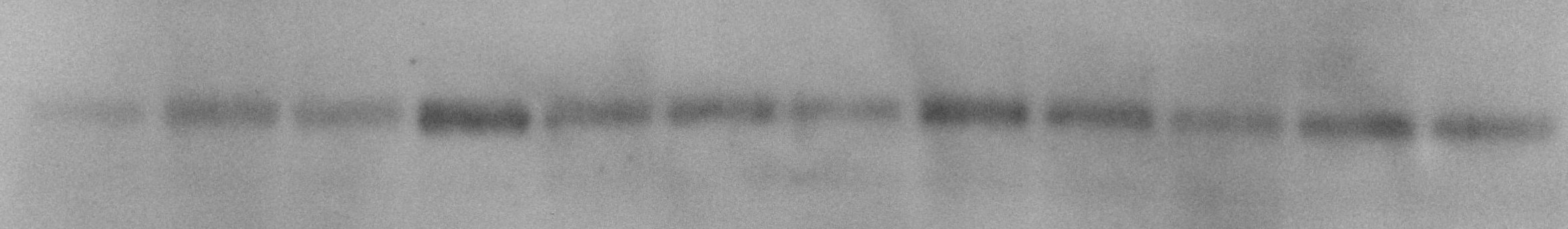

    Application: Western Blot
    Sample Tested: mouse ear mesenchymal stem cell
    Species: Mouse
    Verified Customer | Posted 06/28/2015

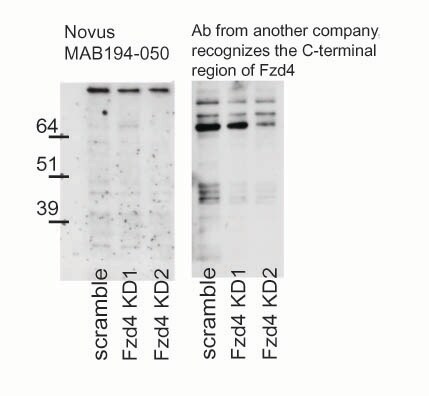

    Fzd4 KD cells
    Human/Mouse Frizzled‑4 Antibody MAB194

There are no reviews that match your criteria.

Showing  1 - 4 of 4 reviews Showing All

Protocols

Find general support by application which include: protocols, troubleshooting, illustrated assays, videos and webinars.

FAQs

No product specific FAQs exist for this product.

View all FAQs for Antibodies
