VCL (Vinculin; from the Latin vinculum denoting a union or connection) is a 115-120 kDa cytoplasmic member of the vinculin/ alpha -catenin family of proteins. The VCL gene is ubiquitously expressed and generates a series of globular domains whose N-and C-terminal globular regions self-associate to generate an inactive molecule. When at least two ligands bind to the molecule, it opens up, allowing for the formation of multiple complexes that impact both signaling and cell structure. Among other things, VCL is known to regulate the expression of E-cadherin, and to connect actin to integrins via talin. Human VCL is 1134 amino acids (aa) in length, and at this size, is commonly known as metavinculin. It contains an 835 aa N-terminal globular head that binds talin, beta - and alpha -catenin, followed by a Pro-rich linker segment (aa 836-878) and a 27-29 kDa C-terminal tail that binds lipids plus paxillin and PKC alpha (aa 879-1134). At least seven utilized phosphorylation sites exist. There are three potential splice variants. One shows a deletion of aa 916-983 and is called vinculin. A second contains an alternative start site at Met74, and again possesses a deletion of aa 916-983. A third shows a 34 aa substitution for aa 262‑1134. Over the range of aa used as the immunogen for this reagent (aa 1020-1134 in metavinculin; 952-1066 in vinculin), human and mouse VCL are identical in aa sequence.
Key Product Details
Species Reactivity
Human, Rat
Applications
Immunohistochemistry, Western Blot, Simple Western
Label
Unconjugated
Antibody Source
Polyclonal Sheep IgG
Loading...
Product Specifications
Immunogen
E. coli-derived recombinant human Vinculin
Lys1020-Gln1134
Accession # P18206
Lys1020-Gln1134
Accession # P18206
Specificity
Detects recombinant human Vinculin in direct ELISAs and human and rat Vinculin in Western blots.
Clonality
Polyclonal
Host
Sheep
Isotype
IgG
Scientific Data Images for Human/Rat Vinculin Antibody
Detection of Human and Rat Vinculin by Western Blot.
Western blot shows lysates of HeLa human cervical epithelial carcinoma cell line and rat heart tissue. PVDF membrane was probed with 1 µg/mL of Sheep Anti-Human/Rat Vinculin Antigen Affinity-purified Polyclonal Antibody (Catalog # AF6896) followed by HRP-conjugated Anti-Sheep IgG Secondary Antibody (Catalog # HAF016). A specific band was detected for Vinculin at approximately 120 kDa (as indicated). This experiment was conducted under reducing conditions and using Immunoblot Buffer Group 1.Detection of Human Vinculin by Simple WesternTM.

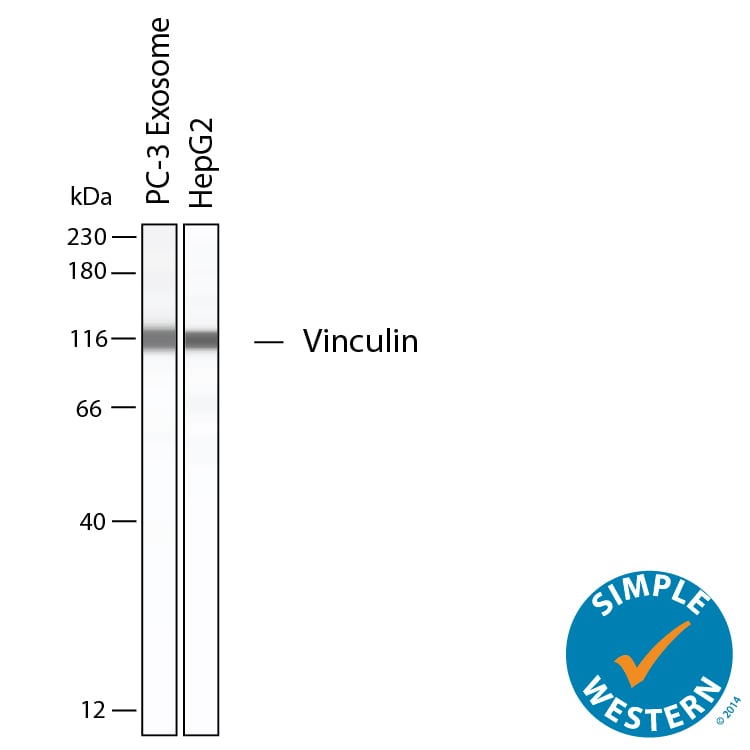

Simple Western shows lysates of Exosome Standards (PC‑3) (NBP2-49856) and HepG2 human hepatocellular carcinoma cell line, loaded at 0.5 mg/ml. A specific band was detected for Vinculin at approximately 119 kDa (as indicated) using 10 µg/mL of Sheep Anti-Human/Rat Vinculin Antigen Affinity-purified Polyclonal Antibody (Catalog # AF6896). This experiment was conducted under reducing conditions and using the 12-230kDa separation system.Vinculin in Human Uterus.
Vinculin was detected in immersion fixed paraffin-embedded sections of human uterus using Sheep Anti-Human/Rat Vinculin Antigen Affinity-purified Polyclonal Antibody (Catalog # AF6896) at 3 µg/mL overnight at 4 °C. Before incubation with the primary antibody, tissue was subjected to heat-induced epitope retrieval using Antigen Retrieval Reagent-Basic (Catalog # CTS013). Tissue was stained using the Anti-Sheep HRP-DAB Cell & Tissue Staining Kit (brown; Catalog # CTS019) and counter-stained with hematoxylin (blue). vView our protocol for Chromogenic IHC Staining of Paraffin-embedded Tissue Sections.Applications for Human/Rat Vinculin Antibody
Application
Recommended Usage
Immunohistochemistry
5-15 µg/mL
Sample: Immersion fixed paraffin-embedded sections of human uterus subjected to heat-induced epitope retrieval using Antigen Retrieval Reagent-Basic (Catalog # CTS013)
Sample: Immersion fixed paraffin-embedded sections of human uterus subjected to heat-induced epitope retrieval using Antigen Retrieval Reagent-Basic (Catalog # CTS013)
Simple Western
10 µg/mL
Sample: Exosome Standards (PC-3) (Catalog # NBP2-49856) and HepG2 human hepatocellular carcinoma cell line
Sample: Exosome Standards (PC-3) (Catalog # NBP2-49856) and HepG2 human hepatocellular carcinoma cell line
Western Blot
1 µg/mL
Sample: HeLa human cervical epithelial carcinoma cell line and rat heart tissue
Sample: HeLa human cervical epithelial carcinoma cell line and rat heart tissue
Formulation, Preparation, and Storage
Purification
Antigen Affinity-purified
Reconstitution
Reconstitute at 0.2 mg/mL in sterile PBS. For liquid material, refer to CoA for concentration.
Loading...
Formulation
Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. See Certificate of Analysis for details.
*Small pack size (-SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.
*Small pack size (-SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.
Shipping
Lyophilized product is shipped at ambient temperature. Liquid small pack size (-SP) is shipped with polar packs. Upon receipt, store immediately at the temperature recommended below.
Stability & Storage
Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
- 12 months from date of receipt, -20 to -70 °C as supplied.
- 1 month, 2 to 8 °C under sterile conditions after reconstitution.
- 6 months, -20 to -70 °C under sterile conditions after reconstitution.
