CEACAM-1 (Carcinoembryonic antigen-related cell adhesion molecule 1; also BGP-1, CD66a and MHVR1) is a 110-120 kDa member of the CEACAM subfamily, CEA family of proteins. It has a wide expression pattern, being found on neutrophils, dendritic cells, endothelial cells, colonic epithelium and hepatocytes. It mediates cell adhesion, and appears to regulate insulin levels and signaling by interacting with the insulin receptor. It also demonstrates proangiogenic effects by inducing endothelial cells to proliferate and form capillary-like tubules. Finally, CEACAM-1 is a known receptor for mouse hepatitis virus. Mature mouse CEACAM-1 is a 487 amino acid (aa) type I transmembrane glycoprotein. Its contains a 394 aa extracellular region (aa 35-428) that shows one V-type (aa 35-142) and three C2-type
(aa 147-411) Ig-like domains, plus a 74 aa cytoplasmic domain. Three alternate splice forms exist. One contains a four aa substitution for aa 455-521, a second shows a Gln substitution for aa 142-322, and a third possesses a combination of the first two splice patterns. CEACAM-1 forms homodimers. Over aa 35-428, mouse CEACAM-1 shares 56% and 70% aa identity with human and rat CEACAM-1, respectively.
Mouse CEACAM‑1/CD66a Antibody
R&D Systems | Catalog # AF6480
Select the "Bulk Orders" button to request additional sizes or formulations.
Key Product Details
Species Reactivity
Validated:
Cited:
Applications
Validated:
Cited:
Label
Antibody Source
Product Specifications
Immunogen
Met1-Gly428
Accession # P31809
Specificity
Clonality
Host
Isotype
Scientific Data Images for Mouse CEACAM‑1/CD66a Antibody
Detection of Mouse CEACAM‑1/CD66a by Western Blot.
Western blot shows lysates of mouse liver tissue and mouse small intestine tissue. PVDF Membrane was probed with 0.1 µg/mL of Mouse CEACAM-1/CD66a Antigen Affinity-purified Polyclonal Antibody (Catalog # AF6480) followed by HRP-conjugated Anti-Sheep IgG Secondary Antibody (Catalog # HAF016). Specific bands were detected for CEACAM-1/CD66a between approximately 110 and 120 kDa (as indicated). This experiment was conducted under reducing conditions and using Immunoblot Buffer Group 1.

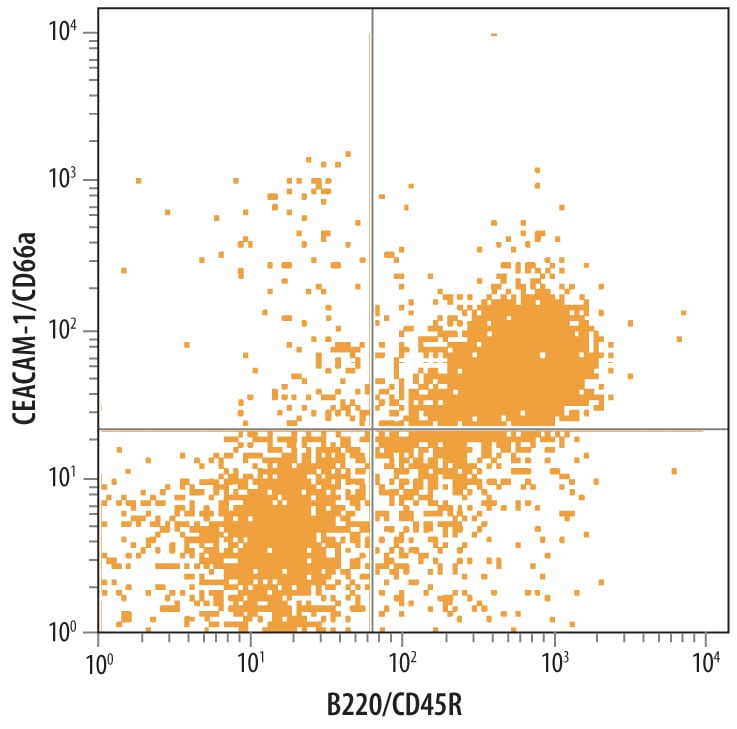

Detection of CEACAM-1 in Mouse Splenocytes by Flow Cytometry.
Mouse splenocytes were stained with Sheep Anti-Mouse CEACAM-1/CD66a Antigen Affinity-purified Polyclonal Antibody (Catalog # AF6480) followed by Phycoerythrin-conjugated Anti-Sheep IgG Secondary Antibody (Catalog # F0126) and Rat Anti-Mouse B220/CD45R APC-conjugated Monoclonal Antibody (Catalog # FAB1217A). Quadrant markers were set based on control antibody staining (Catalog # 5-001-A).
CEACAM‑1/CD66a in Mouse Liver.
CEACAM-1/CD66a was detected in perfusion fixed frozen sections of mouse liver using Sheep Anti-Mouse CEACAM-1/CD66a Antigen Affinity-purified Polyclonal Antibody (Catalog # AF6480) at 5 µg/mL overnight at 4 °C. Tissue was stained using the NorthernLights™ 557-conjugated Anti-Sheep IgG Secondary Antibody (red; Catalog # NL010) and counterstained with DAPI (blue). Specific staining was localized to endothelial cells in bile canaliculi. View our protocol for Fluorescent IHC Staining of Frozen Tissue Sections.
Applications for Mouse CEACAM‑1/CD66a Antibody
CyTOF-ready
Flow Cytometry
Sample: Mouse splenocytes
Immunohistochemistry
Sample: Perfusion fixed frozen sections of mouse liver
Western Blot
Sample: Mouse liver tissue and mouse small intestine tissue
Flow Cytometry Panel Builder
Bio-Techne Knows Flow Cytometry
Save time and reduce costly mistakes by quickly finding compatible reagents using the Panel Builder Tool.
Advanced Features
- Spectra Viewer - Custom analysis of spectra from multiple fluorochromes
- Spillover Popups - Visualize the spectra of individual fluorochromes
- Antigen Density Selector - Match fluorochrome brightness with antigen density
Formulation, Preparation, and Storage
Purification
Reconstitution
Sterile PBS to a final concentration of 0.2 mg/mL. For liquid material, refer to CoA for concentration.
Formulation
Shipping
Stability & Storage
- 12 months from date of receipt, -20 to -70 °C as supplied.
- 1 month, 2 to 8 °C under sterile conditions after reconstitution.
- 6 months, -20 to -70 °C under sterile conditions after reconstitution.
Calculators
Background: CEACAM-1/CD66a
Long Name
Alternate Names
Gene Symbol
UniProt
Additional CEACAM-1/CD66a Products
Product Documents for Mouse CEACAM‑1/CD66a Antibody
Certificate of Analysis
To download a Certificate of Analysis, please enter a lot or batch number in the search box below.
Note: Certificate of Analysis not available for kit components.
Product Specific Notices for Mouse CEACAM‑1/CD66a Antibody
For research use only
Citations for Mouse CEACAM‑1/CD66a Antibody
Powered by Bioz
Customer Reviews for Mouse CEACAM‑1/CD66a Antibody
There are currently no reviews for this product. Be the first to review Mouse CEACAM‑1/CD66a Antibody and earn rewards!
Have you used Mouse CEACAM‑1/CD66a Antibody?
Submit a review and receive an Amazon gift card!
$25/€18/£15/$25CAN/¥2500 Yen for a review with an image
$10/€7/£6/$10CAN/¥1110 Yen for a review without an image
Submit a review
