Plexin B2 is a 240 kDa type I transmembrane (TM) glycoprotein of the Plexin B family of semaphorin receptors (1, 2). The mouse Plexin B2 cDNA encodes 1842 amino acids (aa) that include a 19 aa signal sequence, a 1182 aa extracellular domain (ECD), a 21 aa TM domain, and a 620 aa cytoplasmic region. The ECD contains one semaphorin domain (aa 20‑468) and three IPT repeats (aa 806‑1096). The ECD may be cleaved into two subunits, a 170 kDa alpha ‑chain (aa 20‑1168) and an 80 kDa TM beta ‑chain, that remain noncovalently linked (1). Multiple splice variants may exist. Within aa 20‑1029 in the ECD, mouse Plexin B2 shares 82%, 93%, 80% and 79% aa identity with human, rat, canine and bovine Plexin B2, respectively. The B Plexins (B1, B2 and B3) share approximately 40% aa identity with each other. Plexin B2 mRNA is expressed in proliferating cerebellar granule cell progenitors, neuroepithelium, developing neurons, growth plate chondrocytes, tooth bud inner enamel epithelium, glomeruli and mesenchyme of the developing kidney, and in germinal center B lymphocytes when T cell help is present (3‑7). Plexin B2 is often co‑expressed with Plexin B1, and the two may form heterodimers (1, 4, 6). Genetic deletion of mouse Plexin B2 results in defects in proliferation and migration of cerebellar granule cells, abnormal development of the neural tube and disorganization of the embryonic brain; these defects are not seen when Plexin B1 is deleted (8-10). In adults, Plexin B2 is expressed in specialized vascular endothelia, pancreatic islets of Langerhans, and adrenal glands (11). Plexin B2 serves as a receptor for type 4 semaphorins, especially Sema4C and Sema4G (8‑12). B Plexins, including Plexin B2, can bind the scatter factor receptors, Met and Ron, and activate them upon semaphorin engagement (1, 13).
Mouse Plexin B2 Antibody
R&D Systems | Catalog # AF6836
Key Product Details
Species Reactivity
Validated:
Cited:
Applications
Validated:
Cited:
Label
Antibody Source
Product Specifications
Immunogen
Leu20-Trp1029
Accession # B2RXS4
Specificity
Clonality
Host
Isotype
Scientific Data Images for Mouse Plexin B2 Antibody
Detection of Mouse Plexin B2 by Western Blot.
Western blot shows lysates of M1 mouse myeloid leukemia cell line, mouse lung tissue, and mouse ovary tissue. PVDF membrane was probed with 0.5 µg/mL of Sheep Anti-Mouse Plexin B2 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF6836) followed by HRP-conjugated Anti-Sheep IgG Secondary Antibody (Catalog # HAF016). Specific bands were detected for Plexin B2 at approximately 240 and 150 kDa (as indicated). This experiment was conducted under reducing conditions and using Immunoblot Buffer Group 1.

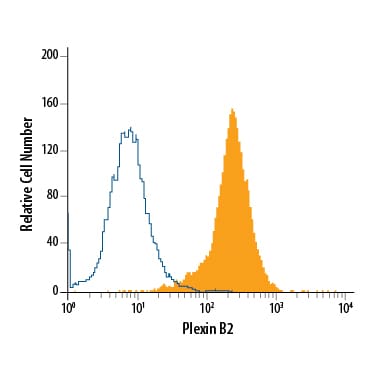

Detection of Plexin B2 in RAW 264.7 Mouse Cell Line by Flow Cytometry.
RAW 264.7 mouse monocyte/macrophage cell line was stained with Sheep Anti-Mouse Plexin B2 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF6836, filled histogram) or isotype control antibody (Catalog # 5-001-A, open histogram), followed by Phycoerythrin-conjugated Anti-Sheep IgG Secondary Antibody (Catalog # F0126).
Plexin B2 in Mouse Embryo.
Plexin B2 was detected in immersion fixed frozen sections of mouse embryo (13 d.p.c.) using Sheep Anti-Mouse Plexin B2 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF6836) at 0.6 µg/mL for 1 hour at room temperature followed by incubation with the Anti-Sheep IgG VisUCyte™ HRP Polymer Antibody (Catalog # VC006). Tissue was stained using DAB (brown) and counterstained with hematoxylin (blue). Specific staining was localized to developing central nervous system. View our protocol for IHC Staining with VisUCyte HRP Polymer Detection Reagents.
Applications for Mouse Plexin B2 Antibody
CyTOF-ready
Flow Cytometry
Sample: RAW 264.7 mouse monocyte/macrophage cell line
Immunohistochemistry
Sample: Immersion fixed frozen sections of mouse embryo (13 d.p.c.)
Western Blot
Sample: M1 mouse myeloid leukemia cell line, mouse lung tissue, and mouse ovary tissue
Flow Cytometry Panel Builder
Bio-Techne Knows Flow Cytometry
Save time and reduce costly mistakes by quickly finding compatible reagents using the Panel Builder Tool.
Advanced Features
- Spectra Viewer - Custom analysis of spectra from multiple fluorochromes
- Spillover Popups - Visualize the spectra of individual fluorochromes
- Antigen Density Selector - Match fluorochrome brightness with antigen density
Formulation, Preparation, and Storage
Purification
Reconstitution
Sterile PBS to a final concentration of 0.2 mg/mL. For liquid material, refer to CoA for concentration.
Formulation
Shipping
Stability & Storage
- 12 months from date of receipt, -20 to -70 °C as supplied.
- 1 month, 2 to 8 °C under sterile conditions after reconstitution.
- 6 months, -20 to -70 °C under sterile conditions after reconstitution.
Calculators
Background: Plexin B2
References
- Artigiani, S. et al. (2003) J. Biol. Chem. 278:10094.
- Negishi, M. et al. (2005) Cell. Mol. Life Sci. 62:1363.
- Friedel, R.H. et al. (2007) J. Neurosci. 27:3921.
- Worzfeld, T. et al. (2004) Eur. J. Neurosci. 19:2622.
- Zhang, M. et al. (2008) Bone 43:511.
- Perala, N.M. et al. (2005) Gene Expr. Patterns 5:355.
- Yu, D. et al. (2008) Immunol. Cell Biol. 86:3.
- Deng, S. et al. (2007) J. Neurosci. 27:6333.
- Hirschberg, A. et al. (2010) Mol. Cell. Biol. 30:764.
- Maier, V. et al. (2011) Mol. Cell. Neurosci. 46:419.
- Zielonka, M. et al. (2010) Exp. Cell Res. 316:2477.
- Yukawa, K. et al. (2010) Int. J. Mol. Med. 25:225.
- Conrotto, P. et al. (2004) Oncogene 23:5131.
