CD4, also known as L3T4, T4, and W3/25, is an approximately 55 kDa type I transmembrane glycoprotein that is expressed predominantly on thymocytes and a subset of mature T lymphocytes. It is a standard phenotype marker for the identification of T cell populations (1). Mature rat CD4 consists of a 367 amino acid (aa) extracellular region containing four immunoglobulin-like domains, a 23 aa transmembrane segment, and a 40 aa cytoplasmic domain (2). Within the ECD, rat CD4 shares 52% and 73% aa sequence identity with human and mouse CD4, respectively. CD4 is expressed along with CD8 on double positive T cells during their development in the thymus. Either CD4 or CD8 expression is then lost, giving rise to single positive (SP) CD4+ or CD8+ mature T cells (3). CD4+ SP cells, also known as T helper cells, further differentiate into multiple subsets of CD4+ cells including Th1, Th2, Th17, Tfh, and Treg cells which regulate humoral and cellular immunity (4). CD4 is re‑expressed on circulating CD8+ T cells upon activation and contributes to their cytotoxic effector activity (5). In the rat, CD4 is additionally expressed on macrophages and selected subsets of dendritic cells (6, 7). Similar CD4 distribution between species cannot be assumed as demonstrated by its presence on macrophages in human and rat but not in mouse (6). CD4 binds directly to MHC class II molecules on antigen presenting cells (8). This interaction contributes to the formation of the immunological synapse which is focused around the TCR-MHC class II-antigenic peptide interaction (1, 9). Palmitoylation of two cysteine residues in the cytoplasmic tail of CD4 promotes the localization of CD4 in lipid rafts and its ability to augment TCR signaling via activation of the tyrosine kinase Lck (10). CD4 also functions as a chemotactic receptor for IL-16 and, in human, as a co‑receptor for the gp120 surface glycoprotein of HIV-1 (11‑14). CD4 associates with CD44 on the cell surface to potentiate CD44-mediated cell adhesion (15).
Key Product Details
Species Reactivity
Applications
Label
Antibody Source
Product Specifications
Immunogen
Lys28-Thr394
Accession # P05540
Specificity
Clonality
Host
Isotype
Scientific Data Images for Rat CD4 Antibody
Detection of Rat CD4 by Western Blot.
Western blot shows lysates of rat CD4+T cells and rat spleen tissue. PVDF membrane was probed with 1 µg/mL of Sheep Anti-Rat CD4 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF6439) followed by HRP-conjugated Anti-Sheep IgG Secondary Antibody (Catalog # HAF016). A specific band was detected for CD4 at approximately 55 kDa (as indicated). This experiment was conducted under reducing conditions and using Immunoblot Buffer Group 1.

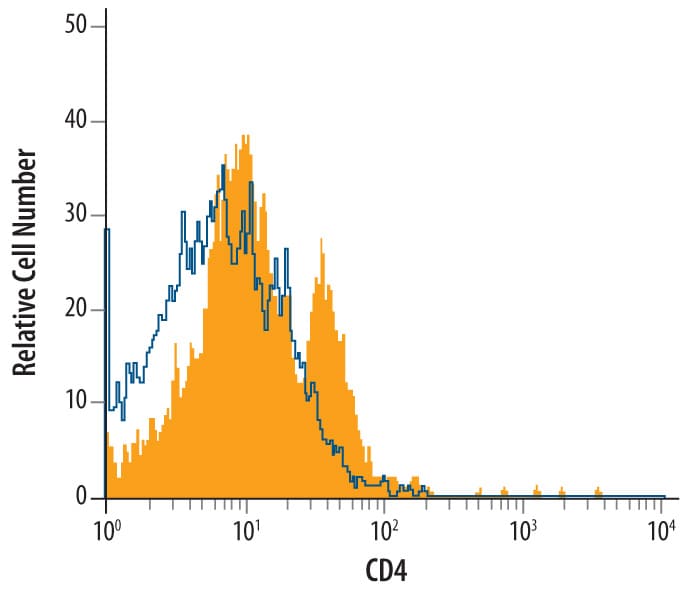

Detection of rat CD4 in Rat Splenocytes by Flow Cytometry.
Rat splenocytes were stained with Sheep Anti-Rat CD4 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF6439, filled histogram) or control antibody (Catalog # 5-001-A, open histogram), followed by Allophycocyanin-conjugated Anti-Sheep IgG Secondary Antibody (Catalog # F0127).
Applications for Rat CD4 Antibody
CyTOF-ready
Flow Cytometry
Sample: Rat splenocytes
Western Blot
Sample: Rat CD4+ T cells and rat spleen tissue
Flow Cytometry Panel Builder
Bio-Techne Knows Flow Cytometry
Save time and reduce costly mistakes by quickly finding compatible reagents using the Panel Builder Tool.
Advanced Features
- Spectra Viewer - Custom analysis of spectra from multiple fluorochromes
- Spillover Popups - Visualize the spectra of individual fluorochromes
- Antigen Density Selector - Match fluorochrome brightness with antigen density
Formulation, Preparation, and Storage
Purification
Reconstitution
Sterile PBS to a final concentration of 0.2 mg/mL. For liquid material, refer to CoA for concentration.
Formulation
Shipping
Stability & Storage
- 12 months from date of receipt, -20 to -70 °C as supplied.
- 1 month, 2 to 8 °C under sterile conditions after reconstitution.
- 6 months, -20 to -70 °C under sterile conditions after reconstitution.
Calculators
Background: CD4
References
- Vignali, D.A.A. (2010) J. Immunol. 184:5933.
- Clark, S.J. et al. (1987) Proc. Natl. Acad. Sci. 84:1649.
- Alarcon, B. and H.M. van Santen (2010) Sci. Signal. 3:pe11.
- Wan, Y.Y. and R.A. Flavell (2009) Mol. Cell Biol. 1:20.
- Kitchen, S.G. et al. (2005) Proc. Natl. Acad. Sci. 102:3794.
- Crocker, P.R. et al. (1987) J. Exp. Med. 166:613.
- Liu, L. et al. (1998) J. Immunol. 161:1146.
- Doyle, C. and J.L. Strominger (1987) Nature 330:256.
- Huppa, J.B. et al. (2010) Nature 463:963.
- Fragoso, R. et al. (2003) J. Immunol. 170:913.
- Cruikshank, W.W. et al. (1994) Proc. Natl. Acad. Sci. 91:5109.
- Klatzmann, D. et al. (1984) Nature 312:767.
- Dagleish, A.G. et al. (1984) Nature 312:763.
- Biswas, P. et al. (2003) Blood 101:4452.
- Umberto D. et al. (1999) International Immunology 11:1085.
Alternate Names
Entrez Gene IDs
Gene Symbol
UniProt
Additional CD4 Products
Product Documents for Rat CD4 Antibody
Certificate of Analysis
To download a Certificate of Analysis, please enter a lot or batch number in the search box below.
Note: Certificate of Analysis not available for kit components.
Product Specific Notices for Rat CD4 Antibody
For research use only
Customer Reviews for Rat CD4 Antibody
There are currently no reviews for this product. Be the first to review Rat CD4 Antibody and earn rewards!
Have you used Rat CD4 Antibody?
Submit a review and receive an Amazon gift card!
$25/€18/£15/$25CAN/¥2500 Yen for a review with an image
$10/€7/£6/$10CAN/¥1110 Yen for a review without an image
Submit a review
